Helkama

250 V CABLES

Instrumentation Cable · Cable & Wiring

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

RATED VOLTAGE150/250 V (300 V)
FIRE PERFORMANCEIEC 60332-1-2
Halogen-freeIEC 60754 series
SMOKE EMISSIONIEC 61034 series
OIL RESISTANCEIEC 60811-404 conditions (SHF2 only)
MIN. INSTALLATION TEMPERATURE-15 °C
OPERATING TEMPERATURE-40 – 80 °C fixed installation
MAX. CONDUCTOR TEMPERATURE90 °C
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“APPLICATION Screened control and instrumentation cable. For fixed installation in most areas, and on open deck in ships and offshore units. If the cable is exposed to direct sunlight, protective…”

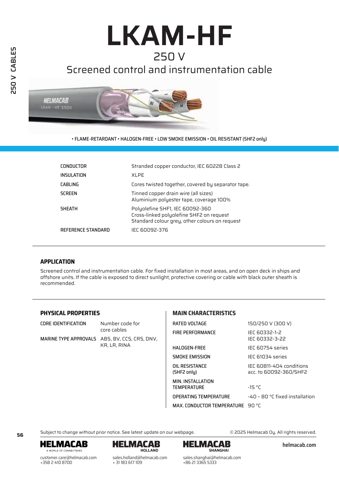

Helkama 250 V CABLES – Drawing (b3e262a072a3_S1-1 S. 1)
Drawing · b3e262a072a3_S1-1 · S. 1
Helkama 250 V CABLES – Drawing (c0035f7a9fbd_S1-1 S. 1)
Drawing · c0035f7a9fbd_S1-1 · S. 1

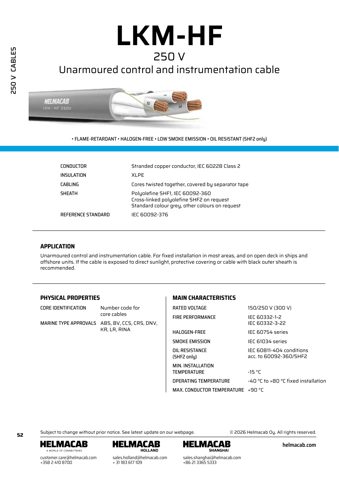

Helkama 250 V CABLES – Drawing (a8c65204ca83_S1-1 S. 1)
Drawing · a8c65204ca83_S1-1 · S. 1
Source: Helkama 250 V CABLES datasheet, p. 1
