Library› Electrical› Cable & Wiring› Instrumentation Cable› Helkama KLMA-LSZH
Helkama

KLMA-LSZH

Instrumentation Cable · Cable & Wiring

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

MIN. BENDING RADIUS (installation/fixed)15 x Ø/10 x Ø
RATED VOLTAGE75 V
MIN. INSTALLATION TEMPERATURE-5 °C
OPERATING TEMPERATURE-5 – 70 °C
FIRE PERFORMANCEDca, s2, d1, a1
REFERENCE STANDARDEN 50288-7, SFS 2755
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

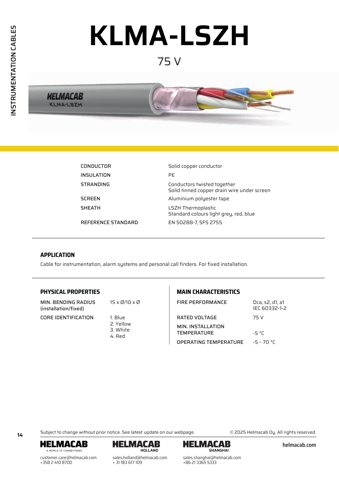

Helkama KLMA-LSZH – Drawing (38e70eddca60_S1-1 S. 1)
Drawing · 38e70eddca60_S1-1 · S. 1
