Library› Engine Room› Automation & Control› Level Switch› Endress+Hauser FTL63 HART, PROFINET over Ethernet-APL
Endress+Hauser

FTL63 HART, PROFINET over Ethernet-APL

Level Switch · Automation & Control

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Load4 to 20 mA passive, HART
R L max848 [W ]
Minimum start-up voltage10.5 V
Start-up current> 3.6 mA
Start-up time< 8 s
Minimum operating voltage10.5 V
Multidrop current4 mA
Supply voltage and internal ground terminal0.5 to 2.5 mm2 (20 to 14 AWG)
External ground terminal0.5 to 4 mm2 (20 to 12 AWG)
Time constant T63 (t2):0 s
Settling time (t3):0 ms
Cycle time (update time):at least 32 ms
HysteresisTypically 2.5 mm (0.1 in)
Non-repeatability0.5 mm (0.02 in)
Minimale Anlaufspannung10,5 V
Anlaufstrom> 3,6 mA
Anlaufzeit< 8 s
Minimale Betriebsspannung10,5 V
Multidrop-strom4 mA
Nennstrom4 … 20 mA HART
Apl-leistungsklasseAPL-Leistungsklasse A (DC 9,6 … 15 V 540 mW)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“Power supply DC 10.5 to 30 V Ex i Power supply DC 10.5 to 35 V, for other types of protection and non-certified device versions RLmax maximum load resistance Supply voltage”

Endress+Hauser FTL63 HART, PROFINET over Ethernet-APL – Drawing (2dc08e8cf0e1_S7-20 S. 7)
Drawing · 2dc08e8cf0e1_S7-20 · S. 7
Endress+Hauser FTL63 HART, PROFINET over Ethernet-APL – Drawing (2dc08e8cf0e1_S7-20 S. 8)
Drawing · 2dc08e8cf0e1_S7-20 · S. 8
Endress+Hauser FTL63 HART, PROFINET over Ethernet-APL – Drawing (2dc08e8cf0e1_S7-20 S. 9)
Drawing · 2dc08e8cf0e1_S7-20 · S. 9
Endress+Hauser FTL63 HART, PROFINET over Ethernet-APL – Page preview (2dc08e8cf0e1_S7-20 S. 10)
Page preview · 2dc08e8cf0e1_S7-20 · S. 10
Endress+Hauser FTL63 HART, PROFINET over Ethernet-APL – Page preview (2dc08e8cf0e1_S7-20 S. 11)
Page preview · 2dc08e8cf0e1_S7-20 · S. 11
Endress+Hauser FTL63 HART, PROFINET over Ethernet-APL – Page preview (2dc08e8cf0e1_S7-20 S. 12)
Page preview · 2dc08e8cf0e1_S7-20 · S. 12

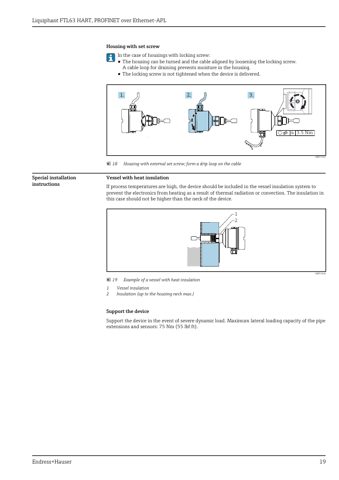

Endress+Hauser FTL63 HART, PROFINET over Ethernet-APL – Page preview (2dc08e8cf0e1_S7-20 S. 13)
Page preview · 2dc08e8cf0e1_S7-20 · S. 13
Source: Endress+Hauser FTL63 HART, PROFINET over Ethernet-APL datasheet, p. 1
