FDU95

Ultrasonic Level Gauge · Cargo Level & Temperature Gauging

Class-certified type (DNV register) · technical data sheet not yet verified​⁠​‍​‌​‌‌‌‍‍‍‍​⁠‌‌‍‍
View photo ↗
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Operating frequency17 kHz
StutzendurchmesserDN300/12"
Maximale Stutzenlänge [mm (in)]400 (15.7) mm (in)
Weight4,5 kg (9,92 lb)
MaterialMembran: 316L
Process connectionGewinde ISO228 G1, UP
Abmessungen der Ausführung 583 mm583 mm (23 in) mm (in)
Abmessungen der Ausführung 1 085 mm1 085 mm (42,7 in) mm (in)
Temperatur-40 ... +80 °C
Blockdistanz70 cm
Kabellänge10 m
KabeltypLi2G2G 2x(0,75)D+1x0,75#
Temperatur; Blockdistanz; Werkstoff1 -40 ... +80 °C; 70 cm; Membran: 316L; Surface: PE 2 -40 ... 150 °C; 90 cm;
Prozessanschluss (Einschraubgewinde)G Gewinde ISO228 G1, UP N Gewinde ANSI NPT1, UP
Umgebungstemperatur–40 … +150 °C
max. Reichweite in Schüttgütern45 m
MaterialSilicone (-40 ... +150 °C)
Cable typeLi2G2G 2x(0,75)D+1x0,75#
Order code71027745
Max. range in solids45m
Max. range1 in solids45 m
Maximum measuring range:45 m (148 ft)
Weight including cable 5 m (16 ft)Approx. 4.5 kg
Degree of protectionIP68/NEMA6P (24 h at 1.83 m (6 ft) under water)
Vibration resistanceDIN EN 600068-2-64; 20 to 2 000 Hz; 1 (m/s2)2/Hz; 3x100 min
Α (typically)5°
Sensorapprox. 4.5 kg (9.92 lbs)
 (typically)5°
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The Prosonic S FDU95 is an ultrasonic level transmitter used for measuring the level of liquids in tanks and vessels.

Features

  • CSA General Purpose
  • TIIS Staub Ex DP12 (in Vorbereitung)
  • NEPSI DIP (in Vorbereitung)

Options

  • 5-Punkt Linearitätsprotokoll (nur mit FMU9x Transmitter)

Standards

  • IEC
  • ATEX
  • FM
  • CSA
Endress+Hauser FDU95 – Photo (6c409d07ee88_S1-15 S. 1)
Photo · 6c409d07ee88_S1-15 · S. 1

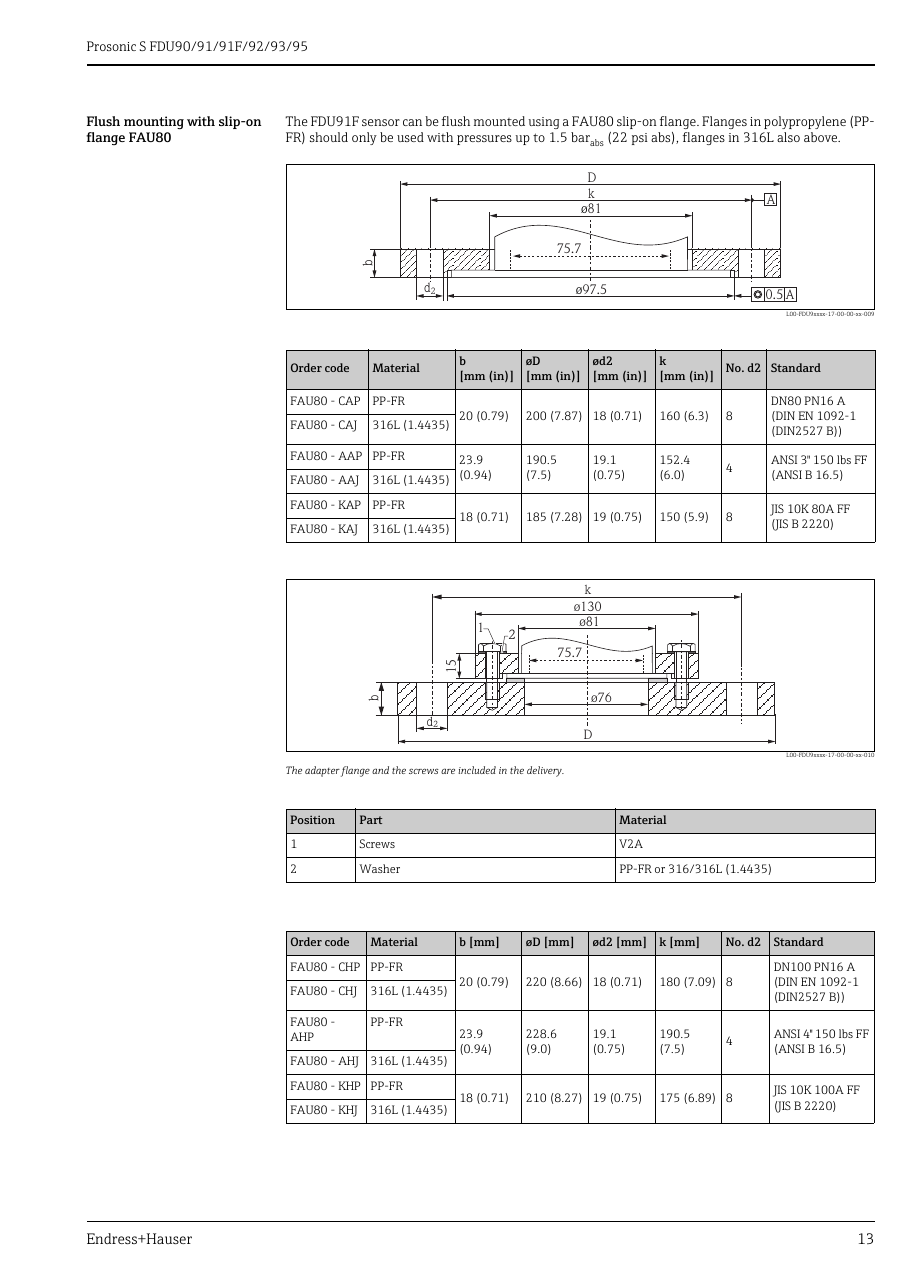

Endress+Hauser FDU95 – Drawing (6be49e850ab3_S6-24 S. 6)
Drawing · 6be49e850ab3_S6-24 · S. 6

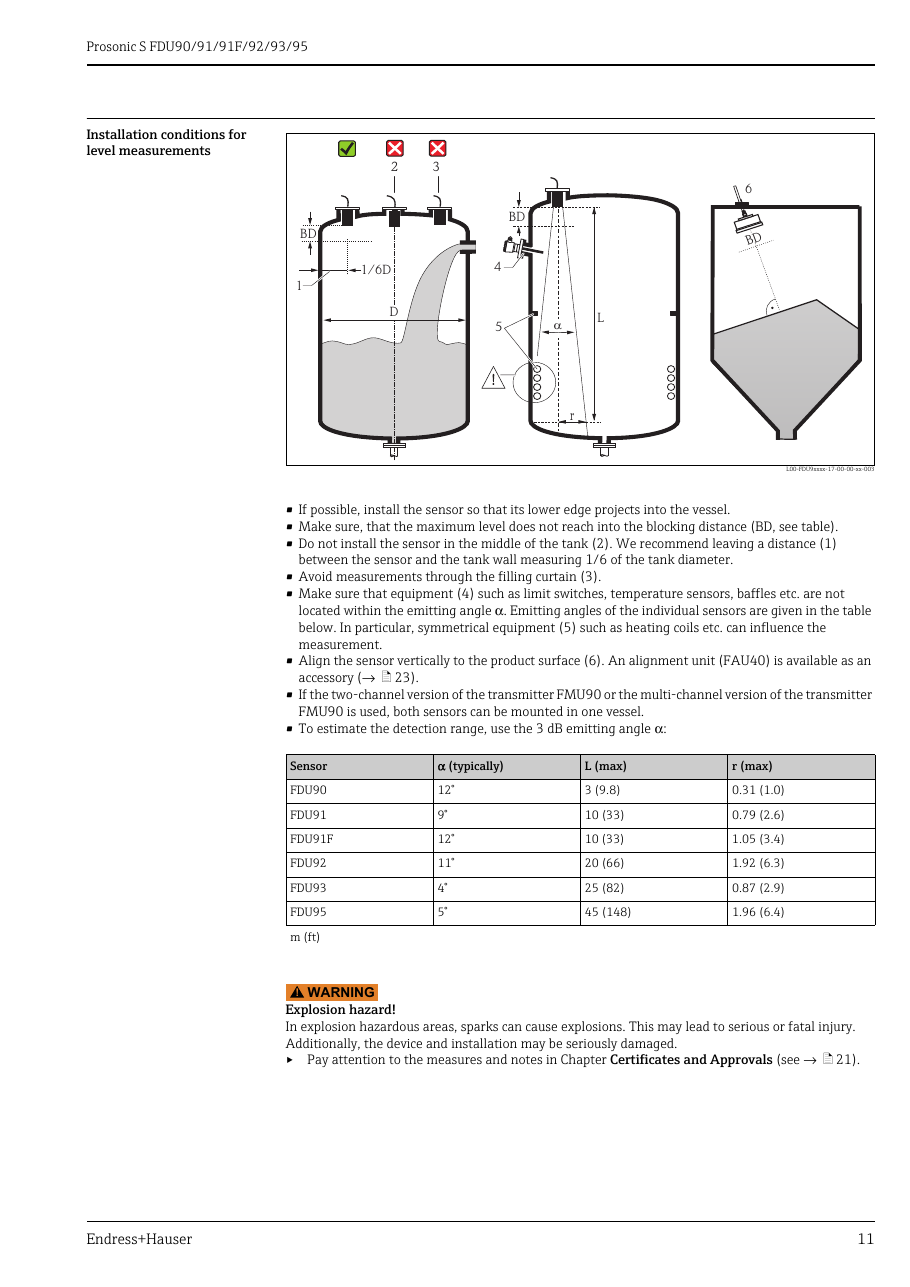

Endress+Hauser FDU95 – Drawing (6be49e850ab3_S6-24 S. 7)
Drawing · 6be49e850ab3_S6-24 · S. 7

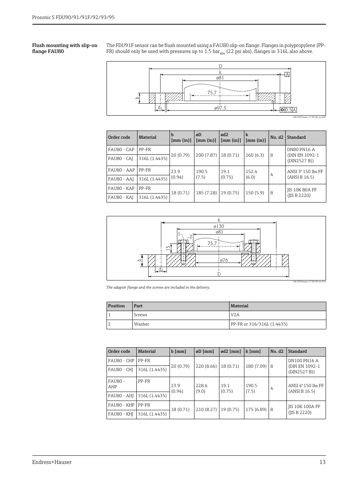

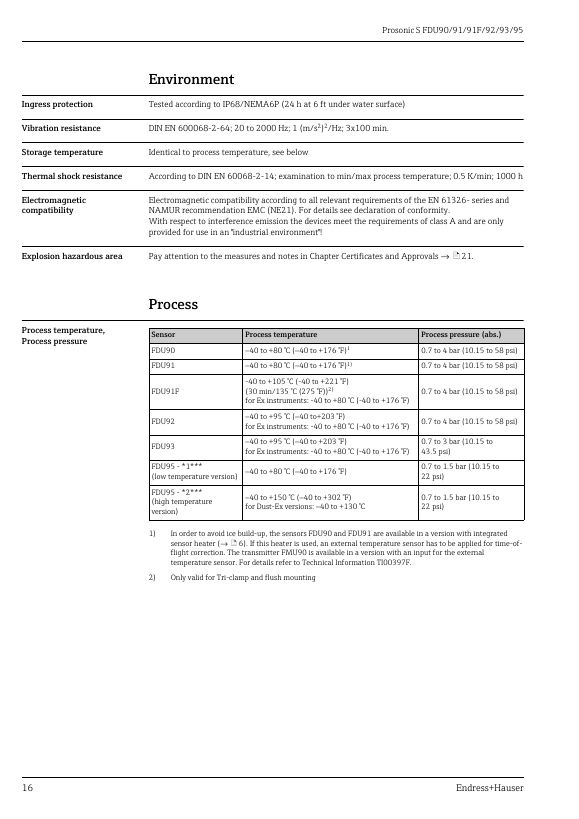

Endress+Hauser FDU95 – Drawing (6be49e850ab3_S6-24 S. 8)
Drawing · 6be49e850ab3_S6-24 · S. 8

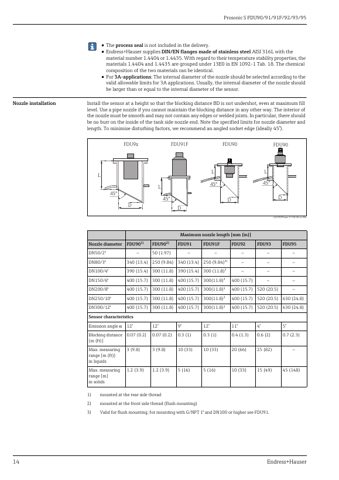

Endress+Hauser FDU95 – Page preview (6be49e850ab3_S6-24 S. 9)
Page preview · 6be49e850ab3_S6-24 · S. 9

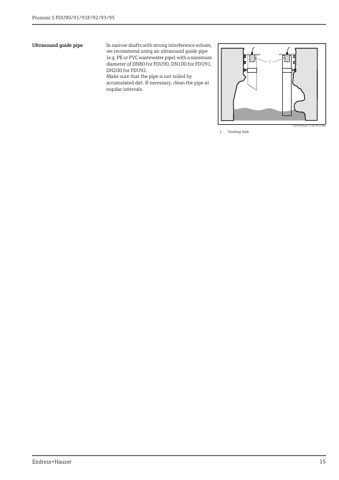

Endress+Hauser FDU95 – Page preview (6be49e850ab3_S6-24 S. 10)
