Micropilot FMR67 HART

AIS · Navigation & Bridge Equipment

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

ApprovalATEX II 1G Ex ia IIC T6 Ga
Power Supply; OutputXA01549F
Hilfsenergie;ausgangXA01549F
Maximaler Winkel±15 °
Versorgungsspannung14 … 35 V
Klemmenspannung14 … 35 V
Maximale Bürde500 W
Zulasung16 … 30 V
Maximale Bürde R500 W
Zulässige Restwelligkeit bei f = 100 … 10 000 HzUSS < 10 mV
Widerstand pro Kanal2 × 0,5 Ω max.
Ansprechgleichspannung400 … 700 V
Ansprechstoßspannung< 800 V
Kapazität bei 1 MHz< 1,5 pF
Nennableitstoßstrom (8/20 μs)10 kA
Kompatibel mitDN80 PN10/40, DN100 PN10/16, DN150 PN10/16, JIS 10K 150A
Empfohlene Schraubenlänge100 mm (3,9 in), 100 mm (3,9 in), 110 mm (4,3 in)
Empfohlene SchraubengrößeM14, M14, M18
Prozesstemperatur–40 … +80 °C (–40 … +176 °F)
Blockdistanz0 … 200 m
Werkseinstellung Blockdistanz200 mm (8 in)
Mindestwert Blockdistanz150 mm (6 in)
Füllstandkorrektur–200 000,0 … 200 000,0 %
Werkseinstellung Füllstandkorrektur0,0 %
Maximaler Ausrichtungswinkel8 °
Zulässige Restwelligkeit bei f = 0 … 100 HzUSS < 1 V
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The Micropilot FMR67 HART is a radar level meter used for measuring liquid levels in tanks and vessels.

Applications

  • liquid level monitoring
Source: Endress+Hauser Micropilot FMR67 HART datasheet, p. 46

Features

  • original packaging required for transport
Source: Endress+Hauser Micropilot FMR67 HART datasheet, p. 18

Options

  • Bluetooth module
Source: Endress+Hauser Micropilot FMR67 HART datasheet, p. 36

Standards

  • ATEX
  • CSA
  • FM
Source: Endress+Hauser Micropilot FMR67 HART datasheet, p. 12

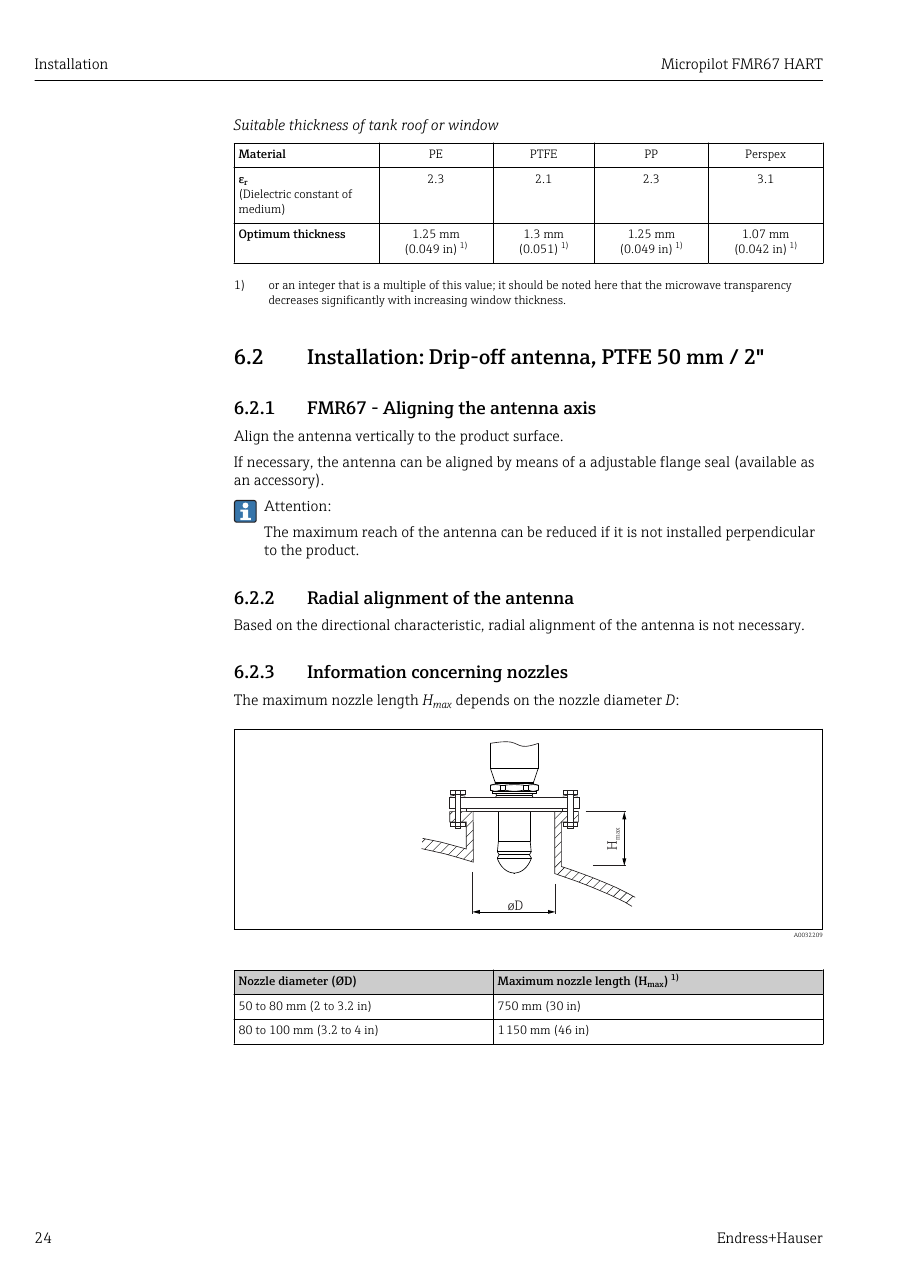

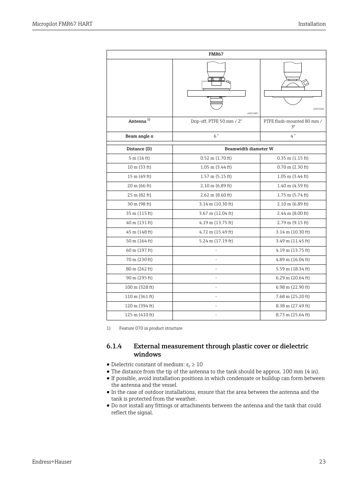

Endress+Hauser Micropilot FMR67 HART – Drawing (05a664e0aa1f_S12-66 S. 12)
Drawing · 05a664e0aa1f_S12-66 · S. 12

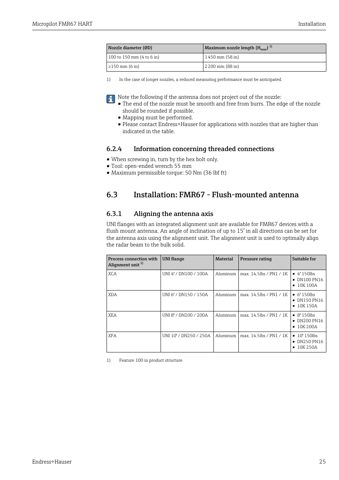

Endress+Hauser Micropilot FMR67 HART – Drawing (05a664e0aa1f_S12-66 S. 13)
Drawing · 05a664e0aa1f_S12-66 · S. 13
Endress+Hauser Micropilot FMR67 HART – Drawing (05a664e0aa1f_S12-66 S. 14)
Drawing · 05a664e0aa1f_S12-66 · S. 14
Endress+Hauser Micropilot FMR67 HART – Page preview (05a664e0aa1f_S12-66 S. 15)
Page preview · 05a664e0aa1f_S12-66 · S. 15

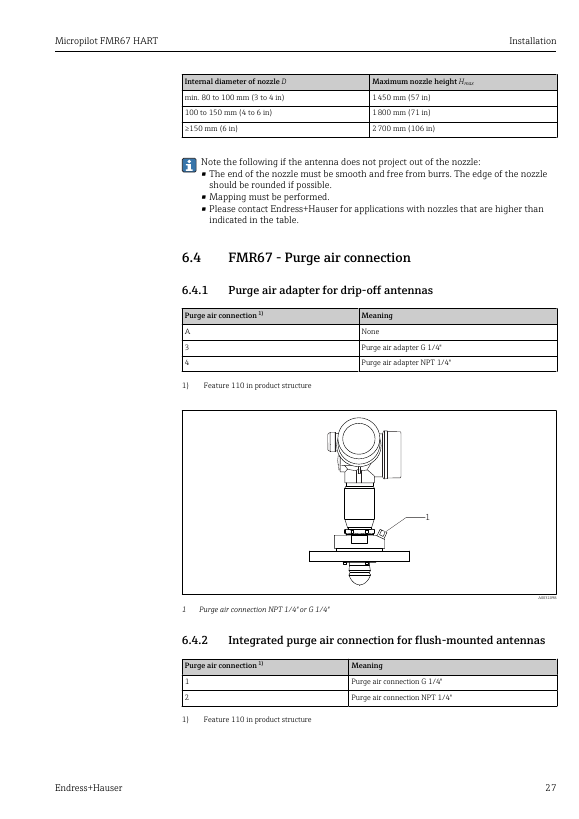

Endress+Hauser Micropilot FMR67 HART – Page preview (05a664e0aa1f_S12-66 S. 16)
Page preview · 05a664e0aa1f_S12-66 · S. 16
Endress+Hauser Micropilot FMR67 HART – Page preview (05a664e0aa1f_S12-66 S. 17)
Page preview · 05a664e0aa1f_S12-66 · S. 17

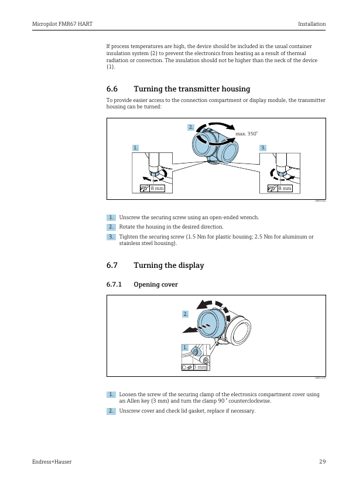

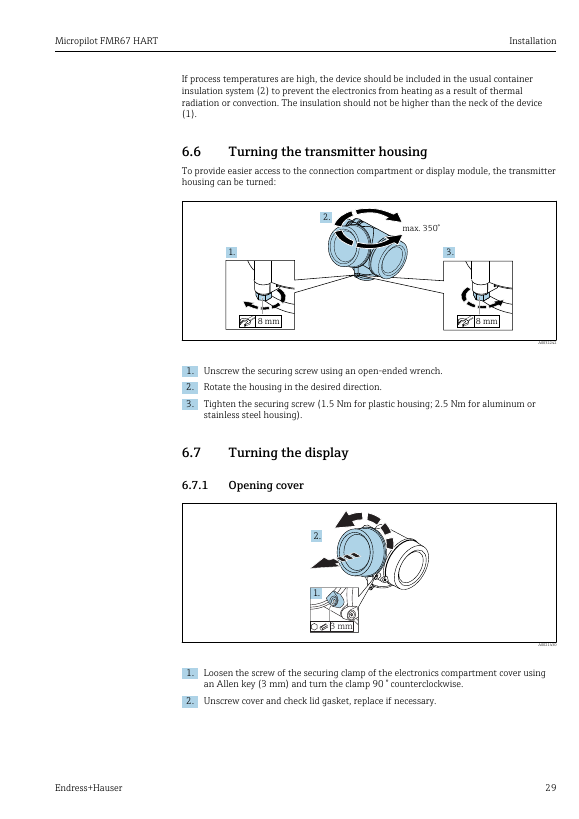

Endress+Hauser Micropilot FMR67 HART – Page preview (05a664e0aa1f_S12-66 S. 18)
Page preview · 05a664e0aa1f_S12-66 · S. 18
Source: Endress+Hauser Micropilot FMR67 HART datasheet, p. 22
