Library› Navigation› Position & Heading› GPS Receiver› Jotron Tron 60S-GPS
Jotron

Tron 60S-GPS

GPS Receiver · Position & Heading

Class-certified type (DNV register) · technical data sheet not yet verified
View photo ↗
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

BatteryLithium metal, 12 V/2900 mAh. 5 year service life
DimensionsHeight: 340 mm, diameter: 128 mm
Weight680 g
Compass safe distance0.85 m
Temperature rangeOperating: -20°C to + 55°C
Operating lifeMinimum 48 hours at -20°C
Cospas-Sarsat transmitterFrequency: 406.037 MHz, output power: 5 W
Homing transmitterFrequency: 121.500 MHz
Navigation device56 channel GPS receiver (Tron 60GPS)
Short term stability≤ 2x10e-9 Hz
Medium term stability≤ 1x10e-9 Hz
Residual noise≤ 3x10e-9 Hz
Bit rate400 bps
Frequency121.500 MHz
Output powerUp to 100 mW
ModulationA9, AM sweep tone between 300 Hz and 1600 Hz
Sweep range700 Hz
Sweep rate2.5 Hz
Stability10 ppm over temperature range
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

A compact and tamper-proof GMDSS EPIRB that complies to IMO and SOLAS regulations, with a high-intensity LED for optimal visibility.

Applications

  • navigation assistance

Features

  • compact and tamper-proof
  • high-intensity LED
  • float-free and manual bracket options
  • 56 channel GPS receiver

Options

  • float-free bracket
  • manual bracket
  • replacement battery kit
  • hydrostatic release unit kit

Standards

  • IMO
  • SOLAS

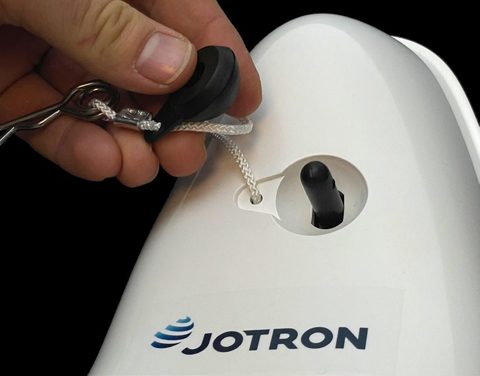

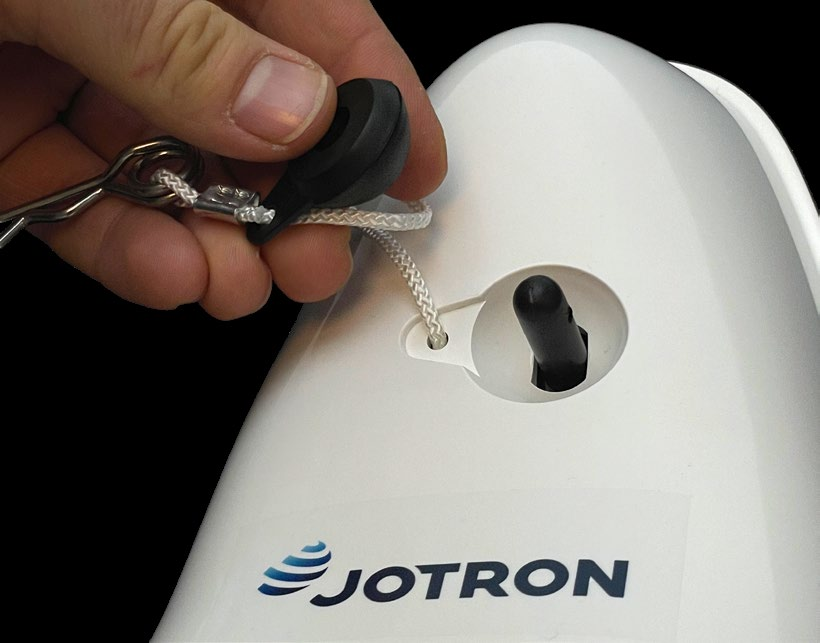

Jotron Tron 60S-GPS – Photo (4c1876b27d2f_S21-46 S. 21)
Photo · 4c1876b27d2f_S21-46 · S. 21

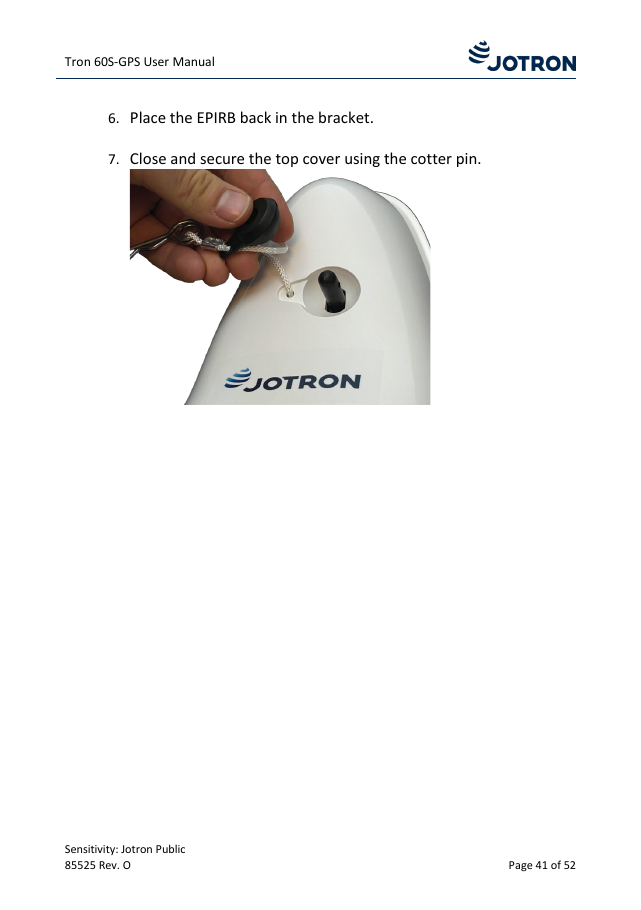

Jotron Tron 60S-GPS – Drawing (4c1876b27d2f_S21-46 S. 21)
Drawing · 4c1876b27d2f_S21-46 · S. 21

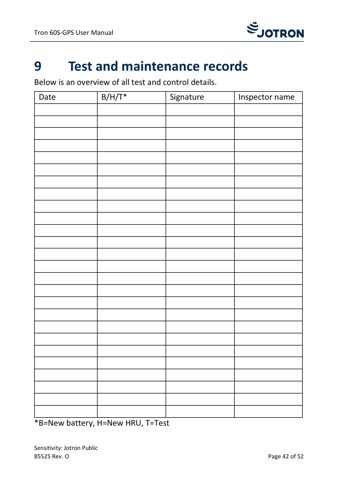

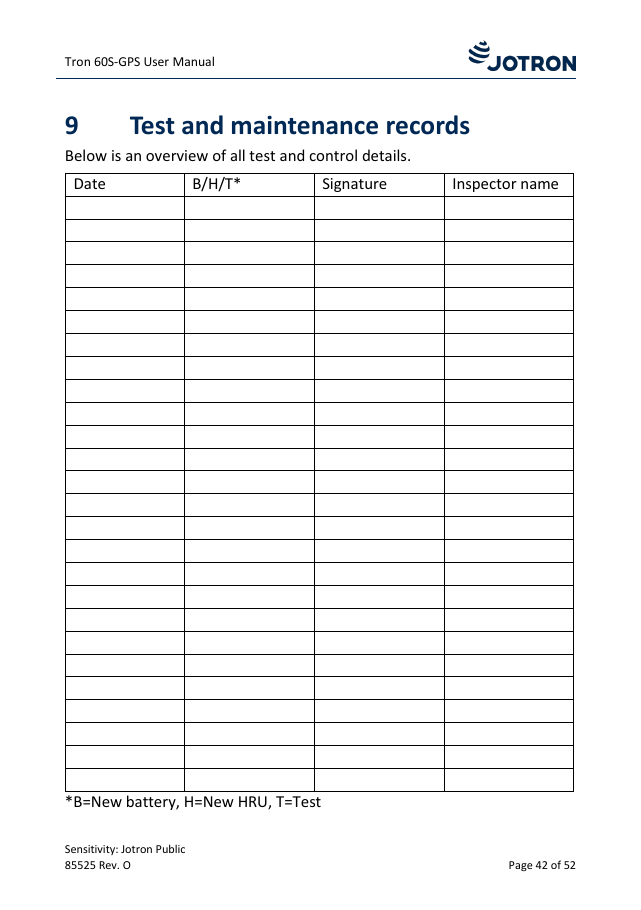

Jotron Tron 60S-GPS – Drawing (4c1876b27d2f_S21-46 S. 22)
Drawing · 4c1876b27d2f_S21-46 · S. 22
Jotron Tron 60S-GPS – Drawing (4c1876b27d2f_S21-46 S. 24)
Drawing · 4c1876b27d2f_S21-46 · S. 24

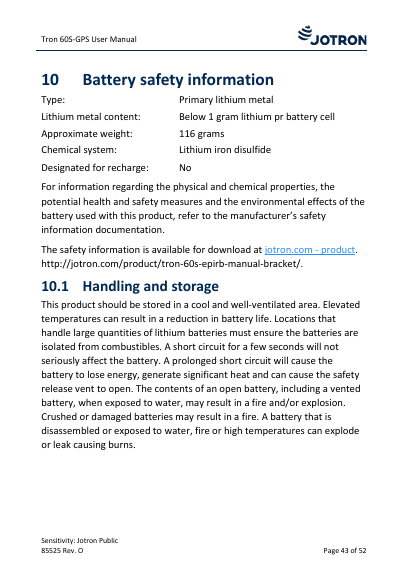

Jotron Tron 60S-GPS – Page preview (4c1876b27d2f_S21-46 S. 23)
Page preview · 4c1876b27d2f_S21-46 · S. 23

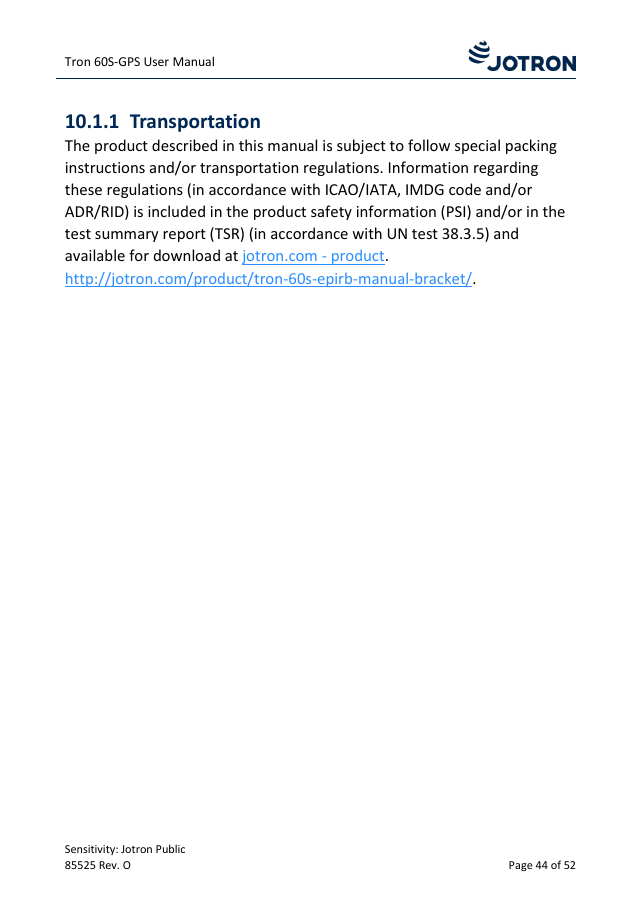

Jotron Tron 60S-GPS – Page preview (4c1876b27d2f_S21-46 S. 25)
Page preview · 4c1876b27d2f_S21-46 · S. 25

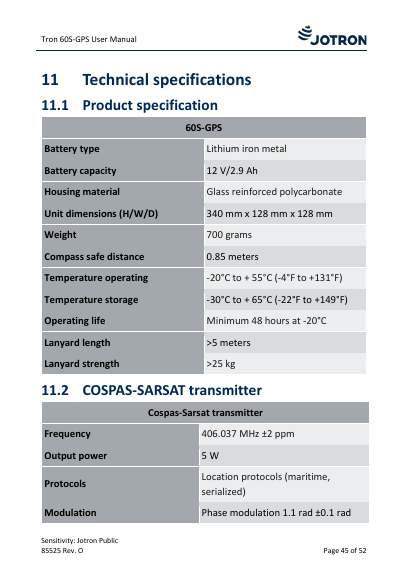

Jotron Tron 60S-GPS – Page preview (4c1876b27d2f_S21-46 S. 26)
Page preview · 4c1876b27d2f_S21-46 · S. 26
Source: Jotron Tron 60S-GPS datasheet, p. 2
