FCV-1900B

Echo Sounder · Navigation & Bridge Equipment

Class-certified type (DNV register) · technical data sheet not yet verified
View photo ↗
Specifications

Technical data.verified

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

Transmitting frequency15 kHz to 200 kHz Free-synthesize🔖
Output power1, 2 or 3 kWrms🔖
Transmitting rate10 to 2700 pulse/min🔖
Transmitting modeTruEcho CHIRPTM, Standard mode, CW mode🔖
Pulselength0.05 to 5 ms🔖
Echo color8, 16 or 64 colors according to echo intensity🔖
Background colorSelect from 5 colors🔖
Hue7 steps (standard, Hue 1 to 5, customized)🔖
Echo display modeSingle mode (high/low frequency), Dual-frequency, Zoom, User 1/2🔖
Weight10.2 kg 22.5 lb🔖
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“6 steps (Lines/TX: Freeze, 1/4, 1/2, 1/1, 2/1, 4/1) Echo display and measured data can be recorded to internal memory Chinese, Danish, English, French, Japanese, Korean, Russian, Spanish, Norwegian”

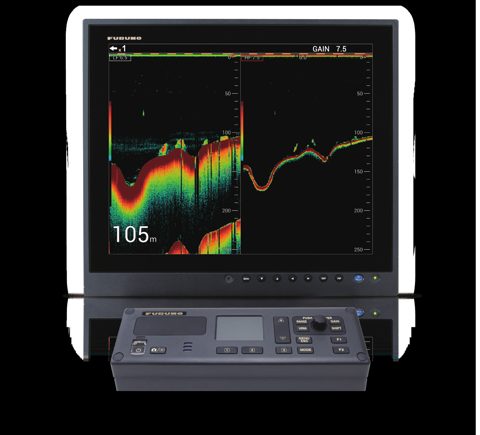

FCV-1900B – Photo (9ac19a262db5_S1-1 S. 1)
Photo · 9ac19a262db5_S1-1 · S. 1

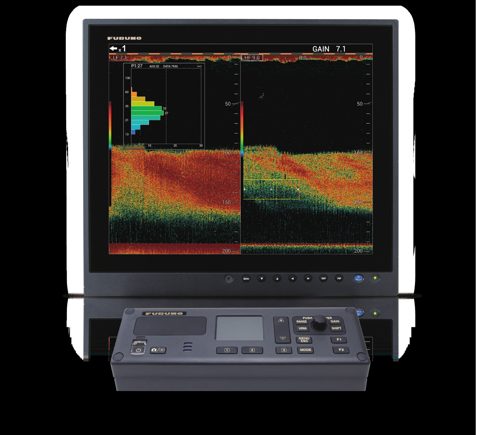

FCV-1900B – Photo (9ac19a262db5_S1-1 S. 1)
Photo · 9ac19a262db5_S1-1 · S. 1
FCV-1900B – Drawing (9ac19a262db5_S1-1 S. 1)
Drawing · 9ac19a262db5_S1-1 · S. 1
Source: FCV1900BG_E_0903のコピー, p. 1
