Library› Safety & LSA› Fire Detection Systems› Smoke Detector› Autronica Micra 100
Autronica

Micra 100

Smoke Detector · Fire Detection Systems

Class-certified type (DNV register) · technical data sheet not yet verified
View photo ↗
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Maximum length of sampling pipe100 metres
Maximum length of sampling pipe with airflow40 metres
Maximum number of sampling holes20 holes
Maximum transport time120 seconds
Current400 mA @ 24 VDC
Sensitivity rangeMin = 0.003% Max = 25%
Size (mm)300W x 220H x 85D
Supply Voltage21.6 V - 26.4 VDC
Weight3.8 kg
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“1. Introduction 1.1 General AutroSense Micra 100 is a highly sophisticated ‘next generation‘ of high Sensitivity Aspirating Smoke Detection product that has been designed to ensure that installation…”

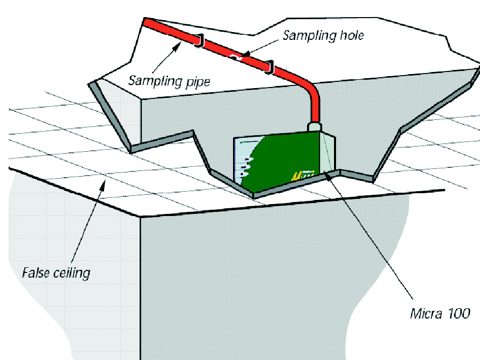

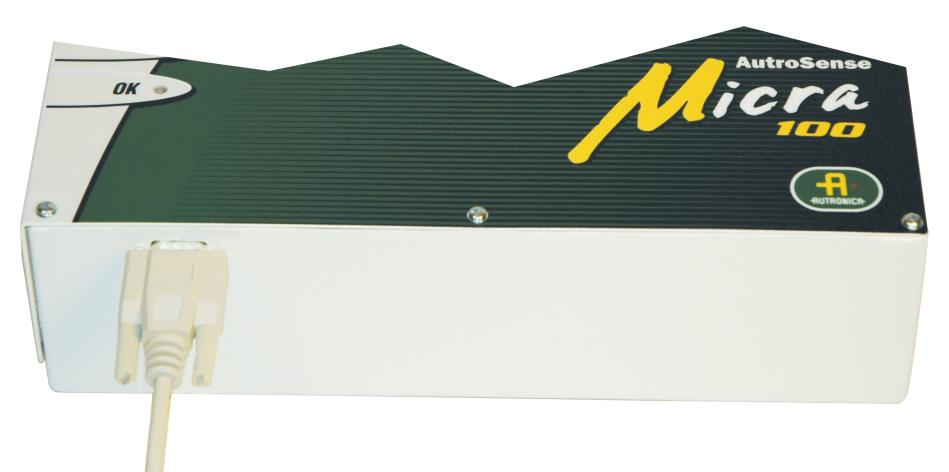

Autronica Micra 100 – Photo (911cf801fbf6_S6-44 S. 24)
Photo · 911cf801fbf6_S6-44 · S. 24

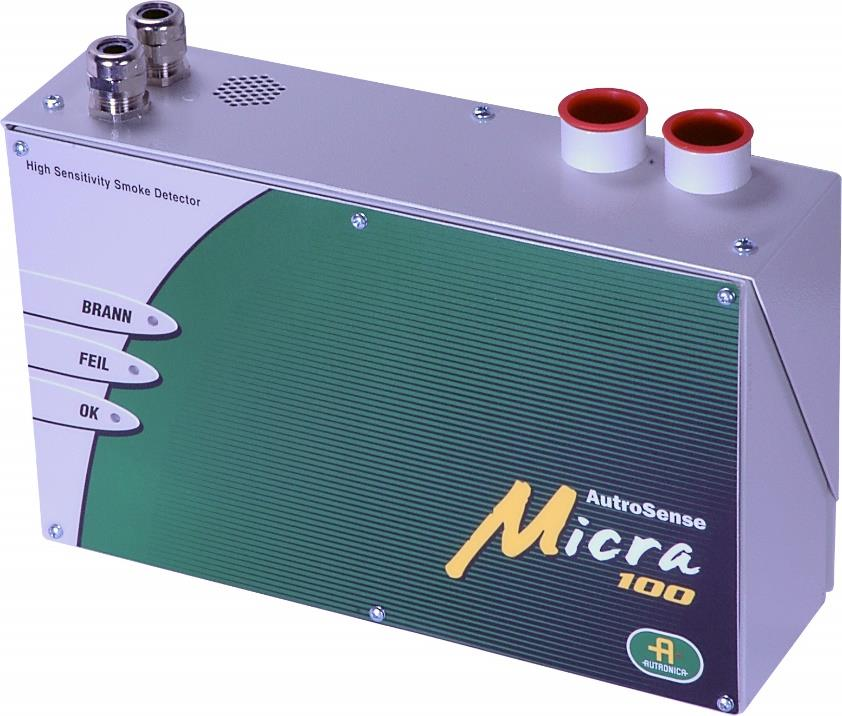

Autronica Micra 100 – Photo (911cf801fbf6_S6-44 S. 24)
Photo · 911cf801fbf6_S6-44 · S. 24
Autronica Micra 100 – Photo (911cf801fbf6_S6-44 S. 27)
Photo · 911cf801fbf6_S6-44 · S. 27

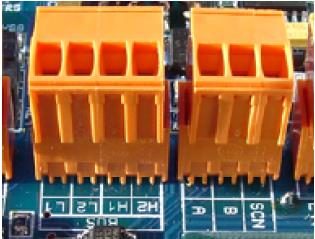

Autronica Micra 100 – Photo (911cf801fbf6_S6-44 S. 29)
Photo · 911cf801fbf6_S6-44 · S. 29
Autronica Micra 100 – Photo (911cf801fbf6_S6-44 S. 30)
Photo · 911cf801fbf6_S6-44 · S. 30
Autronica Micra 100 – Photo (911cf801fbf6_S6-44 S. 35)
Photo · 911cf801fbf6_S6-44 · S. 35
Autronica Micra 100 – Drawing (911cf801fbf6_S6-44 S. 6)
Drawing · 911cf801fbf6_S6-44 · S. 6

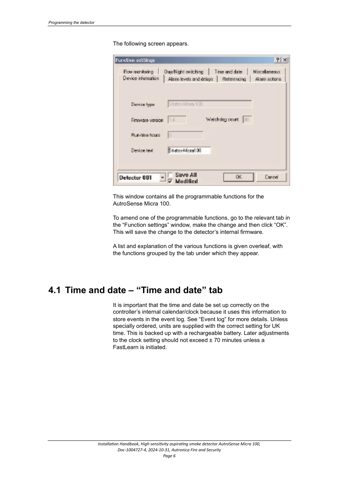

Autronica Micra 100 – Drawing (911cf801fbf6_S6-44 S. 7)
Drawing · 911cf801fbf6_S6-44 · S. 7
Source: Autronica Micra 100 datasheet, p. 1
