Library› Engine Room› Steering Gear› Steering Control System› kobelt MNL-6300-0200
kobelt

MNL-6300-0200

Steering Control System · Steering Gear

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.verified

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

OPERATING VOLTAGE12-24Vdc🔖
OPERATING CURRENT0.35A max (without SBW wheel)🔖
REVERSE POLARITYYes.🔖
COMPASS Safe Distance1.5 cm🔖
Protection1x KNET (NMEA Micro-C)🔖
Connectors1x potentiometer input for brightness control🔖
Mechanical184.2 mm x 120.7 mm x 52.7 mm🔖
MOUNTING DIMENSIONS146 mm x 91 mm🔖
PRODUCT WEIGHT0.65 kg🔖
SHIPPING DIMENSIONS275 mm x 170 mm x 100 mm🔖
Environmental CategoryENV5 / Class C / exposed🔖
OPERATING TEMPERATURE-25°C to 55°C🔖
STORAGE TEMPERATURE-30°C to 70°C🔖
OPERATING HUMIDITY95 % (Non-Condensing)🔖
STORAGE HUMIDITY98 % (Non-Condensing)🔖
IP RATINGIP56 – Above console🔖
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“MECHANICAL PHYSICAL DIMENSIONS (L x W x H) MOUNTING DIMENSIONS (L x W) PRODUCT WEIGHT SHIPPING DIMENSIONS (L x W x H) Environmental Category OPERATING TEMPERATURE STORAGE TEMPERATURE OPERATING…”

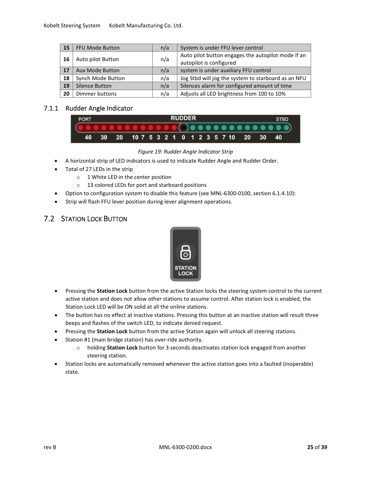

kobelt MNL-6300-0200 – Drawing (9799a9c916fa_S13-25 S. 13)
Drawing · 9799a9c916fa_S13-25 · S. 13
Source: kobelt MNL-6300-0200 datasheet, p. 1
