Library› Engine Room› Pumps› General Service Pump› SHURflo 4648-163-A07
SHURflo

4648-163-A07

General Service Pump · Pumps

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

OEM4648-163-A07
Aftermarket4648-163-E07
Engine24V DC Permanent Magnet, Continuous Duty
Leads14 AWG, 14 ¾” [37 cm] Red +, 15” [38 cm] Black
Fuse7.5 Amp Recommended
ControlShut-Off 45 PSI [3.1 Bar] ± 2 PSI [0.13 Bar], Re-start 30 PSI [2.0 Bar] ± 2 PSI
Approx. Net Weight7.9 Pounds [3.5 Kg] ea.
Approx. Carton Weight50 Lbs. [22.6 Kg]
Approx. Carton Size24”L X 18”W X 6”H [61cm x 46cm x 15cm]
CertificationsIgnition Protection 8846, CE, IMCI Certified
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The SHURFLO PROBAIT MASTER™II 4.0 is a marine livewell/washdown pump designed for fresh or salt water applications. It can also be used for general water transfer.

Applications

  • Livewell

Features

  • Dry-Prime up to 6 feet (1.82 M)
  • Continuous Duty Motor
  • Thermal Overload Protection
  • Automatic Restart
  • Re-start Pressure: 30 PSI [2.0 Bar] ± 2 PSI [0.13 Bar]

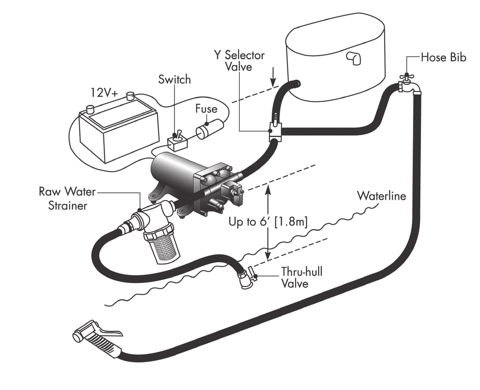

SHURflo 4648-163-A07 – Photo (3c35986e6c9d_S1-6 S. 4)
Photo · 3c35986e6c9d_S1-6 · S. 4

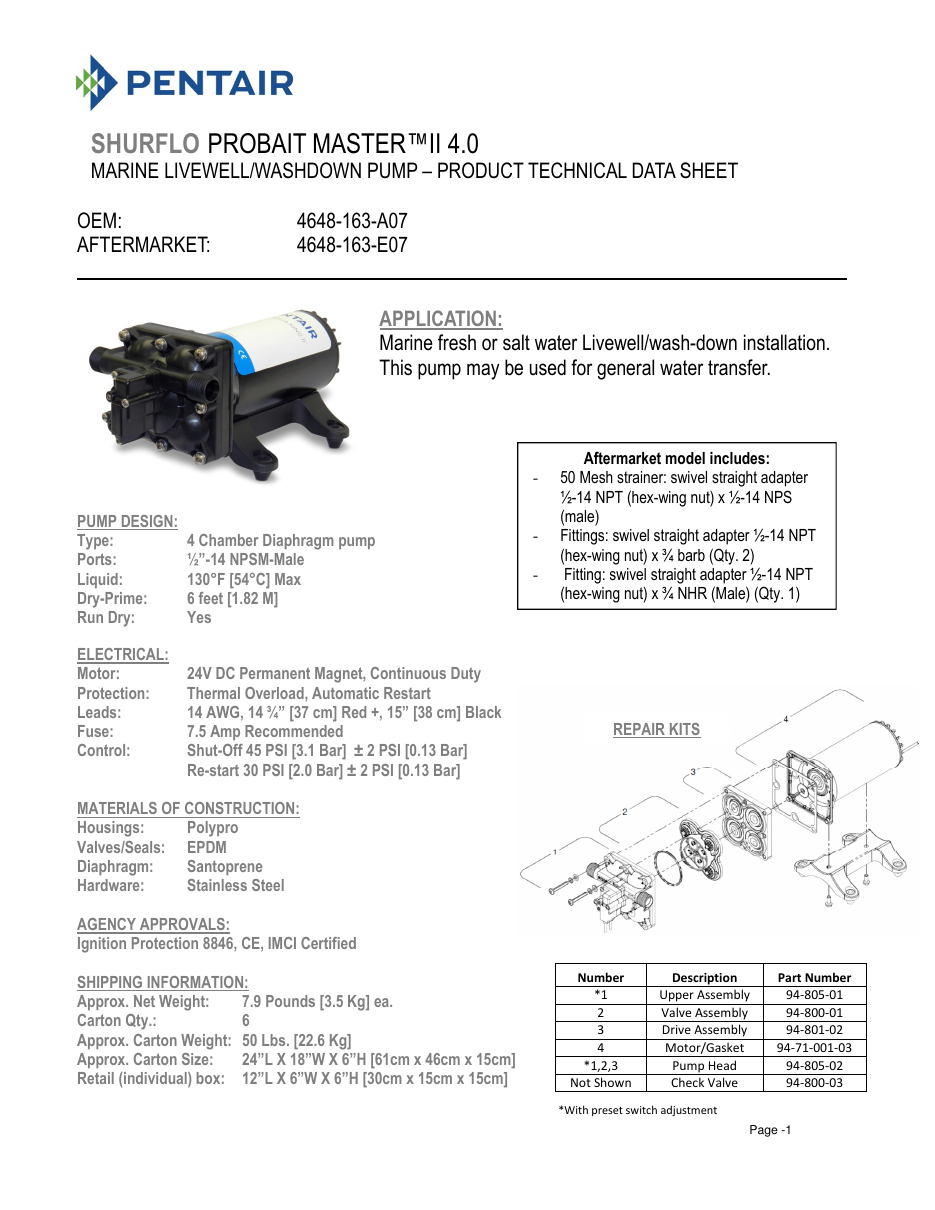

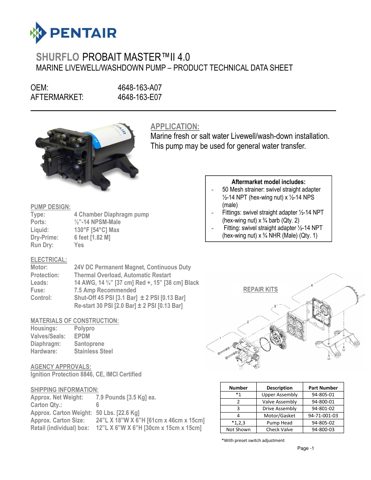

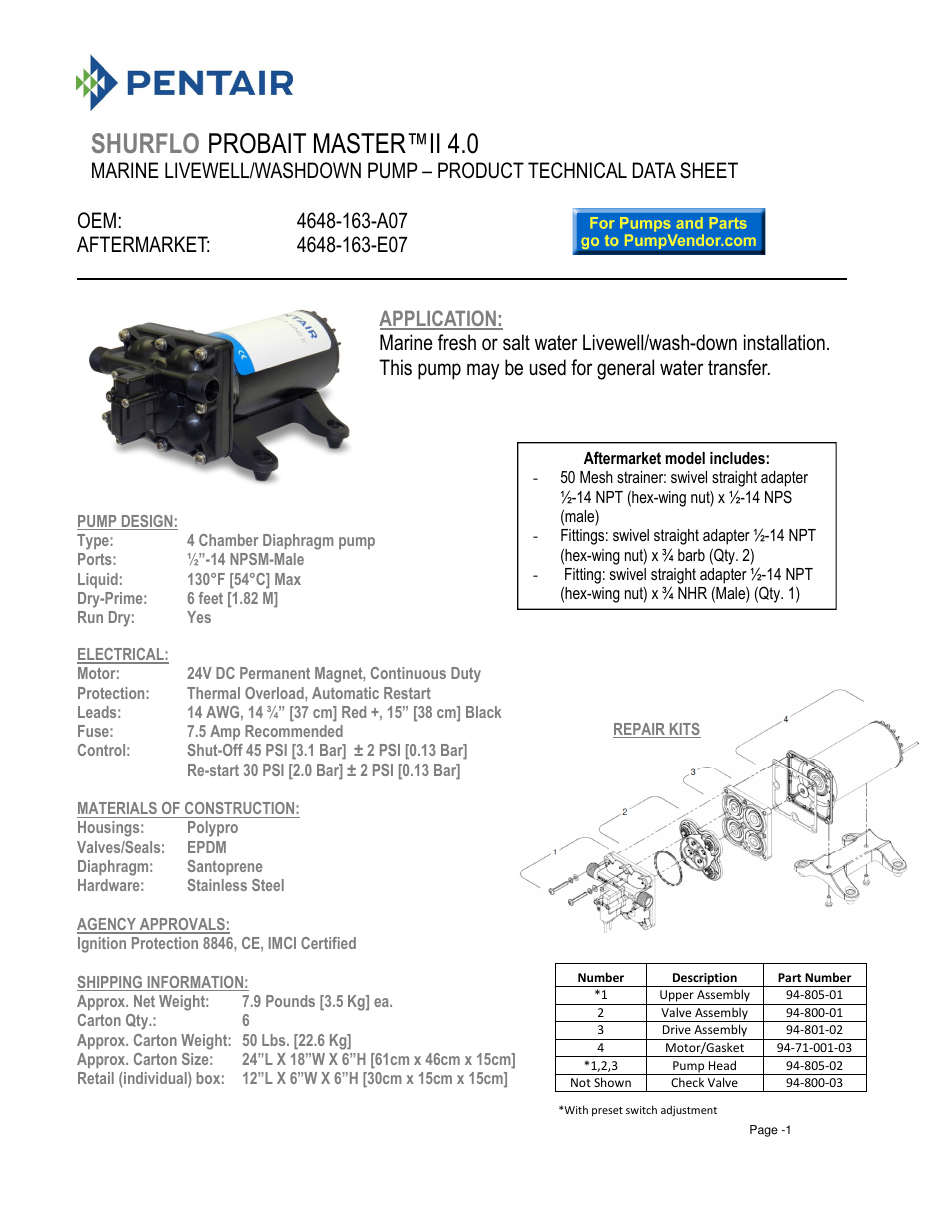

SHURflo 4648-163-A07 – Drawing (7ecea734ceeb_S1-1 S. 1)
Drawing · 7ecea734ceeb_S1-1 · S. 1

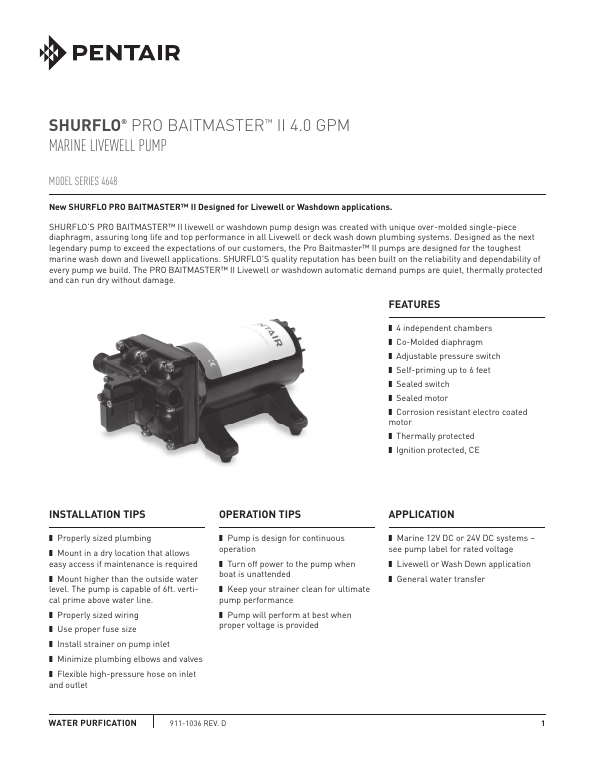

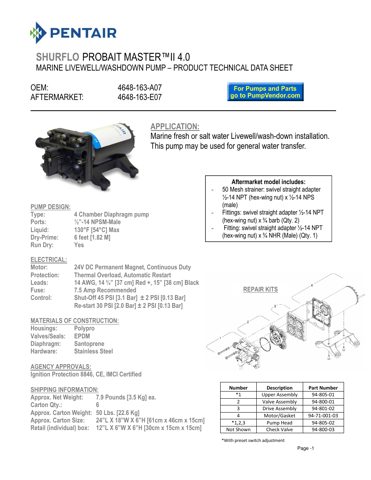

SHURflo 4648-163-A07 – Drawing (022c5d9cce09_S1-1 S. 1)
Drawing · 022c5d9cce09_S1-1 · S. 1

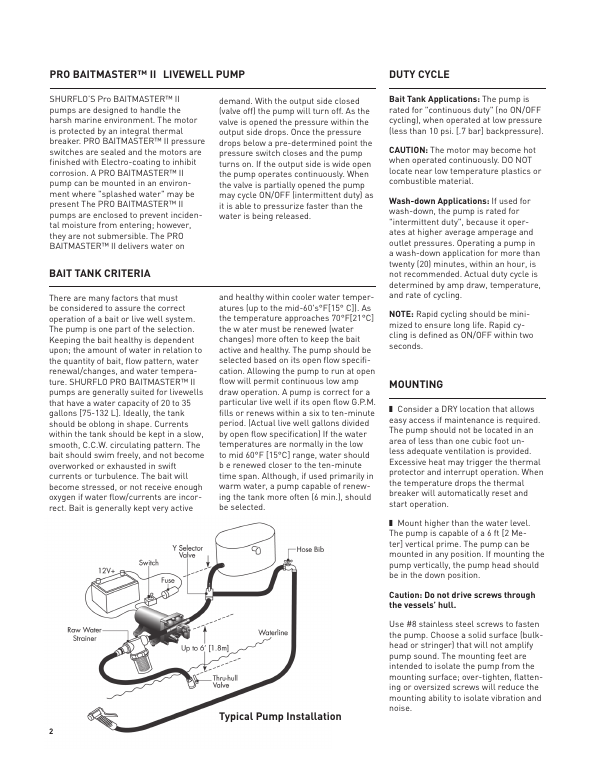

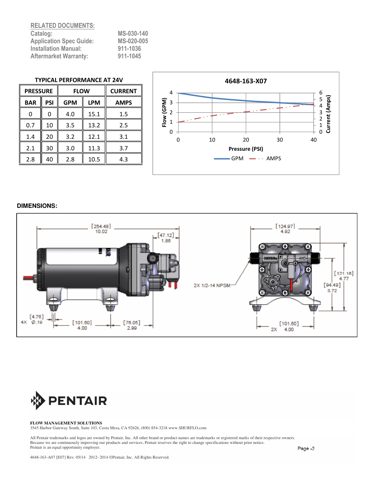

SHURflo 4648-163-A07 – Drawing (3c35986e6c9d_S1-6 S. 2)
Drawing · 3c35986e6c9d_S1-6 · S. 2

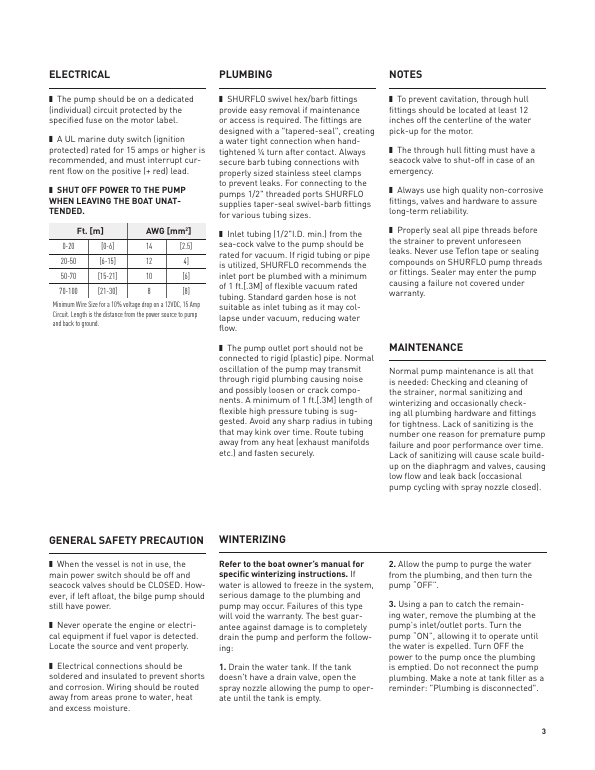

SHURflo 4648-163-A07 – Page preview (3c35986e6c9d_S1-6 S. 3)
Page preview · 3c35986e6c9d_S1-6 · S. 3

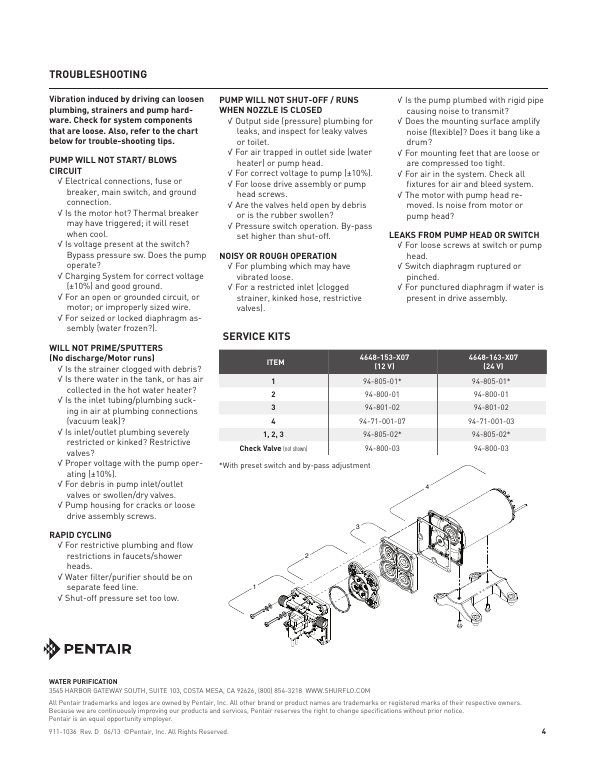

SHURflo 4648-163-A07 – Page preview (3c35986e6c9d_S1-6 S. 4)
Page preview · 3c35986e6c9d_S1-6 · S. 4
SHURflo 4648-163-A07 – Page preview (3c35986e6c9d_S1-6 S. 5)
Page preview · 3c35986e6c9d_S1-6 · S. 5
SHURflo 4648-163-A07 – Page preview (3c35986e6c9d_S1-6 S. 6)
Page preview · 3c35986e6c9d_S1-6 · S. 6
Source: SHURflo 4648-163-A07 datasheet, p. 1
