RKI Instruments

SM-2009U

Gas Detection System · Gas Carrier Systems

Class-certified type (DNV register) · technical data sheet not yet verified​‍⁠⁠⁠‍‍⁠⁠⁠​​​​⁠‌‌‌⁠​
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Applicable InstrumentsGX-2009
Input Power12 VDC
Environmental Conditions-10° C to 40° C, below 80% Relative Humidity, Non-Condensing
Memory Capacity64 KB
Maximum Record Size256 bytes
Maximum Number of Records Saved200
Charge Interval12 seconds every 2 minutes
Charge Time3 hours
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The SM-2009U is a calibration station used to perform bump tests, calibrations, and battery recharges for the GX-2009 instrument.Source: RKI Instruments SM-2009U datasheet, p. 29

Applications

  • charging instruments
  • maintaining calibration
  • battery maintenance
Source: RKI Instruments SM-2009U datasheet, p. 40

Features

  • indoor use only
  • high memory capacity
  • large record size
  • high record capacity

Options

  • AC Adapter
  • USB Flash Drive
  • Single Module Data Viewer Software
  • Inlet Air Filter
  • Instruction Manual

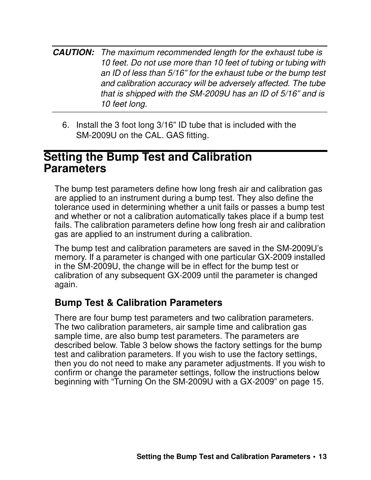

RKI Instruments SM-2009U – Drawing (d980aad2ee24_S7-42 S. 11)
Drawing · d980aad2ee24_S7-42 · S. 11

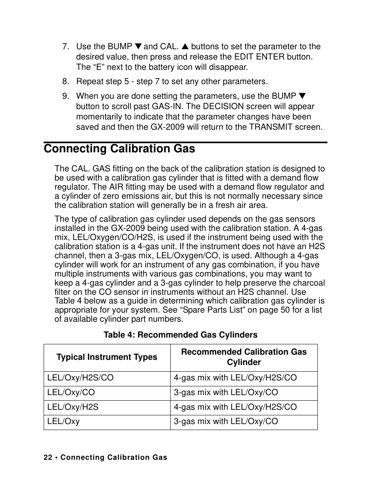

RKI Instruments SM-2009U – Drawing (d980aad2ee24_S7-42 S. 20)
Drawing · d980aad2ee24_S7-42 · S. 20

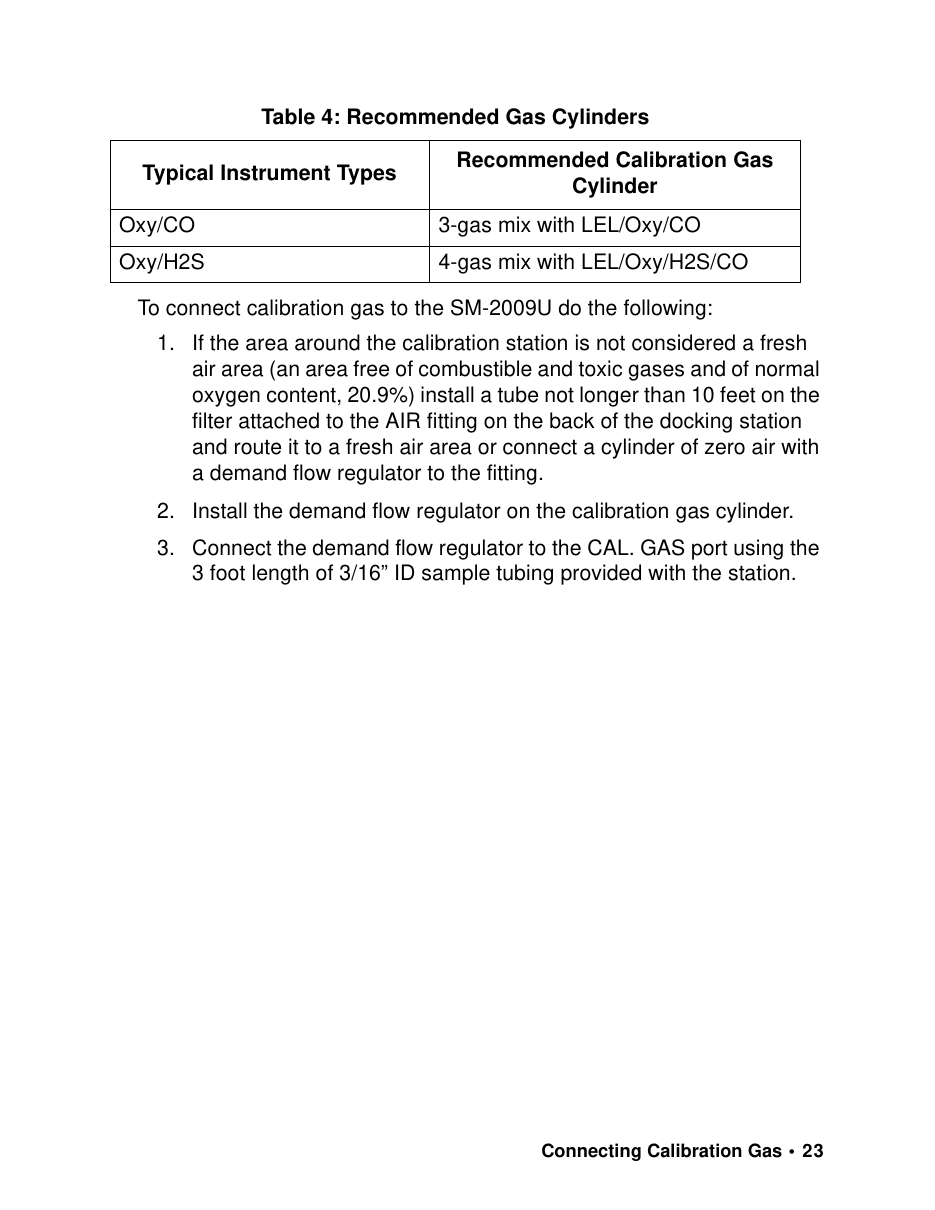

RKI Instruments SM-2009U – Drawing (d980aad2ee24_S7-42 S. 21)
Drawing · d980aad2ee24_S7-42 · S. 21
RKI Instruments SM-2009U – Page preview (d980aad2ee24_S7-42 S. 7)
Page preview · d980aad2ee24_S7-42 · S. 7

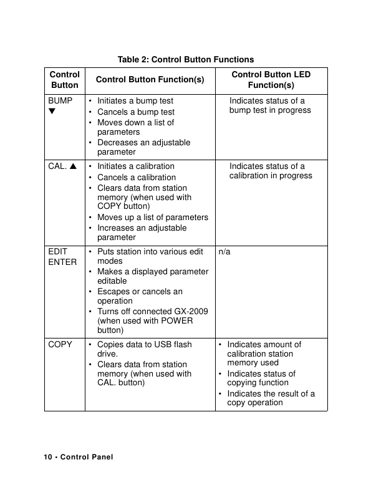

RKI Instruments SM-2009U – Page preview (d980aad2ee24_S7-42 S. 8)
Page preview · d980aad2ee24_S7-42 · S. 8

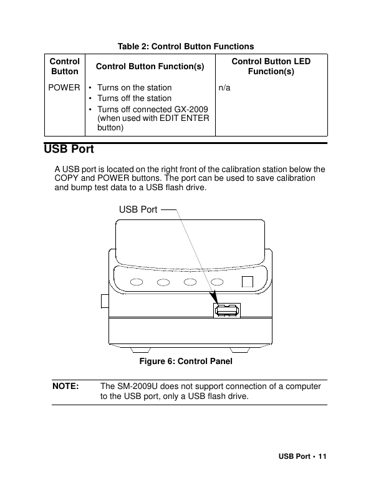

RKI Instruments SM-2009U – Page preview (d980aad2ee24_S7-42 S. 9)
Page preview · d980aad2ee24_S7-42 · S. 9

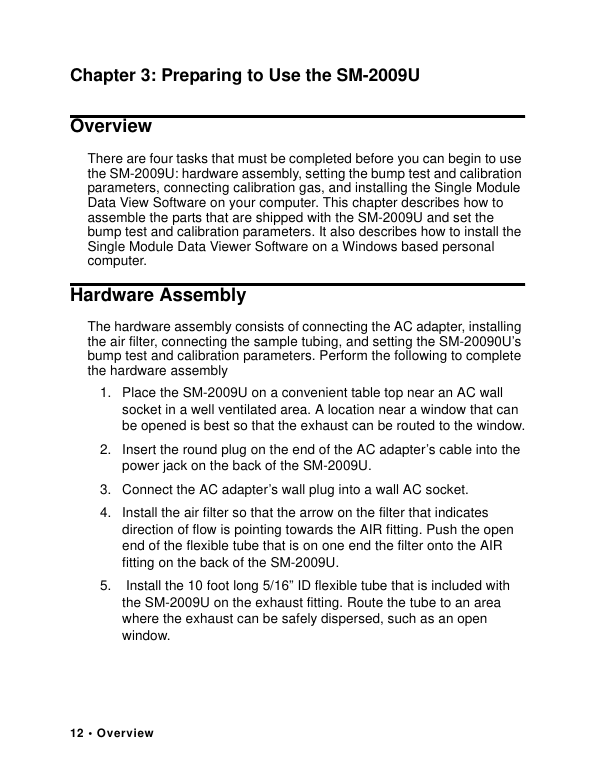

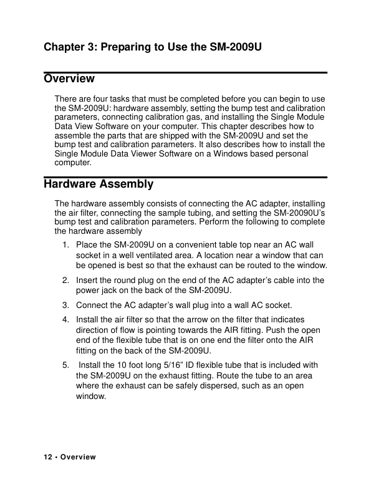

RKI Instruments SM-2009U – Page preview (d980aad2ee24_S7-42 S. 10)
Page preview · d980aad2ee24_S7-42 · S. 10
Source: RKI Instruments SM-2009U datasheet, p. 7
