Library› Deck› Cargo Lashing & Container Equipment› ROV & Subsea Equipment› VideoRay Pro 5
VideoRay

Pro 5

ROV & Subsea Equipment · Cargo Lashing & Container Equipment

Class-certified type (DNV register) · technical data sheet not yet verified
View photo ↗
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Power Requirements110/220 VAC (1 to 2.4 kW)
Total System Weight (Sub & OCC)25.2 kg (55.5 lb)
Cases2-3 Watertight Rugged Hard Cases
Owner’s ManualOnline Digital
Communications ProtocolRS-485 and Ethernet
Depth RatingUp to 305 m (1,000 ft)
Videoup to 1920 x 1080, 25 fps
MechanicalStandard VideoRay 9 pin connection, Ethernet, 12 VDC, RS-485
Weight11.8 kg (26 lb) without ballast
BallastModular
Input voltage100-240 VAC
Frequency50, 60 Hz
Power requirement (full power)3,000 Watts
Minimum power source2,000 Watts
ROV DC Power400 V DC
Power Specifications100-240 Volts AC, 50,60 Hz
Generator/Inverter Power3,000 Watts continuous minimum
Tether Power400 Volts DC
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The Mission Specialist Pro 5 is a marine equipment designed for various underwater operations.

Applications

  • maintenance tasks
Source: VideoRay Pro 5 datasheet, p. 97

Features

  • Internet connection required
  • results not guaranteed

Options

  • Tether management system
  • Lighting system
  • Sonar system
Source: VideoRay Pro 5 datasheet, p. 45

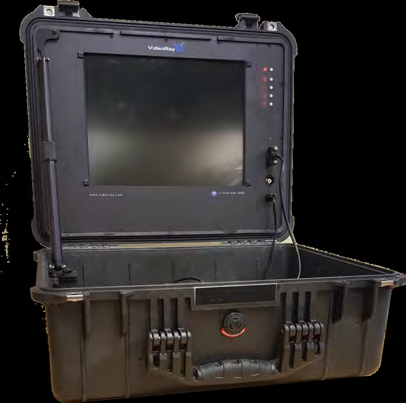

VideoRay Pro 5 – Photo (2ac662590fe0_S1-1 S. 1)
Photo · 2ac662590fe0_S1-1 · S. 1
VideoRay Pro 5 – Photo (fdce760913b0_S3-113 S. 13)
Photo · fdce760913b0_S3-113 · S. 13
VideoRay Pro 5 – Photo (fdce760913b0_S3-113 S. 15)
Photo · fdce760913b0_S3-113 · S. 15
VideoRay Pro 5 – Photo (fdce760913b0_S3-113 S. 15)
Photo · fdce760913b0_S3-113 · S. 15

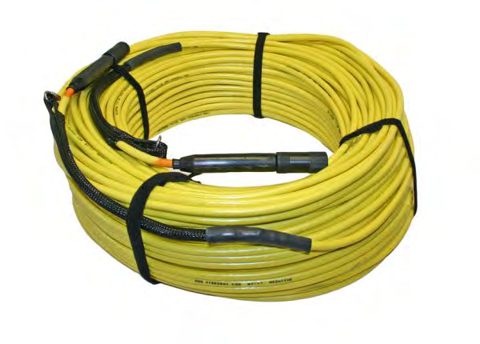

VideoRay Pro 5 – Photo (fdce760913b0_S3-113 S. 16)
Photo · fdce760913b0_S3-113 · S. 16

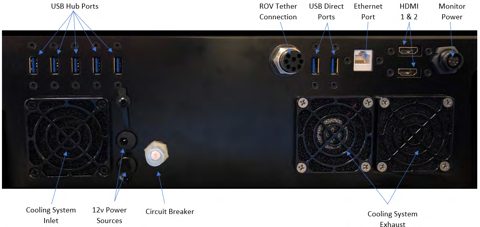

VideoRay Pro 5 – Photo (fdce760913b0_S3-113 S. 18)
Photo · fdce760913b0_S3-113 · S. 18
VideoRay Pro 5 – Photo (fdce760913b0_S3-113 S. 44)
Photo · fdce760913b0_S3-113 · S. 44
VideoRay Pro 5 – Photo (fdce760913b0_S3-113 S. 44)
Photo · fdce760913b0_S3-113 · S. 44
Source: VideoRay Pro 5 datasheet, p. 3
