Library› Engine Room› Deck Machinery Hydraulics› Hydraulic Power Pack› PLEIGER EC-68
PLEIGER

EC-68

Hydraulic Power Pack · Deck Machinery Hydraulics

Class-certified type (DNV register) · technical data sheet not yet verified
View photo ↗
Specifications

Technical data.verified

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

Maximum torqueAppr. 31 000 Nm🔖
Maximum torque:Appr. 13 000 Nm🔖
Rotary angle:90° +/-4°🔖
Material housing:GGG40, GGG40.3, bronze (others on request)🔖
Ambient temperature:-20 to 60 °C (others on request)🔖
Protection class:IP67, IP68 (on request)🔖
Position feedback:Open/closed, analog (4-20 mA)🔖
Nominal voltage:230/400 V (single phase - 3 phase - 50/60 Hz)🔖
Functional safety:SIL acc. IEC 61508 (on request)🔖
Connecting dimensions:Acc. to DIN ISO 5211🔖
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The PLEIGER Power Pack EC-68 is an electro-hydraulic actuator control for high demands in a compact design.

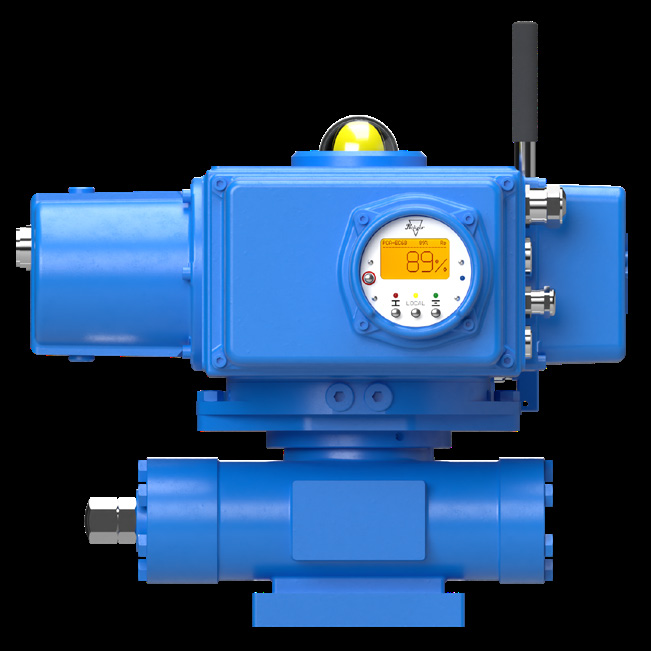

PLEIGER EC-68 – Photo (4221e9c94775_S1-1 S. 1)
Photo · 4221e9c94775_S1-1 · S. 1
PLEIGER EC-68 – Photo (4a2eaca21a79_S1-1 S. 1)
Photo · 4a2eaca21a79_S1-1 · S. 1
PLEIGER EC-68 – Photo (4a2eaca21a79_S1-1 S. 1)
Photo · 4a2eaca21a79_S1-1 · S. 1

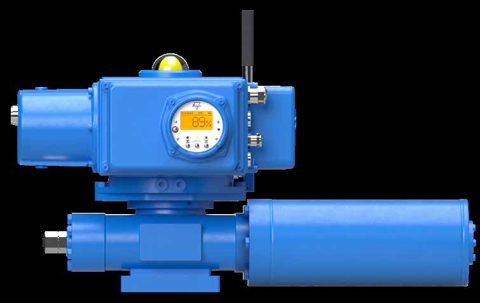

PLEIGER EC-68 – Photo (22bdd9c3b70c_S1-2 S. 1)
Photo · 22bdd9c3b70c_S1-2 · S. 1
PLEIGER EC-68 – Photo (22bdd9c3b70c_S1-2 S. 1)
Photo · 22bdd9c3b70c_S1-2 · S. 1
PLEIGER EC-68 – Photo (22bdd9c3b70c_S1-2 S. 2)
Photo · 22bdd9c3b70c_S1-2 · S. 2
PLEIGER EC-68 – Photo (df9e86b91157_S1-1 S. 1)
Photo · df9e86b91157_S1-1 · S. 1
PLEIGER EC-68 – Photo (df9e86b91157_S1-1 S. 1)
Photo · df9e86b91157_S1-1 · S. 1
Source: PLEIGER EC-68 datasheet, p. 1
