Library› Engine Room› Pumps› Screw Pump› inoxpa DCH 2A1
inoxpa

DCH 2A1

Screw Pump · Pumps

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.verified

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

Débit max.15,5 m3/h🔖
Pression dif.max.16 bar🔖
Vitesse max.2800 rpm🔖
Taille max. solides9 mm🔖
Portata massima15,5 m3/h🔖
Pressione diff. mass.16 bar🔖
Velocità massima2800 rpm🔖
Type100/112🔖
Motor IEC668 mm🔖
Dn128 mm🔖
Dn262 mm🔖
A180 mm🔖
B215 mm🔖
C260 mm🔖
DM14🔖
F237-247 mm🔖
G338 mm🔖
H93 mm🔖
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“I Moteur Moteur d’induction triphasé avec bride B5 et pieds B3 conforme aux normes CEI, classe d’efficacité selon le règlement CE, protection IP 55 et isolation classe F. Triphasé, 50 Hz, 230 V Δ /…”

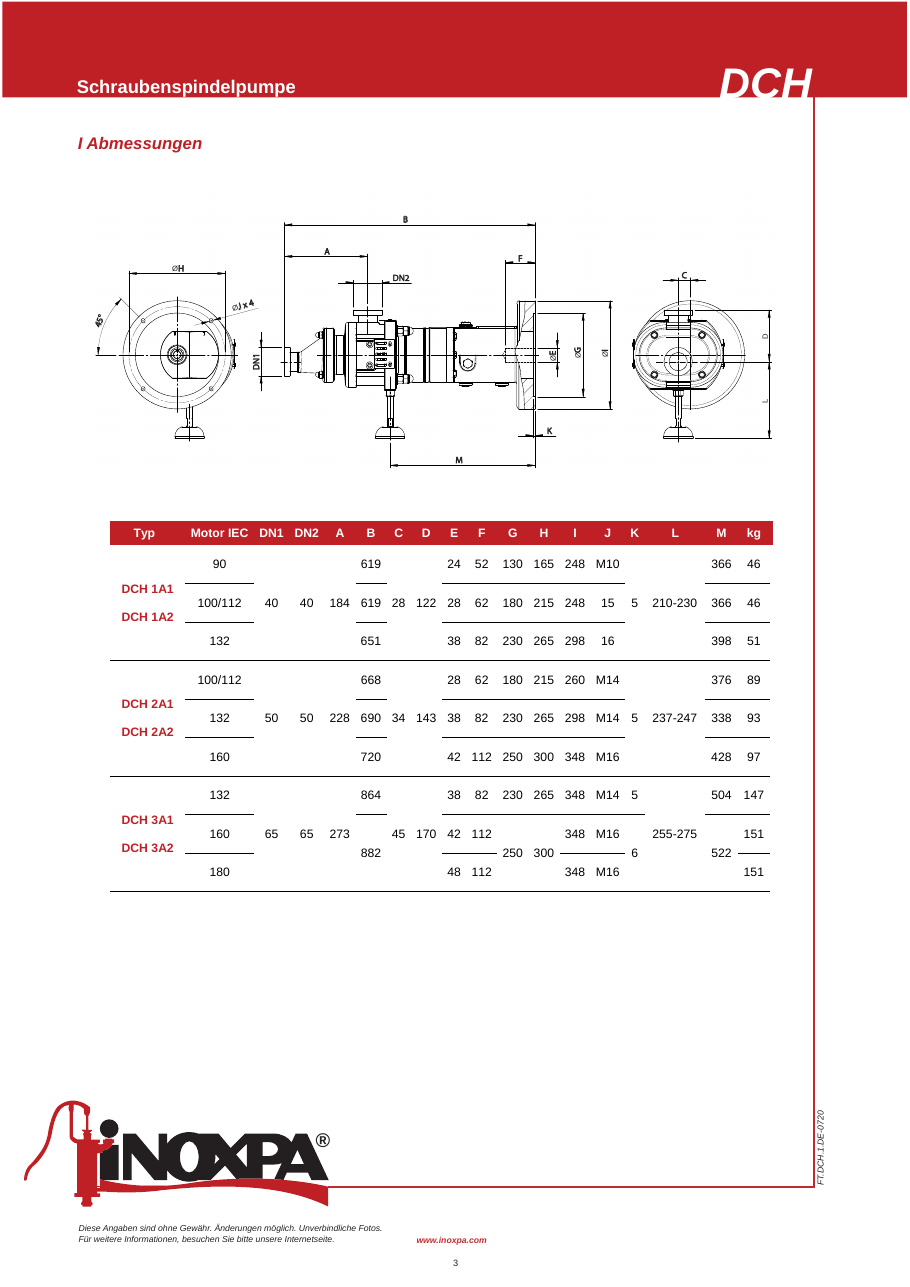

inoxpa DCH 2A1 – Drawing (bc32d5ecb563_S2-3 S. 2)
Drawing · bc32d5ecb563_S2-3 · S. 2

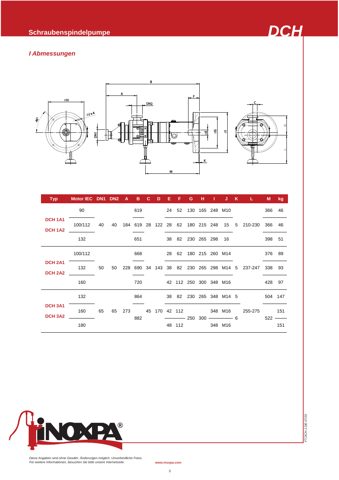

inoxpa DCH 2A1 – Drawing (bc32d5ecb563_S2-3 S. 2)
Drawing · bc32d5ecb563_S2-3 · S. 2

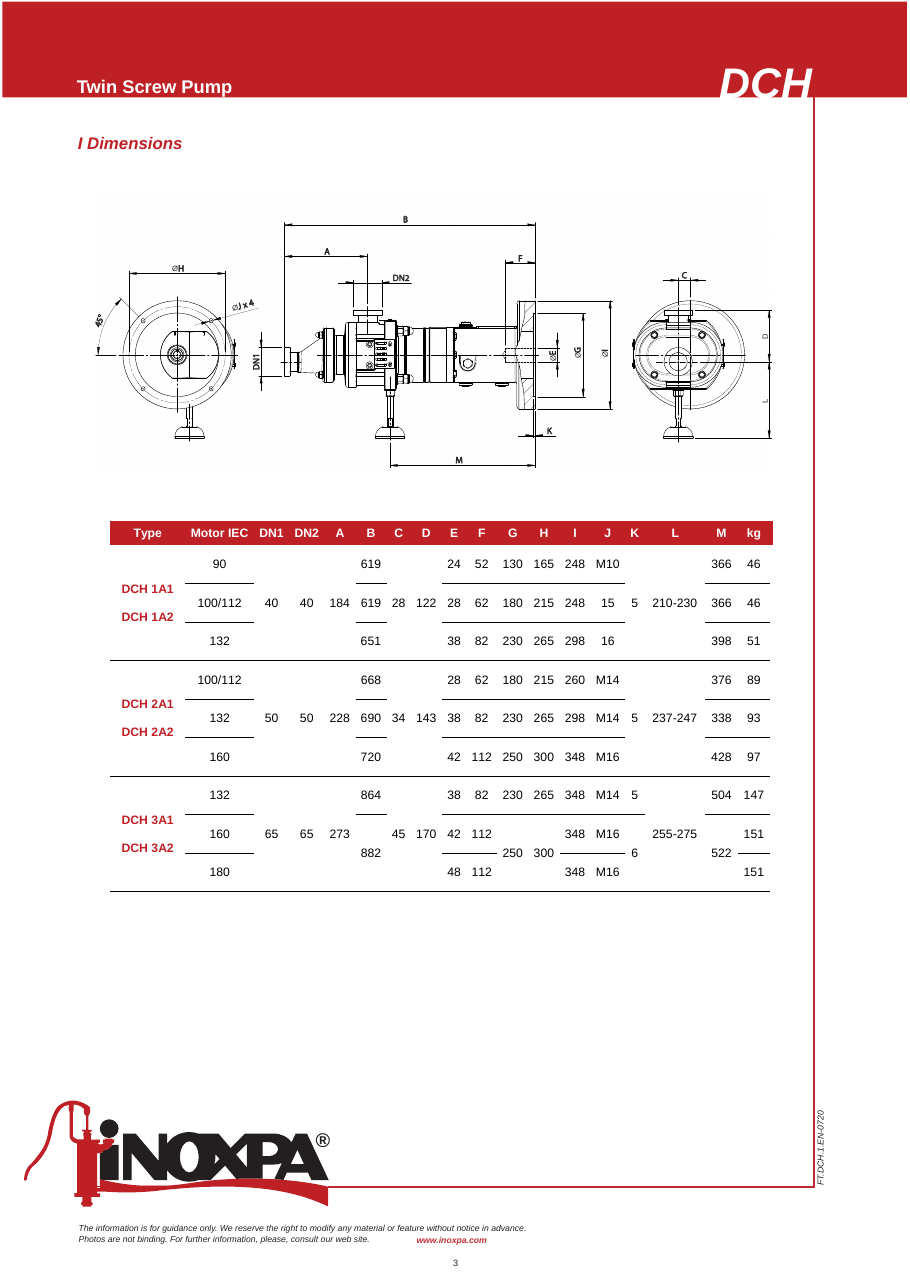

inoxpa DCH 2A1 – Drawing (9b078084591f_S2-3 S. 2)
Drawing · 9b078084591f_S2-3 · S. 2
Source: Pompe à Double Vis DCH, p. 1
