Library› Navigation› Navigation & Bridge Equipment› Echo Sounder› Japan Radio JFE-680
Japan Radio

JFE-680

Echo Sounder · Navigation & Bridge Equipment

Class-certified type (DNV register) · technical data sheet not yet verified
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“Circuit Diagrams: CBD-1811 power, 2011-12-13 CCK-963 control panel, 2011-12-09 CDJ-2338A main unit, 2011-12-09 CMN-720 TXRX unit, 201 I-I 2-07 CQD-2083 interlace, 2011-12-07 JFE-680 inter connection,…”Source: Japan Radio JFE-680 datasheet, p. 1

Features

  • Multiple transducer support

Options

  • Various transducers available
  • Remote control unit

Standards

  • ISO 9875 (2001)
  • lEO 60945 (2002)
  • IEC 62288 (2008)
  • IEC 61 162-1 (2010)

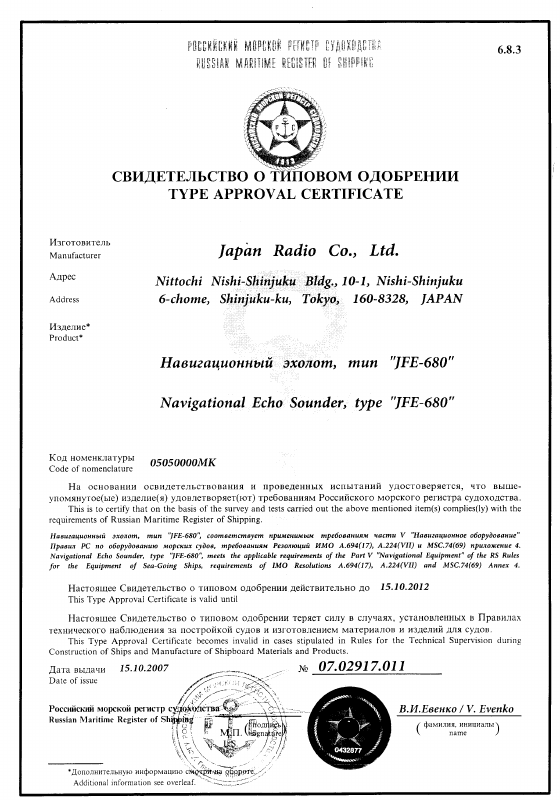

Japan Radio JFE-680 – Page preview (4ecc2cfbae76_S1-1 S. 1)
Page preview · 4ecc2cfbae76_S1-1 · S. 1
Source: Japan Radio JFE-680 datasheet, p. 3
