Library› Navigation› Position & Heading› Magnetic Compass› ami MD71EMC
ami

MD71EMC

Magnetic Compass · Position & Heading

Class-certified type (DNV register) · technical data sheet not yet verified
View photo ↗
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The Marine Data MD71EMC is an Electro-Magnetic Compass System that detects the Earth’s magnetic field directly and transmits the ship’s heading over a NMEA 0183 digital connection.

Applications

  • backup or alternative to a gyro

Features

  • provides digital heading data
  • no moving parts
  • unparalleled accuracy
  • intuitive operator controls with OLED display
  • 2x power supply inputs
  • 2x NMEA 0183 data channels output
  • correction of magnetic deviation and variation
  • automatic calibration

Options

  • Trunnion Bracket Kit for MD71THD Control Head
  • MD96JB/8 Junction Box
  • MD94DDU Data Distribution Unit
  • Heading Repeaters

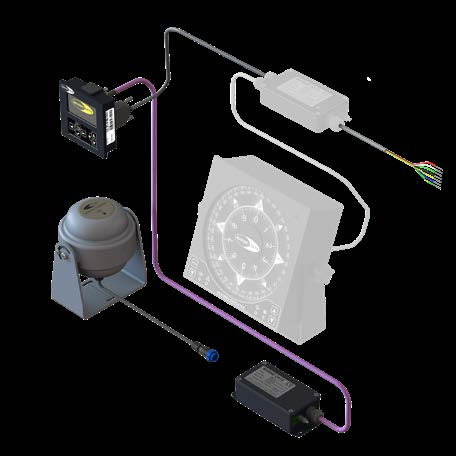

ami MD71EMC – Photo (507f5c5cd53e_S1-1 S. 1)
Photo · 507f5c5cd53e_S1-1 · S. 1

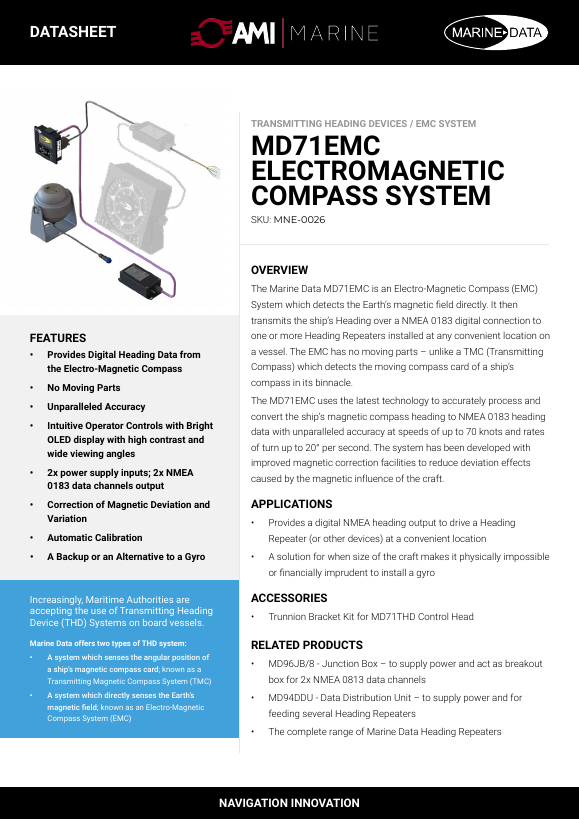

ami MD71EMC – Page preview (507f5c5cd53e_S1-1 S. 1)
Page preview · 507f5c5cd53e_S1-1 · S. 1
ami MD71EMC – Page preview (35f4d614182a_S1-1 S. 1)
Page preview · 35f4d614182a_S1-1 · S. 1
Source: ami MD71EMC datasheet, p. 1
