seafire

123-652

Safety System (ESD/F&G) · Automation & Control

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.verified

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

Operating Voltage12 - 32 VDC🔖
Backup Power Supply12 - 32 VDC🔖
Power Supply Protection3A Fuses🔖
Internal Voltage Protection3 diodes🔖
Pressure Switch2 normally closed inputs🔖
Display ConnectionCAT-5 VIA RJ45 Socket🔖
Buzzer85 dB @ 10 cm🔖
ConnectorsWago 739, Max wire size 12AWG/2.5 mm🔖
Operating Temperature-7oC/20oF to 54oC/130oF🔖
Storage Temperature-7oC/20oF to 54oC/130oF🔖
Weight.6 kg / 1.3 lb.🔖
MountingSurface🔖
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“Operating Voltage: 12 - 32 VDC Backup Power Supply: 12 - 32 VDC Power Supply Protection: 3A Fuses Internal Voltage Protection - 3 diodes Pressure Switch - 2 normally closed inputs Visual Indications…”

seafire 123-652 – Drawing (ea18da0b3ba8_S2-7 S. 2)
Drawing · ea18da0b3ba8_S2-7 · S. 2
seafire 123-652 – Drawing (ea18da0b3ba8_S2-7 S. 3)
Drawing · ea18da0b3ba8_S2-7 · S. 3

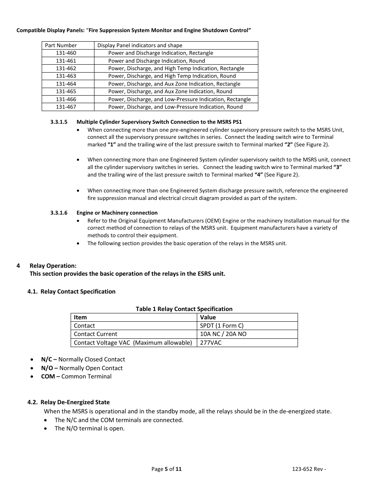

seafire 123-652 – Drawing (ea18da0b3ba8_S2-7 S. 4)
Drawing · ea18da0b3ba8_S2-7 · S. 4
seafire 123-652 – Page preview (ea18da0b3ba8_S2-7 S. 5)
Page preview · ea18da0b3ba8_S2-7 · S. 5
seafire 123-652 – Page preview (ea18da0b3ba8_S2-7 S. 6)
Page preview · ea18da0b3ba8_S2-7 · S. 6
Source: seafire 123-652 datasheet, p. 1
