Library› Engine Room› Pumps› Self-Priming Pump› SHURflo 911-566
SHURflo

911-566

Self-Priming Pump · Pumps

Class-certified type (DNV register) · technical data sheet not yet verified
Example image: Self-Priming Pump — not a photo of this model.
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

EngineSeamless can motor, 1/8 hp Thermally protected
Lead Wires14 GA
FuseSee motor label for fuse size
Pump TypeFlexible Impeller
Duty CycleIntermittent duty only
Ports Inlet1-1/2” hose barb & 1-1/2” NPT Male
Ports Outlet1” hose barb
ImpellerBrandonite®
Blade316 stainless “Double-cut”
DimensionsSee drawing
Weight5 lbs.
ApprovalsIgnition protected, ISO 8846, CE, and CSA, models available
Typical FlowDependent on fluid viscosity (Chart below based on water)
Head0 [0] Ft. [m]
FLOW GPM [LPM]13 [49] 12 V
MAX. DC AMPS17 12 V
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

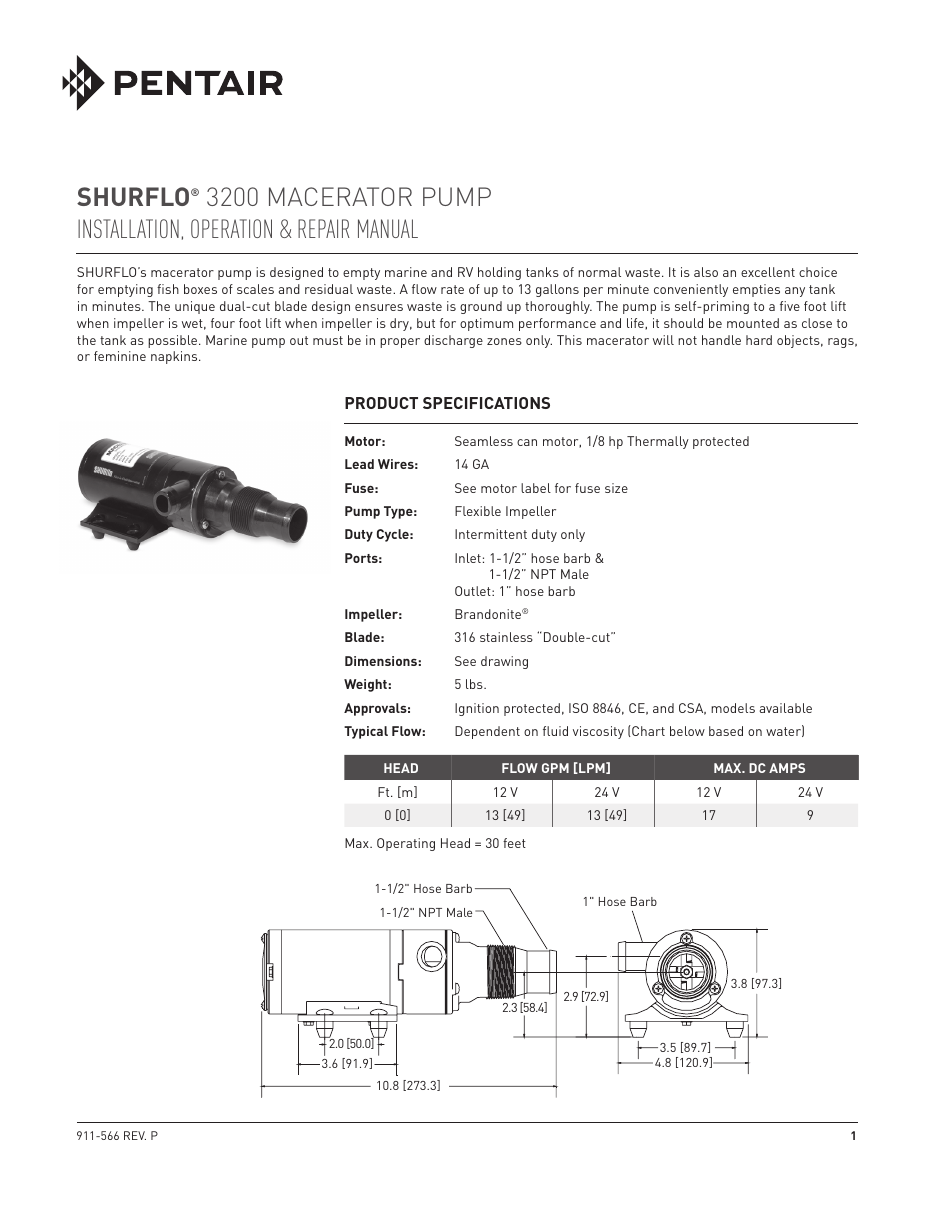

“SHURFLO® 3200 MACERATOR PUMP INSTALLATION, OPERATION & REPAIR MANUAL SHURFLO’s macerator pump is designed to empty marine and RV holding tanks of normal waste. It is also an excellent choice for…”

SHURflo 911-566 – Drawing (44219f503554_S1-1 S. 1)
Drawing · 44219f503554_S1-1 · S. 1
Source: SHURflo 911-566 datasheet, p. 1
