Library› Safety & LSA› Gas Detection› Fixed Gas Detector› RKI Instruments 65-2428-01
RKI Instruments

65-2428-01

Fixed Gas Detector · Gas Detection

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Target GasHydrogen sulfide (H2S)
Area Classification*Explosionproof for Class I, Groups B, C, and D
Temperature CodeT6
Installation CategoryInstallation Category 1. Signal level, special equipment or parts of equipment,
Sampling MethodDiffusion
H2S Detector Signal Output0.3 mA at 0 ppm H2S nominal 2.5 mA at 100 ppm H2S nominal
Detection Range0 to 100 PPM
Accuracy± 5% of reading or ± 2 ppm H2S (whichever is greater)
Response Time90% in 30 seconds
Operating Temperature-40°F to 104°F (-40°C to 40°C)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“Overview This manual describes the 65-2428-01 hydrogen sulfide (H2S) detector. This manual also describes how to install, start up, maintain, and calibrate the detector when it is used with a gas…”

RKI Instruments 65-2428-01 – Drawing (4c81fde896ed_S5-14 S. 5)
Drawing · 4c81fde896ed_S5-14 · S. 5

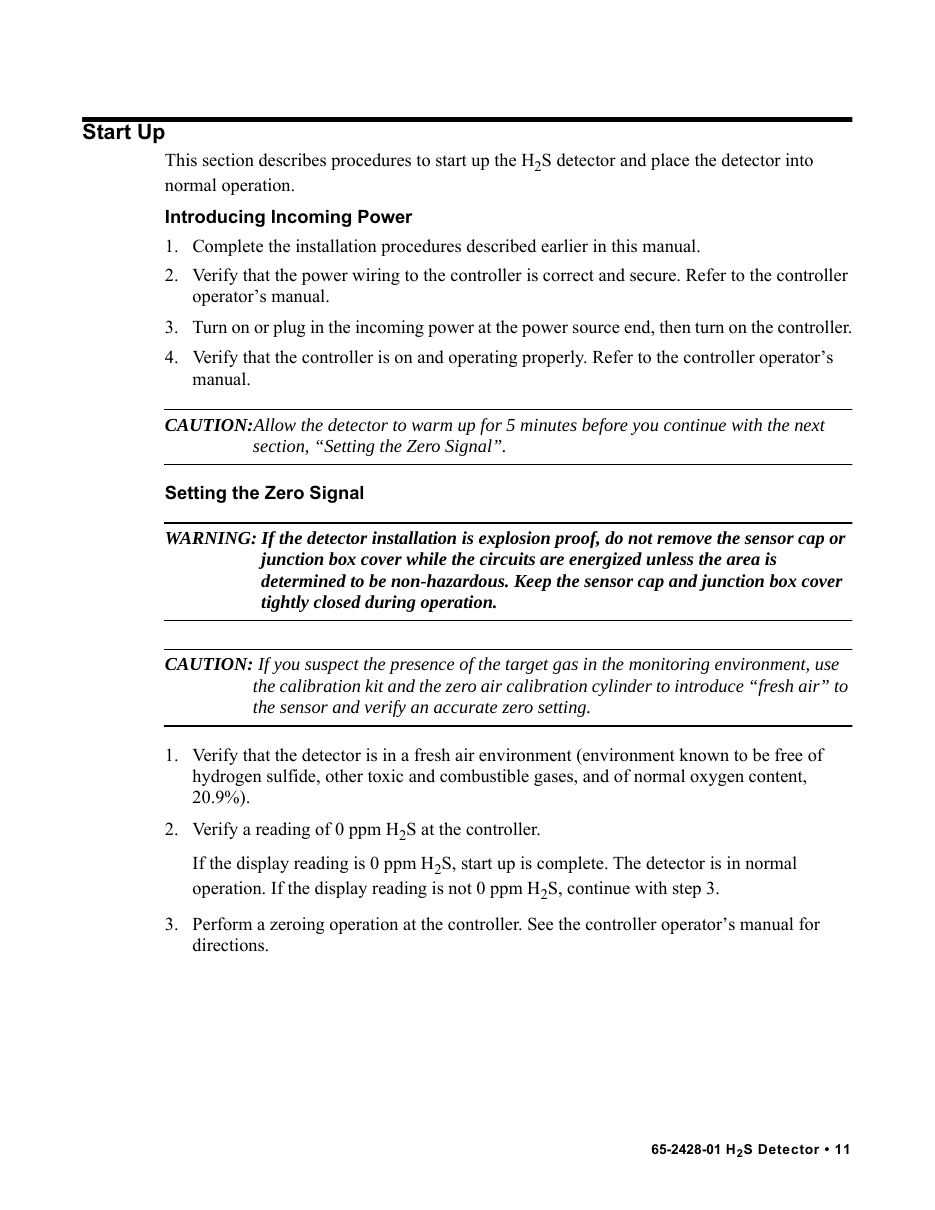

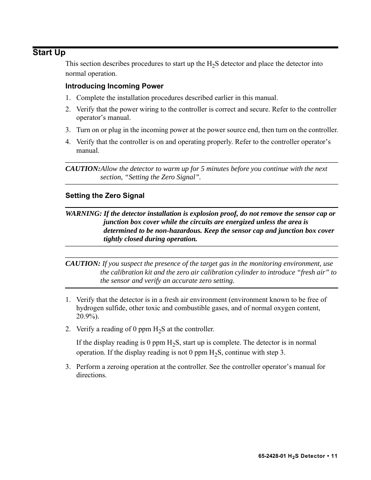

RKI Instruments 65-2428-01 – Drawing (4c81fde896ed_S5-14 S. 7)
Drawing · 4c81fde896ed_S5-14 · S. 7

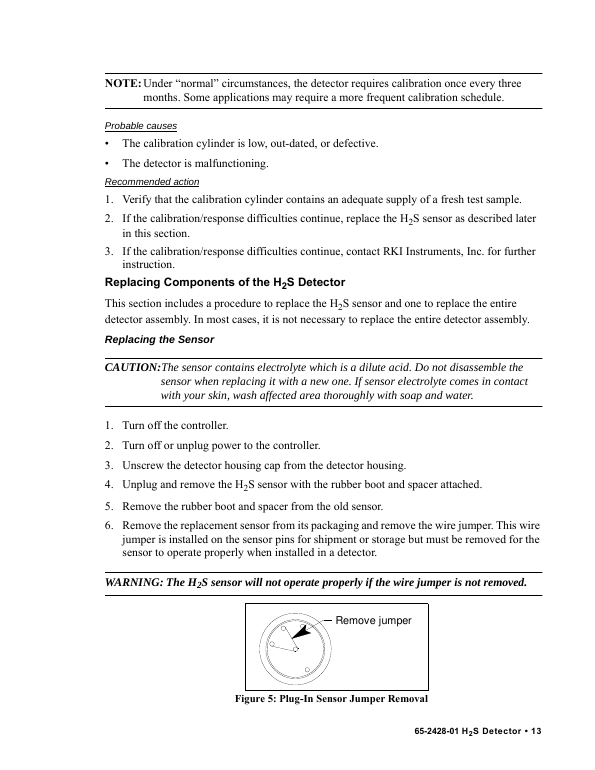

RKI Instruments 65-2428-01 – Drawing (4c81fde896ed_S5-14 S. 8)
Drawing · 4c81fde896ed_S5-14 · S. 8

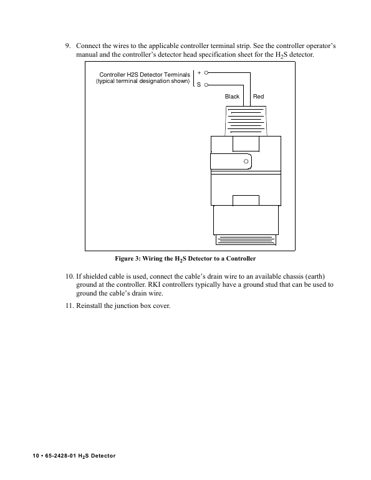

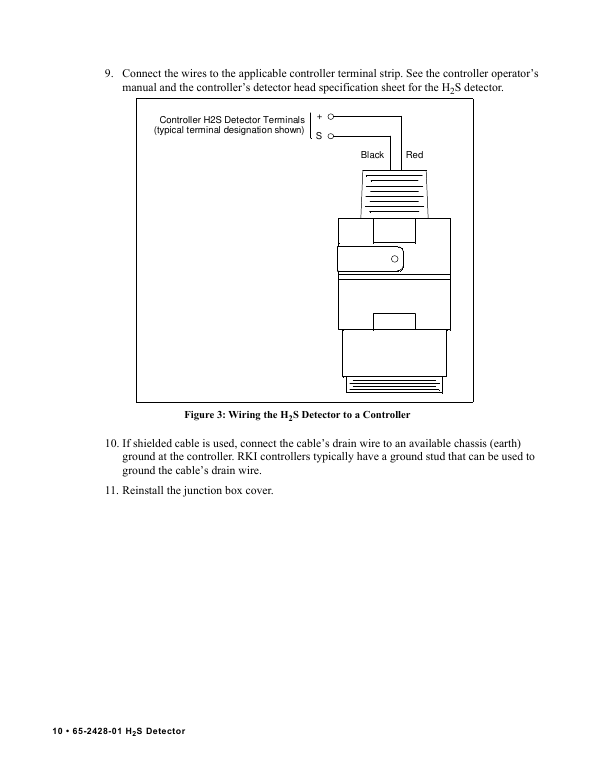

RKI Instruments 65-2428-01 – Page preview (4c81fde896ed_S5-14 S. 6)
Page preview · 4c81fde896ed_S5-14 · S. 6

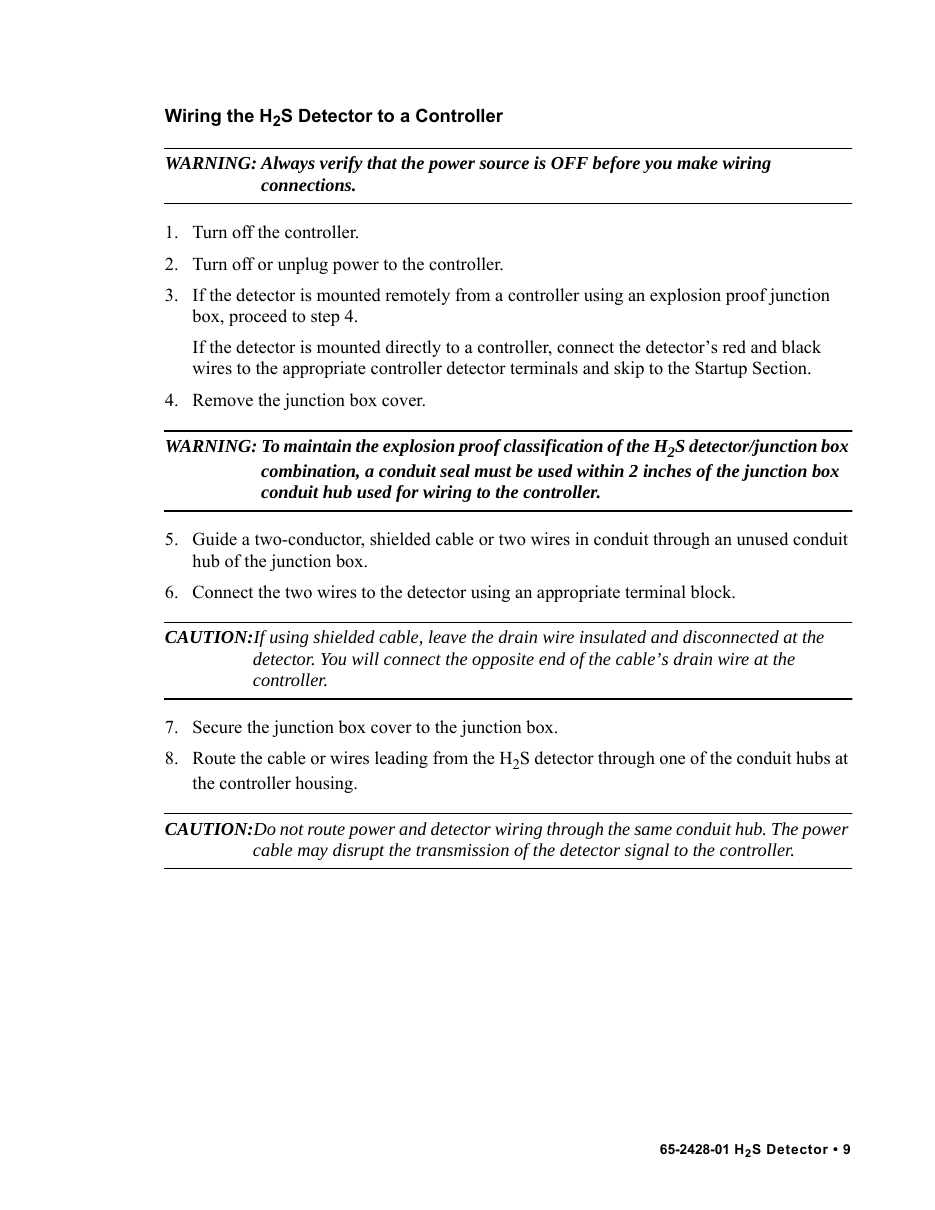

RKI Instruments 65-2428-01 – Page preview (4c81fde896ed_S5-14 S. 9)
Page preview · 4c81fde896ed_S5-14 · S. 9
RKI Instruments 65-2428-01 – Page preview (4c81fde896ed_S5-14 S. 10)
Page preview · 4c81fde896ed_S5-14 · S. 10
Source: RKI Instruments 65-2428-01 datasheet, p. 1
