JEFA Steering

RP100

Steering Gear · Steering Gear

Class-certified type (DNV register) · technical data sheet not yet verified
View photo ↗
Specifications

Technical data.verified

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

Pedestal height63cm = Z4-210 RP63 Downtube ø70x760mm🔖
Maximum turns lock to lock1.8🔖
Standard output lever operating centres130 mm.🔖
Standard tiller lever operating centres200 mm.🔖
Rated output force12503 N.🔖
Maximum rudder torque at midships255 Kgf.m/2500Nm🔖
Maximum rudder torque at full lock464 Kgf.m/4550Nm🔖
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The Jefa RP100 is a rack and pinion steering pedestal designed for marine applications.

Applications

  • steering boats

Features

  • easy to install

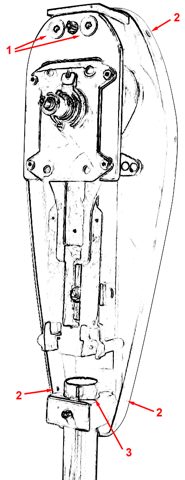

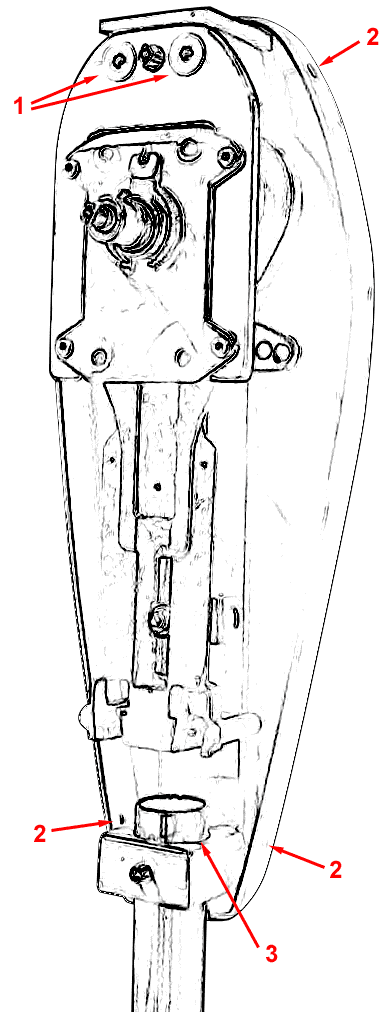

JEFA Steering RP100 – Photo (12ddbbf64b8a_S2-5 S. 4)
Photo · 12ddbbf64b8a_S2-5 · S. 4

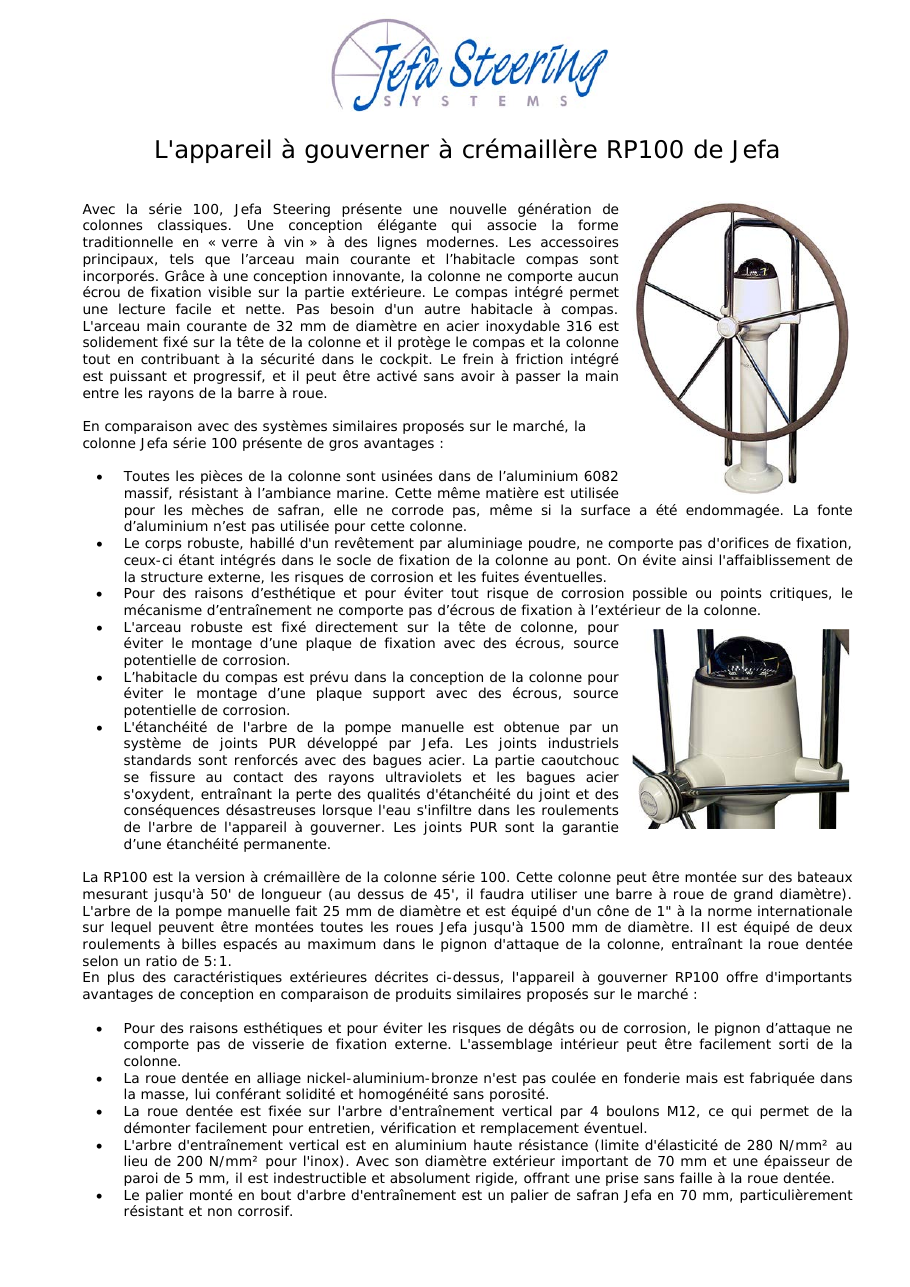

JEFA Steering RP100 – Drawing (a9eeadfd517f_S1-2 S. 1)
Drawing · a9eeadfd517f_S1-2 · S. 1

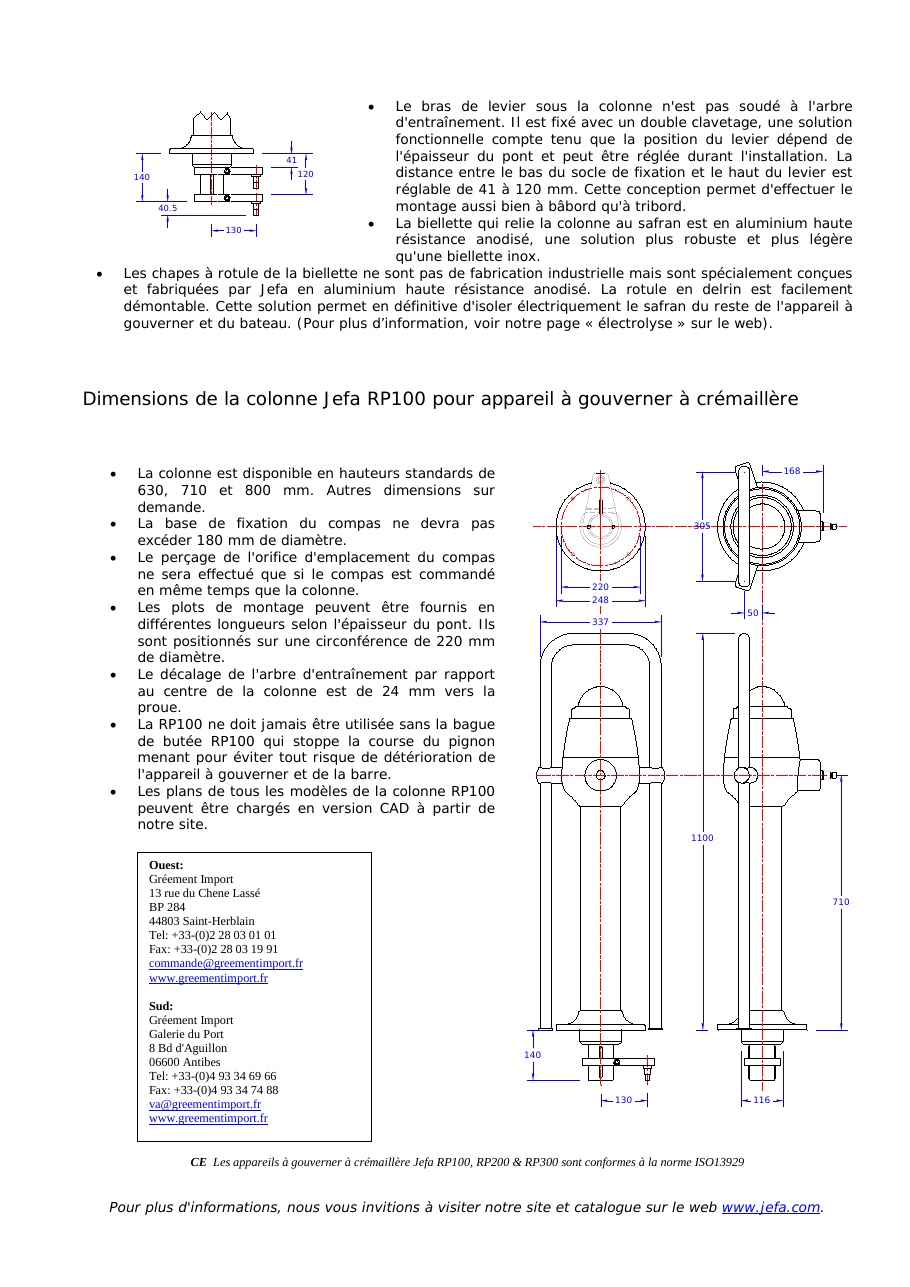

JEFA Steering RP100 – Drawing (a9eeadfd517f_S1-2 S. 2)
Drawing · a9eeadfd517f_S1-2 · S. 2

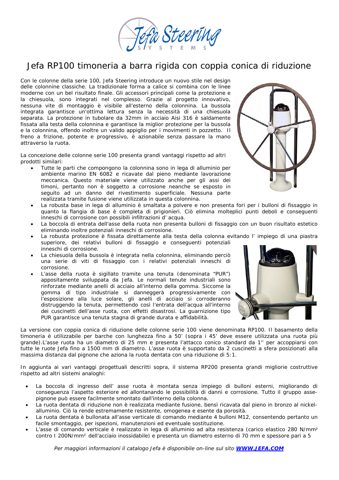

JEFA Steering RP100 – Drawing (d52d27e3c75e_S1-2 S. 1)
Drawing · d52d27e3c75e_S1-2 · S. 1

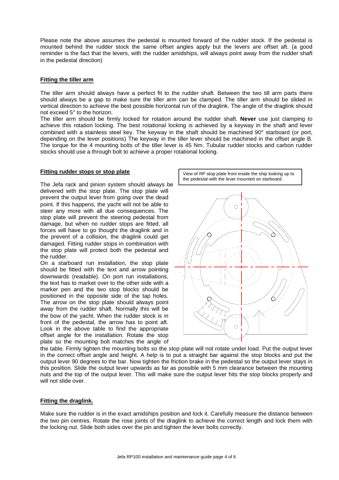

JEFA Steering RP100 – Page preview (12ddbbf64b8a_S2-5 S. 3)
Page preview · 12ddbbf64b8a_S2-5 · S. 3

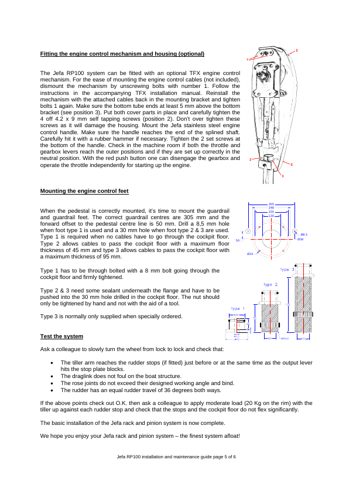

JEFA Steering RP100 – Page preview (12ddbbf64b8a_S2-5 S. 4)
Page preview · 12ddbbf64b8a_S2-5 · S. 4
Source: JEFA Steering RP100 datasheet, p. 2
