Library› Deck› Anchor & Mooring Equipment› Capstan› SEIMI RS1T
SEIMI

RS1T

Capstan · Anchor & Mooring Equipment

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Traction1 tonne
Poids5 kg
A89 mm
B80 mm
C99 mm
D111,5 mm
E25,4 mm
IP rating50
Housing material303 Stainless steel
ConnectorLEMO 7 female
Thread typeM6 x 5 mm (~0.2)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The RS1T sensor is an ultrasound contact sensor used for mounting on machines to detect vibrations.

Applications

  • Machine monitoring
  • Vibration analysis
  • Condition monitoring

Features

  • Piezoelectric crystal for transduction
  • Mechanical resonant structure
  • Wide measurement bandwidth

Options

  • SDT ATEX devices

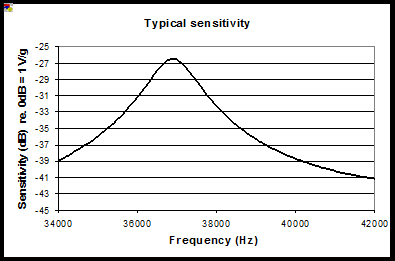

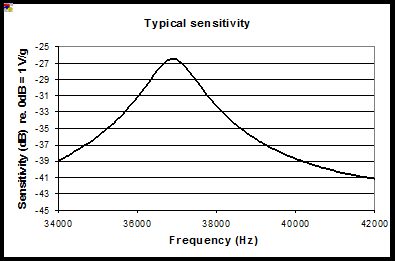

SEIMI RS1T – Photo (e84132d63ccb_S1-2 S. 2)
Photo · e84132d63ccb_S1-2 · S. 2
SEIMI RS1T – Photo (e84132d63ccb_S1-2 S. 2)
Photo · e84132d63ccb_S1-2 · S. 2
SEIMI RS1T – Photo (e84132d63ccb_S1-2 S. 2)
Photo · e84132d63ccb_S1-2 · S. 2

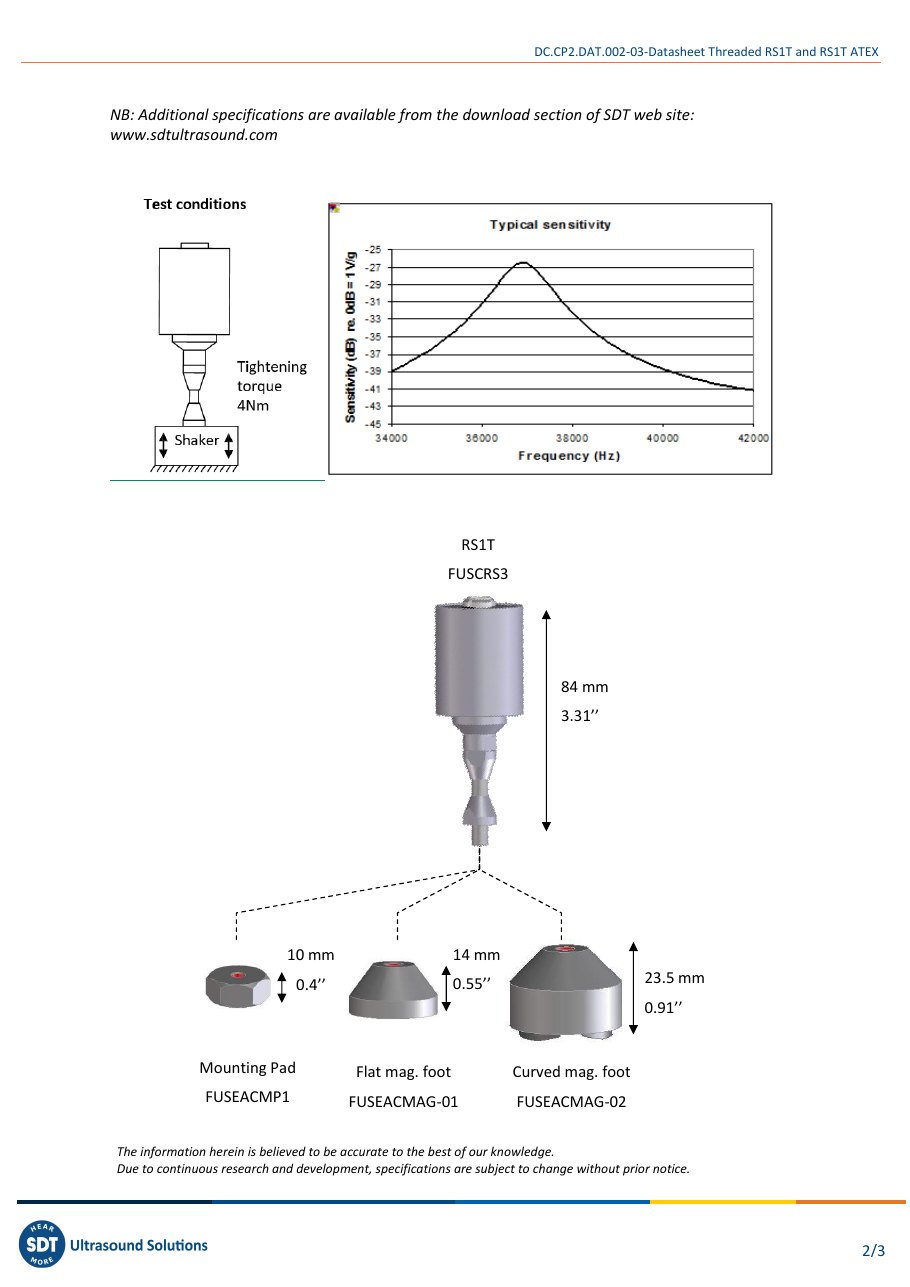

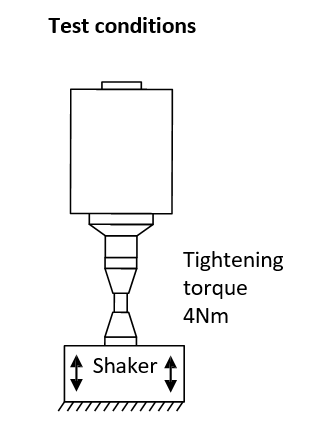

SEIMI RS1T – Drawing (e84132d63ccb_S1-2 S. 1)
Drawing · e84132d63ccb_S1-2 · S. 1
SEIMI RS1T – Drawing (e84132d63ccb_S1-2 S. 2)
Drawing · e84132d63ccb_S1-2 · S. 2

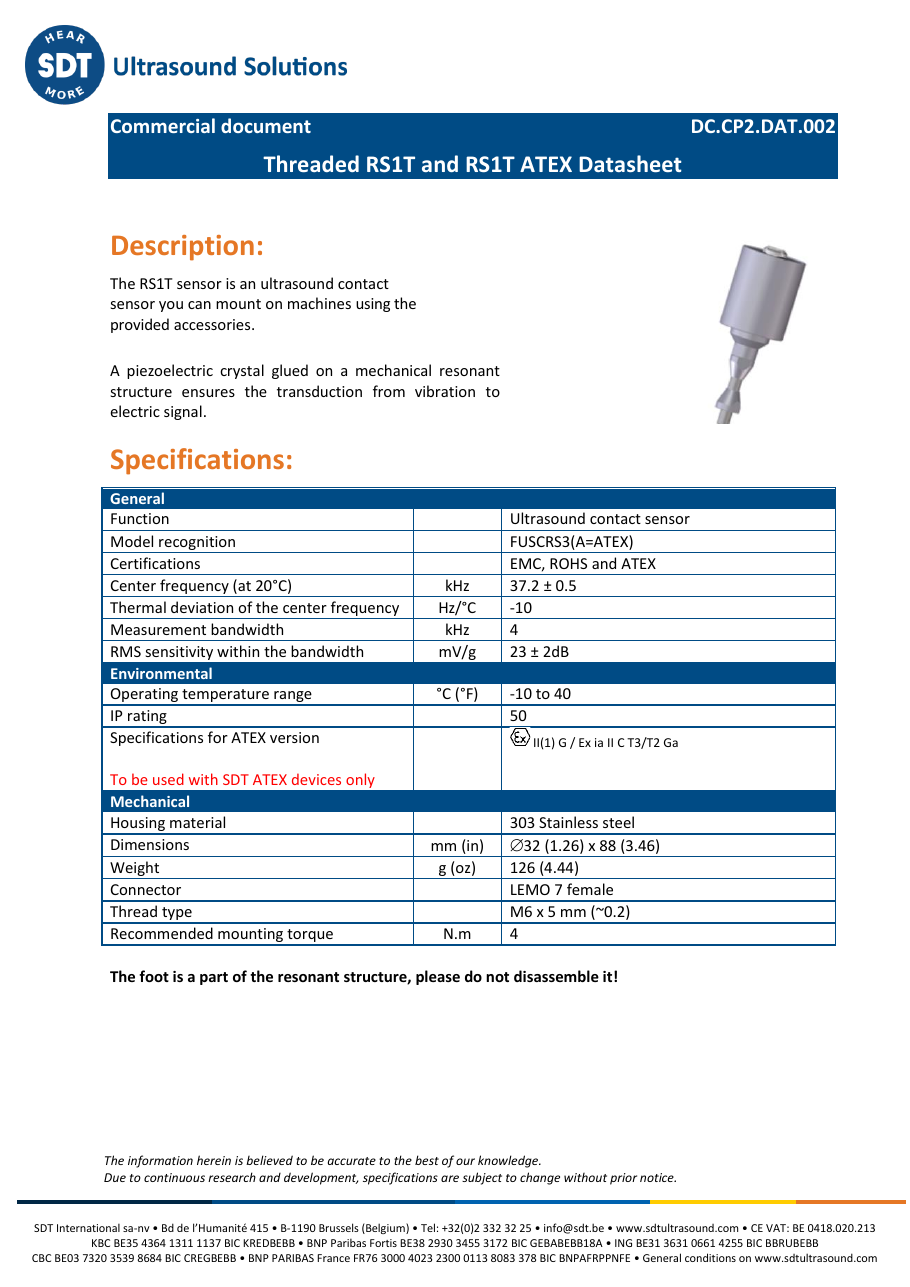

Source: SEIMI RS1T datasheet, p. 1
