Library› Cargo› Cargo Level & Temperature Gauging› Temperature Sensor› R.M. Young 41382VF
R.M. Young

41382VF

Temperature Sensor · Cargo Level & Temperature Gauging

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Measuring range (Relative Humidity)0-100% RH
Accuracy (Relative Humidity)±1%
Stability (Relative Humidity)Better than ±1%RH per year
Response Time (Relative Humidity)10 seconds
Measuring Range (Temperature)-50 to +150°F
Accuracy (Temperature)±0.5°F
Response Time (Temperature)10 seconds
Output signal0-1 or 0-5 VDC (jumper option)
Power Required8-30 VDC at 7 mA
Measuring range:0-100% RH
Response Time:10 seconds (Without Filter)
Measuring Range:-50 to +150°F
Accuracy at 73°F:±0.5°F
Power Required:8-30 VDC at 7 mA
Output signal:0-1 or 0-5 VDC (jumper option)
Manufacturer documentation

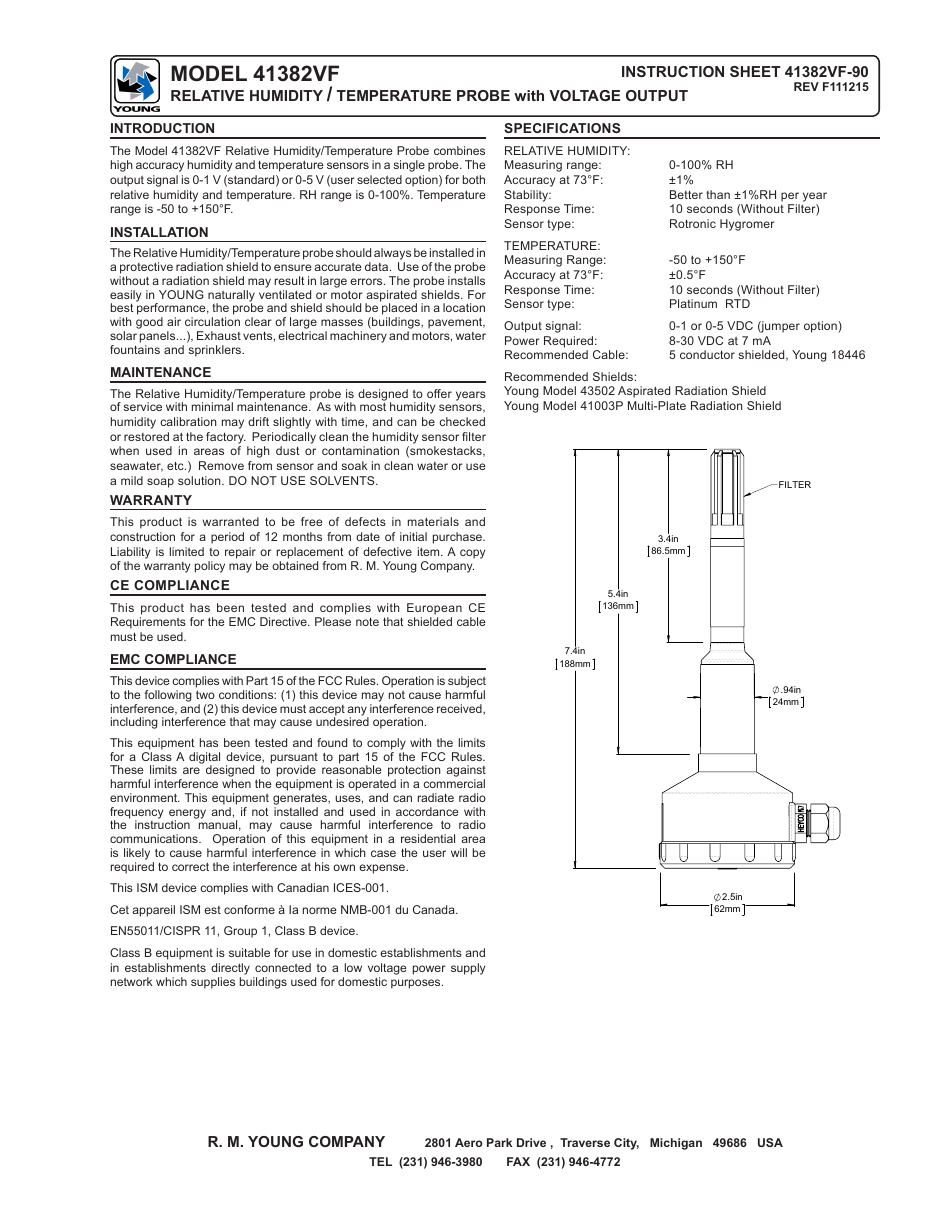

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The Model 41382VF Relative Humidity/Temperature Probe measures both humidity and temperature with high accuracy. The output signal is 0-1 V or 0-5 V, depending on user selection.

Features

  • High accuracy humidity and temperature sensors
  • 0-1 V or 0-5 V output signal
  • Rotronic Hygromer sensor
  • Platinum RTDW sensor

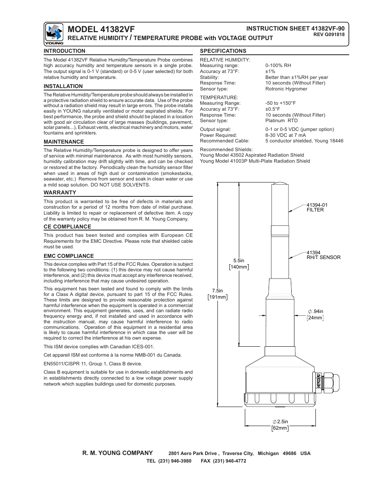

R.M. Young 41382VF – Drawing (1d6ffd04b5f0_S1-1 S. 1)
Drawing · 1d6ffd04b5f0_S1-1 · S. 1

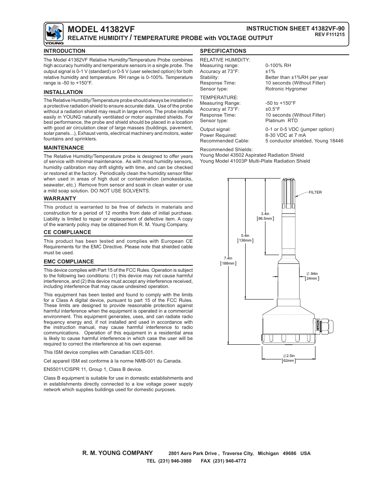

R.M. Young 41382VF – Drawing (9f64edb26639_S1-1 S. 1)
Drawing · 9f64edb26639_S1-1 · S. 1
Source: R.M. Young 41382VF datasheet, p. 1
