Library› Cargo› Cargo Level & Temperature Gauging› Temperature Sensor› R.M. Young 41372VC/VF
R.M. Young

41372VC/VF

Temperature Sensor · Cargo Level & Temperature Gauging

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Power Required8-24 VDC, 9 mA @12 VDC
Operating Temperature-10 to 60°C (14 to 140°F)
Measuring range0-100% RH
Accuracy at 20°C3% from 10 to 90% RH
StabilityBetter than ±2% in 2 years
Time constant15 seconds
Sensor typeVaisala Intercap
Output signal0-1 VDC
Calibrated measuring range-50 to +50°C (suffix C)
Accuracy at 0°C±0.3°C (differential measurement)
Recommended cable5 cond shielded 22 AWG (#18446)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The Model 41372VC/VF Relative Humidity/Temperature Probe combines a high accuracy humidity sensor and 1000 ohm platinum RTD temperature sensor in one probe.

Features

  • High accuracy humidity and temperature sensor
  • 0-1 VDC output for both RH and temperature
  • Vaisala Intercap sensor
  • 1000 Platinum RTD temperature sensor

Options

  • Aspirated Radiation Shield
  • Multi-Plate Radiation Shield

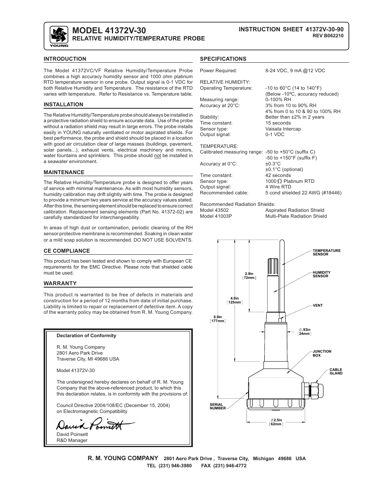

R.M. Young 41372VC/VF – Drawing (4ea0302ff344_S1-1 S. 1)
Drawing · 4ea0302ff344_S1-1 · S. 1
R.M. Young 41372VC/VF – Drawing (005997e5871f_S1-1 S. 1)
Drawing · 005997e5871f_S1-1 · S. 1
Source: VF datasheet, p. 1
