355-010-00 12V DC

Bilge Pump · Bilge Pumps

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Flow Rate500 Gallons Per Hour
Voltage12 V DC
Max Liquid Temperature130°F [54°C]
Inlet Port3/4” Barb
Housing MaterialABS
Impeller MaterialHigh Strength Nylon
Hardware MaterialStainless Steel
Approx. Net Weight0.8 Pounds [0.36 Kg]
Approx. Carton Weight30 Lbs. [13.6 Kg]
Approx. Carton Size24”L X 18”W X 6”H [61cm x 46cm x 15cm]
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“APPLICATION: 12V DC Marine Bilge water evacuation QUALITY BILGE PUMPS YOU CAN TRUST. SHURFLO BILGE PUMPS ARE BUILT FOR THE HARSH MARINE ENVIRONMENT TO WITHSTAND THE TOUGHEST CONDITIONS. STANDARD WITH…”

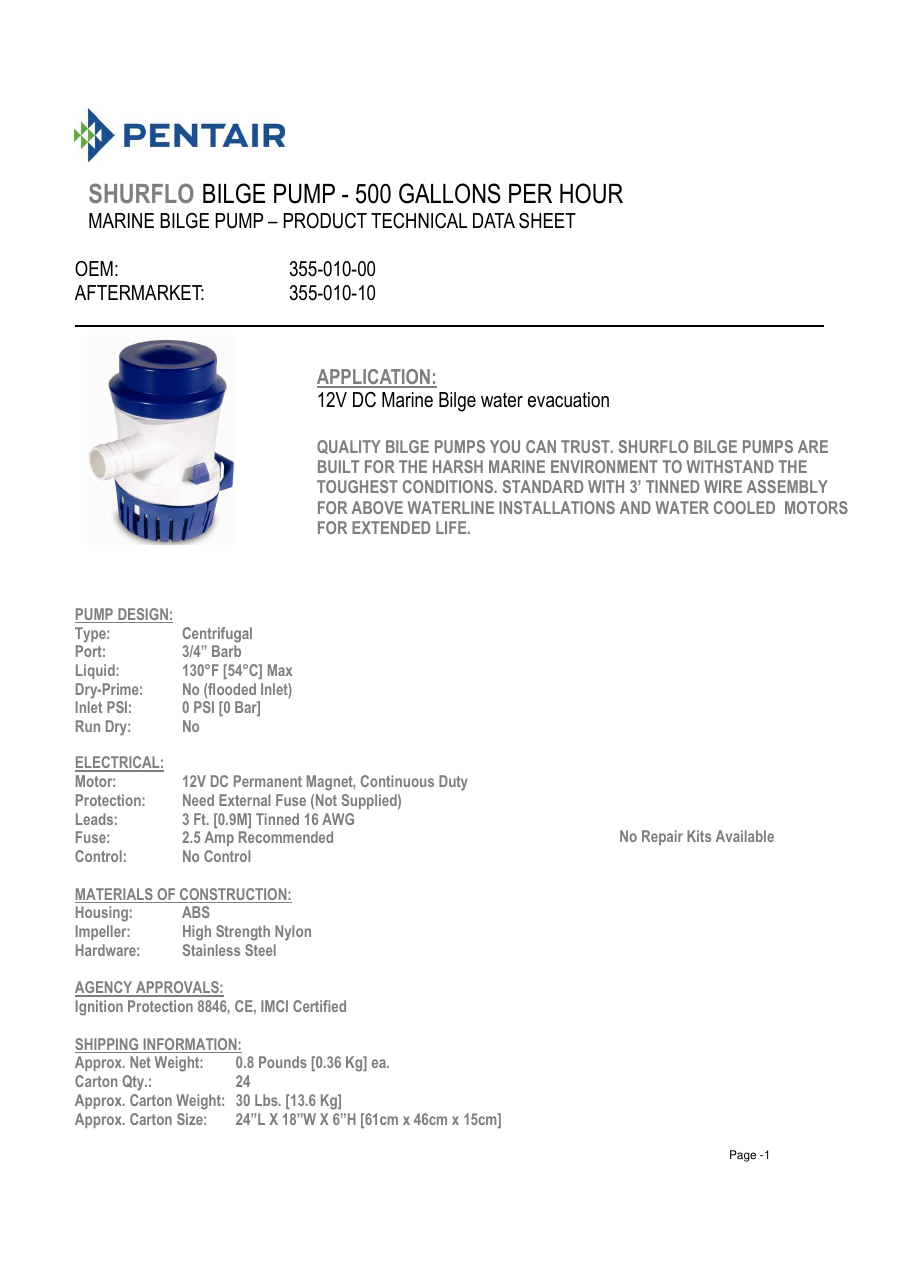

SHURflo 355-010-00 12V DC – Drawing (275d45b7fa2d_S1-1 S. 1)
Drawing · 275d45b7fa2d_S1-1 · S. 1
Source: Shurflo 355-010-00 Bilge Pump Data Sheet, p. 1
