AFRISO

WMS-WP6

Level Switch · Automation & Control

Class-certified type (DNV register) · technical data sheet not yet verified

Mechanical boiler water low level alarm with float. Consisting of a cast brass body with welding sockets and a float mechanism, an electrical switch,

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Operating temperature range - Mediummax. 120 °C
Operating temperature range - Ambientmax. 70 °C
Operating pressuremax. 10 bar
Test pressure15 bar
Contact ratingAC 250 V, 6 (2) A
Dn20 mm
CertificationsTÜV.WBH.yy-232
Mediummax. 120 °C
Operating pressuremax. 10 bar
Test pressure15 bar
Type approval markTÜV.WBH.yy-232"yy" represents the year of the approval
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

A mechanical boiler water low level alarm with float that protects the boiler when the water level is too low.

Applications

  • sealed heating systems
  • boiler protection

Features

  • for protection of the boiler when the water level is too low
  • TÜV-tested as a water level switch
  • Direct mounting via welding socket or connection thread
  • with test key for function test

Standards

  • EN 12828

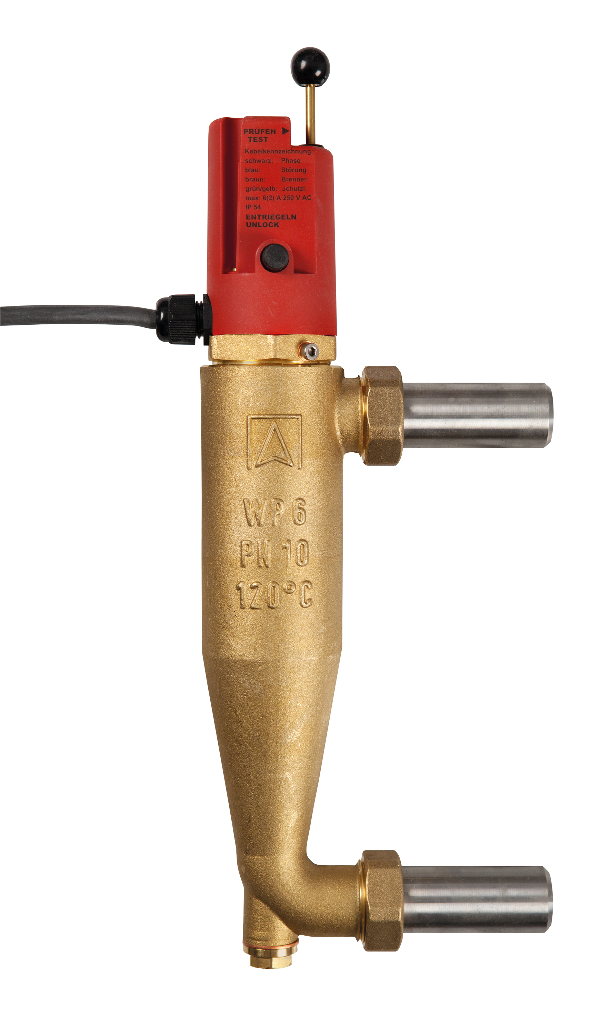

AFRISO WMS-WP6 – Photo (bf53e494bc02_S1-2 S. 1)
Photo · bf53e494bc02_S1-2 · S. 1

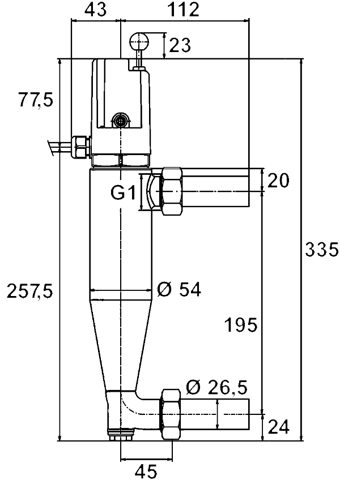

AFRISO WMS-WP6 – Photo (bf53e494bc02_S1-2 S. 2)
Photo · bf53e494bc02_S1-2 · S. 2

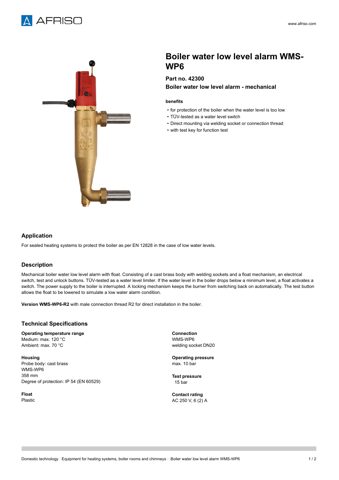

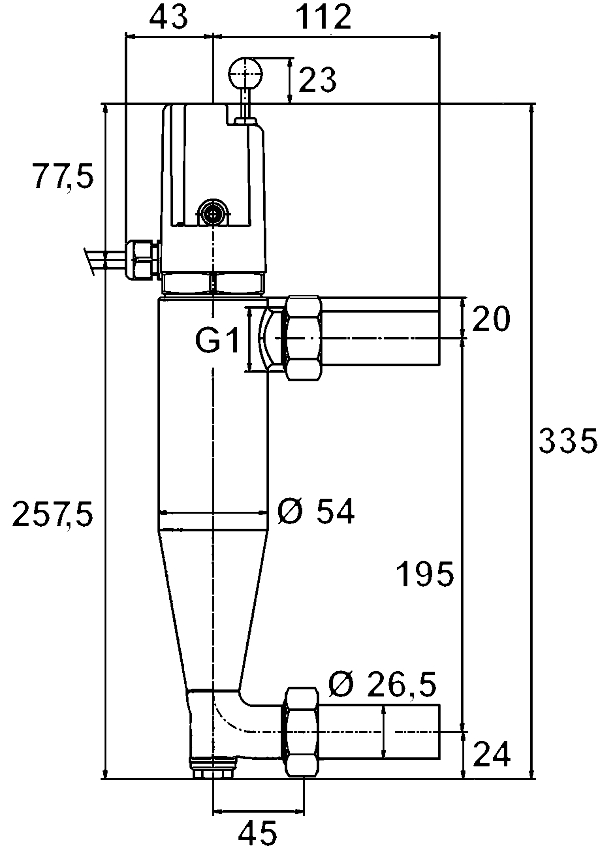

AFRISO WMS-WP6 – Drawing (bf53e494bc02_S1-2 S. 1)
Drawing · bf53e494bc02_S1-2 · S. 1

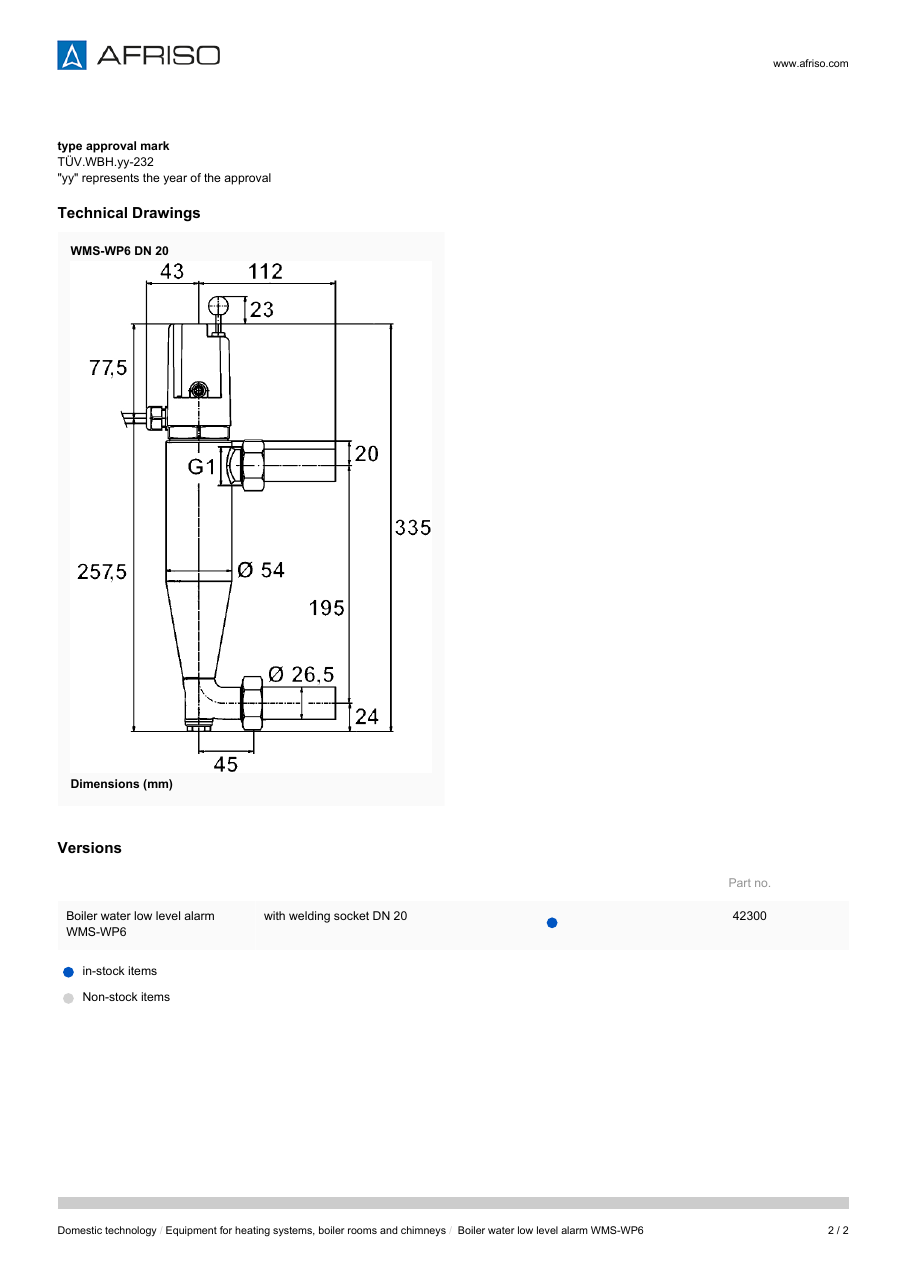

AFRISO WMS-WP6 – Drawing (bf53e494bc02_S1-2 S. 2)
Drawing · bf53e494bc02_S1-2 · S. 2

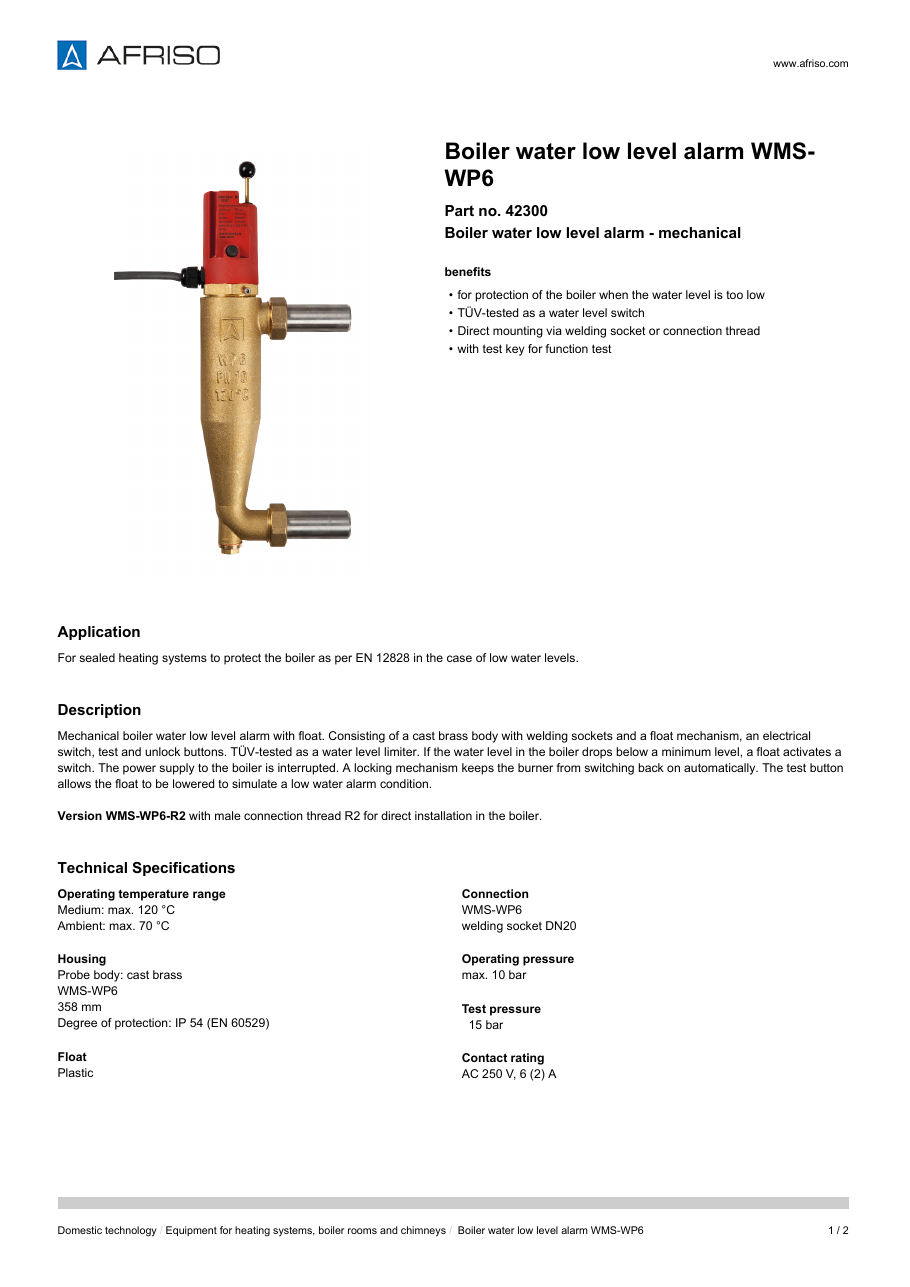

Source: AFRISO WMS-WP6 datasheet, p. 1
