Library› Electrical› Instrumentation & Gauges› Pressure Gauge› AFRISO KSG Mini
AFRISO

KSG Mini

Pressure Gauge · Instrumentation & Gauges

Class-certified type (DNV register) · technical data sheet not yet verified

Complete, pre-assembled, tightness-tested boiler safety group assembly, lightweight design.

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Operating temperature rangemax. 120 °C
DimensionsW x H x D: 140 x 150 x 75 mm
Pressure gauges for heating installationsDiameter: 50 mm
Quick air vent with aqua stopNominal pressure: 12 bar
Heat capacitymax. 50 kW
Response pressure2.5 bar
SealPTFE sealing ring, can be rotated
Response pressure2.5 bar
Range0/4 bar
Diameter50 mm
ConnectionG¼ bottom back
Nominal pressure12 bar
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

A compact, pre-assembled boiler safety group assembly designed for sealed heating systems with a capacity of up to 50 kW.

Applications

  • sealed heating systems
  • boiler rooms
  • chimneys

Features

  • compact version in form-fit insulation
  • time-saving installation
  • Quick air vent with two-way venting principle
  • pressure gauge for direct pressure indication
  • safety valve for overpressure protection

Standards

  • EN 12828

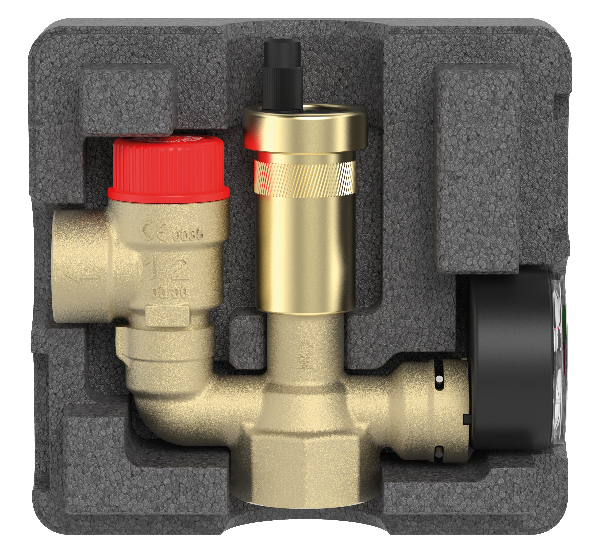

AFRISO KSG Mini – Photo (8a814ece6c99_S1-1 S. 1)
Photo · 8a814ece6c99_S1-1 · S. 1

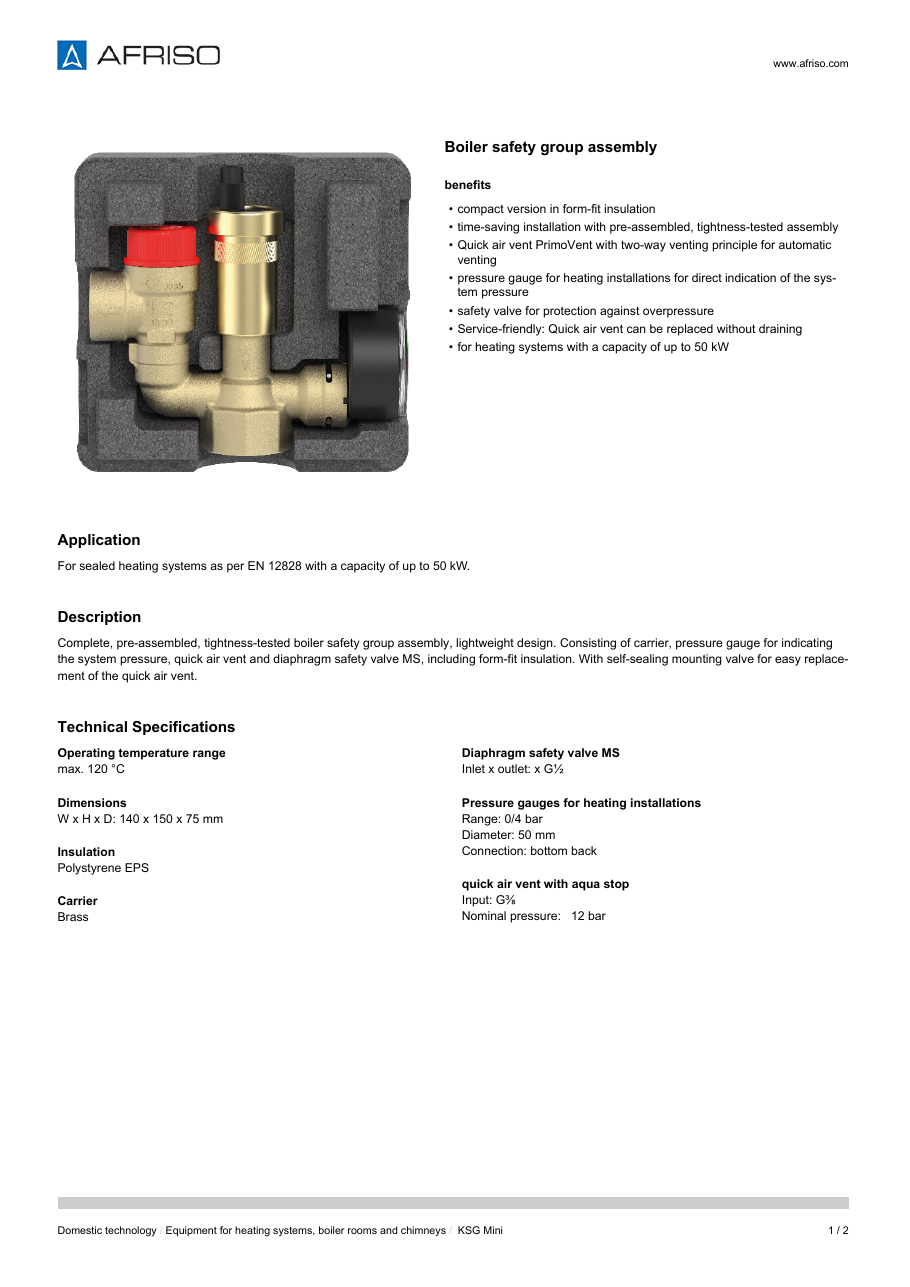

AFRISO KSG Mini – Drawing (8a814ece6c99_S1-1 S. 1)
Drawing · 8a814ece6c99_S1-1 · S. 1

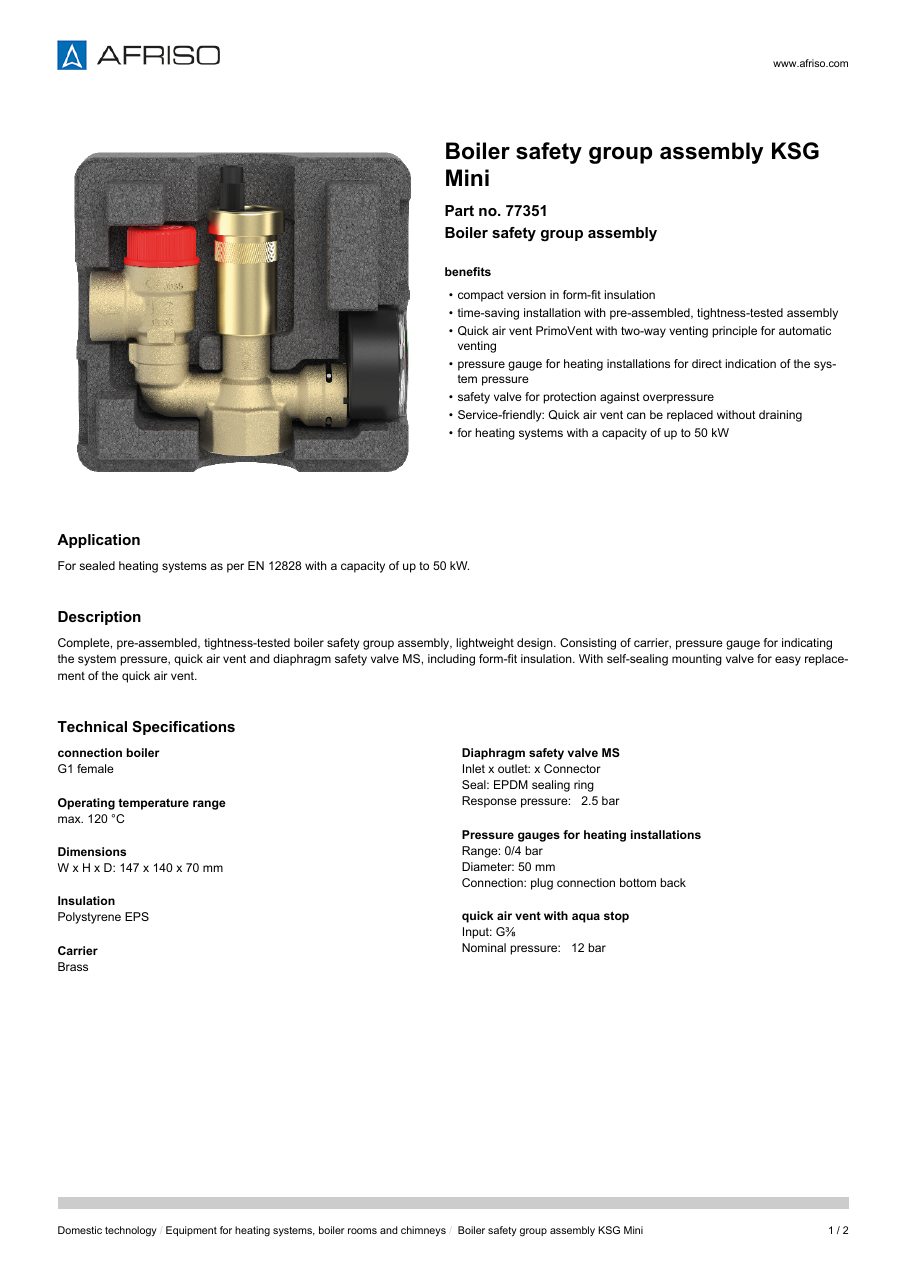

AFRISO KSG Mini – Drawing (ab4f82fd868b_S1-2 S. 1)
Drawing · ab4f82fd868b_S1-2 · S. 1

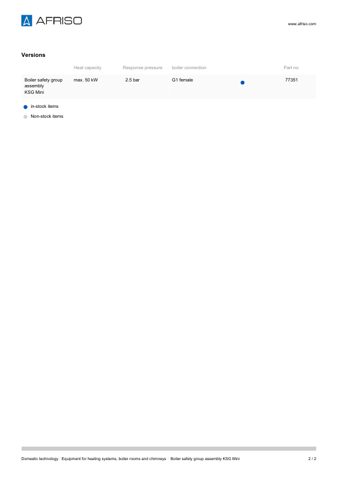

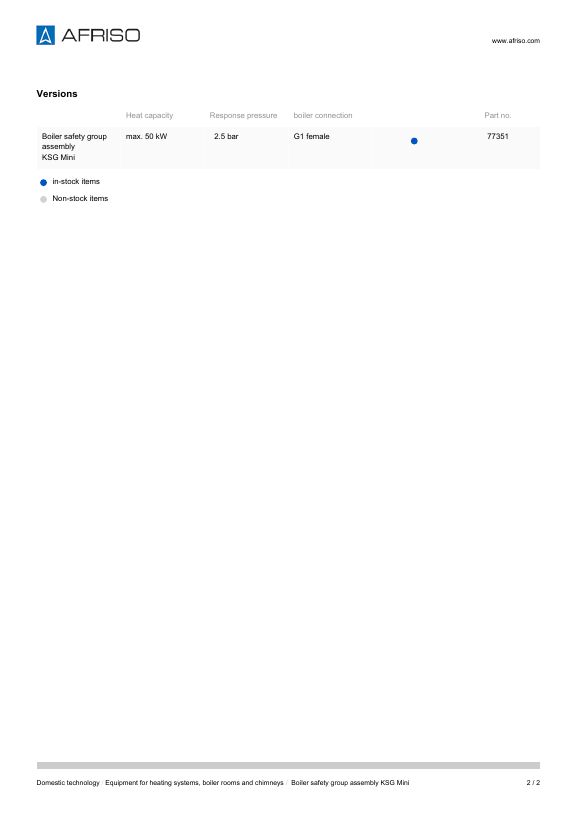

AFRISO KSG Mini – Page preview (ab4f82fd868b_S1-2 S. 2)
Page preview · ab4f82fd868b_S1-2 · S. 2
Source: AFRISO KSG Mini datasheet, p. 1
