Library› Electrical› Electrical Components & Switchgear› Circuit Breaker› Chint NXBLE-40 Residual Current Operated Circuit Breaker (RCBO)
Chint

NXBLE-40 Residual Current Operated Circuit Breaker (RCBO)

Circuit Breaker · Electrical Components & Switchgear

Class-certified type (DNV register) · technical data sheet not yet verified
0 kgWeight
230Voltage

Download NXBLE-40 Residual Current Operated Circuit Breaker (RCBO) datasheet, manual, and related Final Power Distribution product catalogs from CHINT Global

Specifications

Technical data.from datasheet

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

Voltage230V🔖
Rated current6A, 10A, 16A, 20A, 25A, 32A, 40A🔖
Rated residual operating current0.01A, 0.03A🔖
Rated short-circuit breaking capacity (Icu)4500 A🔖
Weight (kg)0.17 kg🔖
Frequency50/60 Hz🔖
pdf_Rated current6A, 10A, 16A, 20A, 25A, 32A, 40A;
pdf_Rated residual operating current0.01A, 0.03A;
pdf_Rated voltage230V;
Pdf frequency50/60Hz;
pdf_Rated impulse withstand voltage(Uimp)4kV;
📄
Download datasheet (PDF) (798 KB)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

Chint NXBLE-40 Residual Current Operated Circuit Breaker (RCBO) – Drawing (Chint datasheet S. 1)
Drawing · Chint datasheet · S. 1

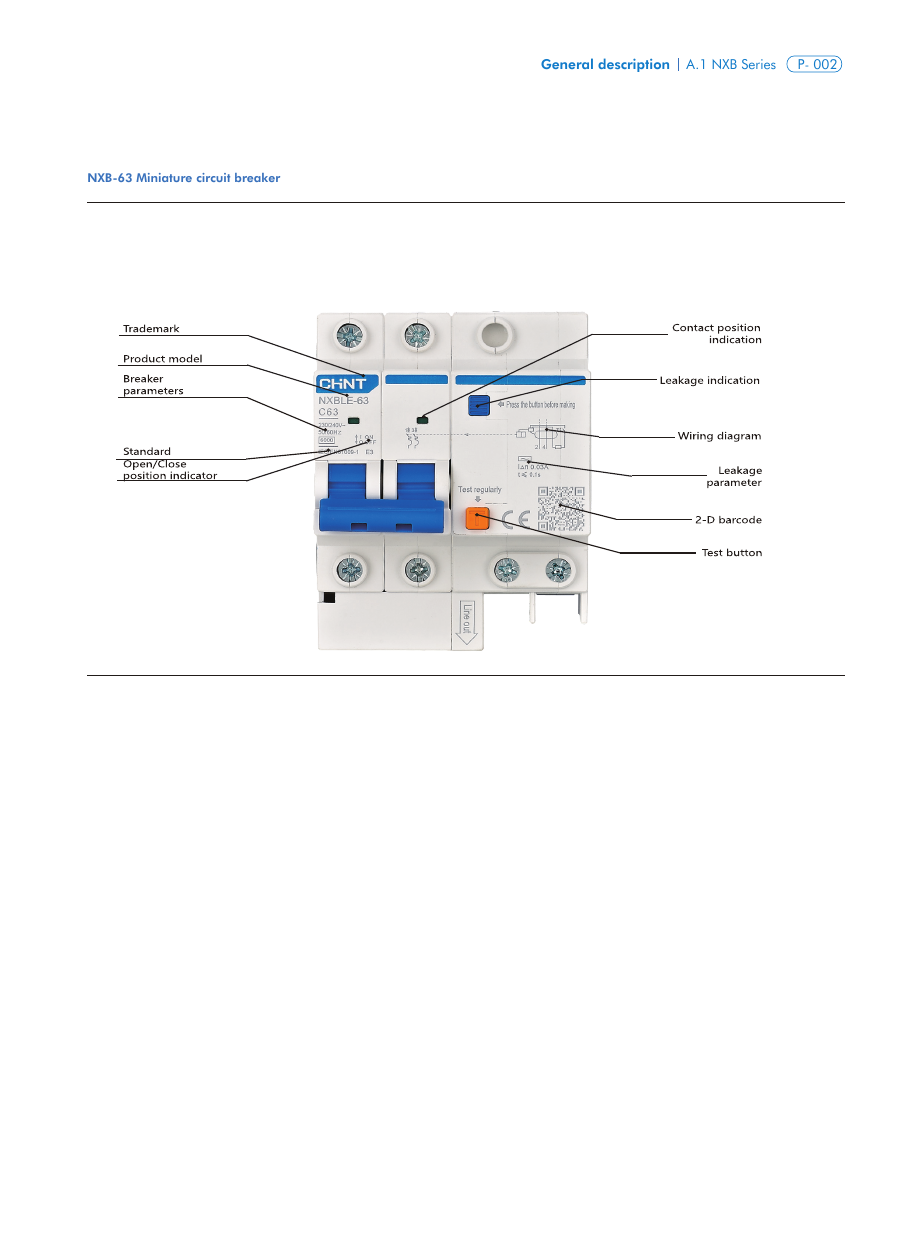

Chint NXBLE-40 Residual Current Operated Circuit Breaker (RCBO) – Drawing (Chint datasheet S. 2)
Drawing · Chint datasheet · S. 2

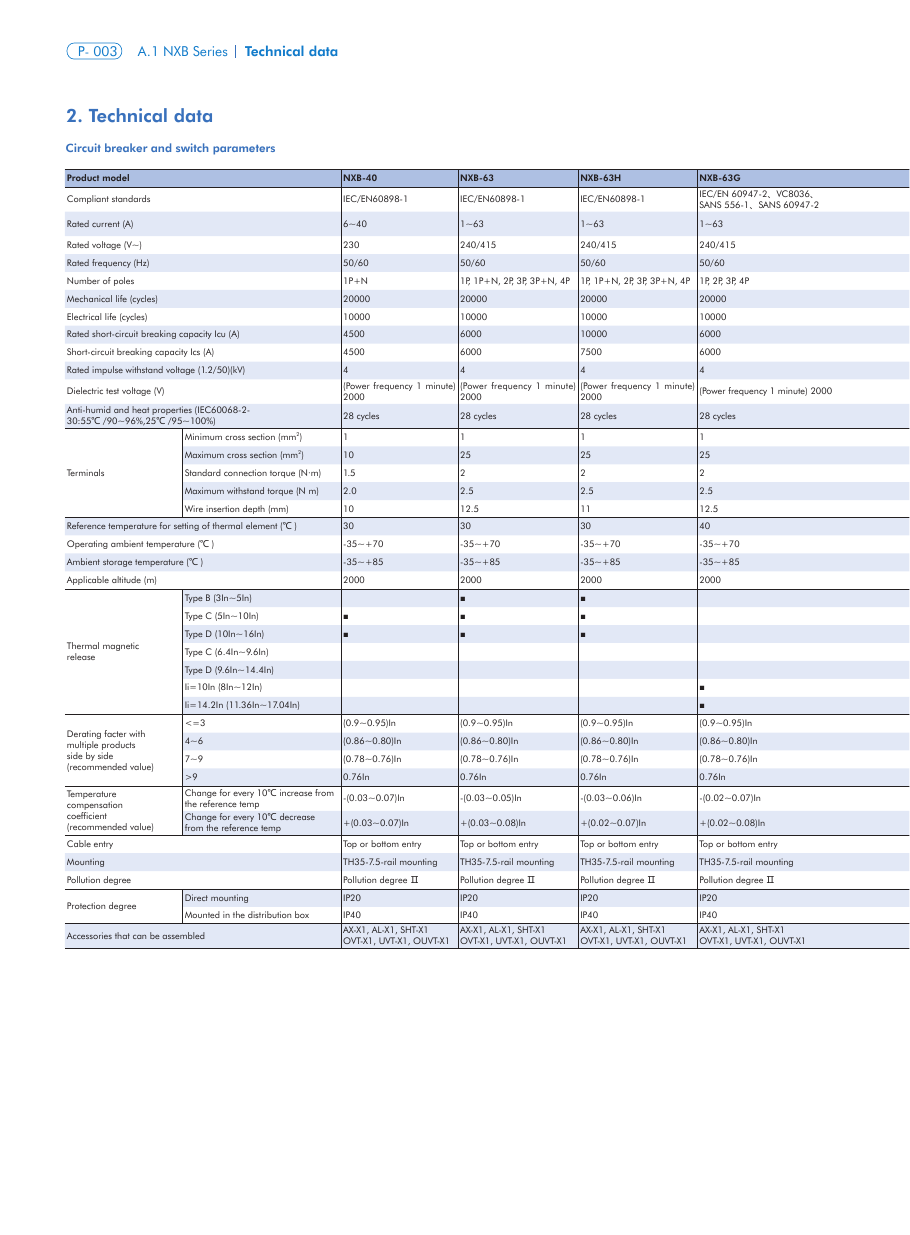

Chint NXBLE-40 Residual Current Operated Circuit Breaker (RCBO) – Drawing (Chint datasheet S. 3)
Drawing · Chint datasheet · S. 3

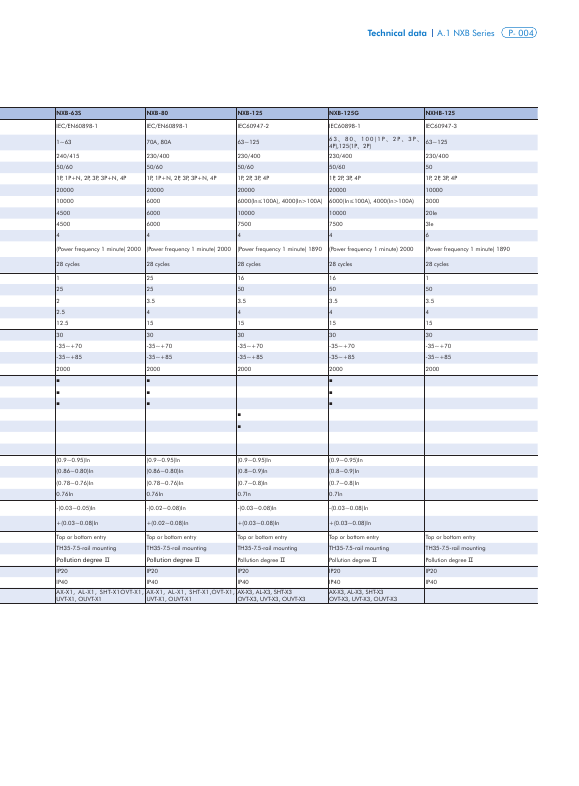

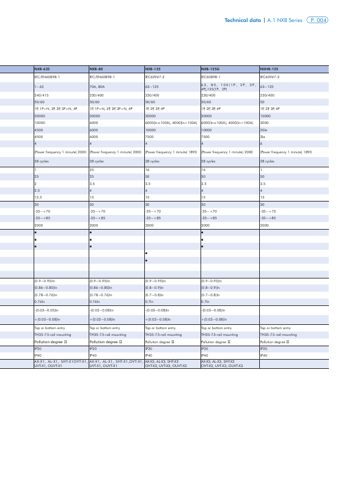

Chint NXBLE-40 Residual Current Operated Circuit Breaker (RCBO) – Page preview (Chint datasheet S. 4)
Page preview · Chint datasheet · S. 4
