Library› Electrical› Electrical Components & Switchgear› Circuit Breaker› Chint OUVR-2 Self-recovery Overvoltage and Undervoltage Protector
Chint

OUVR-2 Self-recovery Overvoltage and Undervoltage Protector

Circuit Breaker · Electrical Components & Switchgear

Class-certified type (DNV register) · technical data sheet not yet verified
230Voltage

Download OUVR-2 Self-recovery Overvoltage and Undervoltage Protector datasheet, manual, and related Final Power Distribution product catalogs from CHINT Global

Specifications

Technical data.from datasheet

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

Voltage230V 50Hz🔖
Rated operating current32A, 40A, 50A, 63A, 80A🔖
Overvoltage operation cutoff value275V🔖
Undervoltage operation cutoff value161V🔖
Recovery value196V~253V🔖
Time delay close time30s±10s🔖
Ambient temperature-35℃ ~+70℃ °C🔖
pdf_and rated operating current 80A and belowIt is mainly used
pdf_Rated current32A, 40A, 50A, 63A, 80A
pdf_Self-recovery overvoltage and Design NoRated current Poles Mode of connection
📄
Download datasheet (PDF) (344 KB)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

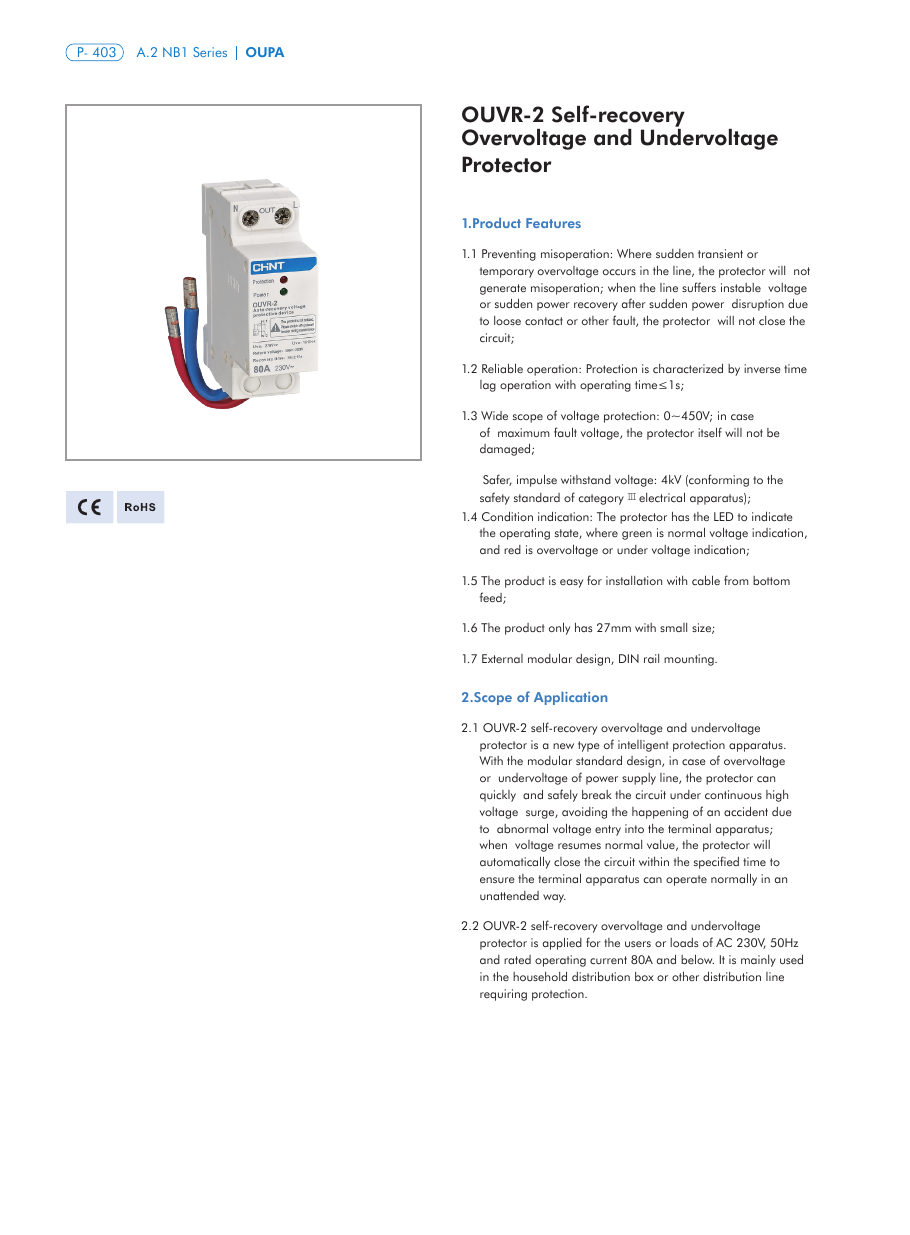

“OUVR-2 Self-recovery Overvoltage and Undervoltage Protector 1.Product Features 1.1 Preventing misoperation: Where sudden transient or temporary overvoltage occurs in the line, the protector will not…”

Chint OUVR-2 Self-recovery Overvoltage and Undervoltage Protector – Drawing (Chint datasheet S. 1)
Drawing · Chint datasheet · S. 1
Chint OUVR-2 Self-recovery Overvoltage and Undervoltage Protector – Drawing (Chint datasheet S. 2)
Drawing · Chint datasheet · S. 2
Chint OUVR-2 Self-recovery Overvoltage and Undervoltage Protector – Drawing (Chint datasheet S. 3)
Drawing · Chint datasheet · S. 3

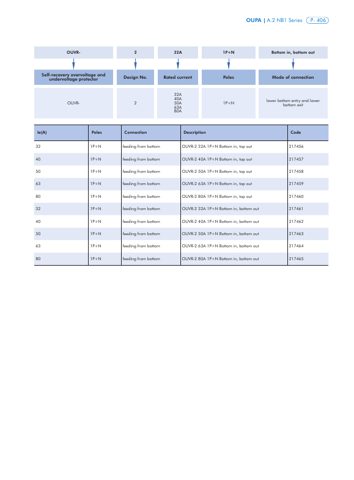

Chint OUVR-2 Self-recovery Overvoltage and Undervoltage Protector – Page preview (Chint datasheet S. 4)
Page preview · Chint datasheet · S. 4
Source: Chint OUVR-2 Self-recovery Overvoltage and Undervoltage Protector data, p. 1
