NVF3 Series variable frequency drive

Circuit Breaker · Electrical Components & Switchgear

Class-certified type (DNV register) · technical data sheet not yet verified

Download NVF3 Series variable frequency drive datasheet, manual, and related Industrial Control product catalogs from CHINT Global

Specifications

Technical data.from datasheet

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

Degree of protectionIP20🔖
Input voltage range380V ( ± 15%)🔖
Output frequency range(0 ~ 300) Hz🔖
Switching frequency(0.5 ~ 15) kHz🔖
pdf_Input voltageD: single phase;
pdf_Input voltage range380V ( ± 15%)
pdf_character Output voltage range0 ~ rated input voltage
pdf_Output frequency rangetypical type: (0 ~ 300) Hz; fan-pump type: (0 ~ 120) Hz
pdf_interface Open collector output2 channel outputs (including 1 channel high-speed pulse output)
pdf_Relay output2 channel output;
pdf_Analog output2 channel outputs, optional (0 ~ 10) V or (0/4 ~ 20) mA
Pdf output voltage (referenceGND)
📄
Download datasheet (PDF) (1415 KB)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“NVF3 Series Inverter 1. Overview As a high-performance open-loop vector controlled inverter developed by our company independently, NVF3 series inverter achieves the high-precision flux vector torque…”

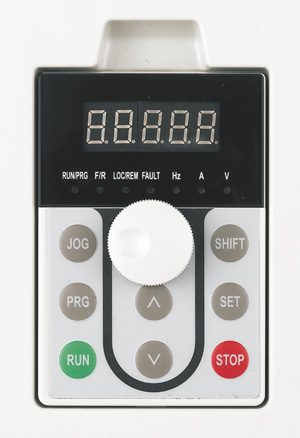

Chint NVF3 Series variable frequency drive – Photo (Chint datasheet S. 7)
Photo · Chint datasheet · S. 7

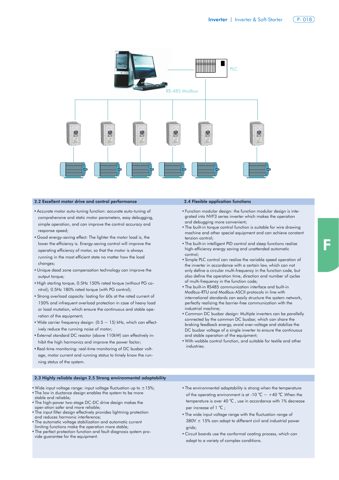

Chint NVF3 Series variable frequency drive – Drawing (Chint datasheet S. 2)
Drawing · Chint datasheet · S. 2

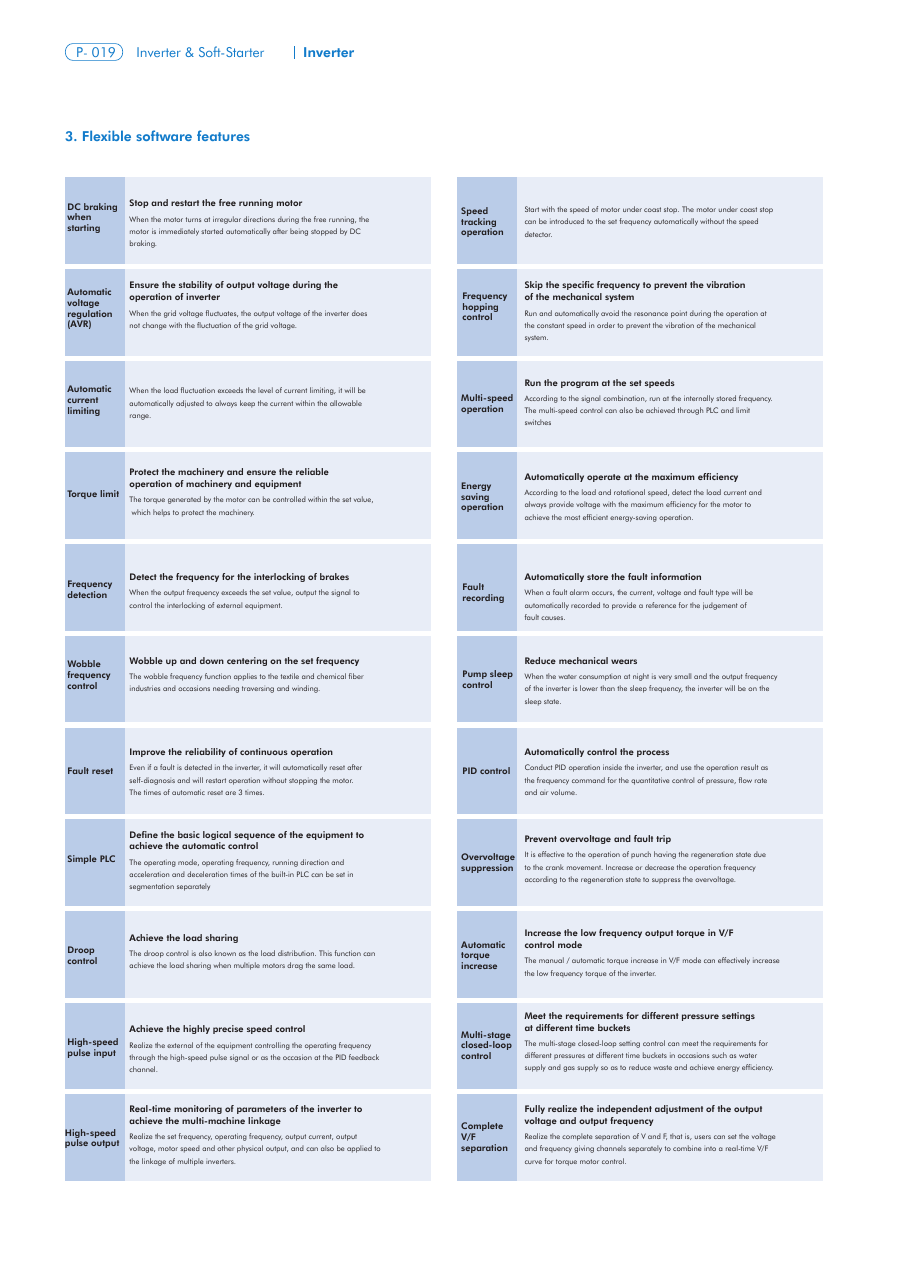

Chint NVF3 Series variable frequency drive – Drawing (Chint datasheet S. 3)
Drawing · Chint datasheet · S. 3

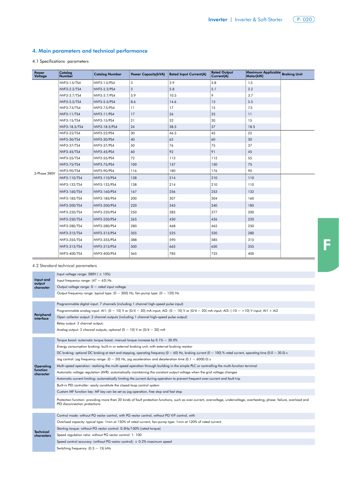

Chint NVF3 Series variable frequency drive – Drawing (Chint datasheet S. 4)
Drawing · Chint datasheet · S. 4

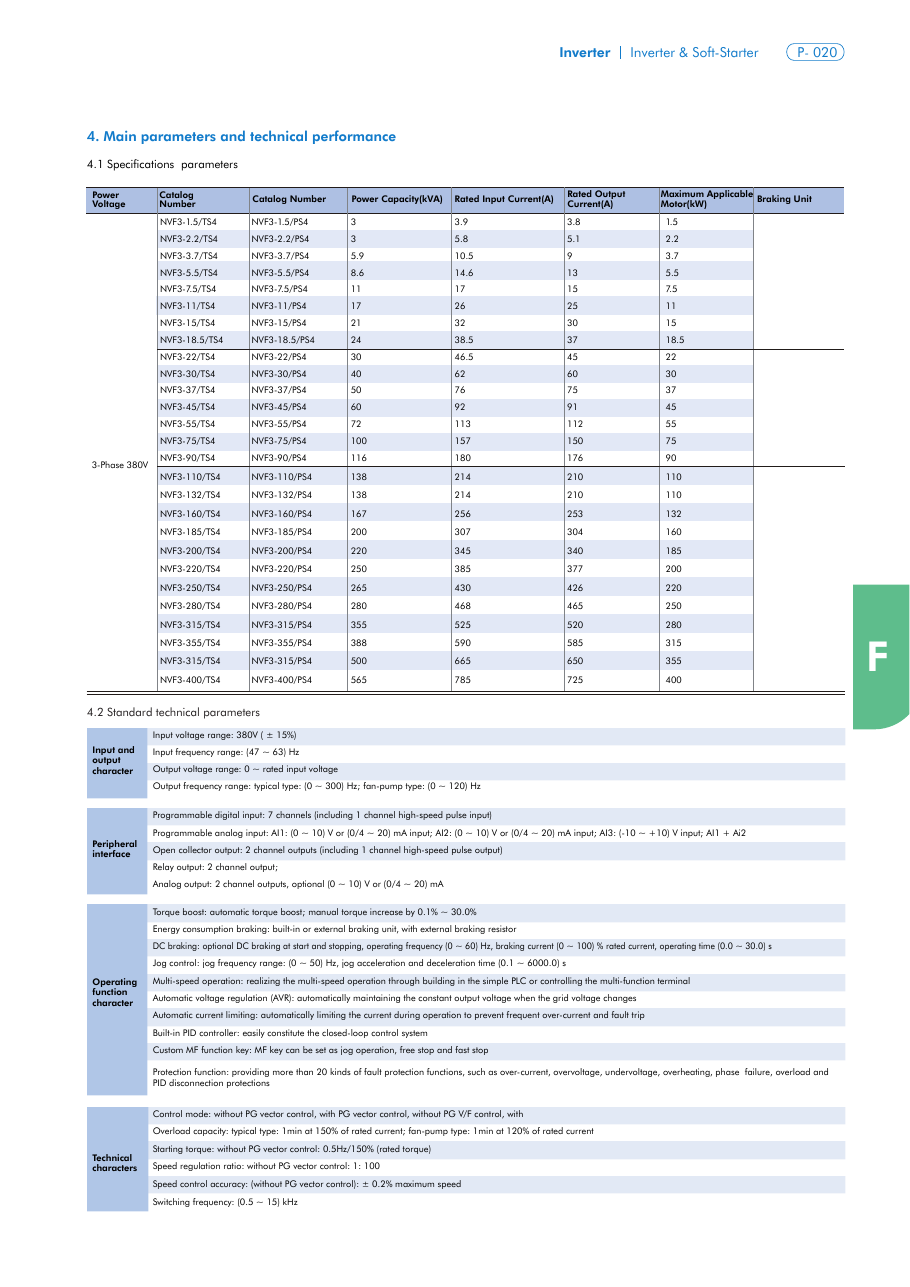

Chint NVF3 Series variable frequency drive – Page preview (Chint datasheet S. 1)
Page preview · Chint datasheet · S. 1
Source: Chint NVF3 Series variable frequency drive datasheet, p. 1
