Library› Electrical› Electrical Components & Switchgear› Circuit Breaker› Chint NVF3M
Chint

NVF3M

Circuit Breaker · Electrical Components & Switchgear

Class-certified type (DNV register) · technical data sheet not yet verified

Download NVF3M datasheet, manual, and related Industrial Control product catalogs from CHINT Global

Specifications

Technical data.from datasheet

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

Degree of protectionIP20🔖
Output frequency range(0~300) Hz🔖
Carrier frequency(0.5~15)kHz🔖
Ambient temperature-10℃ to 40℃🔖
Overload capacity150% of rated current 60s🔖
Operating ambient temperature-10℃ to 40℃ °C🔖
pdf_Input voltage range220/380(±15%)
pdf_High speed pulse output1
pdf_Relay output1
pdf_Analog output1 , optional (0~10)V or (0/4~20)mA
📄
Download datasheet (PDF) (450 KB)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

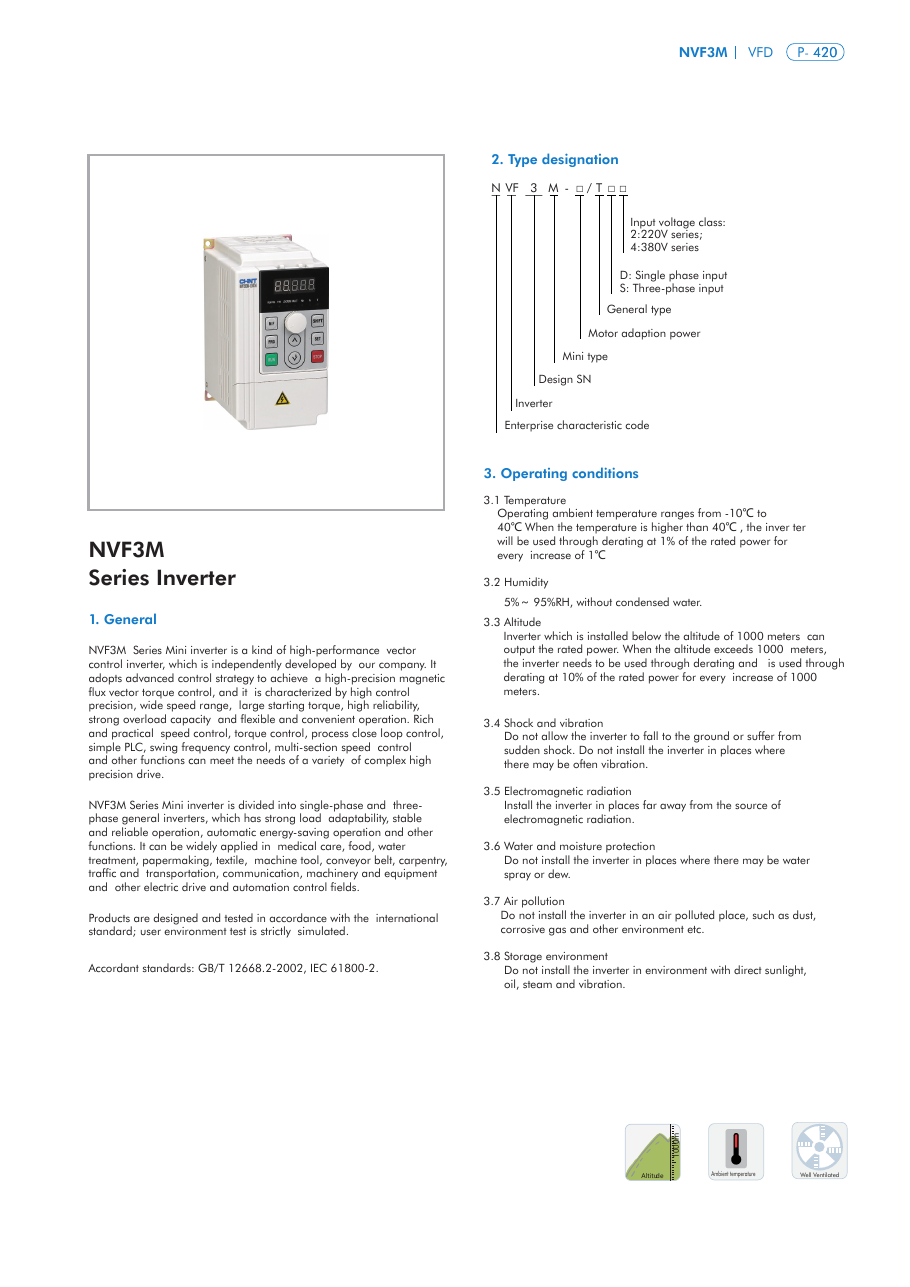

“2. Type designation N VF 3 M - □ / T □ □ Input voltage class: 2:220V series; 4:380V series D: Single phase input S: Three-phase input General type Motor adaption power Mini type Design SN Inverter…”

Chint NVF3M – Drawing (Chint datasheet S. 1)
Drawing · Chint datasheet · S. 1
Chint NVF3M – Drawing (Chint datasheet S. 2)
Drawing · Chint datasheet · S. 2
Chint NVF3M – Drawing (Chint datasheet S. 3)
Drawing · Chint datasheet · S. 3

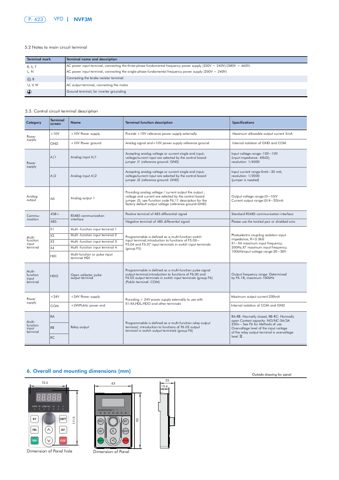

Chint NVF3M – Page preview (Chint datasheet S. 4)
Page preview · Chint datasheet · S. 4
Source: NVF3M-VFD-Catalog.pdf, p. 1
