Chint

NVF2G General purpose variable frequency drive

Circuit Breaker · Electrical Components & Switchgear

Class-certified type (DNV register) · technical data sheet not yet verified
Example image: Circuit Breaker — not a photo of this model.

Download NVF2G General purpose variable frequency drive datasheet, manual, and related Industrial Control product catalogs from CHINT Global

Specifications

Technical data.from datasheet

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

Ambient temperature-10℃ to +40℃🔖
Carrier frequency(1-15) kHz🔖
Overload capacity1 min under 150% of rated current🔖
pdf_Corresponding modelsNVF2G-1.5/PS4~400/TS4
pdf_Input voltage class2: 220V series; 4: 380V series
pdf_Input voltageD: single-phase; S: three-phase
📄
Download datasheet (PDF) (1843 KB)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

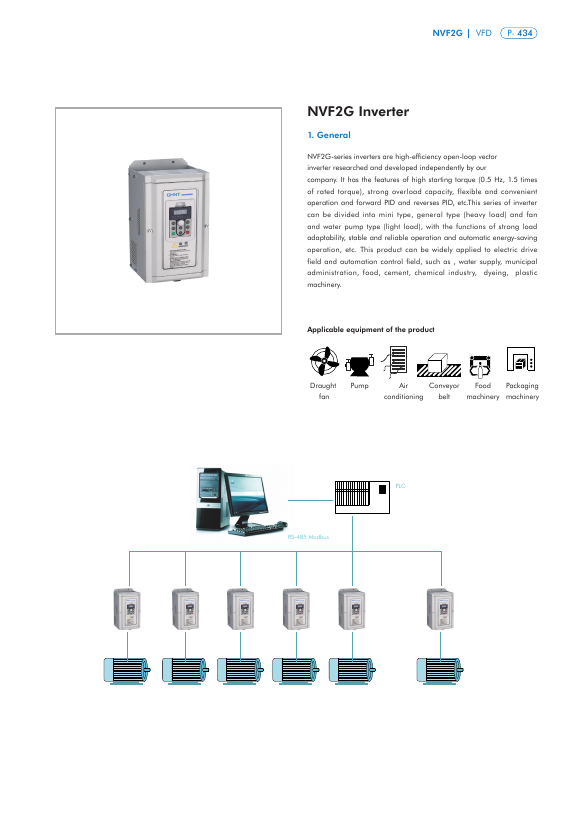

“NVF2G Inverter 1. General NVF2G-series inverters are high-efficiency open-loop vector inverter researched and developed independently by our company. It has the features of high starting torque (0.5…”

Chint NVF2G General purpose variable frequency drive – Drawing (Chint datasheet S. 2)
Drawing · Chint datasheet · S. 2

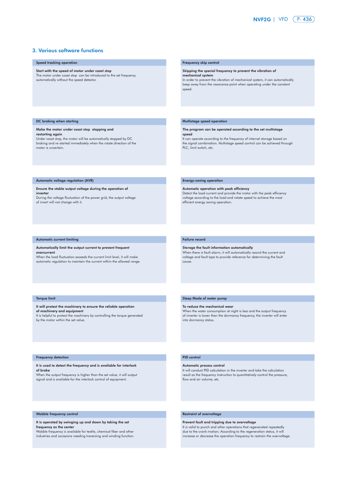

Chint NVF2G General purpose variable frequency drive – Drawing (Chint datasheet S. 3)
Drawing · Chint datasheet · S. 3
Chint NVF2G General purpose variable frequency drive – Drawing (Chint datasheet S. 5)
Drawing · Chint datasheet · S. 5

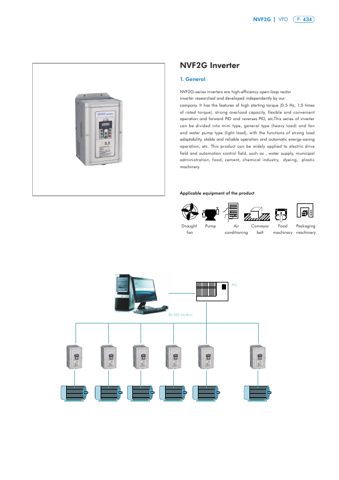

Chint NVF2G General purpose variable frequency drive – Page preview (Chint datasheet S. 1)
Page preview · Chint datasheet · S. 1
Chint NVF2G General purpose variable frequency drive – Page preview (Chint datasheet S. 4)
Page preview · Chint datasheet · S. 4
Source: NVF2G-VFD-Catalog.pdf, p. 1
