WISKA

ESKVZ 32 BK

Cable Gland · Electrical Components & Switchgear

Class-certified type (DNV register) · technical data sheet not yet verified

ESKVZ 32 BK - Cable gland with external strain relief, polyamide, M32, RAL 9005 - Cable entries - WISKA

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Protection classIP68 (5 bar 30 min), IP69
Temp. range min-40 °C
Temp. range max100 °C
Glow wire test750 °C
Ø Connection thread D32
Lead1,5
Length screw-in thread L12 mm
Ø cable diameter min13 mm
Ø cable diameter max21 mm
Key width SW36 mm
Collar diameter (E)40 mm
Total length TL57 mm - 66 mm
Material cable glandPolyamide
Material sealing gasketEPDM
Temp. range min-40 °C
Temp. range max100 °C
Thread typeM
Ø Connection thread D32
Length screw-in thread L12 mm
Ø cable diameter min13 mm
Ø cable diameter max21 mm
Collar diameter (E)40 mm
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

Cable gland with external strain relief, made of polyamide, suitable for marine applications.

Features

  • external strain relief
  • polyamide material
  • IP68 and IP69 protection class
  • -40°C to 100°C temperature range

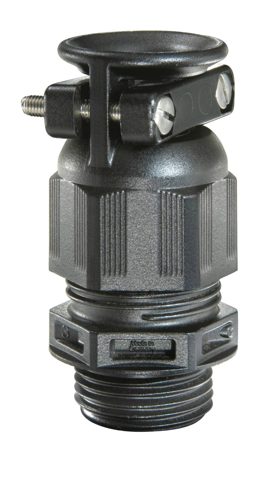

WISKA ESKVZ 32 BK – Photo (9ae67ad0240f_S1-1 S. 1)
Photo · 9ae67ad0240f_S1-1 · S. 1
WISKA ESKVZ 32 BK – Photo (9ae67ad0240f_S1-1 S. 1)
Photo · 9ae67ad0240f_S1-1 · S. 1

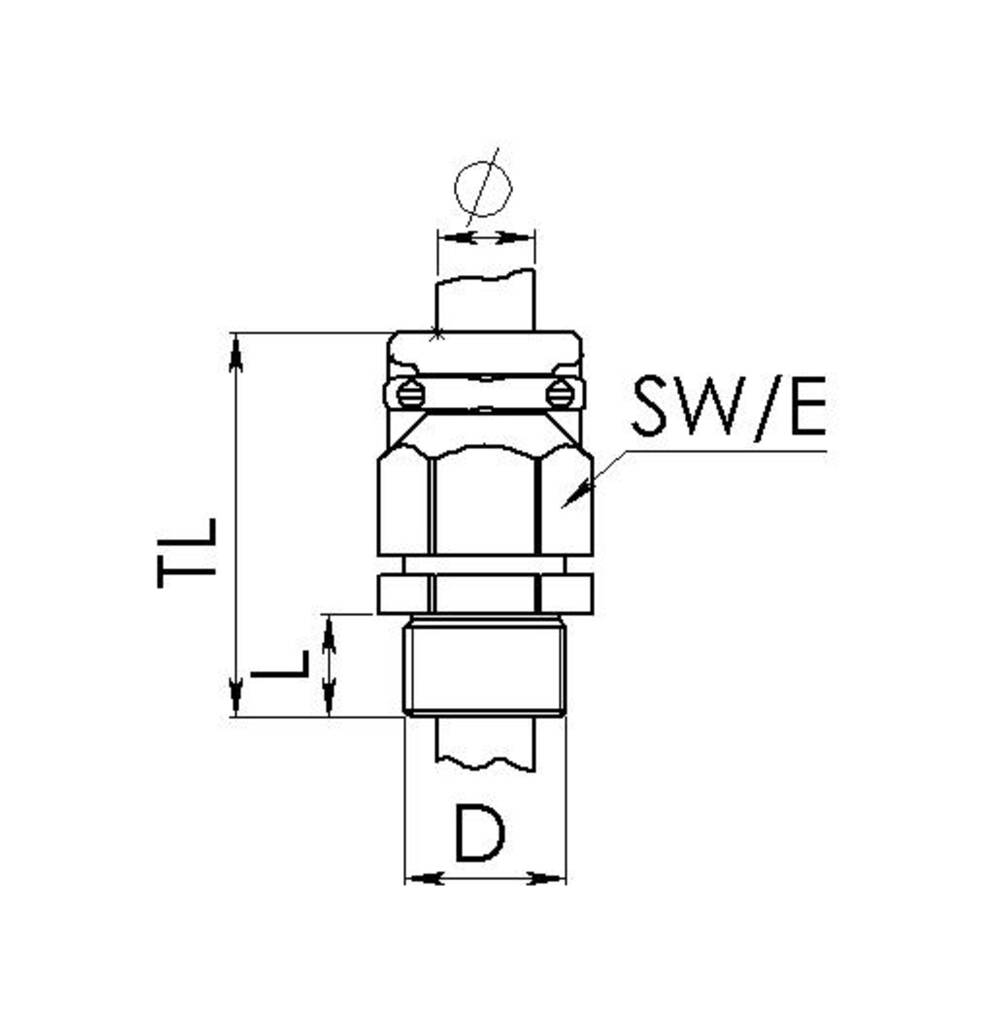

WISKA ESKVZ 32 BK – Drawing (9ae67ad0240f_S1-1 S. 1)
Drawing · 9ae67ad0240f_S1-1 · S. 1

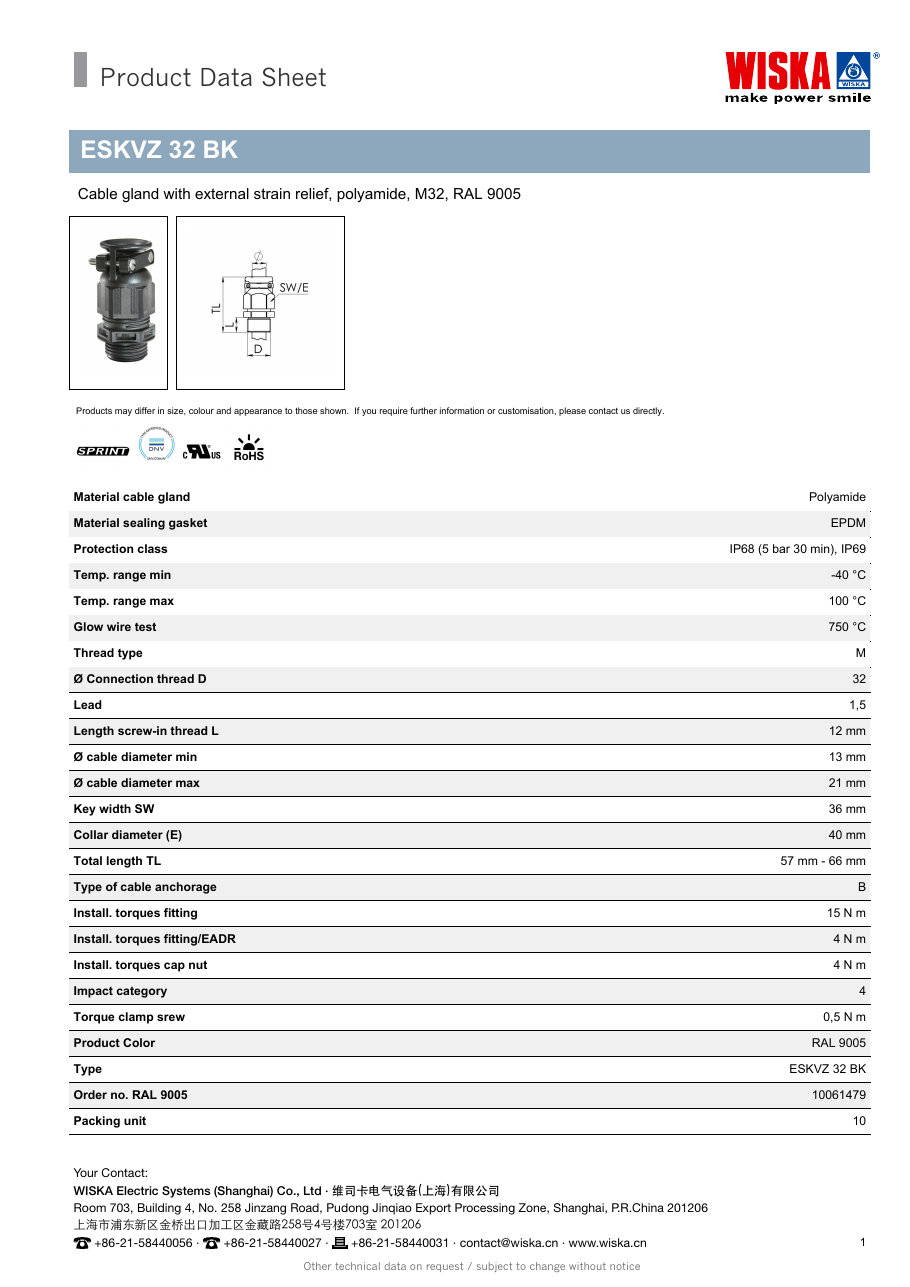

Source: WISKA ESKVZ 32 BK datasheet, p. 1
