FlexView FMA90

Radar Level Gauge · Cargo Level & Temperature Gauging

Class-certified type (DNV register) · technical data sheet not yet verified
View photo ↗

FlexView FMA90 is a control unit for radar, ultrasonic and hydrostatic or universal 4-20 mA or HART level sensors. It connects up to two sensors simultaneously and provides 8 digital switching outputs for enhanced control. Available in field, DIN rail and panel housing variants, it ensures flexible installation in the field or control cabinet. Its robust design and intuitive touch operation make it ideal for water and wastewater as well as mining, minerals and metals applications.

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Distance between sensor membrane (reference point) and surface of liquid123 m³
Supply voltage (LPS):14 to 27 V (load-dependent)
Input resistor current measurement:25 Ω typ.
Internal HART communication resistor:330 Ω typ.
LoadMax. 600 Ω
Basic accuracy< 0.02 mA
Long-term drift< 0.02 mA/year
Output signal4 to 20 mA with HART, 0 to 20 mA without HART
Response to errorsMIN: 3.5 mA, MAX: Adjustable 21.5 to 22.5 mA
Supply voltage (AC voltage)85 to 253 VAC 50/60 Hz
Power consumption (AC voltage)Max. 20 VA
Supply voltage (DC voltage)10.5 to 32 VDC
Power consumption (DC voltage)Max. 15 VA
CertificationsUL/EN/IEC 61010-1, Section 9.4
Weightca. 1,6 … 1,8 kg (3,53 … 3,97 lb) je nach Gerätevariante
Anzeige3.5" TFT Touch-Anzeige
AuflösungQVGA, 76.800 Bildpunkte (320 x 240 Pixel)
Hintergrundbeleuchtung50.000 h Halbwertszeit (= halbe Helligkeit)
Anzahl der Farben24bit Farbtiefe; 16,7 Mio. darstellbare Farben
Maximale Zeichengröße; Anzahl der StellenZiffernhöhe max. 50 Pixel bzw. 13 mm bei max. 7 Stellen
BlickwinkelMax. Blickwinkelbereich: von der Display-Mittelpunktachse 85° in alle Richtungen
Degree of protection (field housing)IP65/NEMA type 4X
Inner diameter (d)100.0 to 100 000.0 mm
Factory setting1 000.0 mm
Brightness10 to 100 %
H flume4.5 ft
Minimum electronics temperature-150.0 to 200.0 °C
Maximum electronics temperature-150.0 to 200.0 °C
Start time72000 s
Gültig ab Version01.26-00
Versorgungsspannung85 … 253 VAC (50/60 Hz)
Leistungsaufnahmemax. 20 VA 230 VAC
Bestellmerkmal040 (Gehäuse); Option B (Schalttafeleinbau)
D123 m³
Schalttafelgehäuse (Schalttafelausschnitt)92 mm (3,62 in) x 92 mm (3,62 in) mm (in)
Einschaltgrenze0,0 … 200 000,0 %
Zuschaltintervall1 … 65 535 s
Nachlaufintervall0 ... 999 999 h
Nachlaufzeit0 ... 255 s
Eingabe0,1 … 125 000,0 mm
Werkseinstellung100,0 mm
Part numberFMA90
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

Device for evaluating measured values and configuring Endress+Hauser sensors.

Applications

  • level measurement
  • flow measurement
  • pump control
  • rake control

Features

  • configures radar and hydrostatic level sensors
  • supports universal level sensors
  • provides digital value scaling

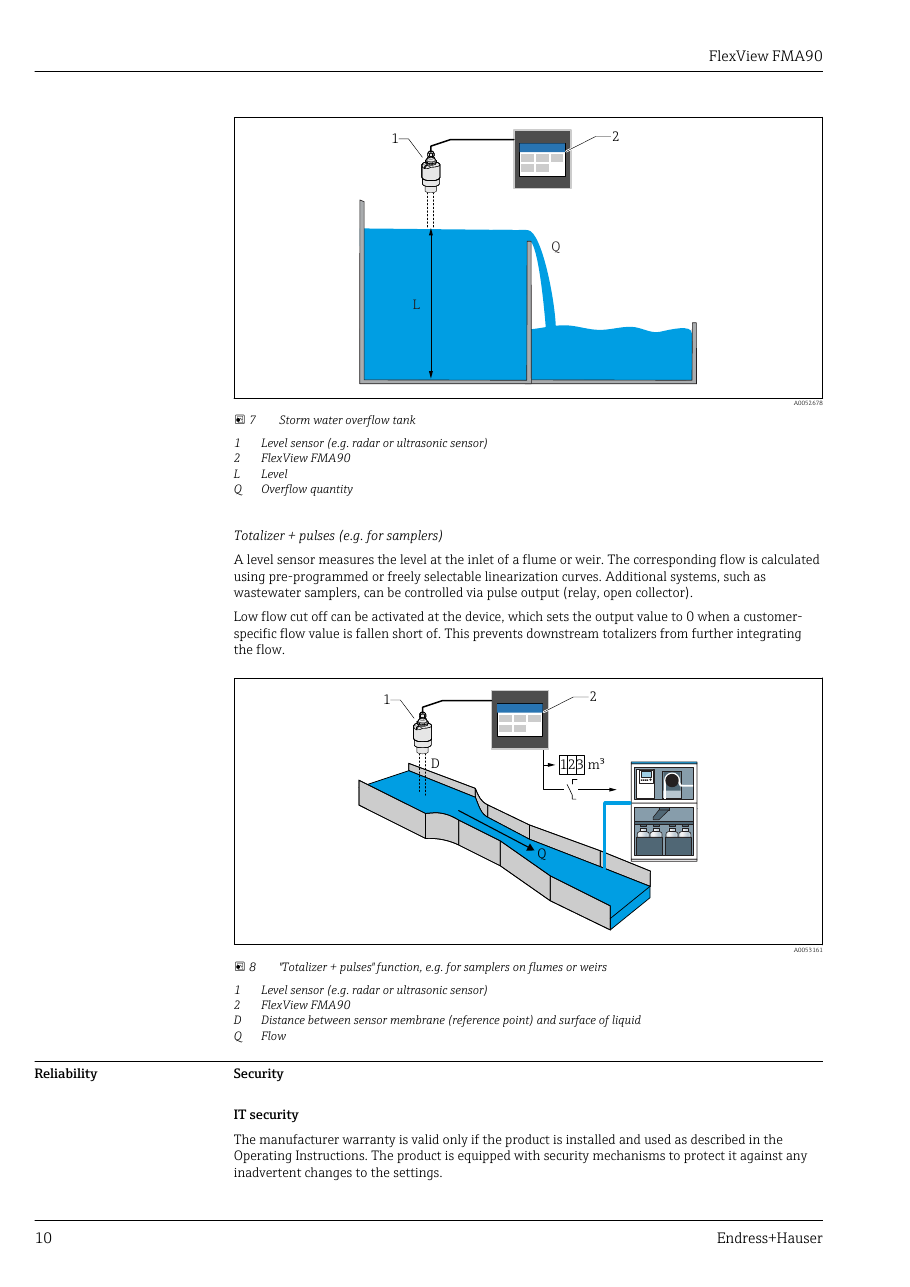

Options

  • Totalizer + pulses
Source: Endress+Hauser FlexView FMA90 datasheet, p. 10

Standards

  • UL/EN/IEC 61010-1, Section 9.4
Source: Endress+Hauser FlexView FMA90 datasheet, p. 15

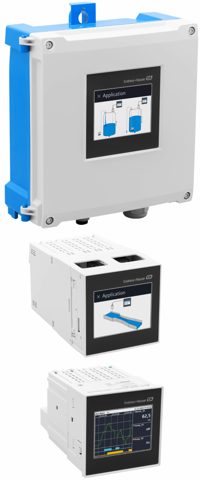

Endress+Hauser FlexView FMA90 – Photo (e105daab4479_S1-52 S. 1)
Photo · e105daab4479_S1-52 · S. 1

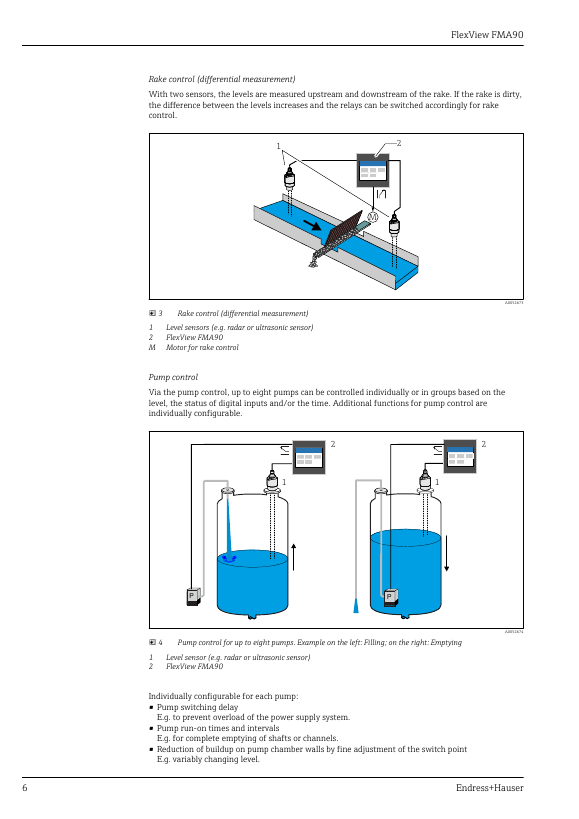

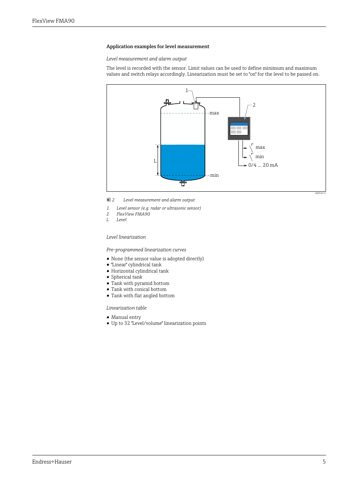

Endress+Hauser FlexView FMA90 – Drawing (39757c46887e_S3-19 S. 3)
Drawing · 39757c46887e_S3-19 · S. 3

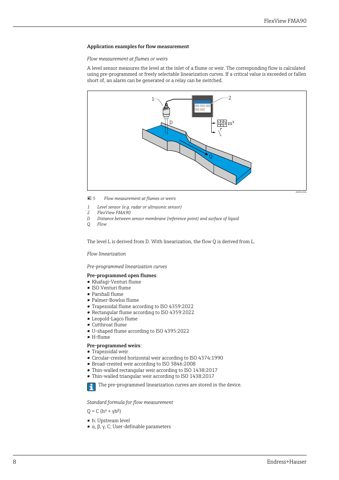

Endress+Hauser FlexView FMA90 – Drawing (39757c46887e_S3-19 S. 6)
Drawing · 39757c46887e_S3-19 · S. 6
Endress+Hauser FlexView FMA90 – Drawing (39757c46887e_S3-19 S. 8)
Drawing · 39757c46887e_S3-19 · S. 8

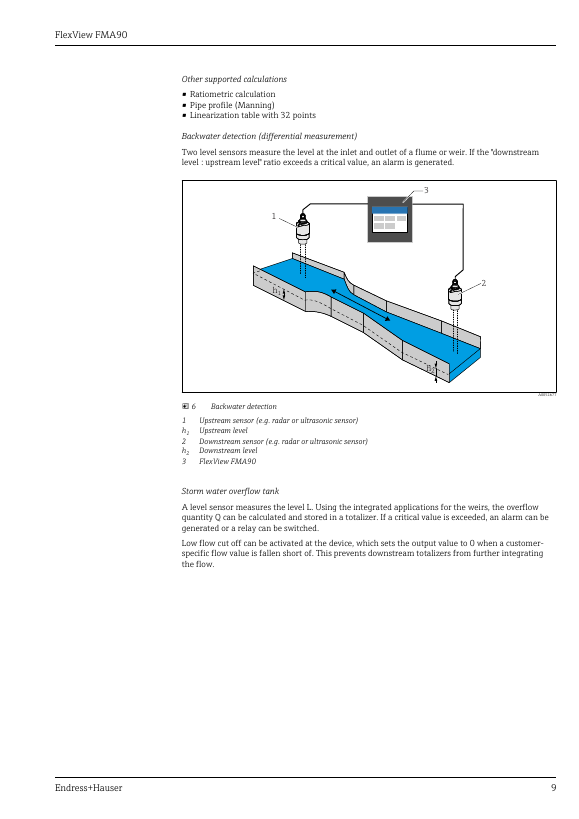

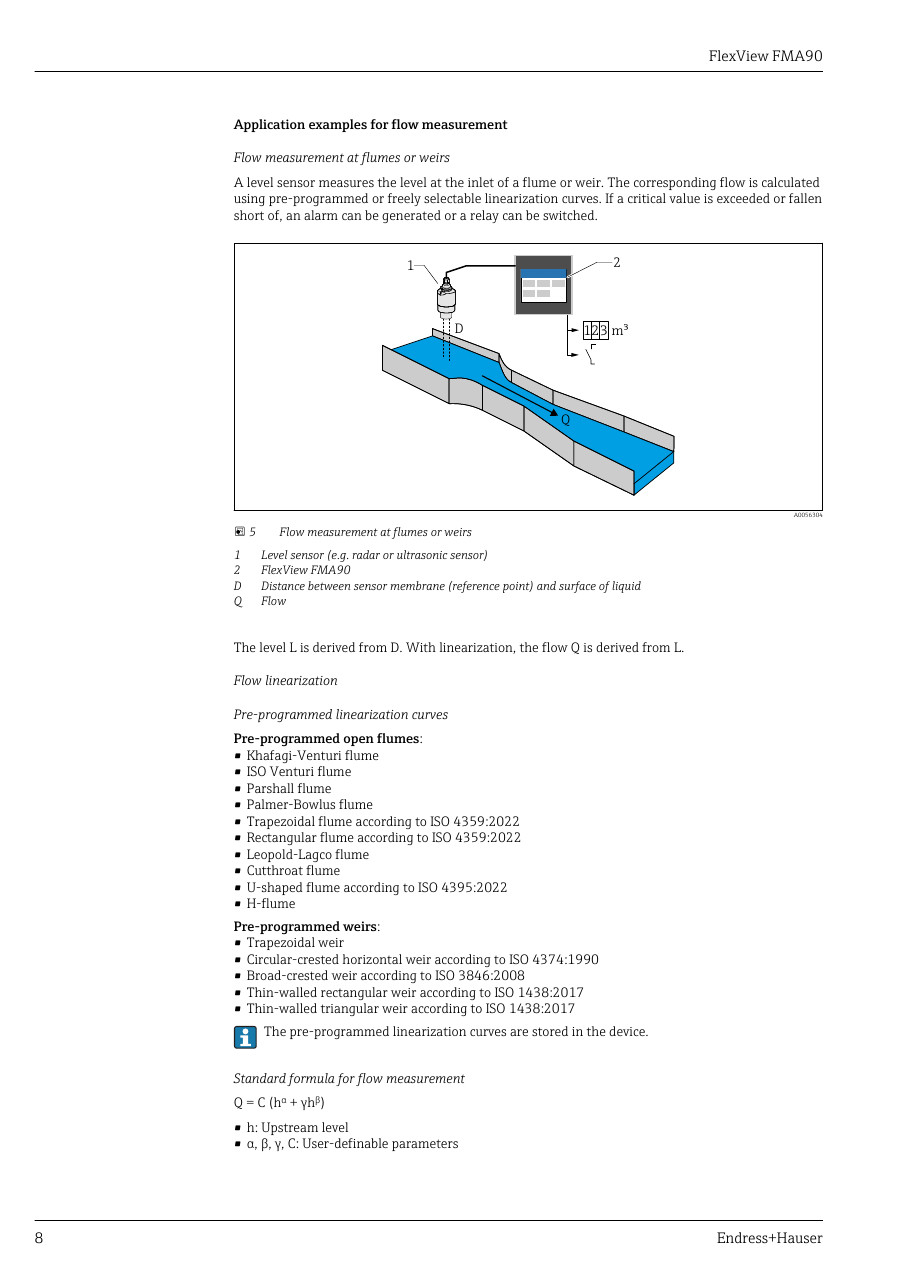

Endress+Hauser FlexView FMA90 – Page preview (39757c46887e_S3-19 S. 4)
Page preview · 39757c46887e_S3-19 · S. 4
Endress+Hauser FlexView FMA90 – Page preview (39757c46887e_S3-19 S. 5)
Page preview · 39757c46887e_S3-19 · S. 5

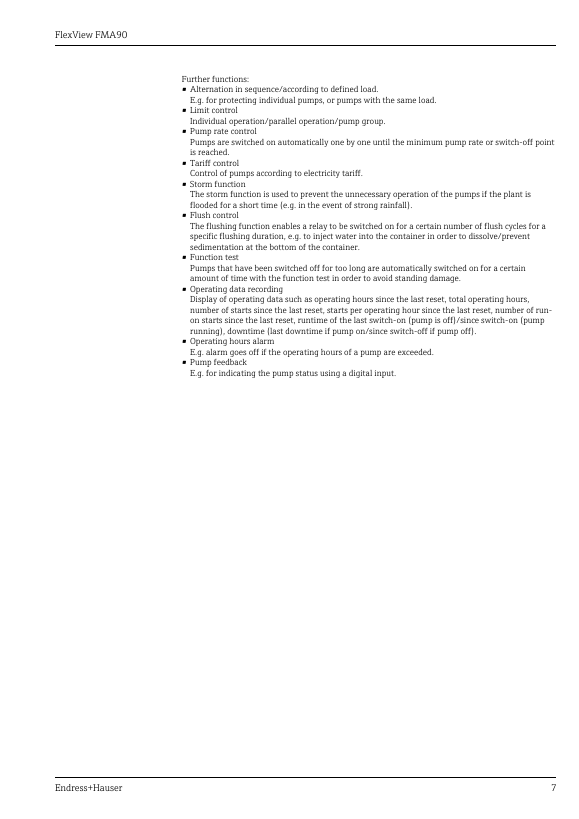

Endress+Hauser FlexView FMA90 – Page preview (39757c46887e_S3-19 S. 7)
Page preview · 39757c46887e_S3-19 · S. 7
Endress+Hauser FlexView FMA90 – Page preview (39757c46887e_S3-19 S. 9)
Page preview · 39757c46887e_S3-19 · S. 9
Source: Endress+Hauser FlexView FMA90 datasheet, p. 3
