Library› Navigation› Signaling & Visual› Navigation Light› WISKA 1006/bu/1975-1xZ14
WISKA

1006/bu/1975-1xZ14

Navigation Light · Signaling & Visual

Class-certified type (DNV register) · technical data sheet not yet verified

1006/bu/1975-1xZ14 - Direction lantern with cross 25W 230V B22d IP56 glass blue - Lighting - WISKA

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Wattage25 W
Power^1 x 25 W
Voltage max. (V)230 V
Protection classIP56
Temp. range min-25 °C
Temp. range max40 °C
LampholderB22d
Lightsourcevariable (B22)
Type of cable glandM24x1,5 Z 14 / 12-14,5mm
MaterialBrass
Material globe/diffuserGlass
Power^1 x 25 W
Voltage max. (V)230 V
Temp. range min-25 °C
Temp. range max40 °C
Material cable glandBrass
Ø cable diameter min12 mm
Ø cable diameter max14,5 mm

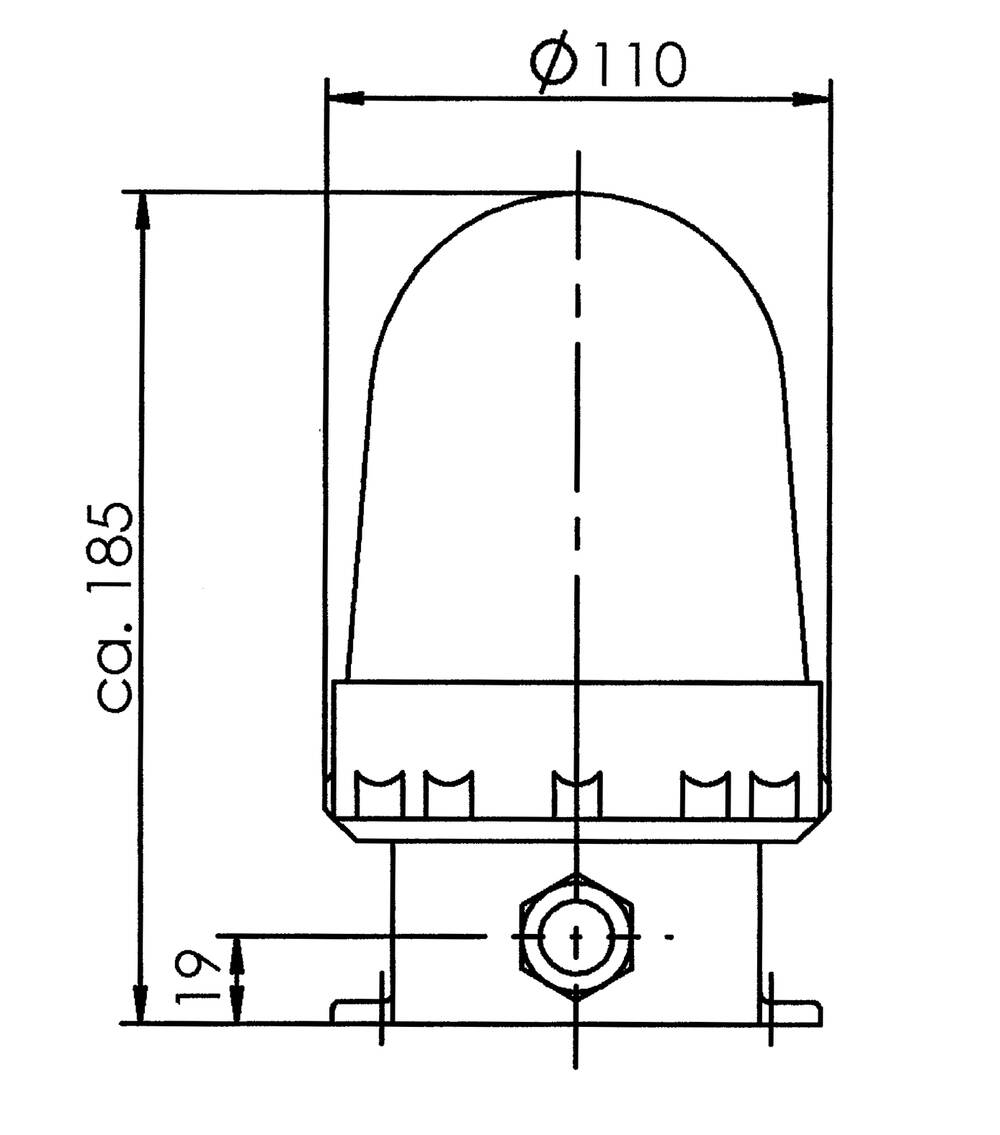

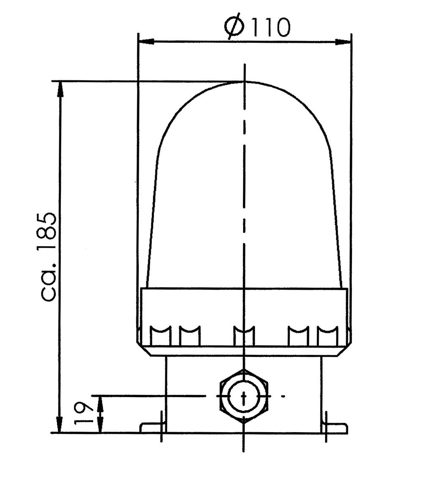

External dimensions LxWxH185x110mm
Weight1,67 kg
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“Products may differ in size, colour and appearance to those shown. If you require further information or customisation, please contact us directly.”

Features

  • cross design
  • blue glass globe
  • IP56 protection class
  • -25 to 40 °C temperature range

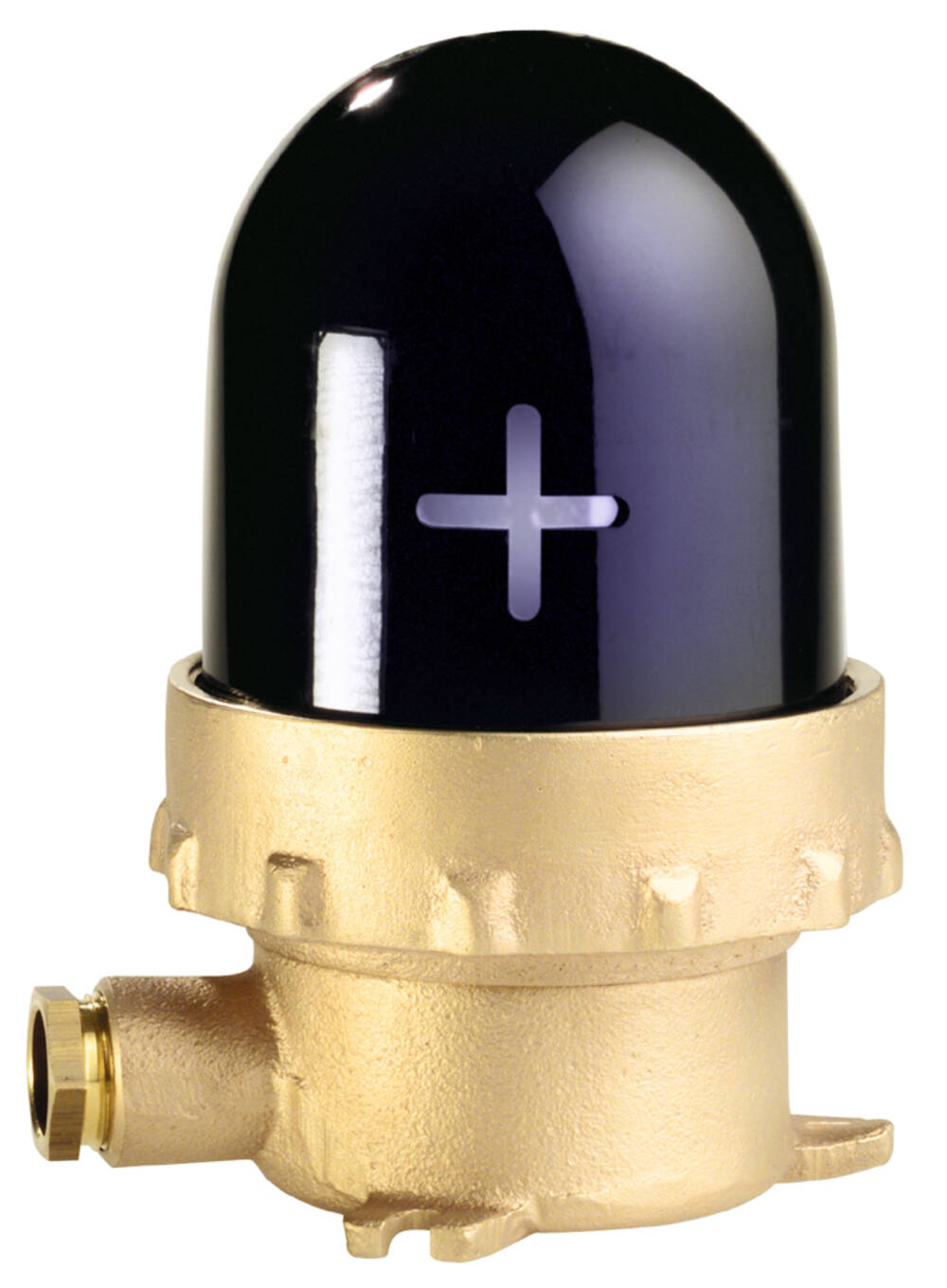

WISKA 1006/bu/1975-1xZ14 – Photo (c3ab6cd45a18_S1-1 S. 1)
Photo · c3ab6cd45a18_S1-1 · S. 1
WISKA 1006/bu/1975-1xZ14 – Photo (c3ab6cd45a18_S1-1 S. 1)
Photo · c3ab6cd45a18_S1-1 · S. 1
WISKA 1006/bu/1975-1xZ14 – Photo (c3ab6cd45a18_S1-1 S. 1)
Photo · c3ab6cd45a18_S1-1 · S. 1

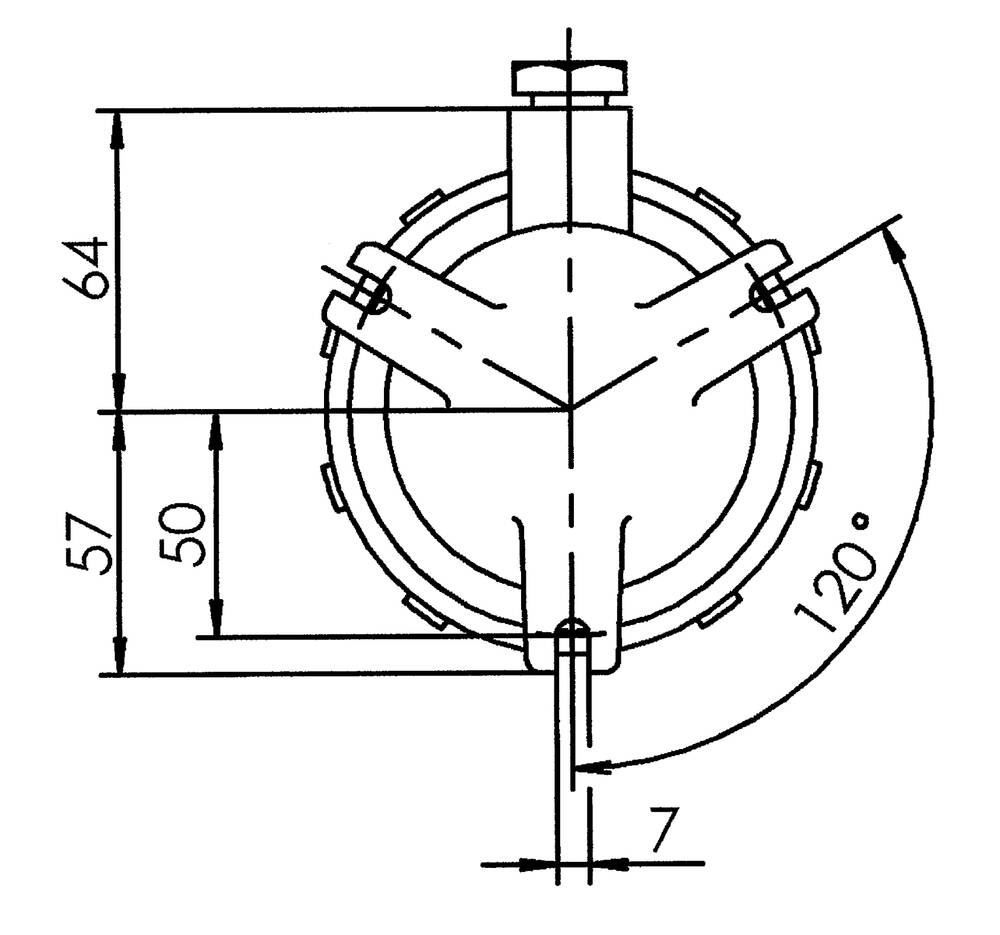

WISKA 1006/bu/1975-1xZ14 – Drawing (c3ab6cd45a18_S1-1 S. 1)
Drawing · c3ab6cd45a18_S1-1 · S. 1

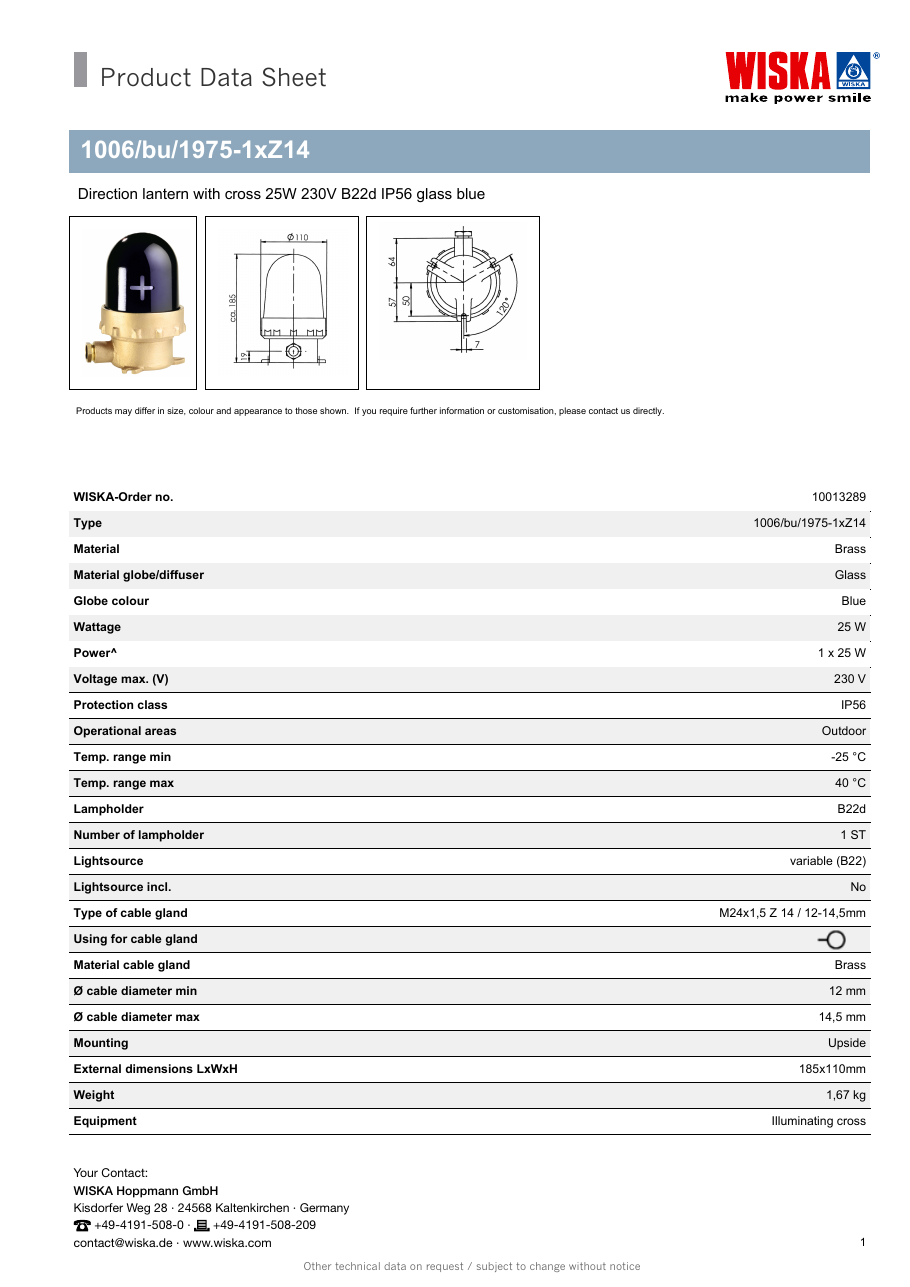

Source: 1975-1xZ14 datasheet, p. 1
