Library› Electrical› Electrical Components & Switchgear› Protection Relay› DEIF FAS-115DG
DEIF

FAS-115DG

Protection Relay · Electrical Components & Switchgear

Class-certified type (DNV register) · technical data sheet not yet verified

DEIF's synchronisers are applied for synchronisation of a generator to the busbar and closing of its circuit breaker when the voltage difference, the slip frequency and the phase angles are within the preset limits.

Specifications

Technical data.reference — unverified

TypeFAS-115DG
WeightApprox. 0.750 kg
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The FAS-115DG synchroniser synchronises a generator to the busbar and closes its circuit breaker when voltage difference, slip frequency and phase angles are within preset limits.

Applications

  • synchronisation of a generator to the busbar

Features

  • Voltage matching
  • LED indication of status
  • LED for activated control
  • LED for synchronising signal
  • 35 mm DIN rail or base mounting

Options

  • Frequency controller, option A
  • Dead bus, option B
Source: DEIF FAS-115DG datasheet, p. 2

Standards

  • DIN 40040
  • EN 61000-6-1/2/3/4
  • SS4361503 (PL4)
  • IEC 255-3
Source: DEIF FAS-115DG datasheet, p. 3

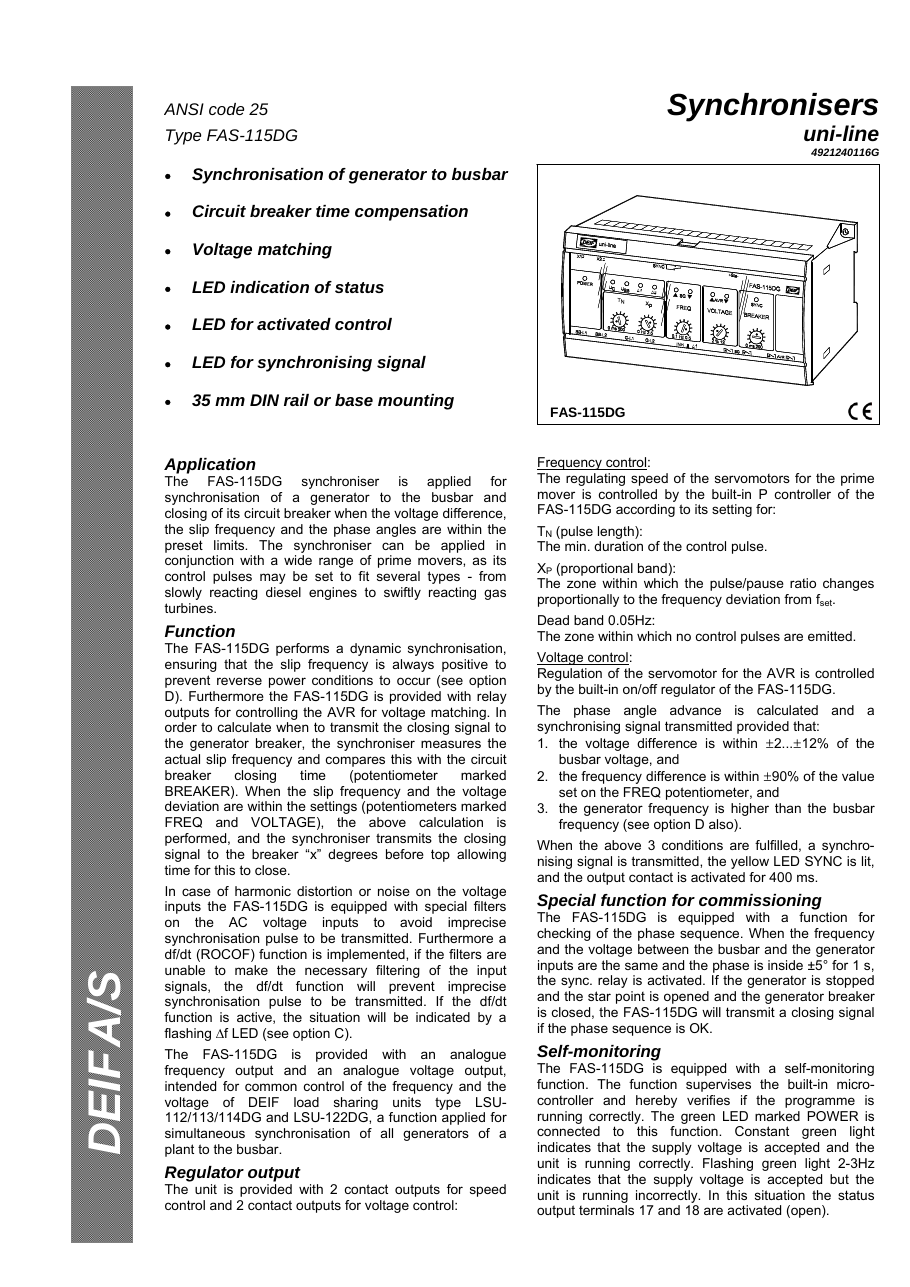

DEIF FAS-115DG – Drawing (f80c30849656_S1-4 S. 1)
Drawing · f80c30849656_S1-4 · S. 1

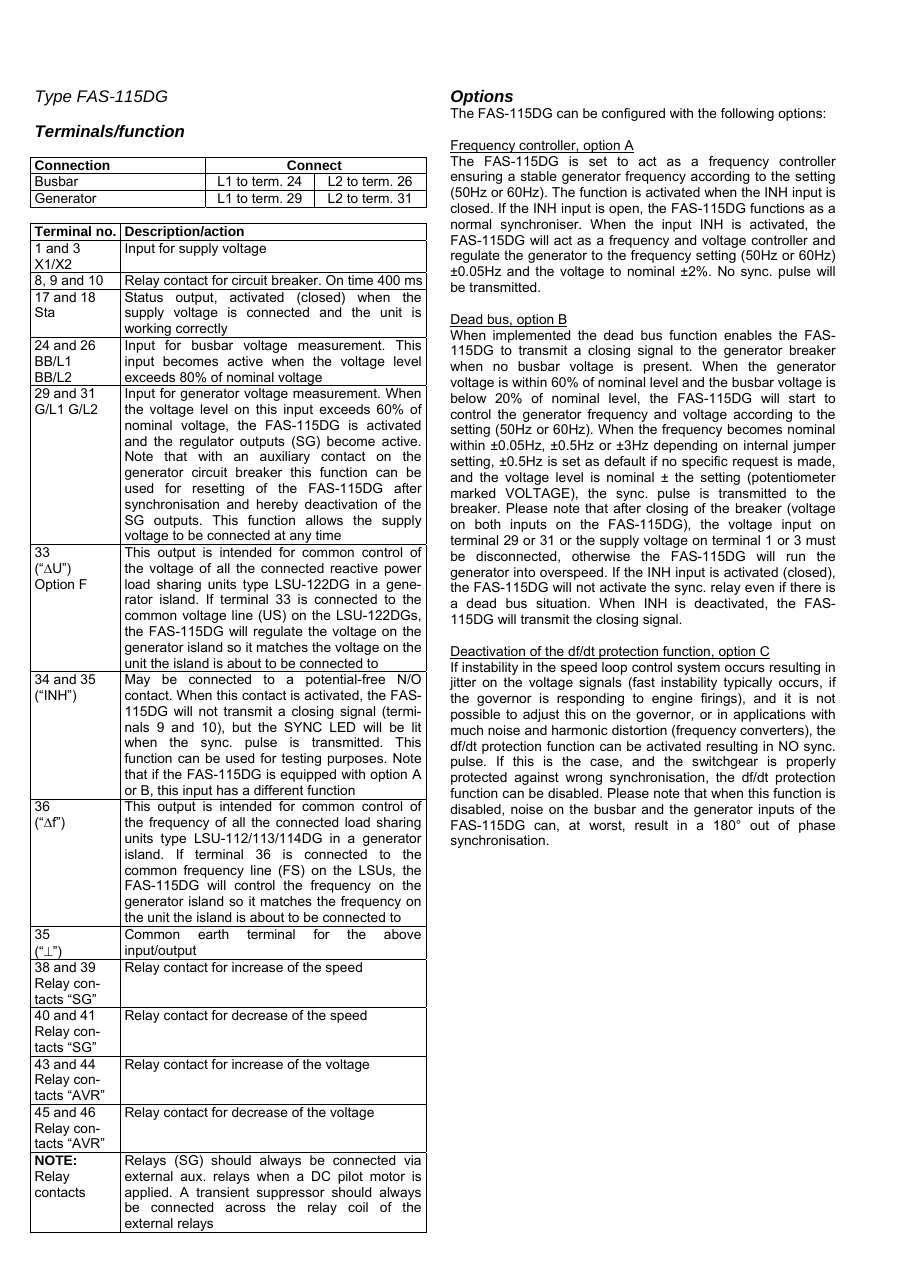

DEIF FAS-115DG – Drawing (f80c30849656_S1-4 S. 2)
Drawing · f80c30849656_S1-4 · S. 2

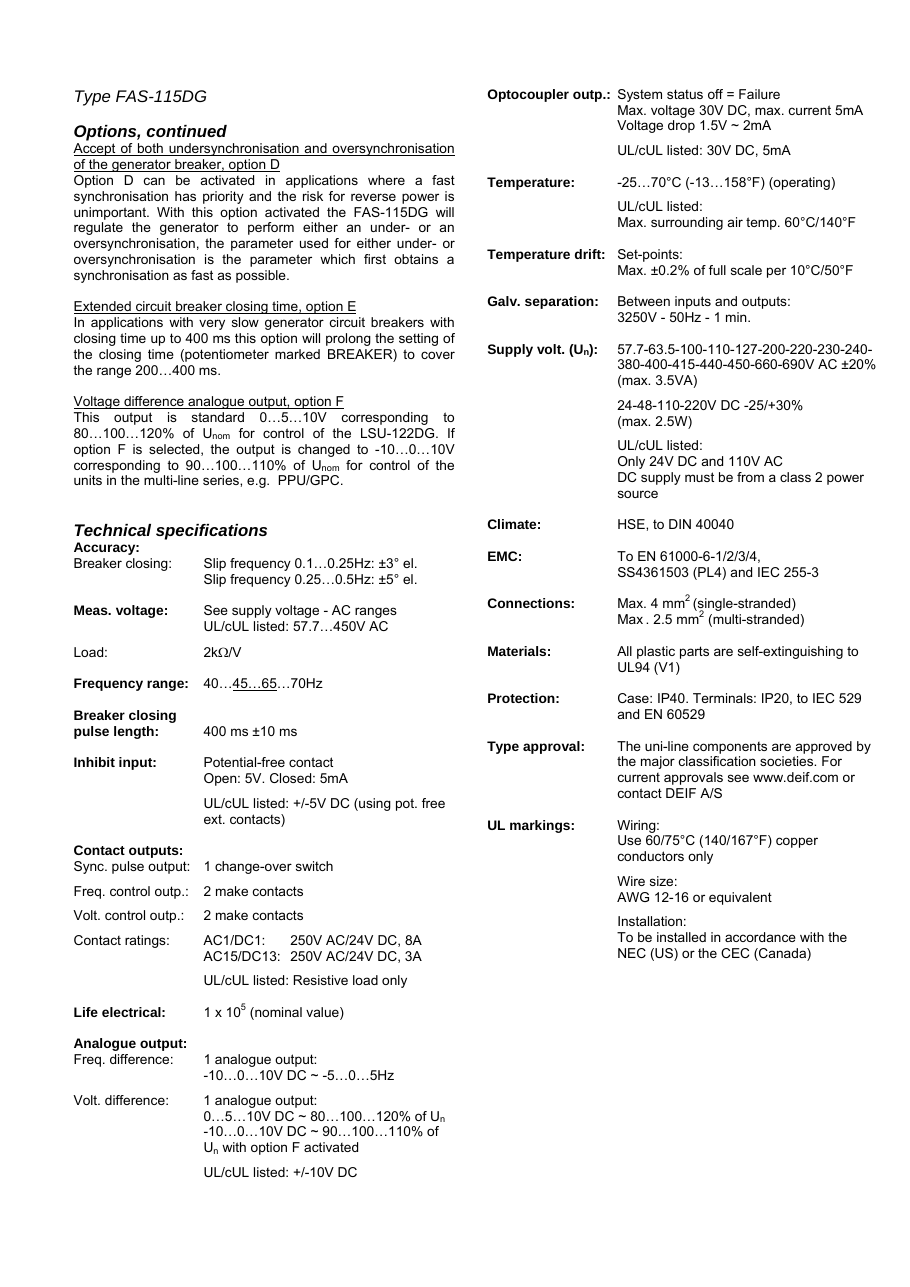

DEIF FAS-115DG – Drawing (f80c30849656_S1-4 S. 3)
Drawing · f80c30849656_S1-4 · S. 3

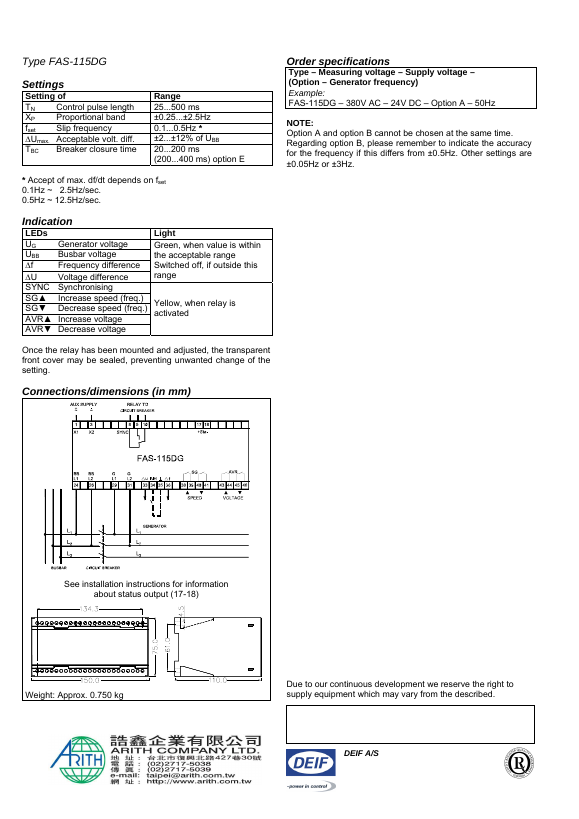

DEIF FAS-115DG – Page preview (f80c30849656_S1-4 S. 4)
Page preview · f80c30849656_S1-4 · S. 4
Source: DEIF FAS-115DG datasheet, p. 1
