DEIF

ADL-111Q96

Protection Relay · Electrical Components & Switchgear

Class-certified type (DNV register) · technical data sheet not yet verified

The ADL-111Q96 is used to supervise the insulation resistance between an isolated voltage distribution network and an earth/safety cable. The insulation monitor is applicable with DC networks for voltages of 24, 110 or 220 V DC.

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Voltage24 V, 110 V or 220 V DC
Accepts up to120µF leakage capacitance
Measuring range0 to 500 kΩ
Capacitance≤120µF
CertificationsEN 61557-8:2015
Shock50 g, 11 ms, half sine
Tested with3 impacts in each direction in all 3 axes. A total of 18 impacts per test.
ToEN IEC 60028-2-27
ProtectionFront: IP52 (IP54 optional). Rear/terminals: IP20. To IEC 529 and EN 60529
With “red marker pointer” option, protection is limited toIP52
ConnectionsScrew terminals: 2.5 mm2 (multi-stranded), 4 mm2 (single-stranded)
MaterialsAll plastic materials are self-extinguishing to UL 94 V-0
RohsEN IEC EN IEC 63000:2018
SafetySupply 24V = 50V CAT III
Supply 110V= 150V CAT III
Supply 220V= 300V CAT III
LvdTo EN 61010-1:2010+A1:2019+A1/AC:2019, EN 61010-2-030:2010, EN 61557-8:2015, and
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The ADL-111Q96 is an insulation monitor designed for monitoring insulation resistance on a DC network.Source: DEIF ADL-111Q96 datasheet, p. 1

Applications

  • marine installations
  • other types of insulated voltage networks
  • DC manoeuvre voltages of transformer stations

Features

  • automatic measuring cycle
  • compensates for network capacitances and DC components
  • alternating polarity DC voltage
  • relay output

Options

  • NE (normally energised contact)
  • ND (normally de-energised contact)

Standards

  • IEC 61557-8
Source: DEIF ADL-111Q96 datasheet, p. 5
DEIF ADL-111Q96 – Photo (3a347e135d68_S1-6 S. 2)
Photo · 3a347e135d68_S1-6 · S. 2

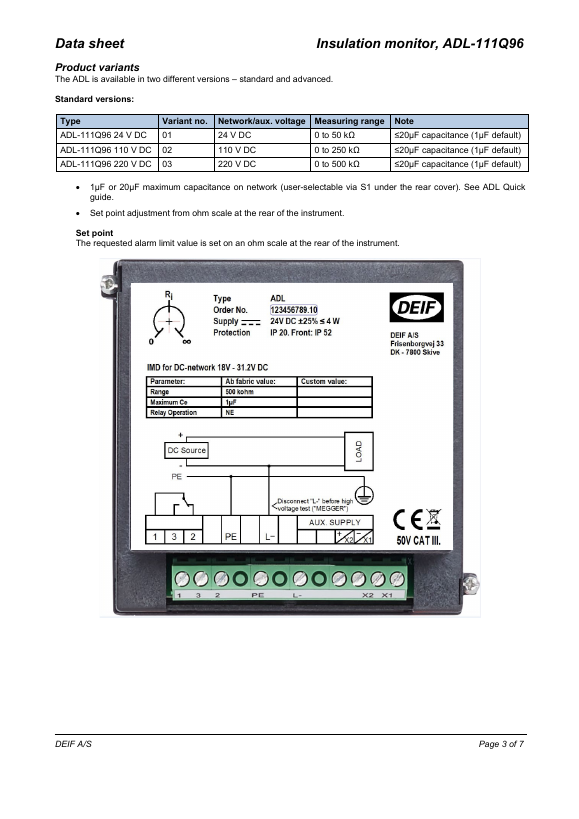

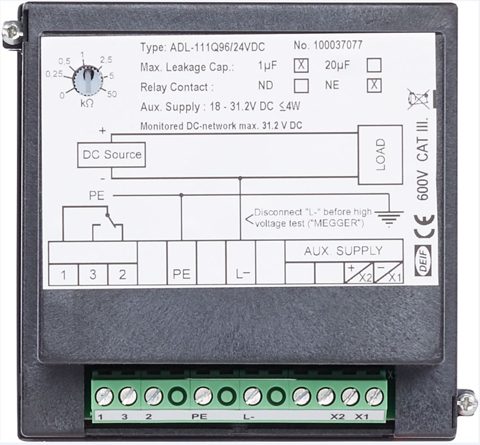

DEIF ADL-111Q96 – Photo (3a347e135d68_S1-6 S. 3)
Photo · 3a347e135d68_S1-6 · S. 3

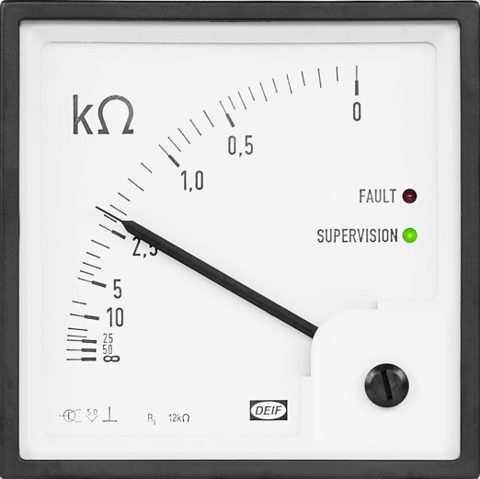

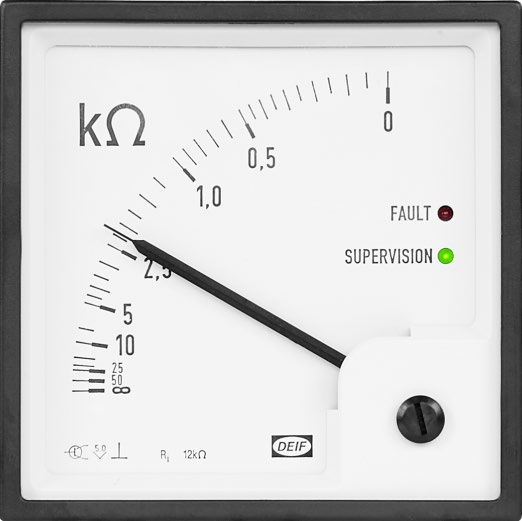

DEIF ADL-111Q96 – Photo (3a347e135d68_S1-6 S. 4)
Photo · 3a347e135d68_S1-6 · S. 4

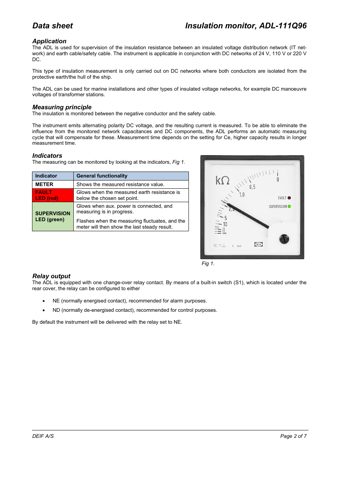

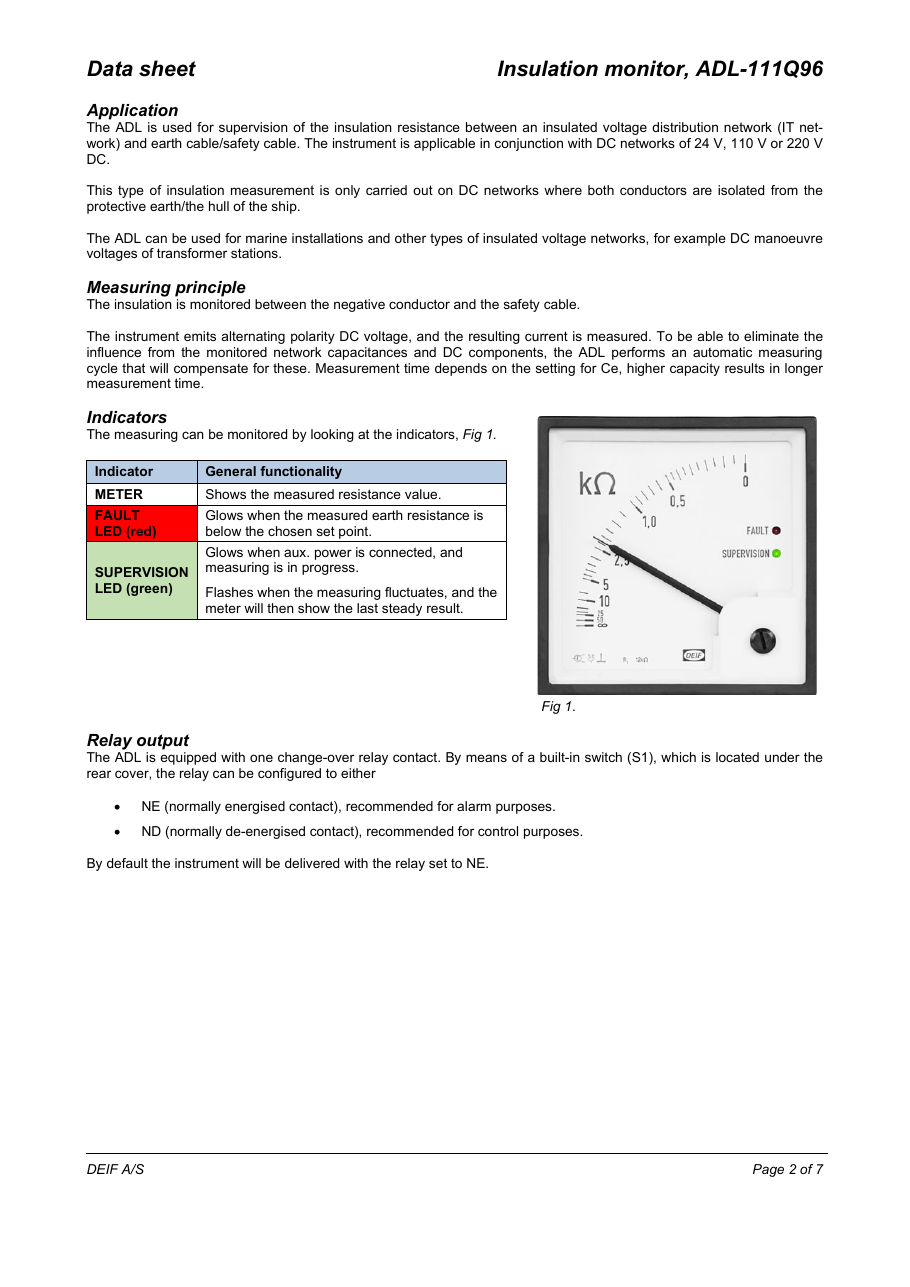

DEIF ADL-111Q96 – Drawing (3a347e135d68_S1-6 S. 2)
Drawing · 3a347e135d68_S1-6 · S. 2

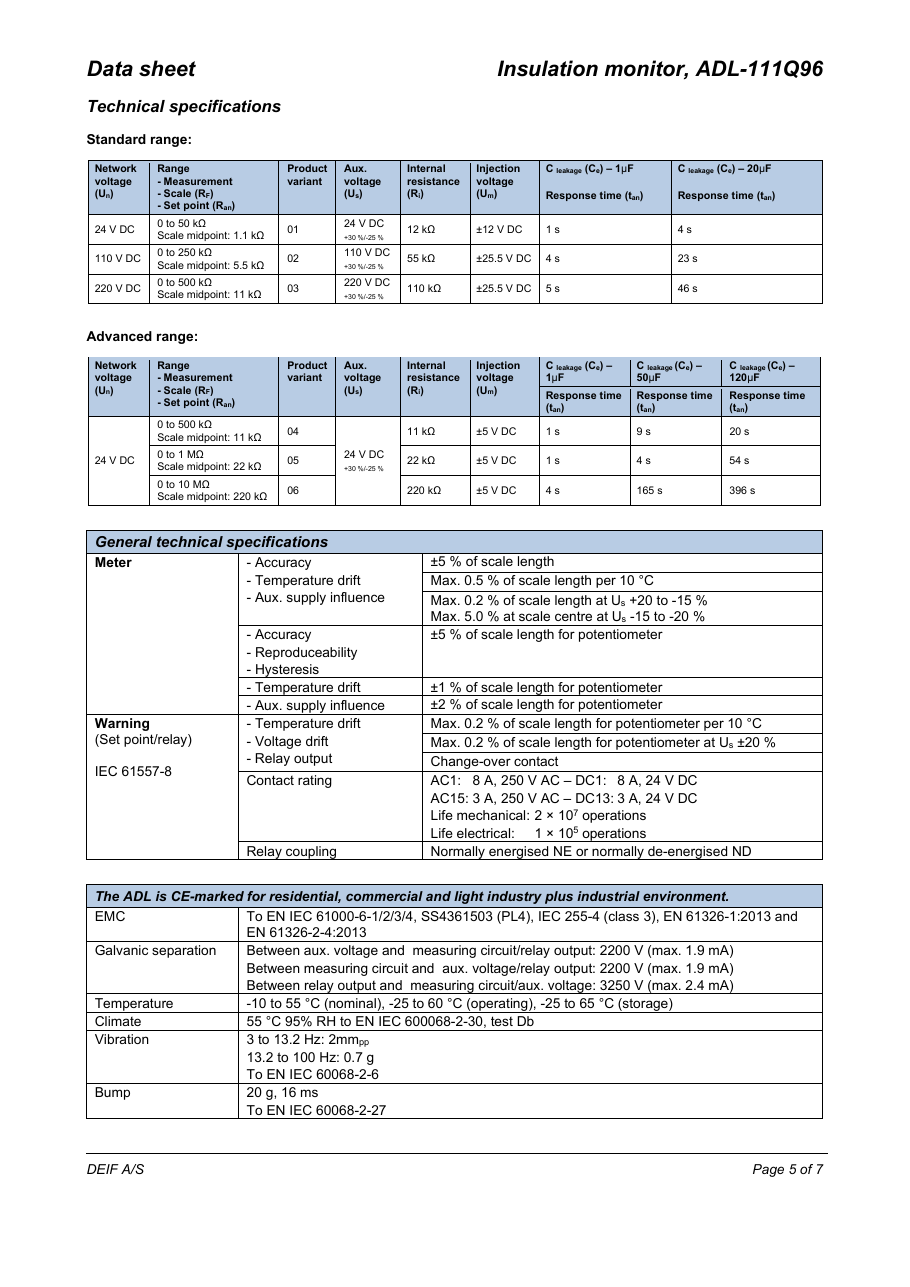

DEIF ADL-111Q96 – Drawing (3a347e135d68_S1-6 S. 5)
Drawing · 3a347e135d68_S1-6 · S. 5

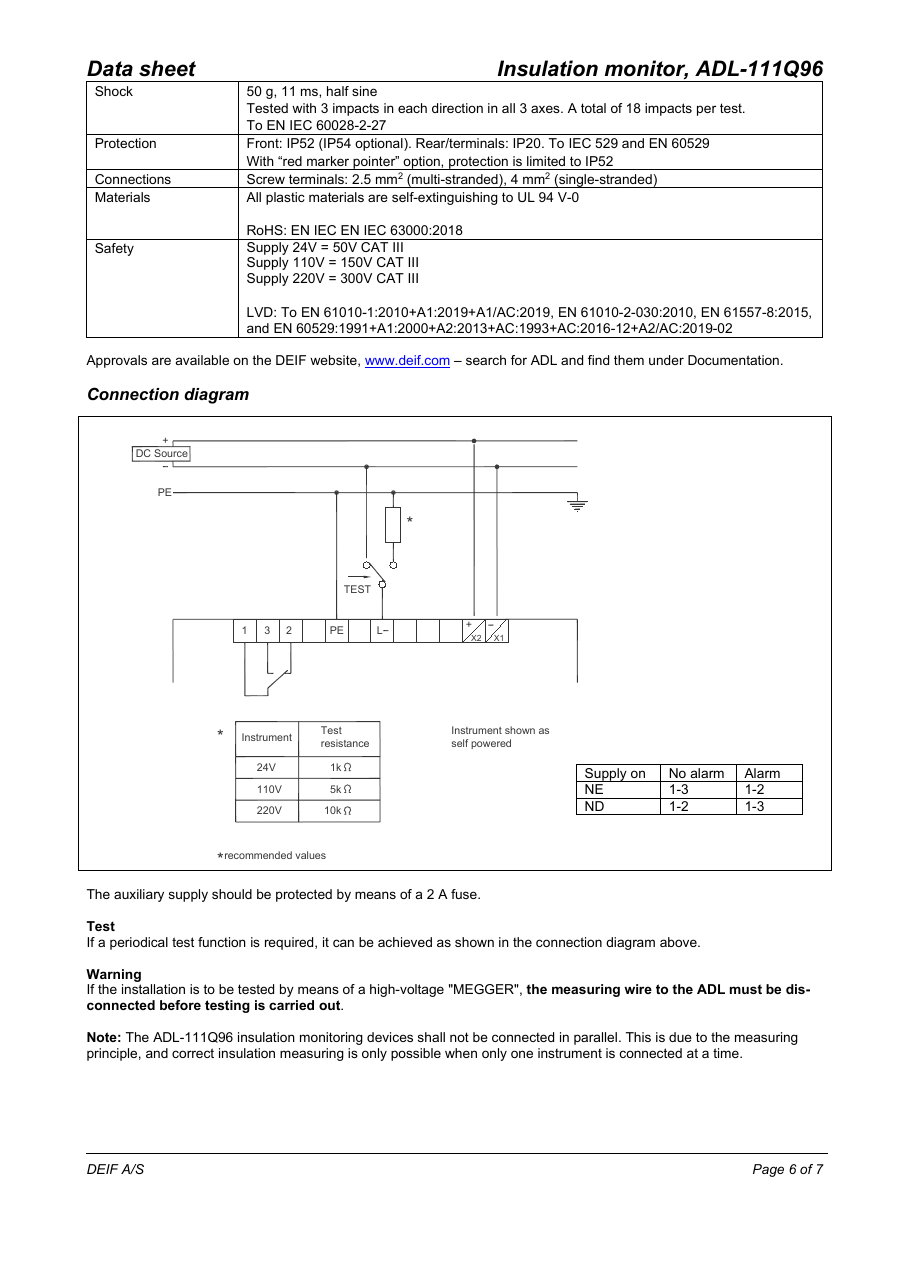

DEIF ADL-111Q96 – Drawing (3a347e135d68_S1-6 S. 6)
Drawing · 3a347e135d68_S1-6 · S. 6

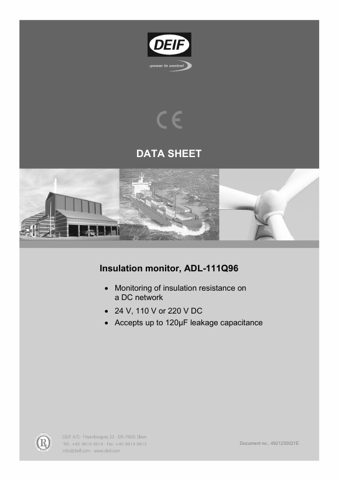

DEIF ADL-111Q96 – Page preview (3a347e135d68_S1-6 S. 1)
Page preview · 3a347e135d68_S1-6 · S. 1
DEIF ADL-111Q96 – Page preview (3a347e135d68_S1-6 S. 3)
Page preview · 3a347e135d68_S1-6 · S. 3
Source: DEIF ADL-111Q96 datasheet, p. 2
