Library› Electrical› Electrical Components & Switchgear› Protection Relay› DEIF SIM-Q MKII
DEIF

SIM-Q MKII

Protection Relay · Electrical Components & Switchgear

Class-certified type (DNV register) · technical data sheet not yet verified

The SIM-Q MKII monitors the insulation resistance between the connected network and an earth/safety cable. Using a unique measuring principle, it measures the insulation resistance in AC networks up to 690 V and DC networks up to 1000 V.

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

CertificationsIEC 61557-8
DC resistance (Ri):300 kΩ ±1 %
AC impedance (Zi):251 kΩ ±1 % at 50 Hz
Measuring output voltage (Um):Typically: +/-25.5 V Max.: +/-27.3 V
Measurement current (Im):Max.: 100 uA
Input voltage (Un):0 to 690 V AC +20 % continuously (828 V AC)
DC input voltage (Ufg):Max. 1000 V DC continuously
Meter Accuracy normal mode:<15 % of readout value.
Meter Accuracy fast mode:Range 13 kΩ to 200 kΩ Range 40 kΩ to 1.5 MΩ
Measuring output voltage (Urn):Typically: +/-25.5 V Max.: +/-27.3 V
Input voltage (UN):0 to 690 V AC +20 % continuously (828 V AC)
Recommended fuse size:max 2 A.
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The SIM-Q MKII continuously monitors the insulation resistance between the connected network (IT network) and Functional Earth (FE).

Applications

  • Testing of electrical equipment
  • Verification of set point settings
Source: DEIF SIM-Q MKII datasheet, p. 5

Features

  • 3 functions: Normal, Fast and Test
  • Easy adjustment and verification
  • 2000 µF leakage capacitance
  • Working voltage up to 690 V AC and up to 1000 V DC

Options

  • OG Optional Graphics
  • RP Red marker Pointer
  • LF Low Frequency option
  • AG Anti-Glare front glass
  • AS Advanced Settings
Source: DEIF SIM-Q MKII datasheet, p. 5

Standards

  • IEC 61577
Source: DEIF SIM-Q MKII datasheet, p. 9

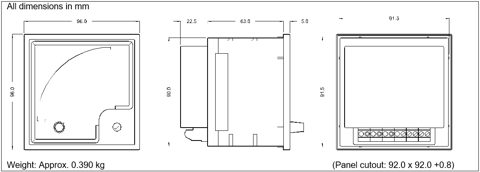

DEIF SIM-Q MKII – Photo (a7c08395a39d_S3-11 S. 9)
Photo · a7c08395a39d_S3-11 · S. 9

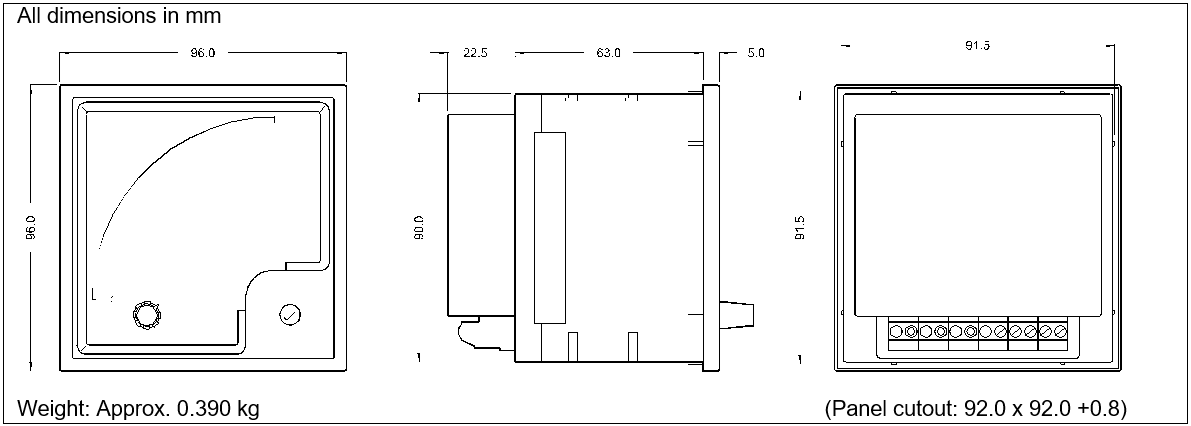

DEIF SIM-Q MKII – Drawing (a7c08395a39d_S3-11 S. 3)
Drawing · a7c08395a39d_S3-11 · S. 3
DEIF SIM-Q MKII – Drawing (a7c08395a39d_S3-11 S. 6)
Drawing · a7c08395a39d_S3-11 · S. 6
DEIF SIM-Q MKII – Drawing (a7c08395a39d_S3-11 S. 8)
Drawing · a7c08395a39d_S3-11 · S. 8

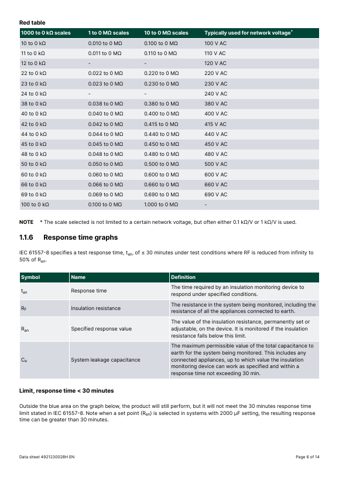

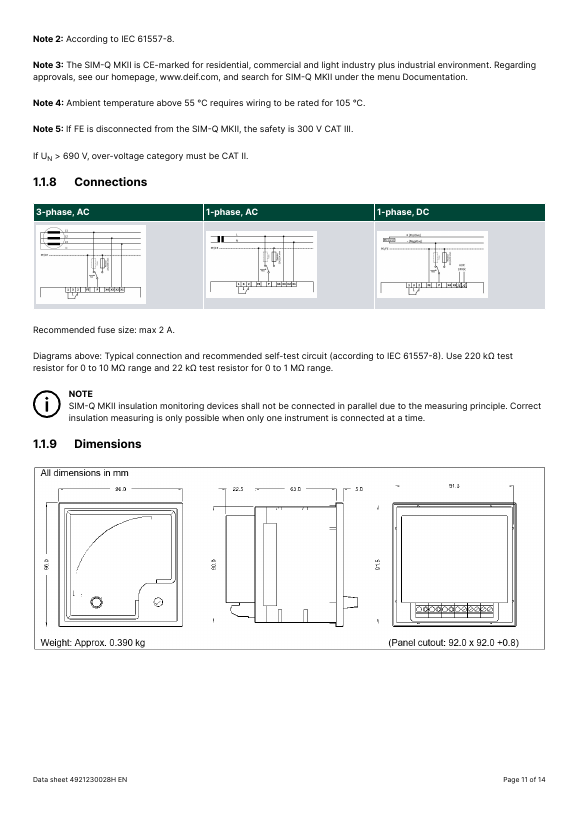

DEIF SIM-Q MKII – Page preview (a7c08395a39d_S3-11 S. 4)
Page preview · a7c08395a39d_S3-11 · S. 4

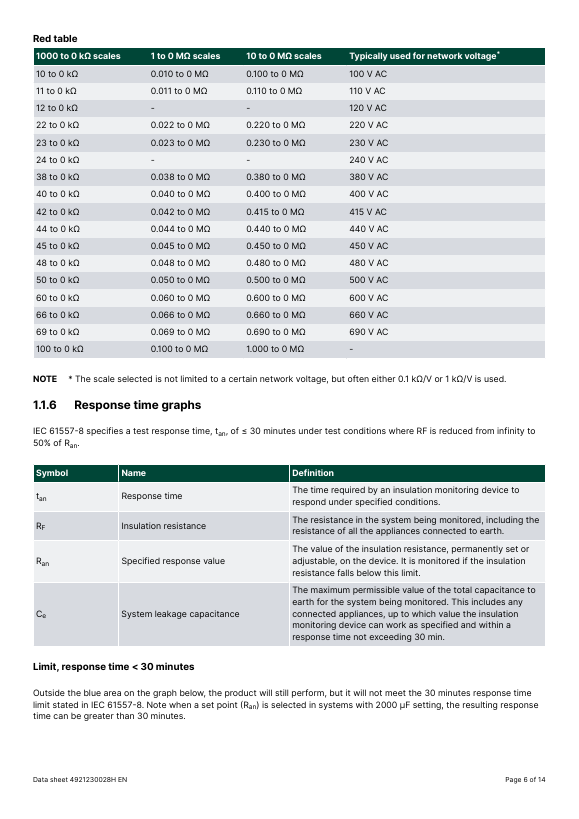

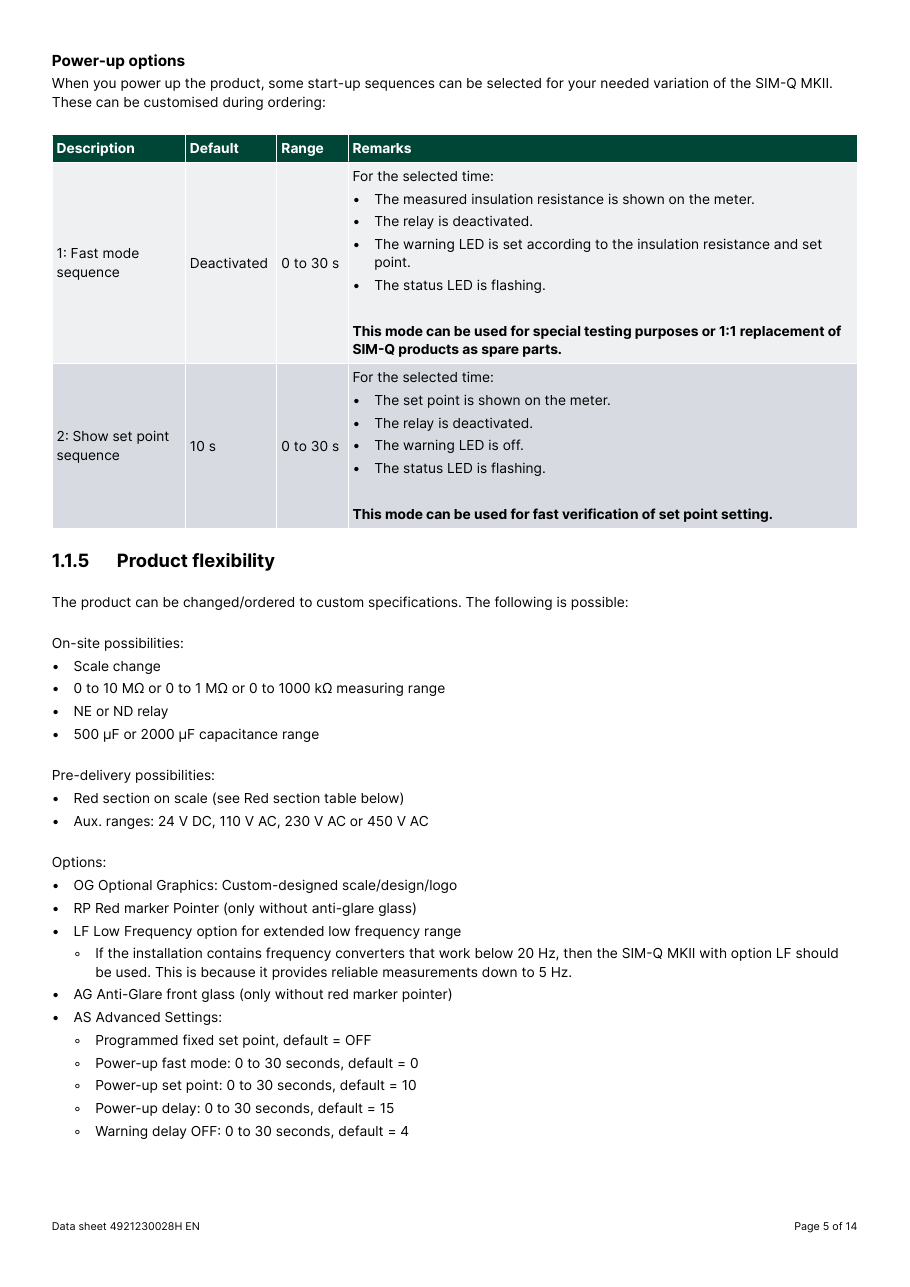

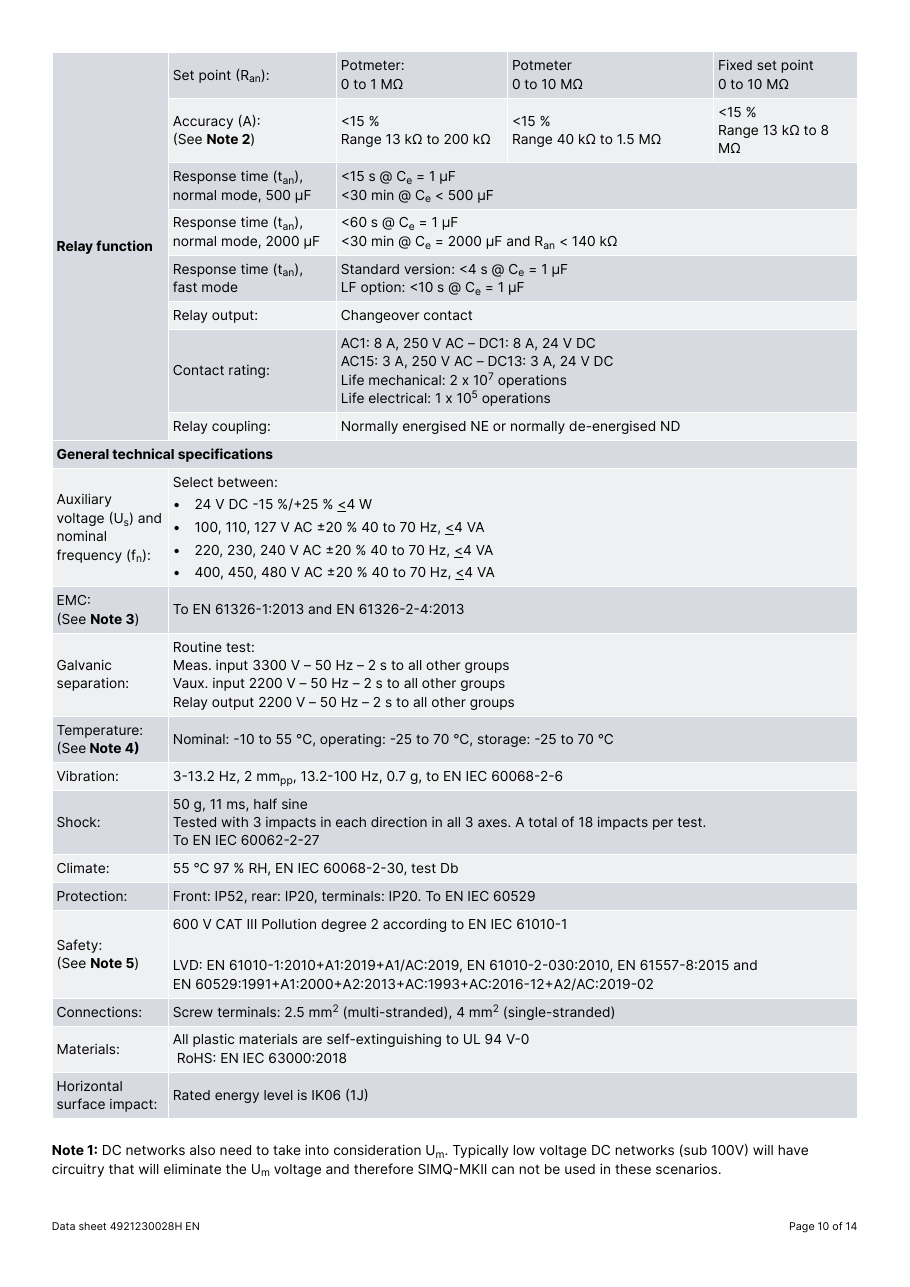

DEIF SIM-Q MKII – Page preview (a7c08395a39d_S3-11 S. 5)
Page preview · a7c08395a39d_S3-11 · S. 5

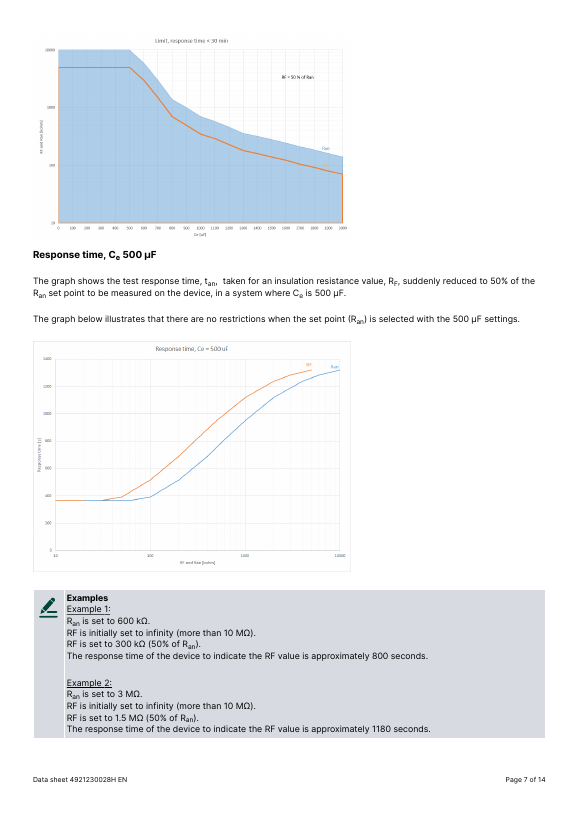

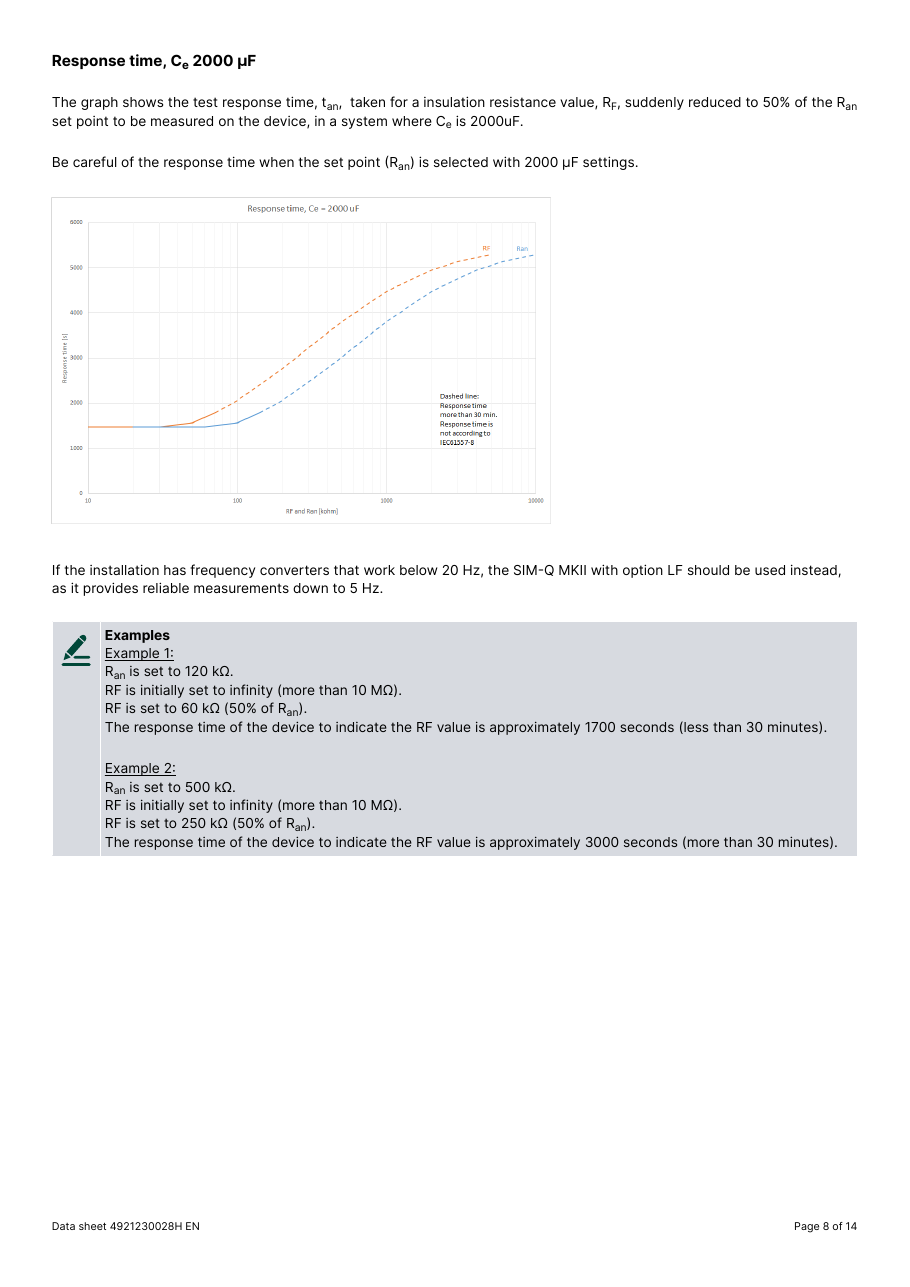

DEIF SIM-Q MKII – Page preview (a7c08395a39d_S3-11 S. 7)
Page preview · a7c08395a39d_S3-11 · S. 7

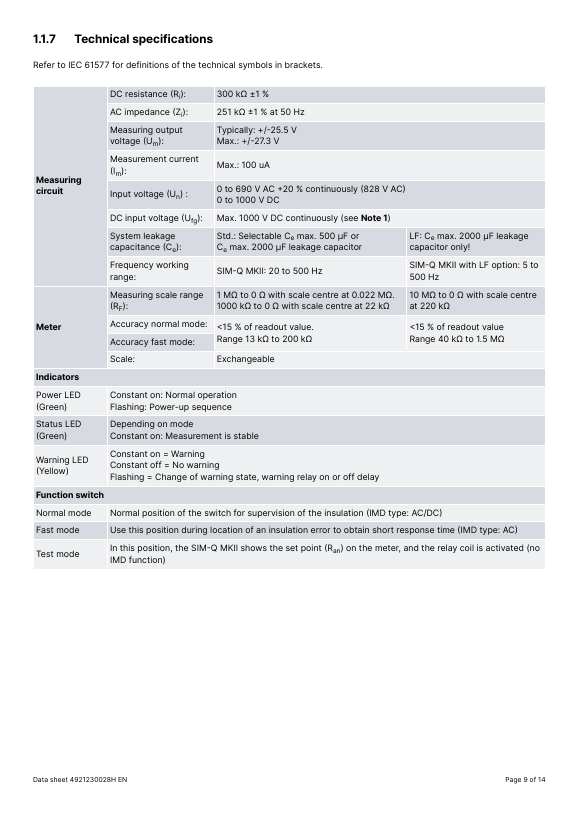

DEIF SIM-Q MKII – Page preview (a7c08395a39d_S3-11 S. 9)
Page preview · a7c08395a39d_S3-11 · S. 9
Source: DEIF SIM-Q MKII datasheet, p. 3
