Omron Industrial

QX-870

Control Relay · Electrical Components & Switchgear

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Scans/second300 to 1400
Read Range1 to 30” (25 to 762 mm)
IP EnclosureIP65
Height4.29” (109 mm)
Width3.74” (95 mm)
Depth1.76” (45 mm)
Weight16 oz. (453 g)
Weight453 g (16 oz.)
Applications StandardUCC/EAN-128, AIAG
Output Wavelength655 nm nominal
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The QX-870 is an industrial laser scanner designed for barcode tracking, tracing, and control applications. It features an easy setup and high decode capabilities.

Applications

  • industrial environments
  • barcode tracking
  • trace and control applications

Features

  • programmable sweeping raster
  • plug and play setup
  • high read rates
  • decodes damaged codes

Options

  • embedded Ethernet TCP/IP
  • EtherNet/IP
  • Ultra-Lock Connectors

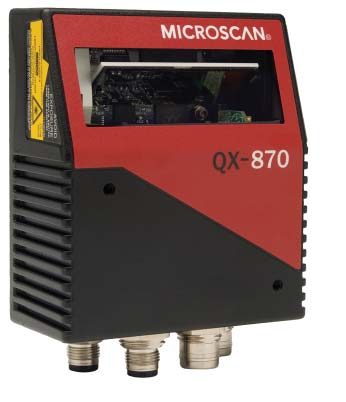

Omron Industrial QX-870 – Photo (b7507fc517ef_S1-2 S. 1)
Photo · b7507fc517ef_S1-2 · S. 1

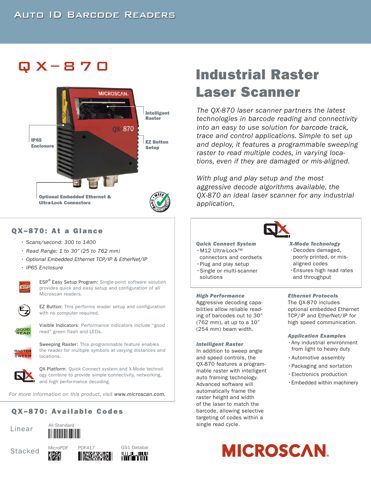

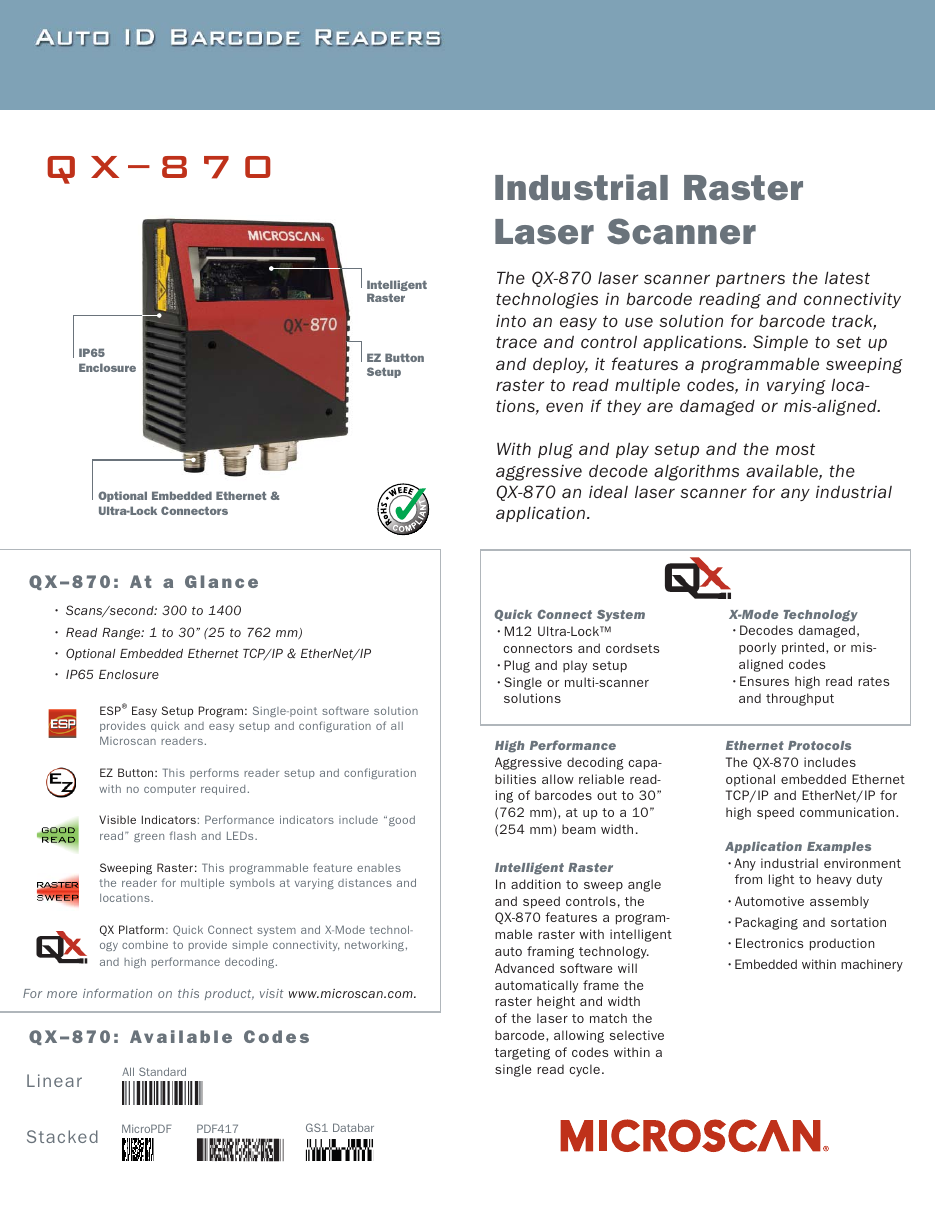

Omron Industrial QX-870 – Drawing (b7507fc517ef_S1-2 S. 1)
Drawing · b7507fc517ef_S1-2 · S. 1

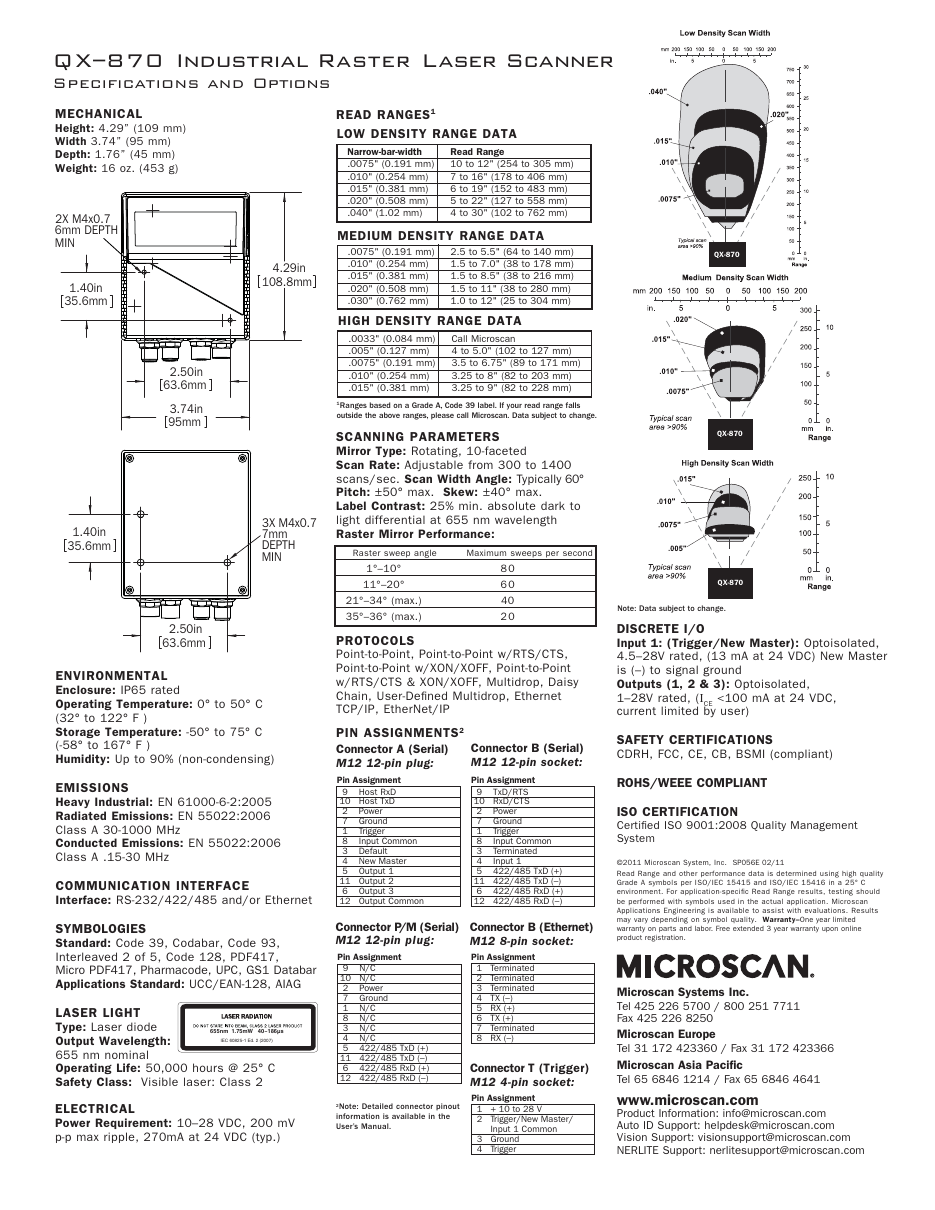

Omron Industrial QX-870 – Drawing (b7507fc517ef_S1-2 S. 2)
Drawing · b7507fc517ef_S1-2 · S. 2
Source: Omron Industrial QX-870 datasheet, p. 1
