Endress+Hauser

Proservo NMS80

Servo Level Gauge · Cargo Level & Temperature Gauging

Class-certified type (DNV register) · technical data sheet not yet verified

The intelligent tank gauge Proservo NMS80 is designed for high accuracy liquid level measurement in custody transfer and inventory control applications with NMi- and PTB-approvals. It meets the relevant requirements according to OIML R85 and API 3.1B. It fulfills the exact demands of tank inventory management and loss control and is optimized in regards of total cost saving and safe operation.

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Process temperature range-200 to +200 °C (-328 to 392 °F)
WeightApprox. 15 kg (33.0 lb) with NPS 3" Cl. 150, DN80PN10/16, 10K80A flange
OIML R85 (2008)Requirements for ambient temperature low –25 °C (–13 °F) and ambient temperature
Ordering feature120

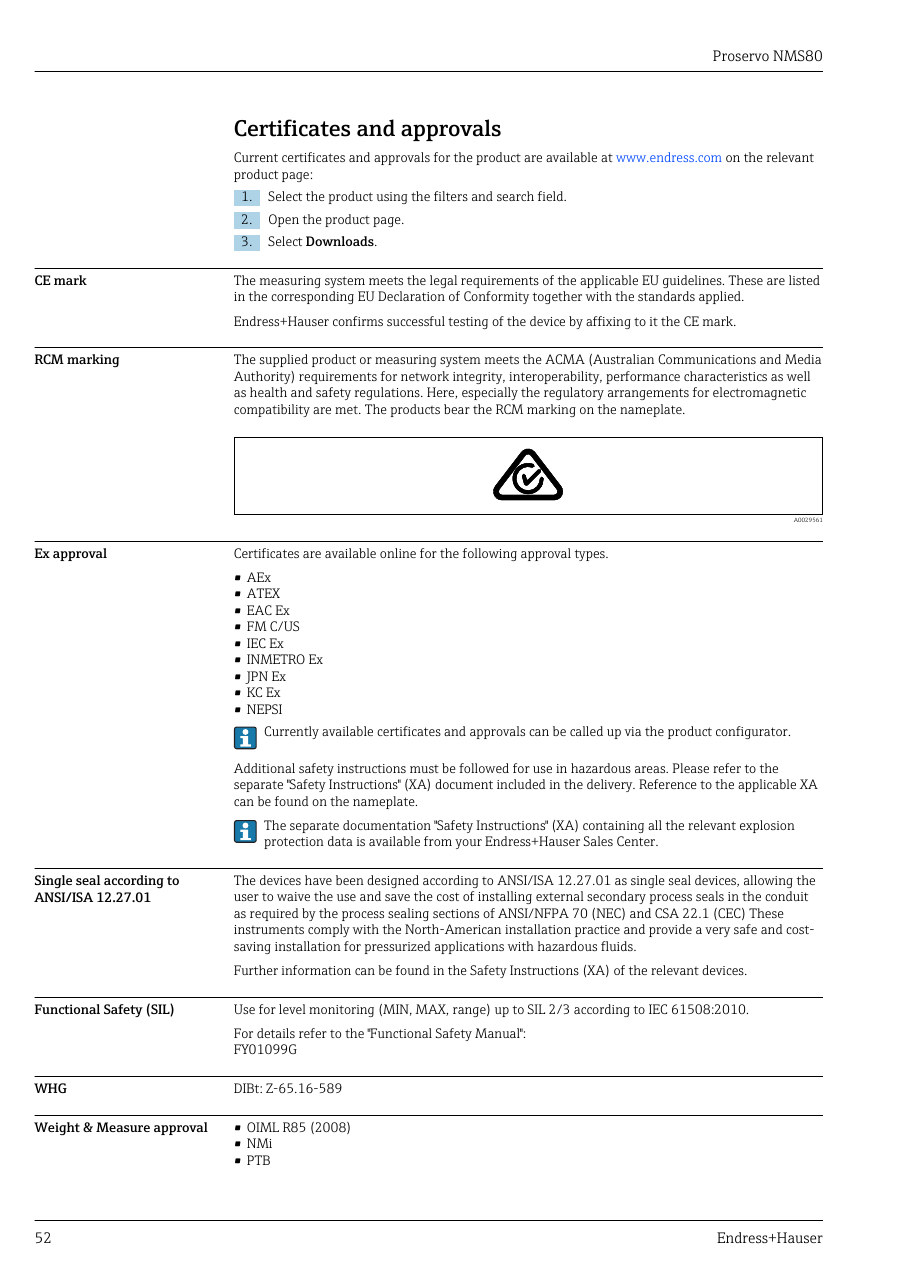

Weight and measure approval⌀30 mm, ⌀50 mm, ⌀70 mm, ⌀110 mm (1.18 in, 1.97 in, 2.76 in, 4.
Frequency60 seconds
Primary Output4-20mA HART Ex i H1
Air density0.0 to 500.0 kg/m³
Lower density50 to 2 000 kg/m³
Factory setting for Lower density1 200 kg/m³
Standby level–999 999.9 to 999 999.9 mm
Lower density offset-999.99 to 999.99 kg/m³
Submersion depth50 to 99 999.9 mm
Profile density offset distance0 to 999 999.9 mm
Profile density interval1 to 100 000 mm
Profile density offset–999.99 to 999.99 kg/m³
Move distance0 to 999 999.9 mm
Offset standby distance0 to 999 999.9 mm
Up dens. offset-999.99 to 999.99 kg/m³
Mid dens. offset-999.99 to 999.99 kg/m³
Starting level of manual profile density operation1 000 mm
Temp. offset-20 to 20 °C
Pressure 100%25 000 bar
Line impedance0 to 15
Min. pressure0 to 100 bar
Safety distance0 to 10 000 mm
Hysteresis0 to 2 000 mm
Slow hoist zone70 mm
Overtension wgt350 g
Undertension wgt10 g
Displacer diameter50 mm
Low voltage DC power supply Operational value24 to 55 VDC (- 20 % + 15 %) = 19 to 64 VDC
Power consumption Maximum power28.8 VA
Power consumption Low voltage AC power supply21.6 VA
Power consumption Low voltage DC power supply13.4 W
Maximum current consumption of the connected HART devices24 mA
Output voltage of the Ex-d module17.0 V@4 mA to 10.5 V@22 mA
Output voltage of the Ex-ia module18.5 V@4 mA to 12.5 V@22 mA
Tankbodenhöhe und Füllstand Peilplatte70 mm (2,76 in) und 50 mm (1,97 in)
Größe des Prozessanschlusses3"/DN80
D150,9 mm
L11 000 mm
L220 000 mm
D50 mm
S5,0
Messtrommel28 m
WerkseinstellungPt100(385) (a=0.00385, IEC751)
SignalartAnalog (4...20 mA)
Stromaufnahme24 mA
Ausgangsspannung17,0 V@4 mA bis 10,5 V@22 mA
Werkseinstellung Intervall Dichteprofil1 000 mm
Temperaturoffset-20 … 20 °C
Eingabe–5 000 … 30 000 mm
Process pressure range0 to 6 bar (600 Kpa/87 psi)
Part numberNMS80

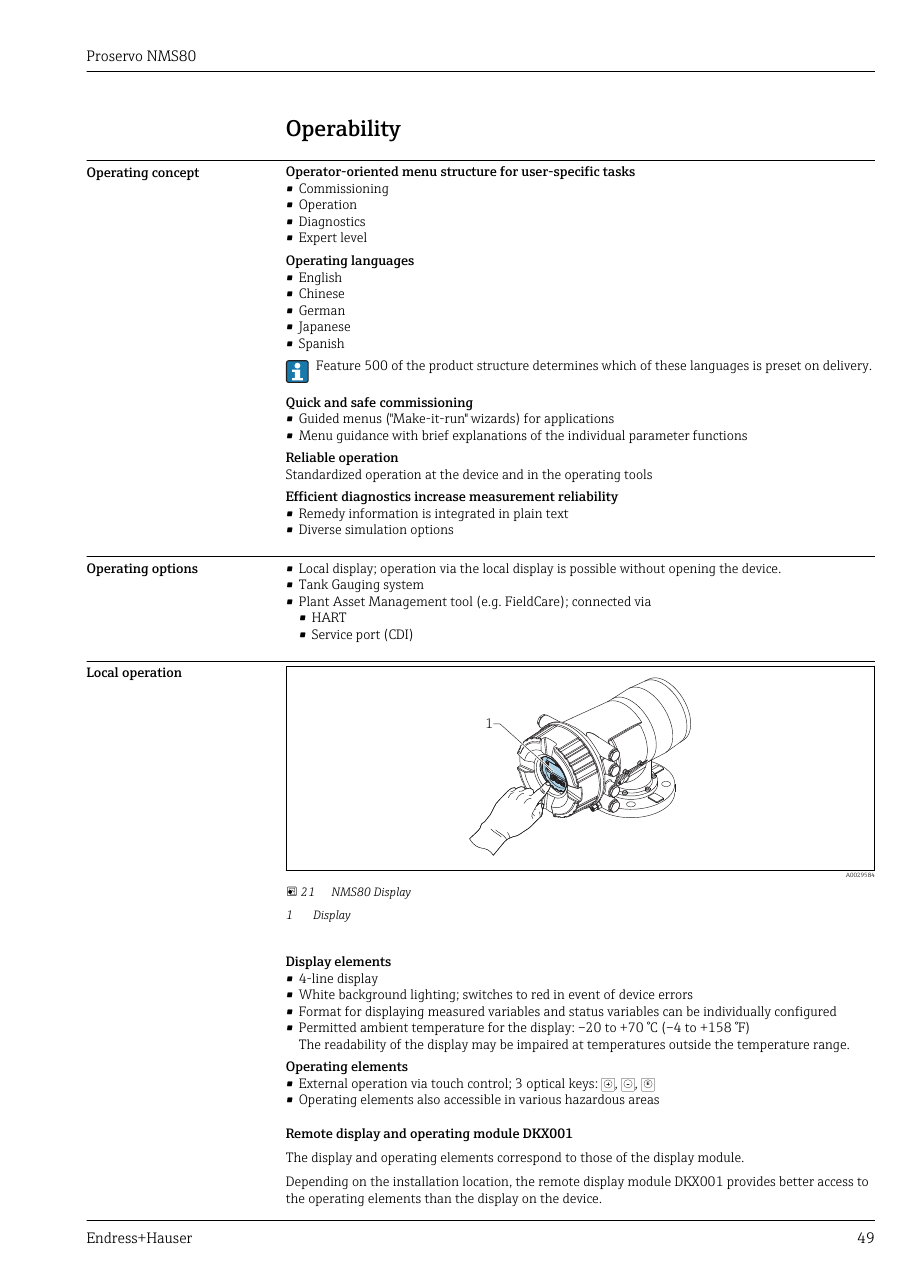

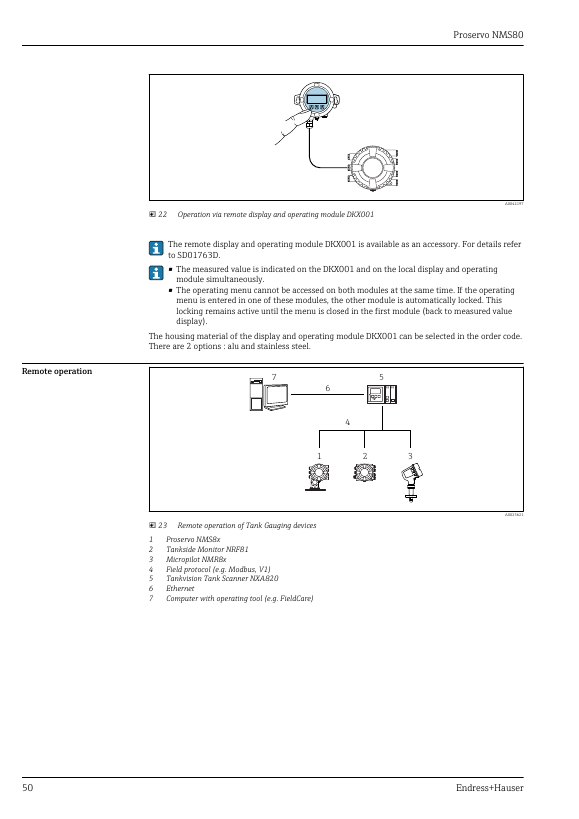

Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

Mechanical construction device, used for specific flange specifications.Source: Endress+Hauser Proservo NMS80 datasheet, p. 44

Applications

  • Temperature measurement in industrial processes
  • Temperature monitoring in storage tanks

Features

  • Wide temperature range
  • Aluminum housing
  • Various sealing options

Options

  • Aluminum flange
  • Various wire diameters and materials
Source: Endress+Hauser Proservo NMS80 datasheet, p. 45

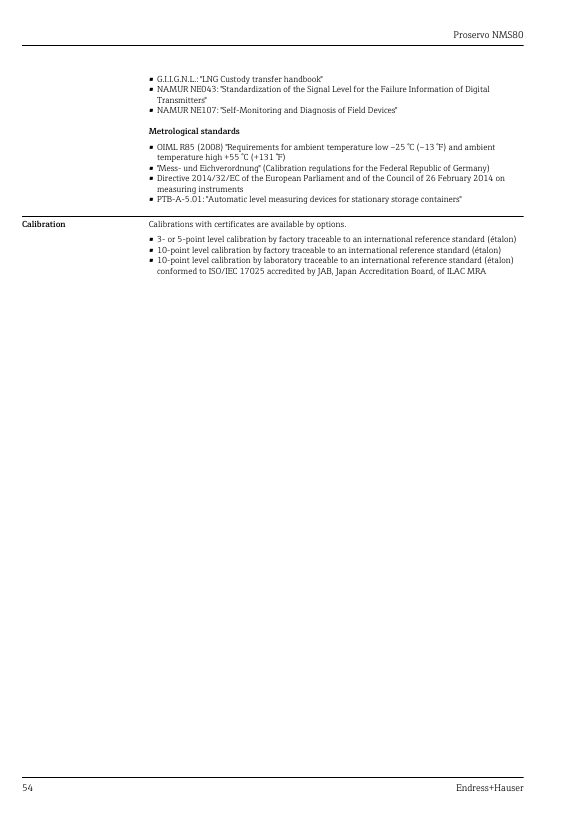

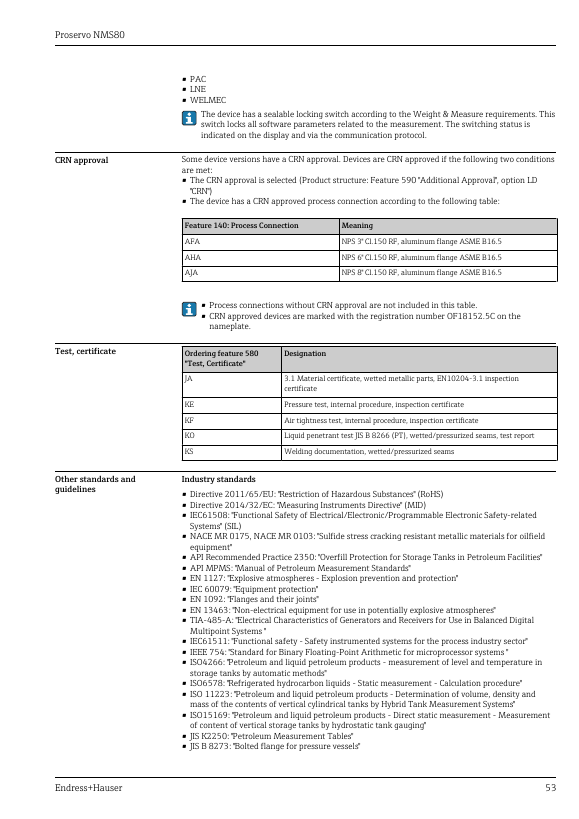

Standards

  • IEC 60060-1 / DIN 60079-14
Source: Endress+Hauser Proservo NMS80 datasheet, p. 31
Endress+Hauser Proservo NMS80 – Drawing (48f529b64cdb_S25-66 S. 25)
Drawing · 48f529b64cdb_S25-66 · S. 25

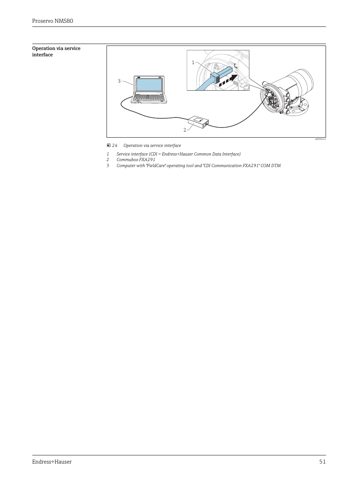

Endress+Hauser Proservo NMS80 – Drawing (48f529b64cdb_S25-66 S. 27)
Drawing · 48f529b64cdb_S25-66 · S. 27
Endress+Hauser Proservo NMS80 – Drawing (48f529b64cdb_S25-66 S. 28)
Drawing · 48f529b64cdb_S25-66 · S. 28
Endress+Hauser Proservo NMS80 – Page preview (48f529b64cdb_S25-66 S. 26)
Page preview · 48f529b64cdb_S25-66 · S. 26
Endress+Hauser Proservo NMS80 – Page preview (48f529b64cdb_S25-66 S. 29)
Page preview · 48f529b64cdb_S25-66 · S. 29

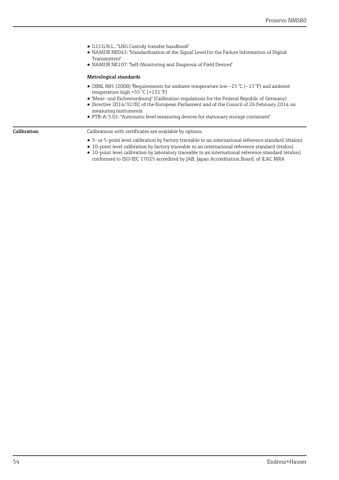

Endress+Hauser Proservo NMS80 – Page preview (48f529b64cdb_S25-66 S. 30)
Page preview · 48f529b64cdb_S25-66 · S. 30

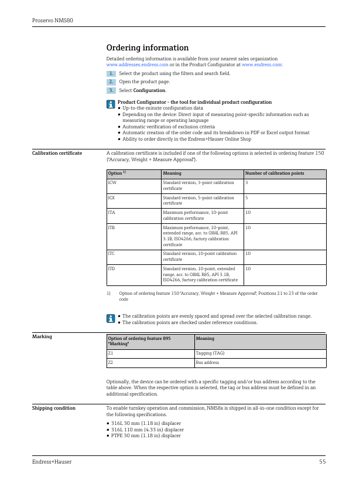

Endress+Hauser Proservo NMS80 – Page preview (48f529b64cdb_S25-66 S. 31)

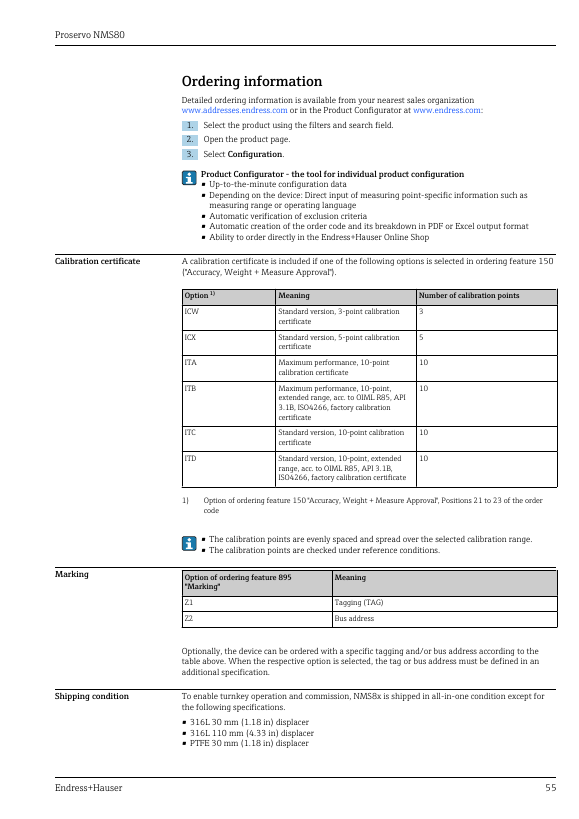

Page preview · 48f529b64cdb_S25-66 · S. 31
