Prosonic S FMU90

Ultrasonic Level Gauge · Cargo Level & Temperature Gauging

Class-certified type (DNV register) · technical data sheet not yet verified

Prosonic FMU90 separated version with field housing or top hat rail housing for control cabinet instrumentation are suited for continuous, non-contact level measurement of fluids, pastes, sludge and powdery to coarse bulk solids. Also the flow measurement in open channels and weirs is possible as the simultaneous measurement of level and flow in a storm water overflow basin with only 1 sensor. Up to 6 relays for tendency alarm, flow pulse output or backwater/sludge alarm, 1 or 2 channel version.

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Maximum short-circuit current20 mA 24 V
Inputs for external switchesExternal switch 1: 0 < 8 V or 72 and 73 interconnected, 1 > 16 V or 72 and 73 no
Weight6,0 kg (13,23 lb)
Material316L (1.4404)
Ständer1 400 mm (55,1 in)
Montageständer1400 mm (55,1 in)
UsidentifiedsensortypeOOS 1 : FDU80
Slot (relative)XX999
Size [bytes]72
TypeUnsigned16
Durchmesserø33.7 (1.3)
Länge1400 (55.1)
Breite20 (0.8)
Höhe4 (0.16)
Abstand100 (3.94)
Max. Testzeit0 … 2 000 s
AdapterplatteBestell-Nr.: 52027441
Umgebungstemperatur-40 ... 60 °C
Schutzart• Feldgehäuse: IP66 / NEMA 4x • Hutschienengehäuse: IP20 • abgesetztes Display:
Fuse2 A T /DC or 400 mA T/AC
ServiceService interface for connection of a PC/Notebook via Commubox FXA291
Part numberFMU90
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

Prosonic S FMU90 is an electrical connection device for external switches and temperature sensors.

Applications

  • Connection of external switches
  • Connection of a Pt100 temperature sensor

Features

  • PROFIBUS DP
  • Limit relay
  • Alarm or diagnostic relay
  • Time pulse relay
  • Counting pulse relay
  • Fieldbus Relay
  • Analog Input (AI) and Digital Input (DI) blocks
  • Cyclic data telegram
Source: Endress+Hauser Prosonic S FMU90 datasheet, p. 3

Options

  • PC field mounting, IP66 NEMA4x
  • Aluminum field housing, IP66 NEMA4x
Source: Endress+Hauser Prosonic S FMU90 datasheet, p. 8

Standards

  • appropriate standards and EC directives
Source: Endress+Hauser Prosonic S FMU90 datasheet, p. 5

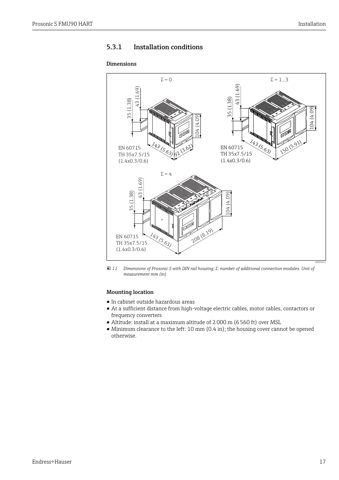

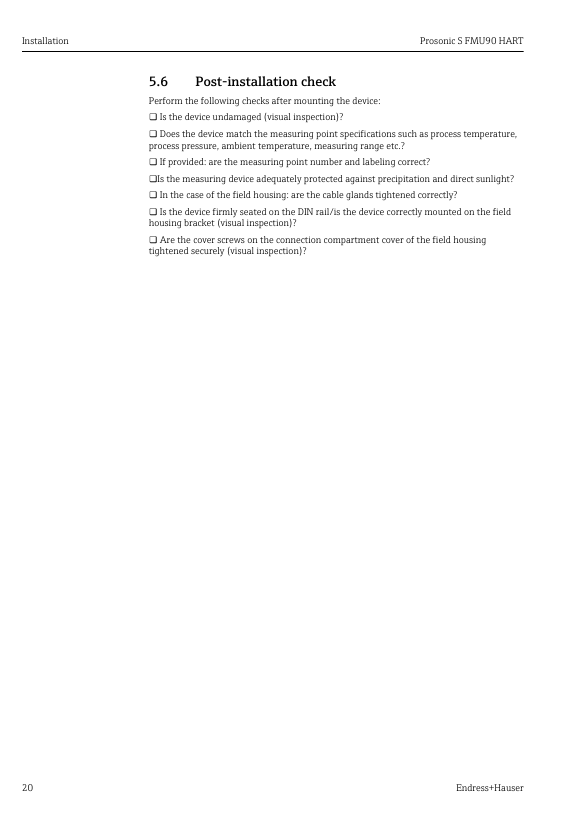

Endress+Hauser Prosonic S FMU90 – Drawing (3eb815052648_S8-39 S. 8)
Drawing · 3eb815052648_S8-39 · S. 8

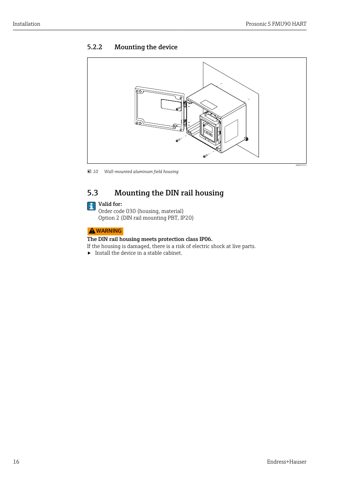

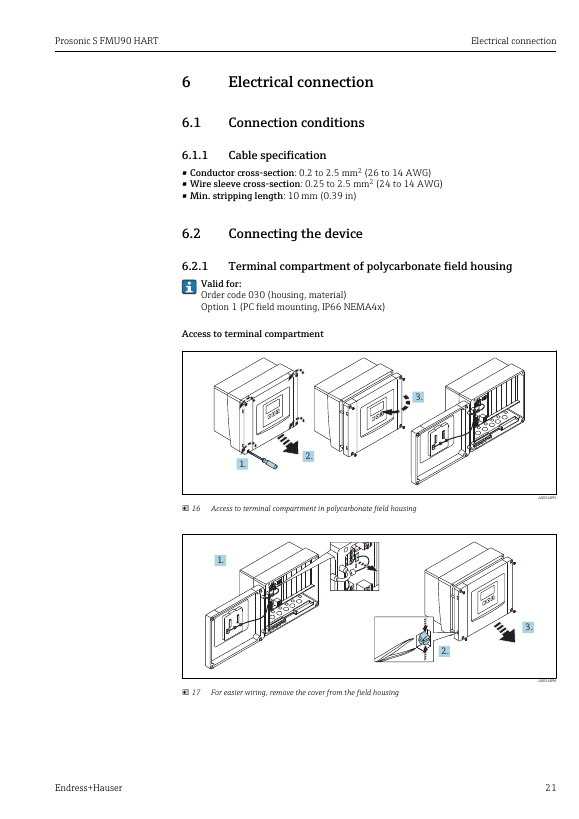

Endress+Hauser Prosonic S FMU90 – Drawing (3eb815052648_S8-39 S. 9)
Drawing · 3eb815052648_S8-39 · S. 9

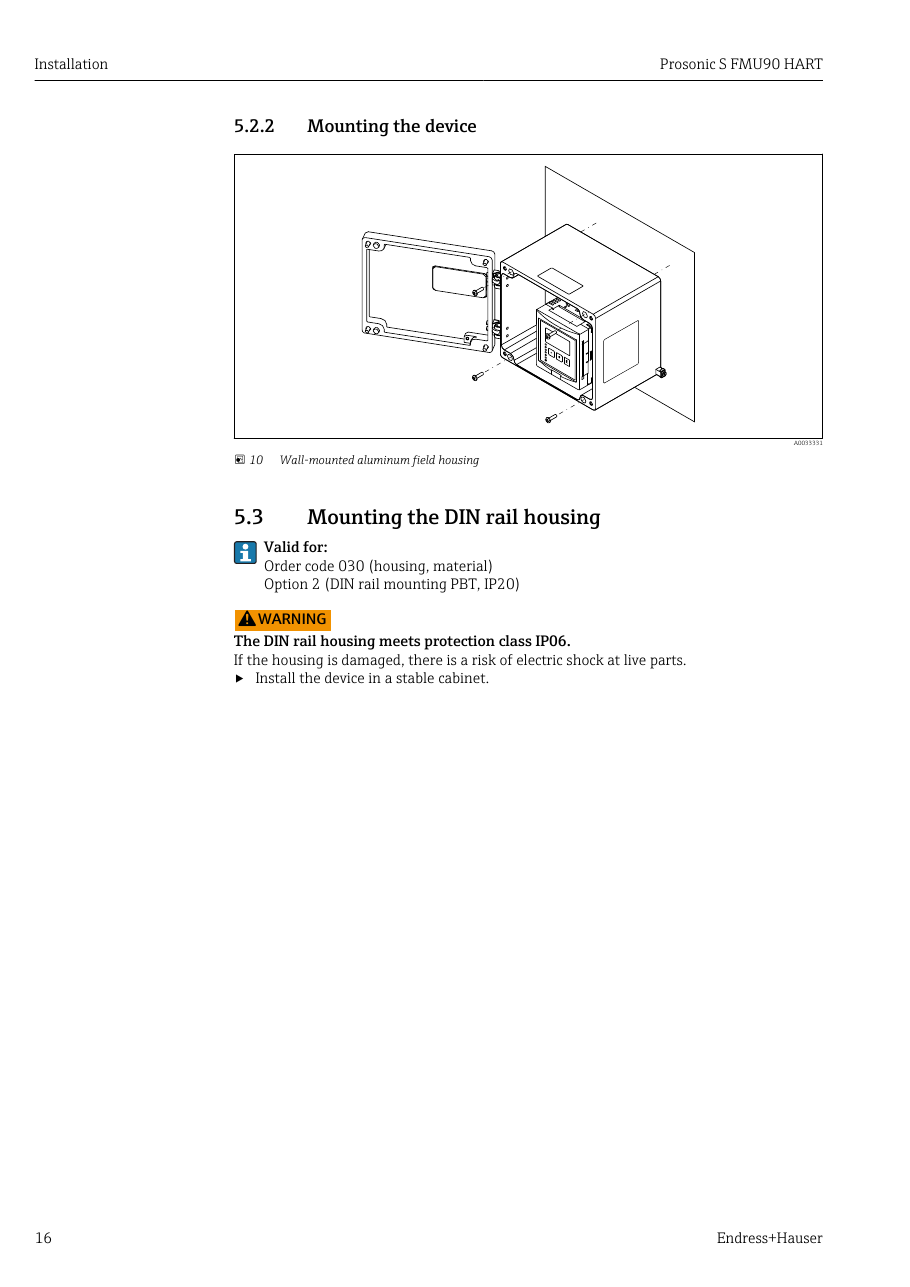

Endress+Hauser Prosonic S FMU90 – Drawing (3eb815052648_S8-39 S. 10)
Drawing · 3eb815052648_S8-39 · S. 10

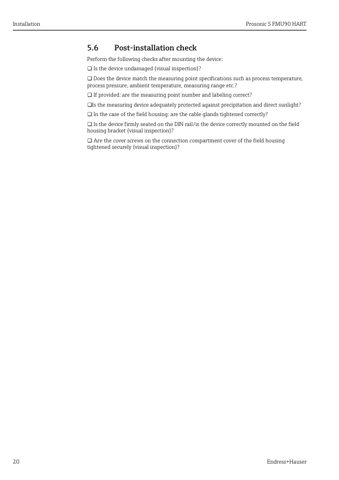

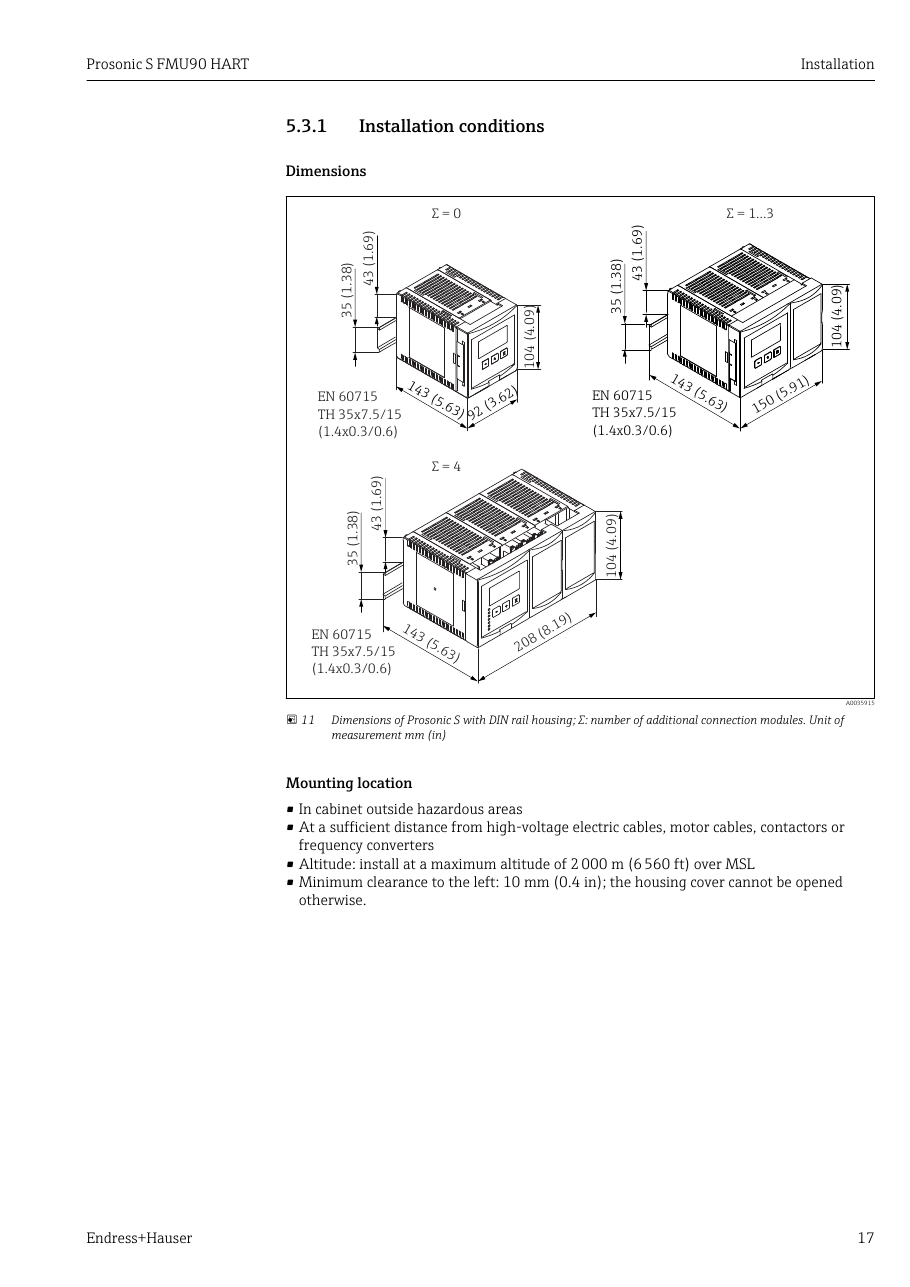

Endress+Hauser Prosonic S FMU90 – Page preview (3eb815052648_S8-39 S. 11)
Page preview · 3eb815052648_S8-39 · S. 11

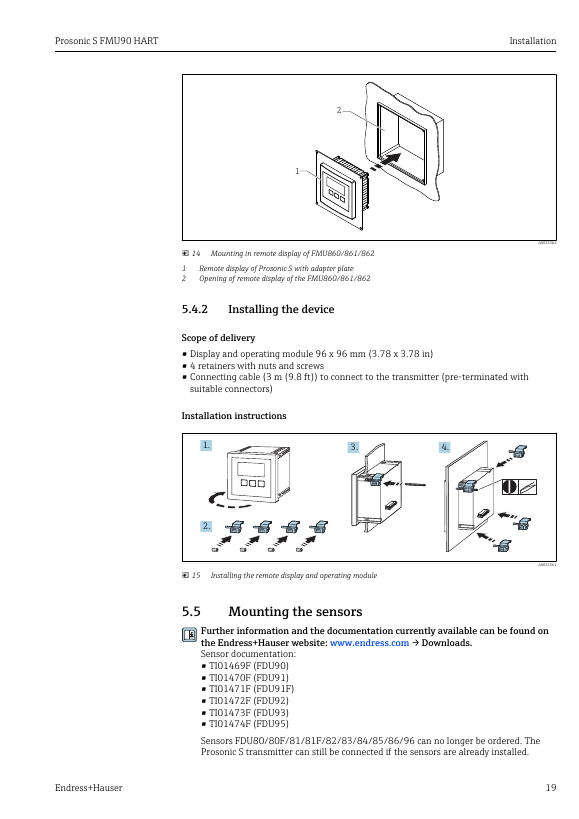

Endress+Hauser Prosonic S FMU90 – Page preview (3eb815052648_S8-39 S. 12)
Page preview · 3eb815052648_S8-39 · S. 12

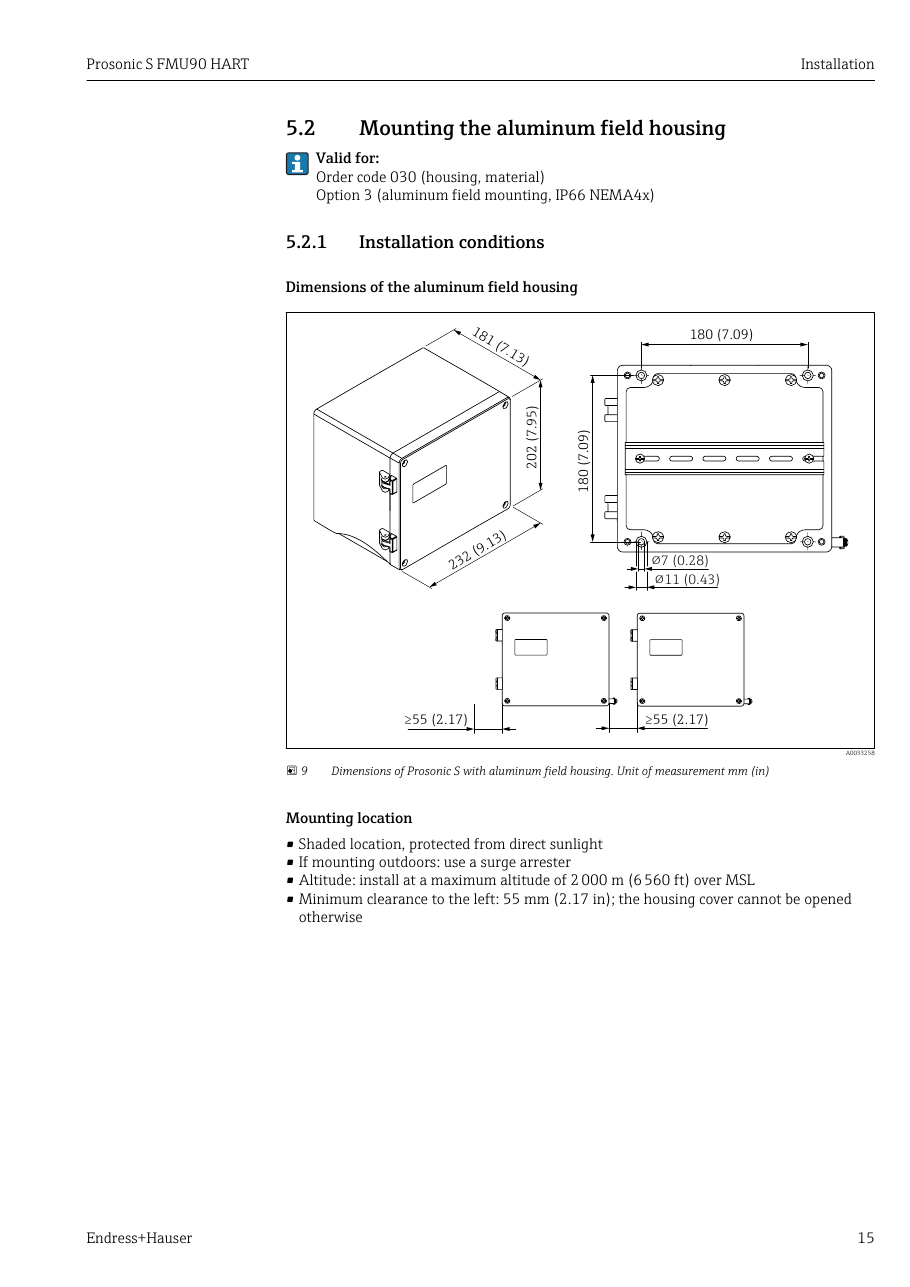

Endress+Hauser Prosonic S FMU90 – Page preview (3eb815052648_S8-39 S. 13)
Page preview · 3eb815052648_S8-39 · S. 13

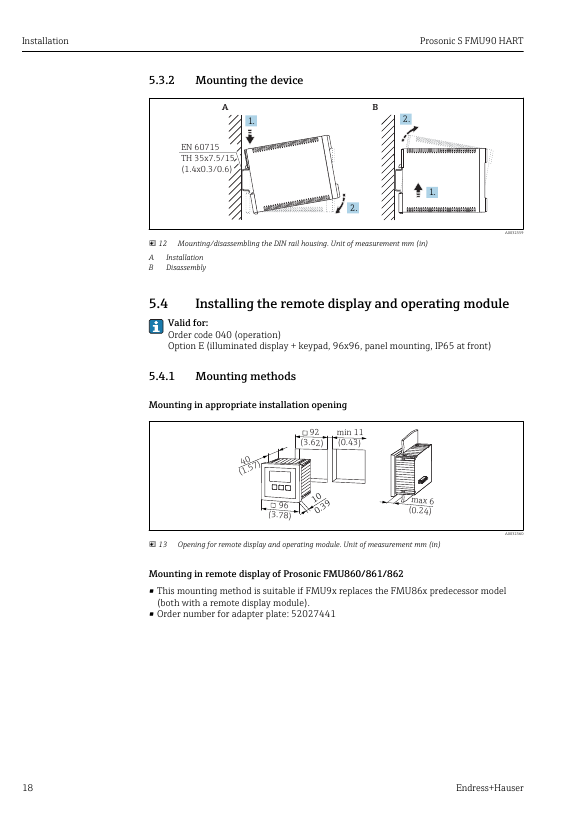

Endress+Hauser Prosonic S FMU90 – Page preview (3eb815052648_S8-39 S. 14)
Page preview · 3eb815052648_S8-39 · S. 14
Source: Endress+Hauser Prosonic S FMU90 datasheet, p. 39
