Library› Cargo› Cargo Level & Temperature Gauging› Pressure/DP Transmitter› Endress+Hauser Deltabar FMD72
Endress+Hauser

Deltabar FMD72

Pressure/DP Transmitter · Cargo Level & Temperature Gauging

Class-certified type (DNV register) · technical data sheet not yet verified

The electronic dp Deltabar FMD72 is a differential pressure system, used to measure the pressure, level, volume or mass of liquids in pressurized tanks or distillation columns/evaporators. The high pressure sensor (HP) measures the hydrostatic pressure. The low pressure sensor (LP) measures the head pressure. The level is calculated in the transmitter using these two digital values. The electronic dp system eliminates issues of traditional differential pressure measurements.

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

CertificationsFM C/US XP AIS Cl.I Div.1 Gr.A-D, Exd [ia] Zone 0,1,2
Part numberFMD72
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The Deltabar FMD72 is a pressure measurement device designed for precise and reliable pressure measurement.

Features

  • IECEx certified

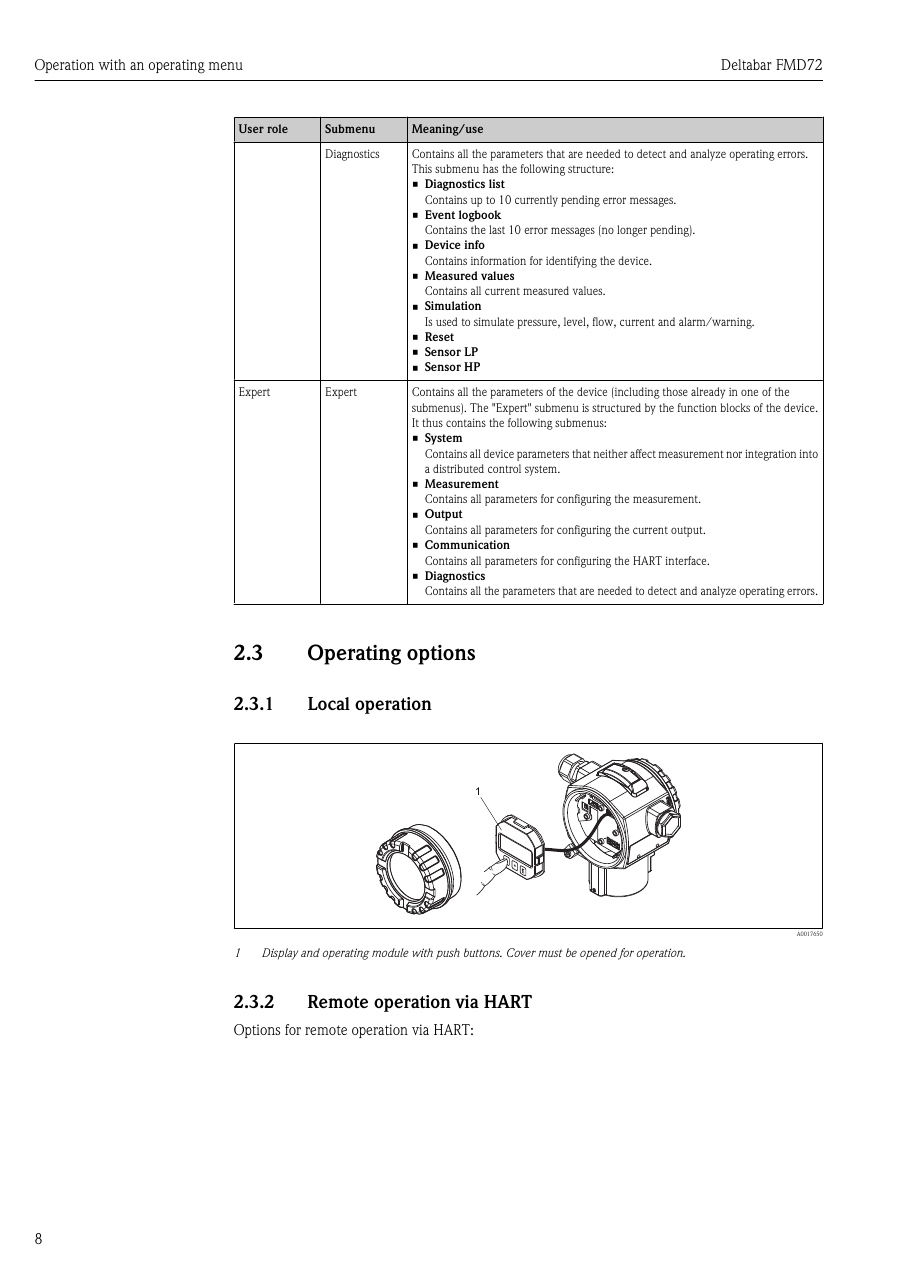

Endress+Hauser Deltabar FMD72 – Drawing (60046241dd3e_S4-15 S. 4)
Drawing · 60046241dd3e_S4-15 · S. 4

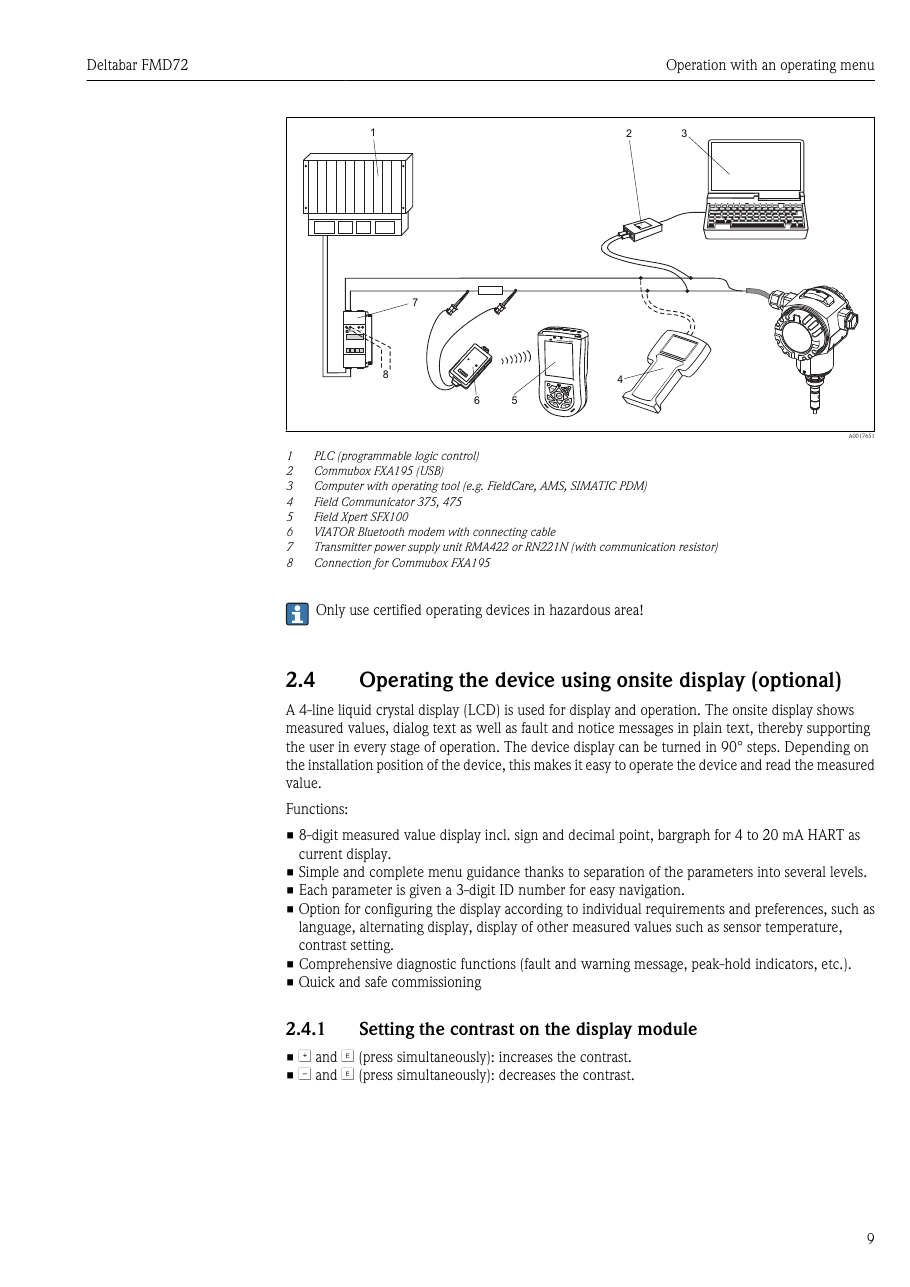

Endress+Hauser Deltabar FMD72 – Drawing (60046241dd3e_S4-15 S. 5)
Drawing · 60046241dd3e_S4-15 · S. 5

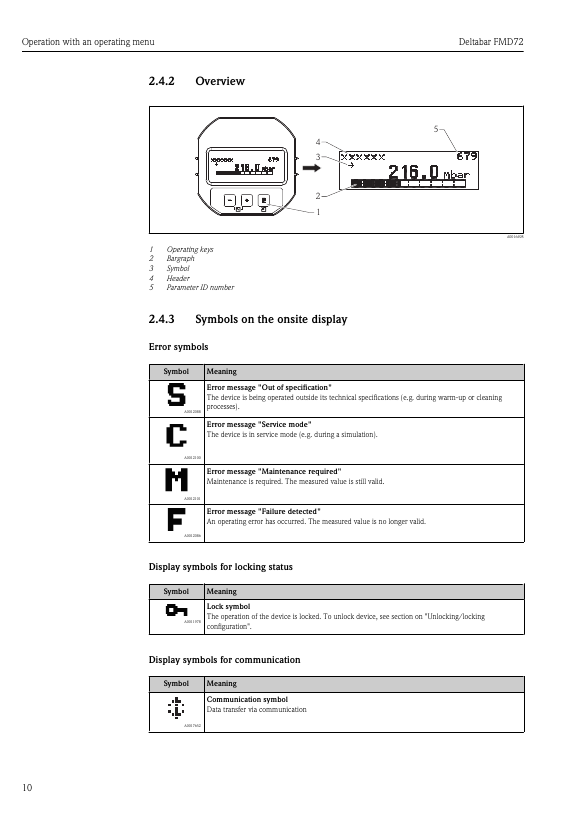

Endress+Hauser Deltabar FMD72 – Drawing (60046241dd3e_S4-15 S. 6)
Drawing · 60046241dd3e_S4-15 · S. 6
Endress+Hauser Deltabar FMD72 – Page preview (60046241dd3e_S4-15 S. 7)
Page preview · 60046241dd3e_S4-15 · S. 7

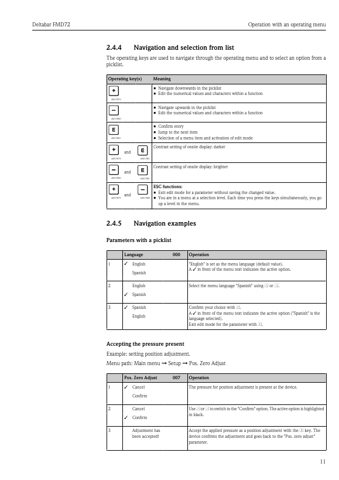

Endress+Hauser Deltabar FMD72 – Page preview (60046241dd3e_S4-15 S. 8)
Page preview · 60046241dd3e_S4-15 · S. 8

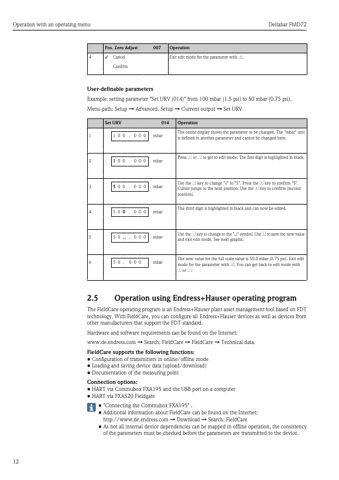

Endress+Hauser Deltabar FMD72 – Page preview (60046241dd3e_S4-15 S. 9)
Page preview · 60046241dd3e_S4-15 · S. 9

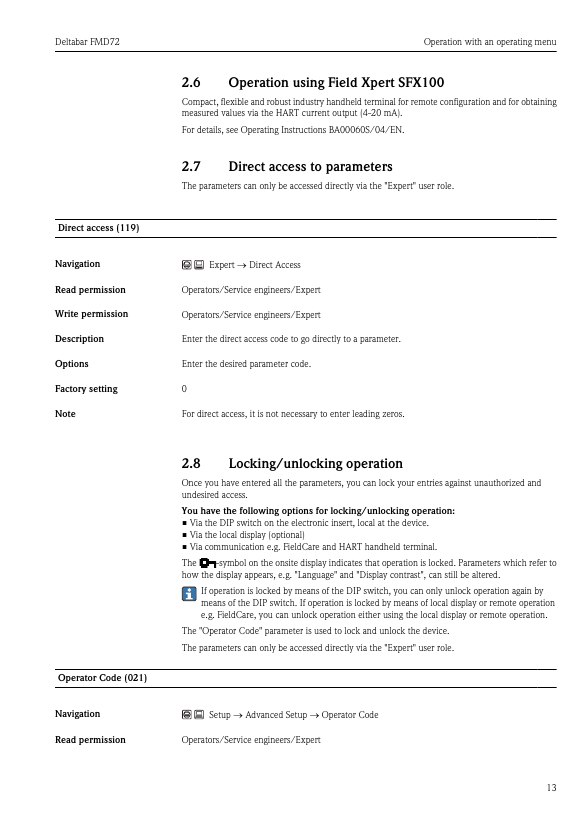

Endress+Hauser Deltabar FMD72 – Page preview (60046241dd3e_S4-15 S. 10)
Page preview · 60046241dd3e_S4-15 · S. 10
Source: Endress+Hauser Deltabar FMD72 datasheet, p. 4
