Goetze KG Armaturen

Series 382

Safety / Relief Valve · Industrial Valves

Class-certified type (DNV register) · technical data sheet not yet verified

Inlet pressure balanced diaphragm pressure reducer with constant Inlet pressure, even with strongly fluctuating Inlet pressures.

Specifications

Technical data.from datasheet

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

Inlet pressureup to 25 bar🔖
Outlet pressure0,5 to 12 bar🔖
Temperature range+ 5°C to + 65°C🔖
Pdf pressureUse of pressure reducers when a constant supply pressure is
pdf_Inlet pressureup to 16 bar (PN 16)
pdf_Material test certificate accDIN EN 10204 3.1 (MPZ 3.1)
📄
Download datasheet (PDF) (1358 KB)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“Protection of supply networks, water supply systems in apartment buildings, commercial and industrial buildings or machines against excessive supply pressure. Use of pressure reducers when a constant…”

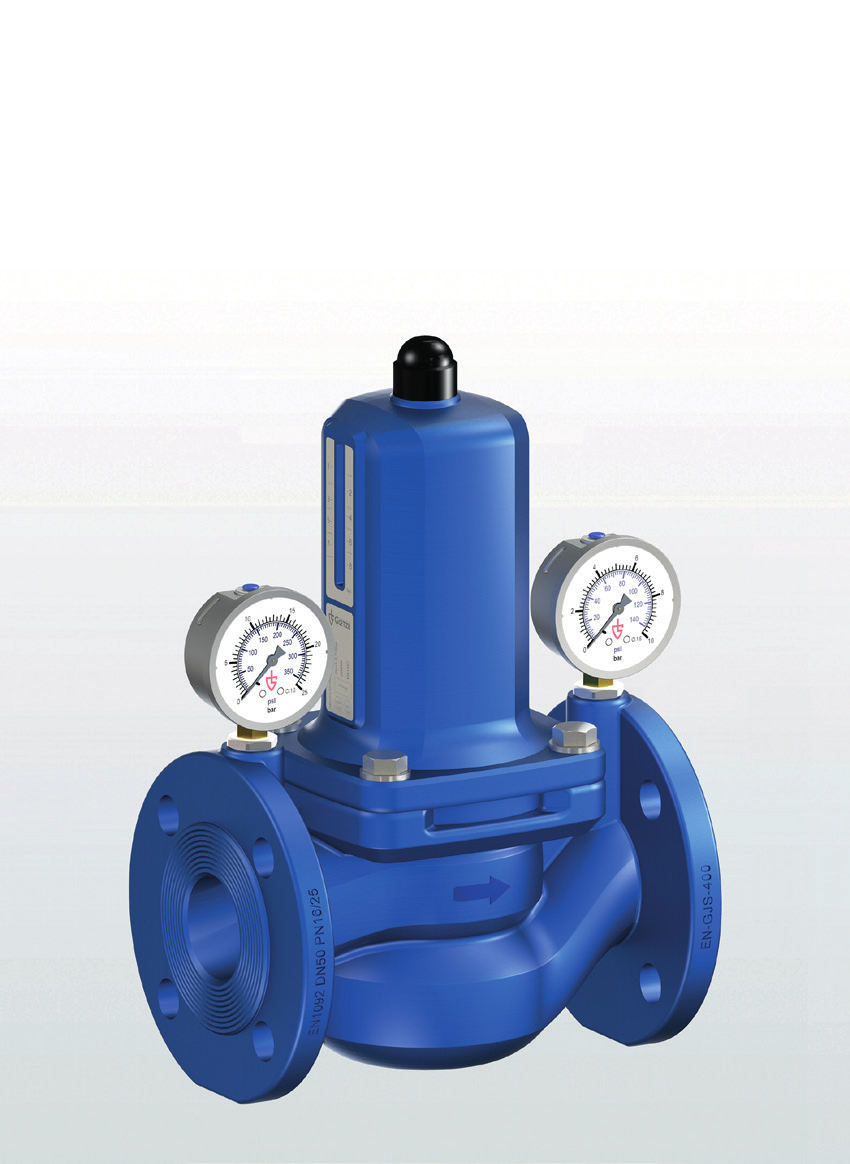

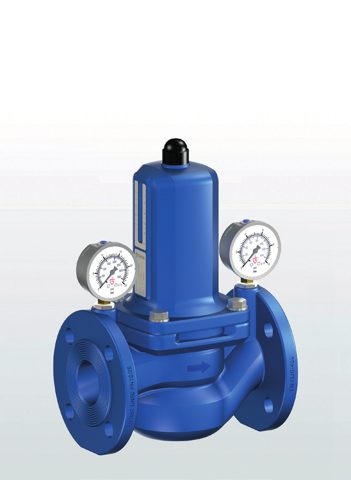

Goetze KG Armaturen Series 382 – Photo (Goetze KG Armaturen datasheet S. 1)
Photo · Goetze KG Armaturen datasheet · S. 1

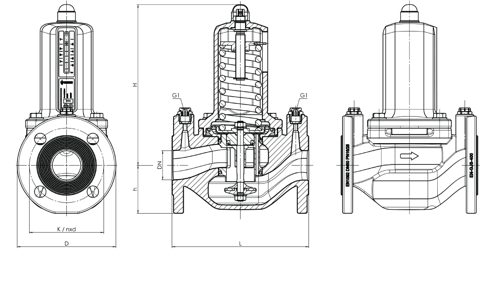

Goetze KG Armaturen Series 382 – Photo (Goetze KG Armaturen datasheet S. 3)
Photo · Goetze KG Armaturen datasheet · S. 3
Goetze KG Armaturen Series 382 – Photo (Goetze KG Armaturen datasheet S. 1)
Photo · Goetze KG Armaturen datasheet · S. 1

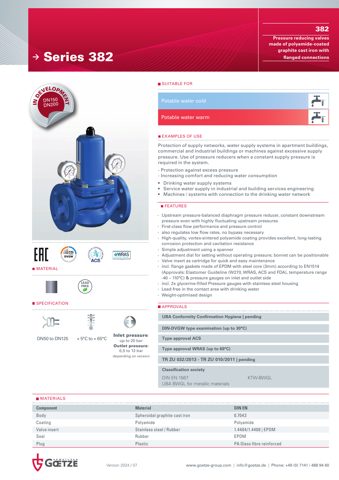

Goetze KG Armaturen Series 382 – Drawing (Goetze KG Armaturen datasheet S. 1)
Drawing · Goetze KG Armaturen datasheet · S. 1

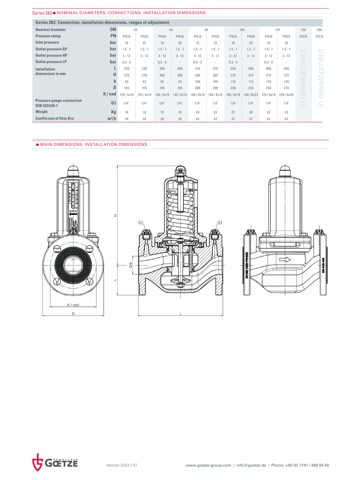

Goetze KG Armaturen Series 382 – Drawing (Goetze KG Armaturen datasheet S. 3)
Drawing · Goetze KG Armaturen datasheet · S. 3
Goetze KG Armaturen Series 382 – Drawing (Goetze KG Armaturen datasheet S. 5)
Drawing · Goetze KG Armaturen datasheet · S. 5

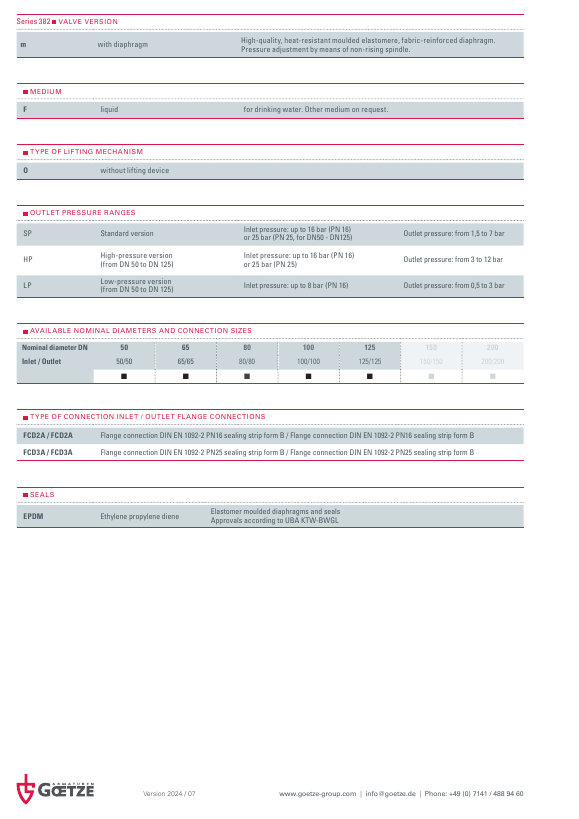

Goetze KG Armaturen Series 382 – Page preview (Goetze KG Armaturen datasheet S. 2)
Page preview · Goetze KG Armaturen datasheet · S. 2

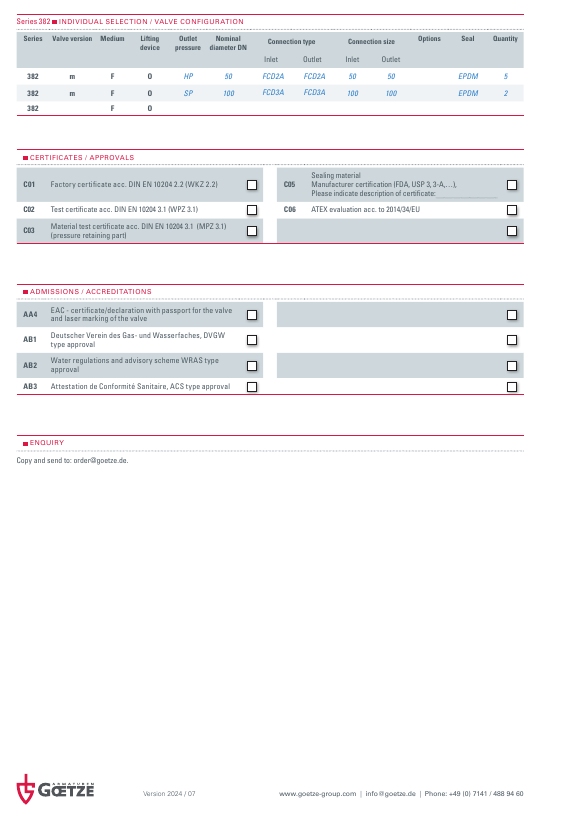

Goetze KG Armaturen Series 382 – Page preview (Goetze KG Armaturen datasheet S. 4)
Page preview · Goetze KG Armaturen datasheet · S. 4
Source: Goetze KG Armaturen Series 382 datasheet, p. 1
