Goetze KG Armaturen

Series 482

Safety / Relief Valve · Industrial Valves

Class-certified type (DNV register) · technical data sheet not yet verified

Pressure reducing made of stainless steel, with flange connections – In addition to the standard version made of stainless steel, both high- and low-pressure reducing valves are available.

Specifications

Technical data.from datasheet

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

Inlet pressureup to 40 bar🔖
Outlet pressure0,5 to 15 bar🔖
Nominal diameterDN 15 to DN 100🔖
pdf_Inlet pressureup to 16 bar (PN 16)
pdf_Inlet pressure max30 bar, temperature max. 60°C
pdf_Material test certificate accDIN EN 10204 3.1 (MPZ 3.1)
📄
Download datasheet (PDF) (1057 KB)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“For the protection of: - domestic water supply systems - commercial and industrial plants against too high supply pressure. Pressure reducers are used, if within a piping system despite of varying…”

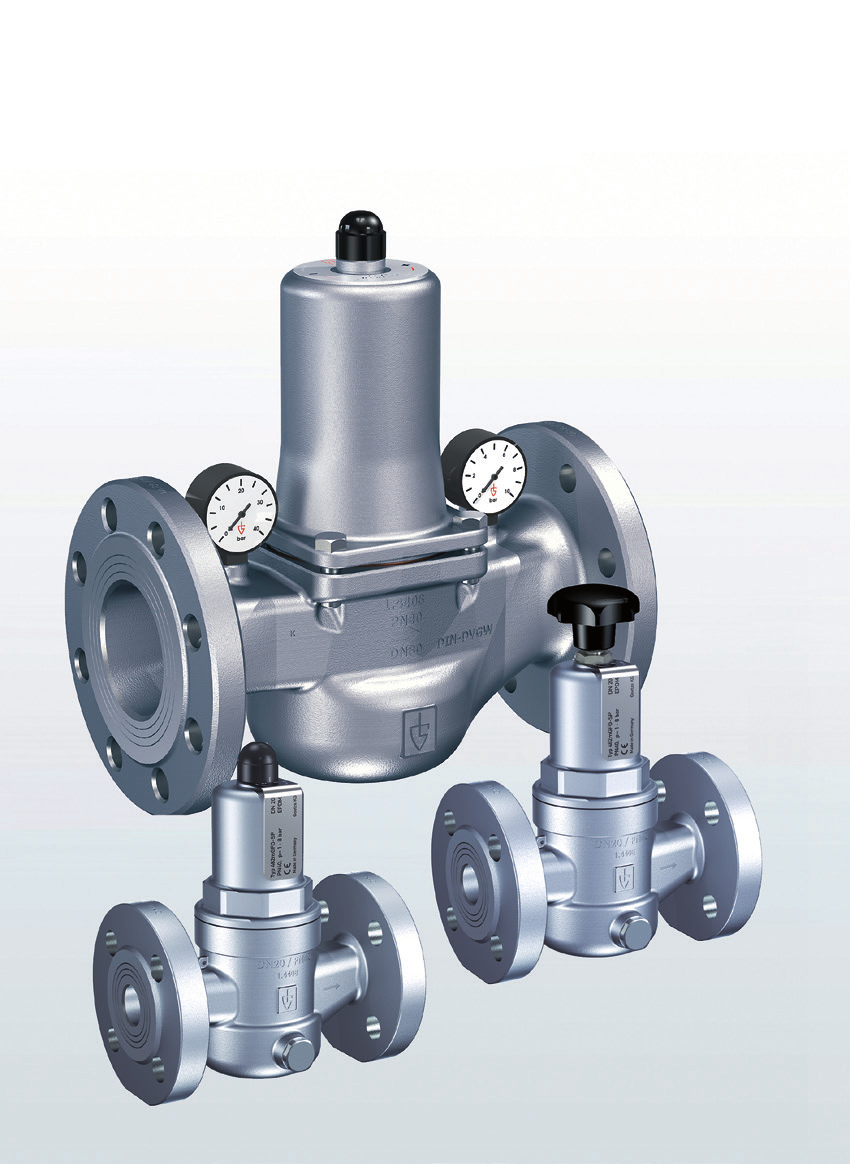

Goetze KG Armaturen Series 482 – Photo (Goetze KG Armaturen datasheet S. 1)
Photo · Goetze KG Armaturen datasheet · S. 1
Goetze KG Armaturen Series 482 – Photo (Goetze KG Armaturen datasheet S. 3)
Photo · Goetze KG Armaturen datasheet · S. 3

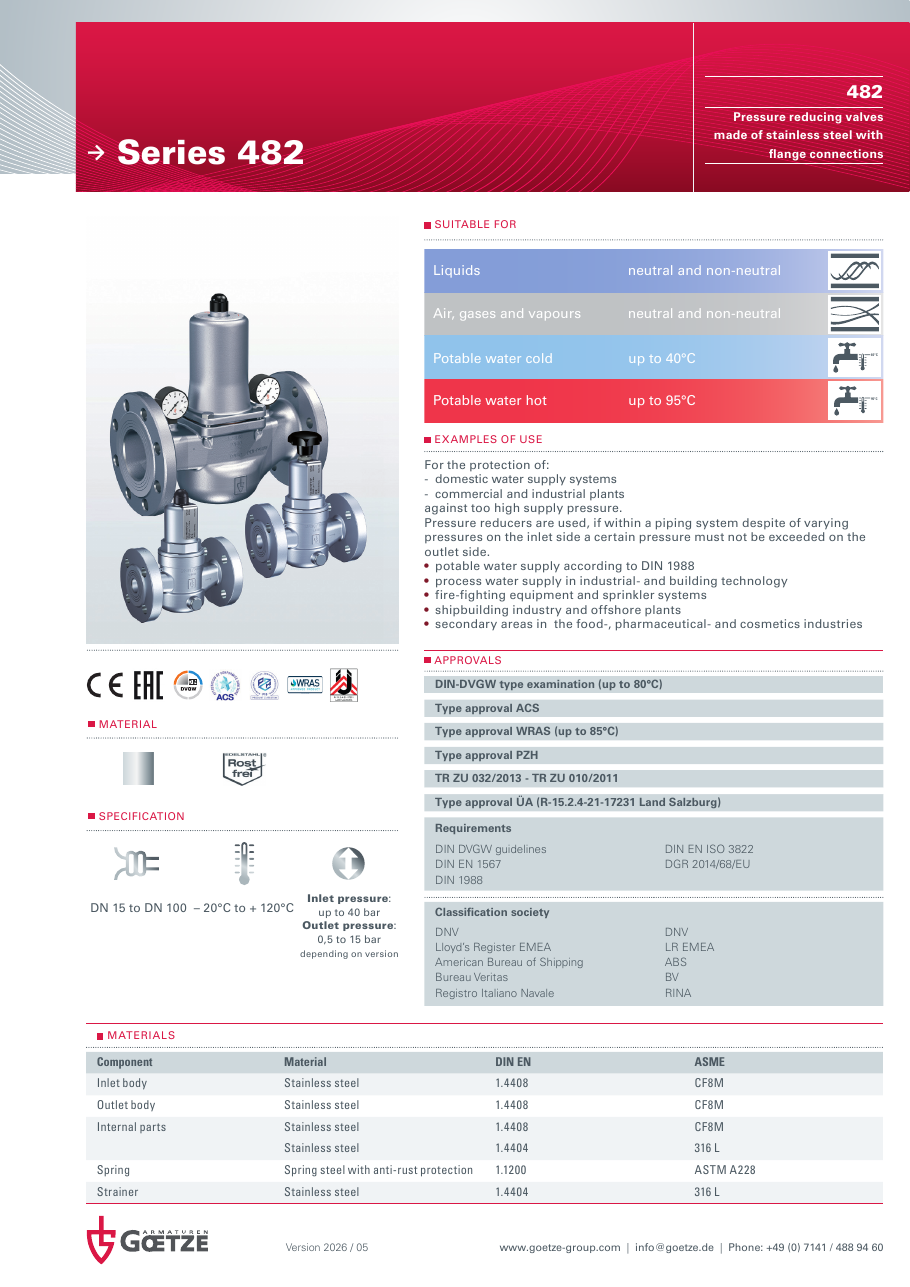

Goetze KG Armaturen Series 482 – Photo (Goetze KG Armaturen datasheet S. 1)
Photo · Goetze KG Armaturen datasheet · S. 1

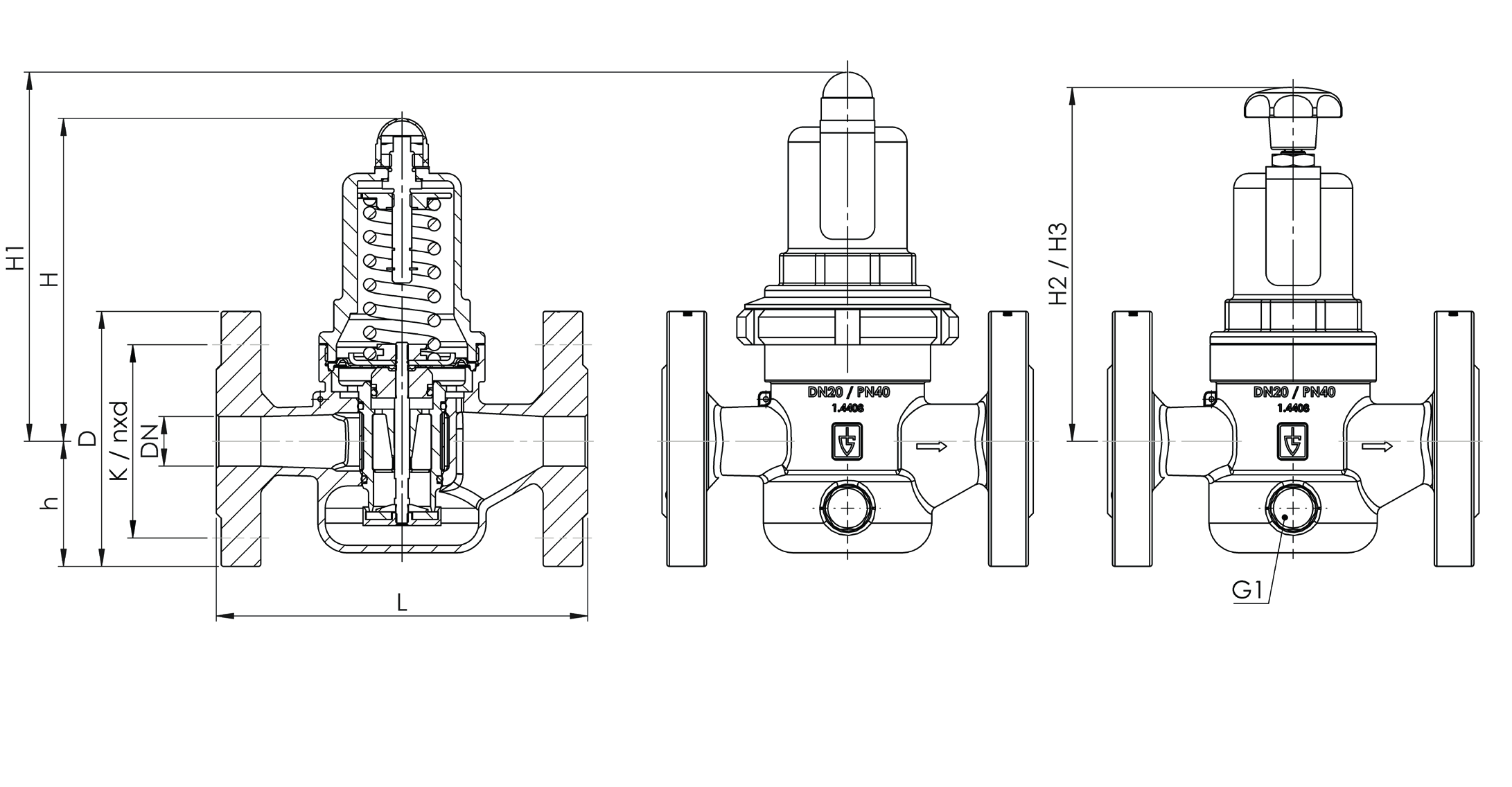

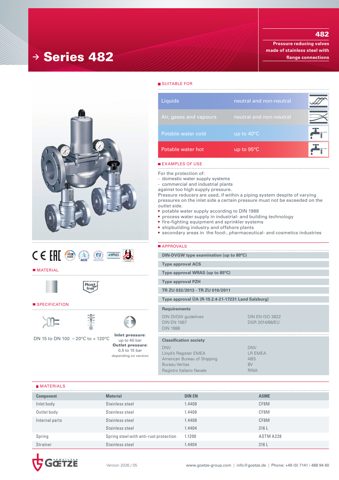

Goetze KG Armaturen Series 482 – Drawing (Goetze KG Armaturen datasheet S. 1)
Drawing · Goetze KG Armaturen datasheet · S. 1

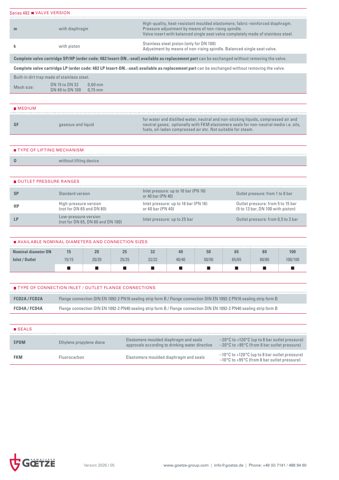

Goetze KG Armaturen Series 482 – Drawing (Goetze KG Armaturen datasheet S. 2)
Drawing · Goetze KG Armaturen datasheet · S. 2

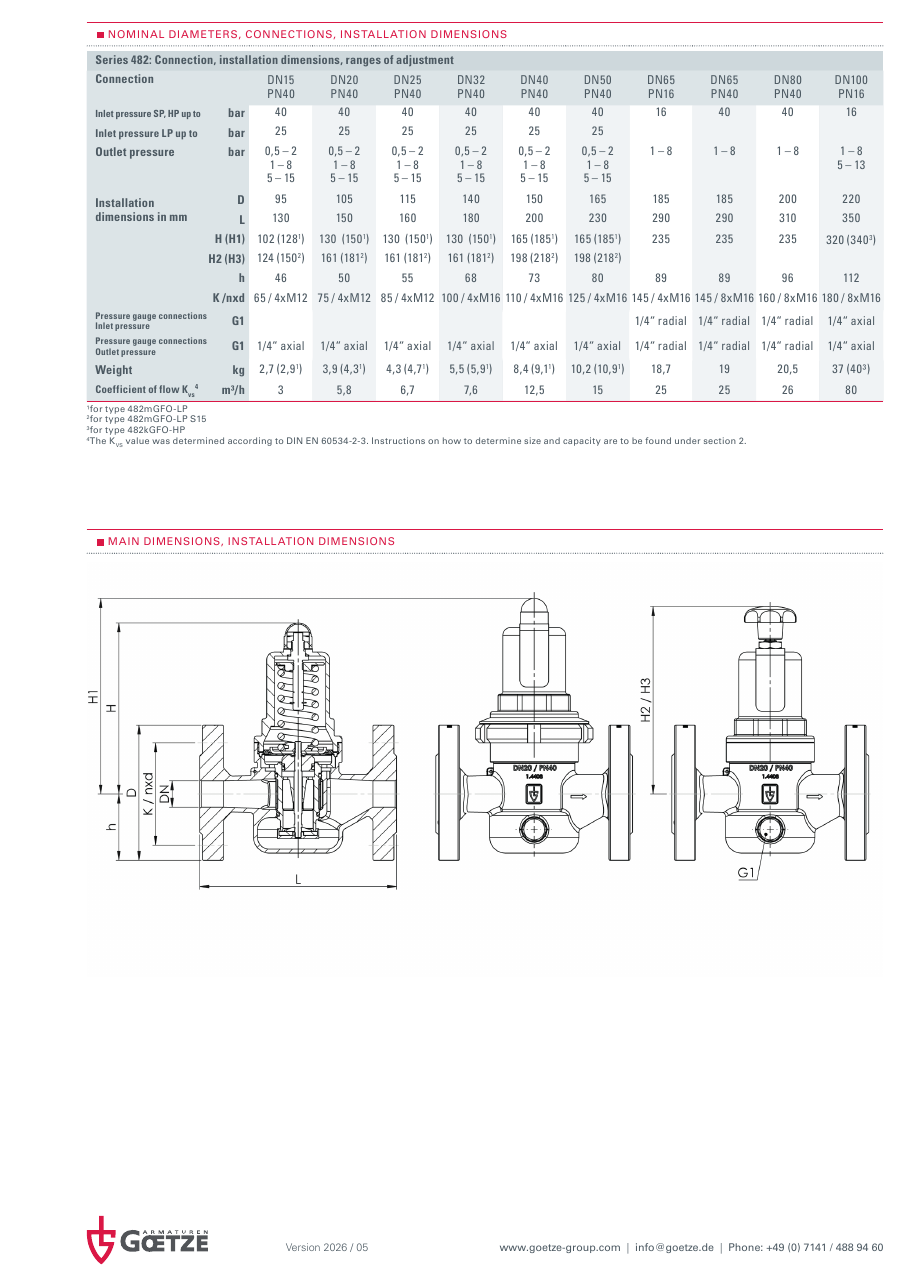

Goetze KG Armaturen Series 482 – Drawing (Goetze KG Armaturen datasheet S. 3)
Drawing · Goetze KG Armaturen datasheet · S. 3

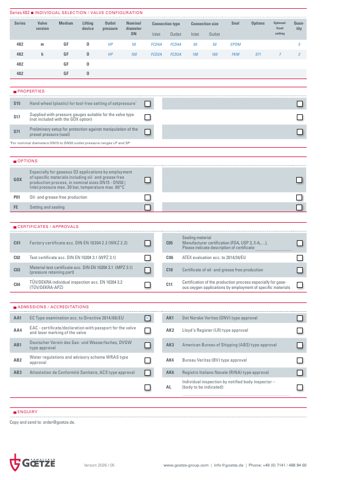

Goetze KG Armaturen Series 482 – Page preview (Goetze KG Armaturen datasheet S. 4)
Page preview · Goetze KG Armaturen datasheet · S. 4
Source: Goetze KG Armaturen Series 482 datasheet, p. 1
