DEIF

ASC plant management

Protection Relay · Electrical Components & Switchgear

Class-certified type (DNV register) · technical data sheet not yet verified
2 kgWeight
12/24 V DC nominal (8 to 36 V DC operational)Voltage

Serving as a link between photovoltaic (PV) power plants and genset power plants, DEIF’s Automatic Sustainable Controller (ASC Plant Management) is a safe and reliable control solution for PV/genset hybrid plants.

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Weight (kg)1.6 kg
Voltage12/24 V DC nominal (8 to 36 V DC operational) VDC
Operating temperature-25 to 70 °C
Degree of protectionIP20
Measuring voltage100 to 690 V AC ±20 % VAC
Relay output rating250 V AC/30 V DC, 5 A
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

A device for managing power inverters in semi mode and interfacing with various inverter protocols.

Applications

  • Mains monitoring
Source: DEIF ASC plant management datasheet, p. 5

Features

  • Semi mode operation
  • Supports multiple inverter protocols (Modbus-based)
  • Manual and remote control options

Options

  • 7 × binary inputs
  • 4 × relay outputs

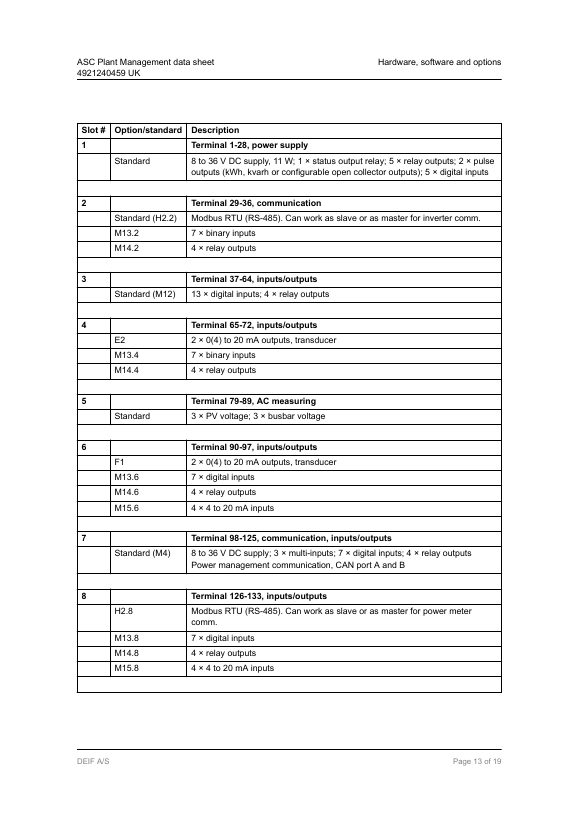

Source: DEIF ASC plant management datasheet, p. 13

Standards

  • IEC 60068-2-30

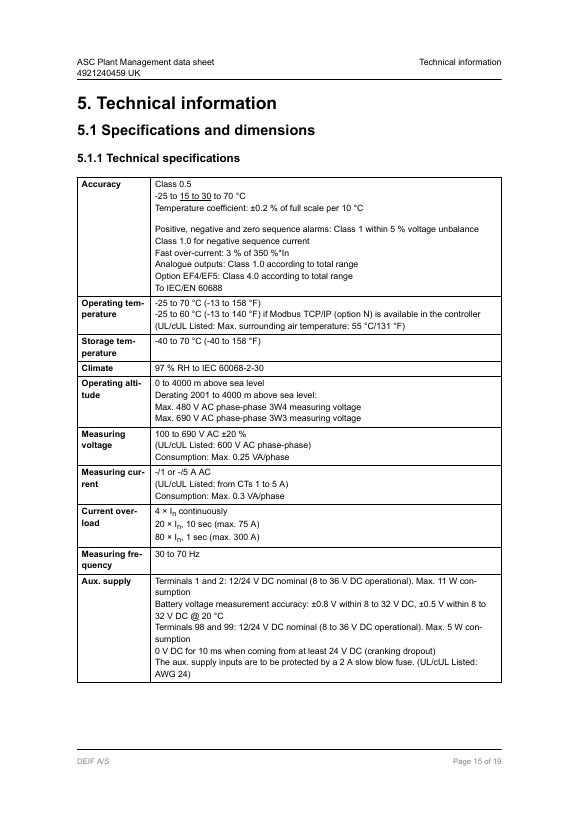

Source: DEIF ASC plant management datasheet, p. 15
DEIF ASC plant management – Drawing (a299d04ebf52_S5-17 S. 6)
Drawing · a299d04ebf52_S5-17 · S. 6

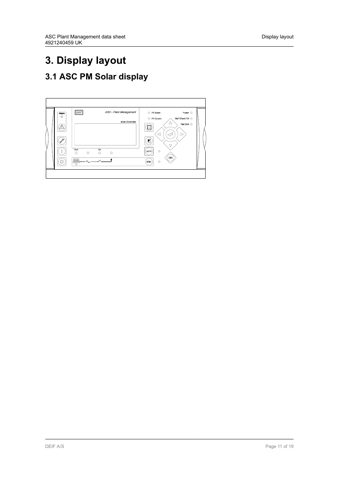

DEIF ASC plant management – Drawing (a299d04ebf52_S5-17 S. 7)
Drawing · a299d04ebf52_S5-17 · S. 7

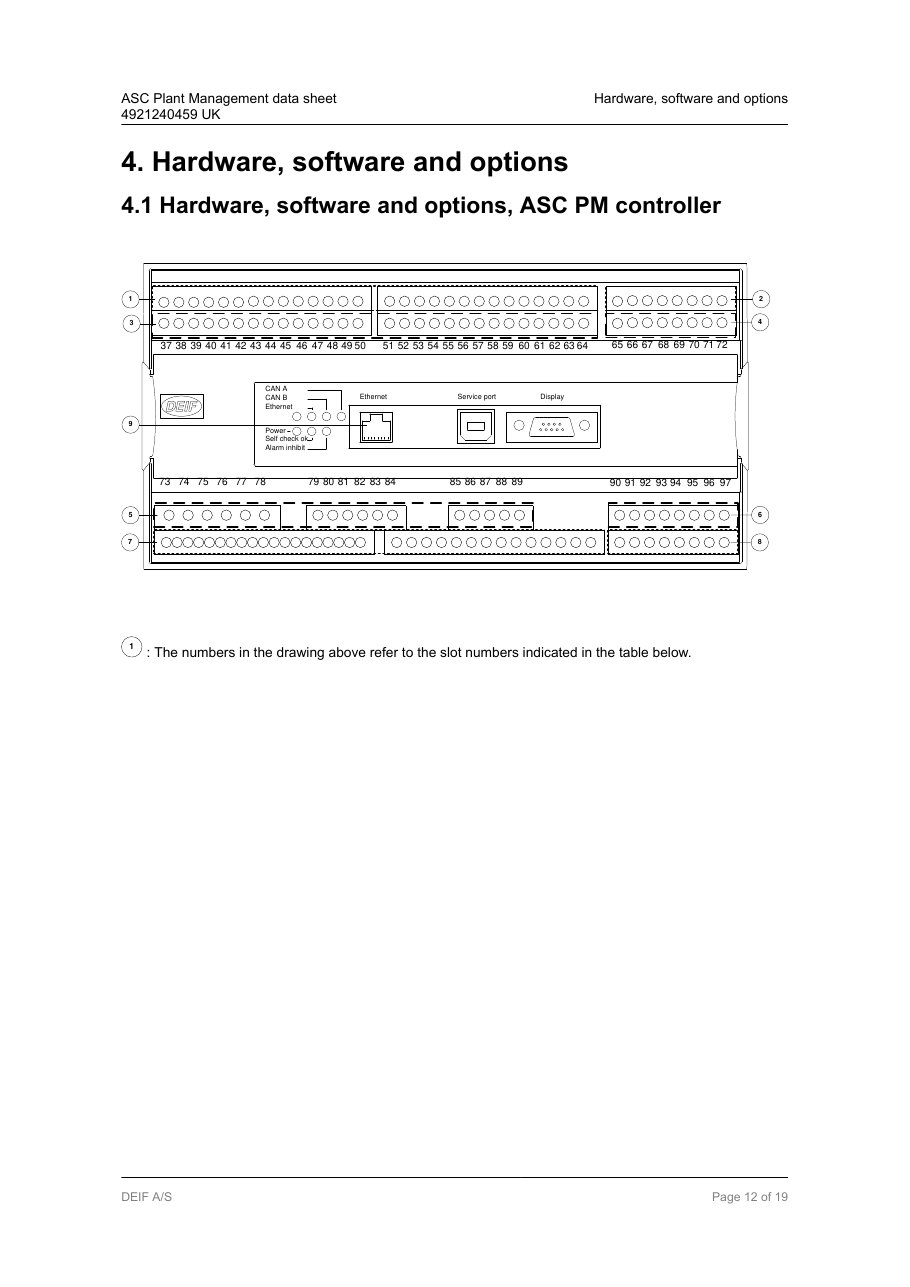

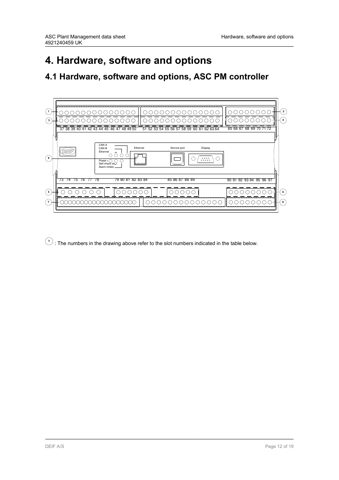

DEIF ASC plant management – Drawing (a299d04ebf52_S5-17 S. 8)
Drawing · a299d04ebf52_S5-17 · S. 8

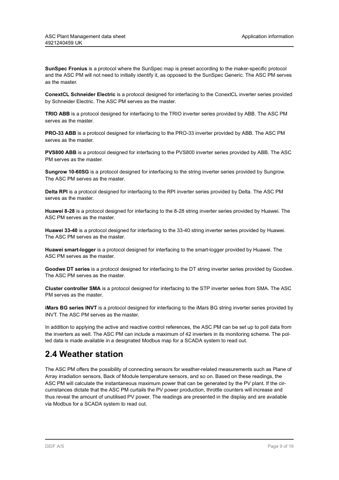

DEIF ASC plant management – Page preview (a299d04ebf52_S5-17 S. 5)
Page preview · a299d04ebf52_S5-17 · S. 5

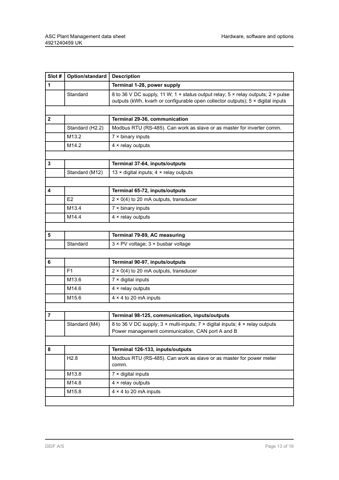

DEIF ASC plant management – Page preview (a299d04ebf52_S5-17 S. 9)
Page preview · a299d04ebf52_S5-17 · S. 9
DEIF ASC plant management – Page preview (a299d04ebf52_S5-17 S. 10)
Page preview · a299d04ebf52_S5-17 · S. 10
DEIF ASC plant management – Page preview (a299d04ebf52_S5-17 S. 11)
Page preview · a299d04ebf52_S5-17 · S. 11
Source: DEIF ASC plant management datasheet, p. 8
