Library› Electrical› Electrical Components & Switchgear› Control Relay› Omron Industrial S8VK-WA
Omron Industrial

S8VK-WA

Control Relay · Electrical Components & Switchgear

Class-certified type (DNV register) · technical data sheet not yet verified
170 to 264Voltage

Discover the S8VK-WA power supply from Omron, designed for high performance, energy savings, and optimizing resources in control cabinets. The S8VK-WA underscores Omron's commitment to sustainability by reducing GHG emissions.

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Power rating240 W 480 W 960 W
Voltage170 to 264 VAC
Ambient operating temperature-40 to 70 °C
Degree of protectionIP20
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

Three-phase 200-V power supplies designed for semiconductor and FPD industries. They offer a solution to phase imbalance issues and support quick error location identification.

Applications

  • Providing reliable power in harsh environments
Source: Omron Industrial S8VK-WA datasheet, p. 4

Features

  • Enables the start of high-capacity load at 150% peak current
  • Can be operated with three-phase / single-phase / DC input
  • Can operate at an ambient temperature of -40 to +70°C *1
  • Side-by-side Mounting enabled (up to 55°C) *2
  • Coated PCBs for Better Resistance to Environment

Options

  • Various output power ratings
Source: Omron Industrial S8VK-WA datasheet, p. 4

Standards

  • SEMI F47-0706
  • UL 121201
  • EN/IEC 61558-2-16
  • EN/IEC 62368-1
  • EN 50178
  • EN 62477-1

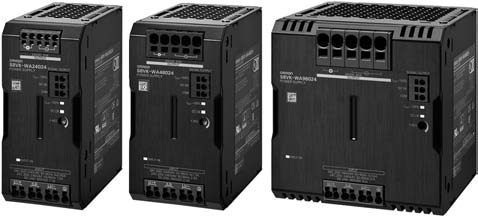

Omron Industrial S8VK-WA – Photo (d4582b9b0633_S1-19 S. 1)
Photo · d4582b9b0633_S1-19 · S. 1
Omron Industrial S8VK-WA – Drawing (d4582b9b0633_S1-19 S. 3)
Drawing · d4582b9b0633_S1-19 · S. 3

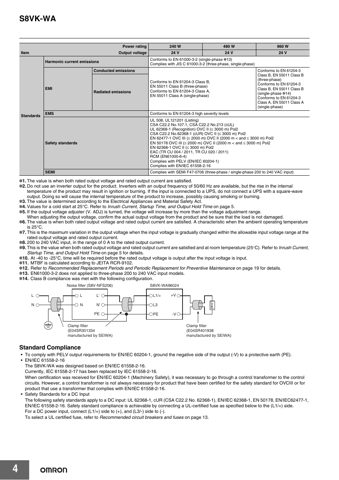

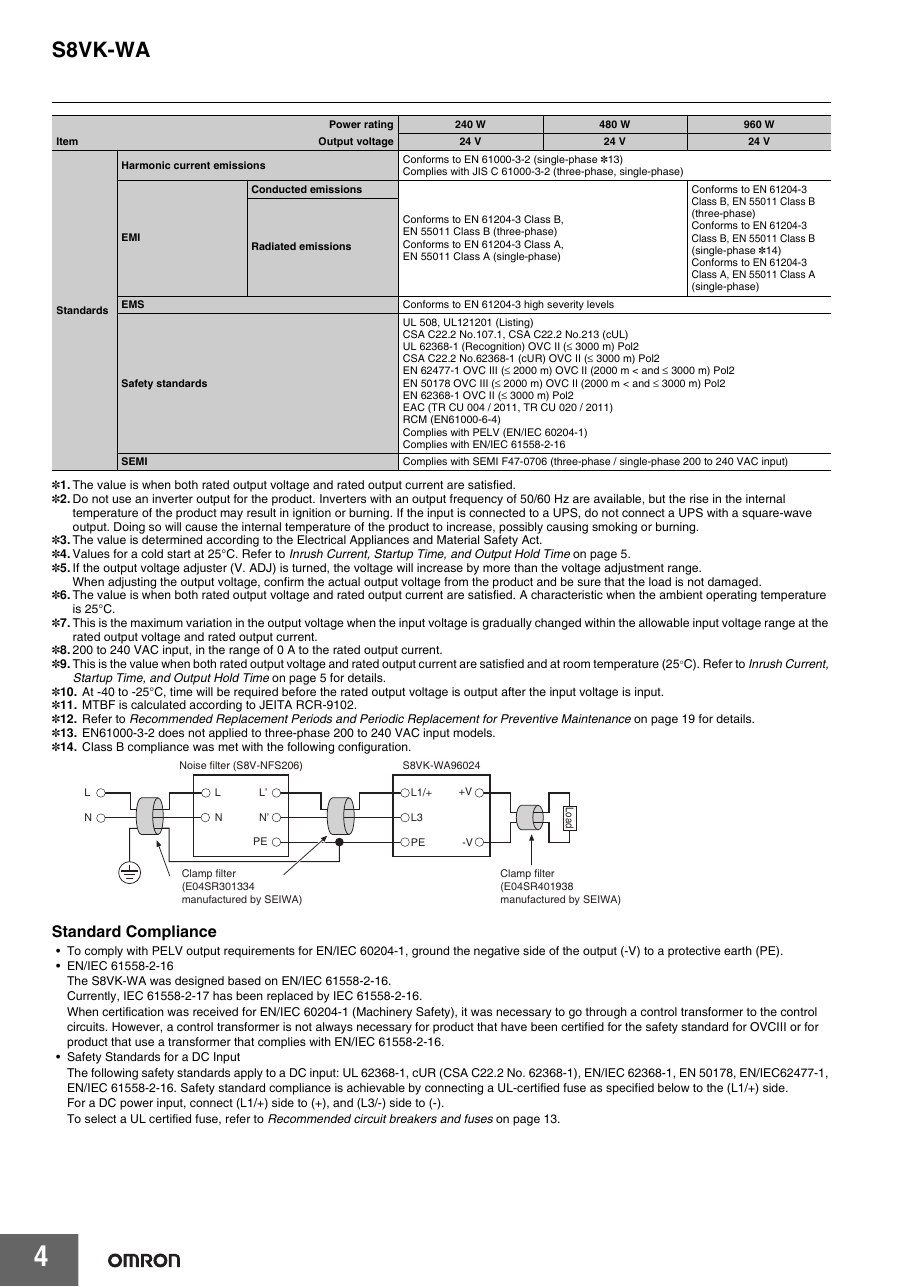

Omron Industrial S8VK-WA – Drawing (d4582b9b0633_S1-19 S. 4)
Drawing · d4582b9b0633_S1-19 · S. 4

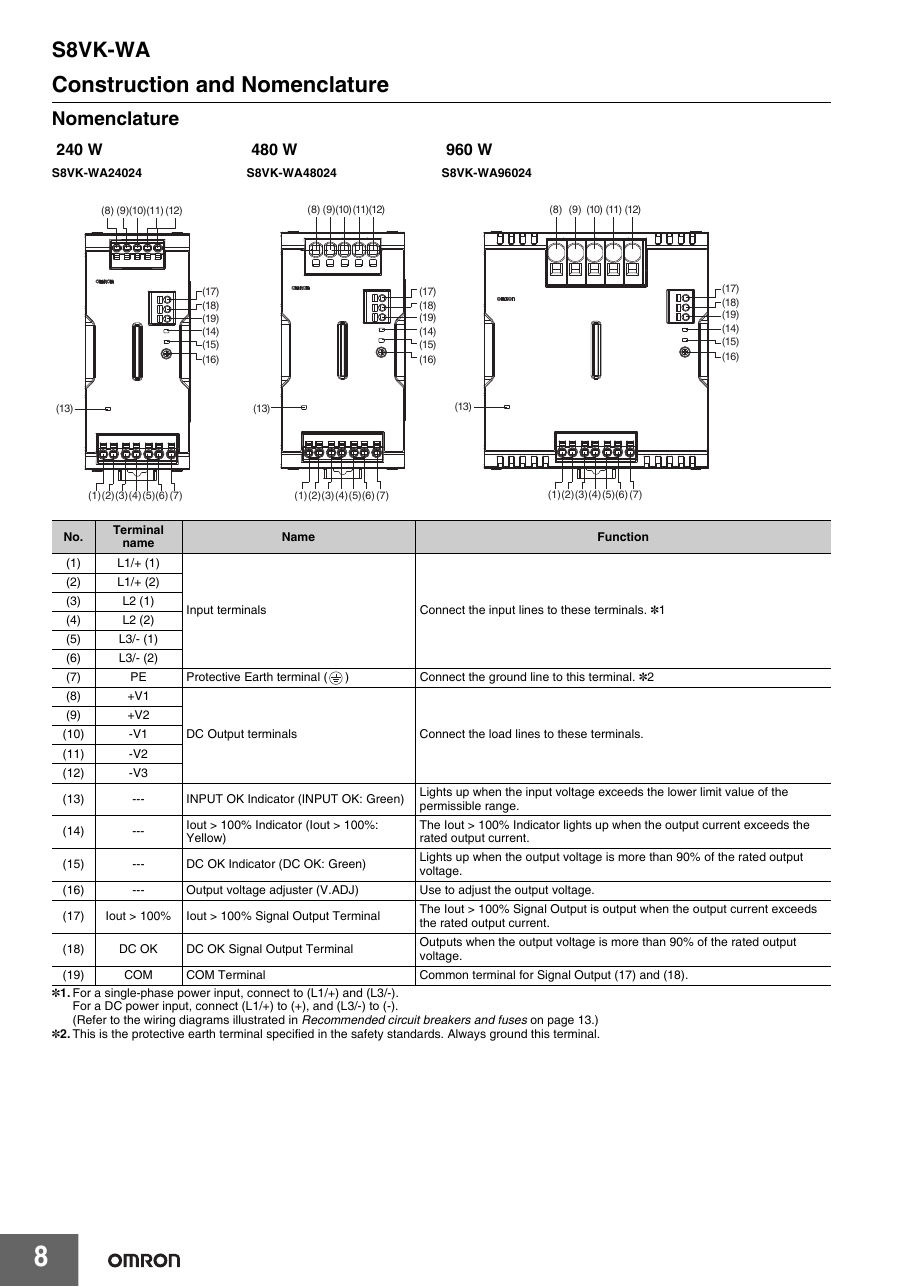

Omron Industrial S8VK-WA – Drawing (d4582b9b0633_S1-19 S. 8)
Drawing · d4582b9b0633_S1-19 · S. 8
Omron Industrial S8VK-WA – Page preview (d4582b9b0633_S1-19 S. 1)
Page preview · d4582b9b0633_S1-19 · S. 1

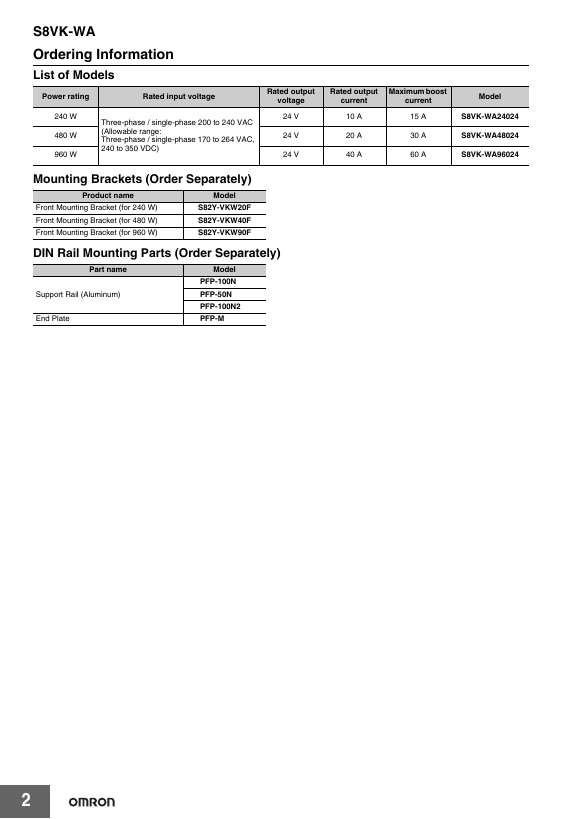

Omron Industrial S8VK-WA – Page preview (d4582b9b0633_S1-19 S. 2)
Page preview · d4582b9b0633_S1-19 · S. 2

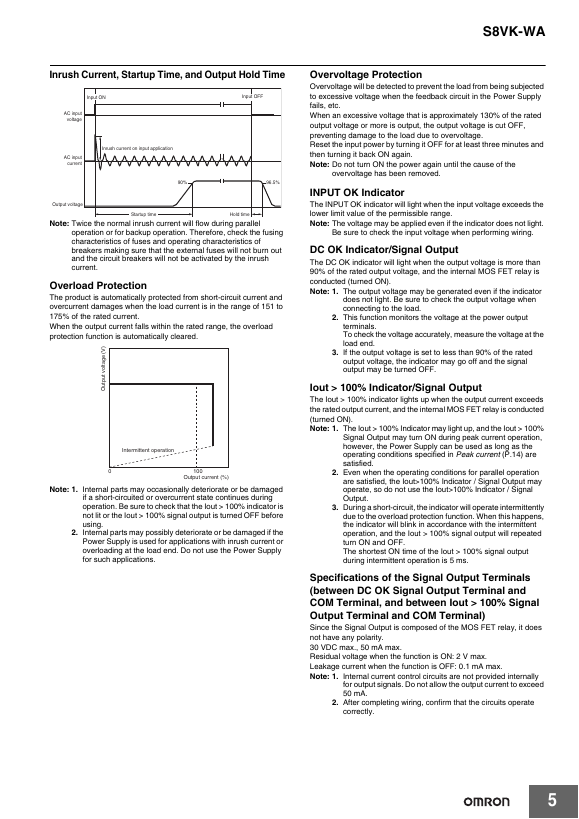

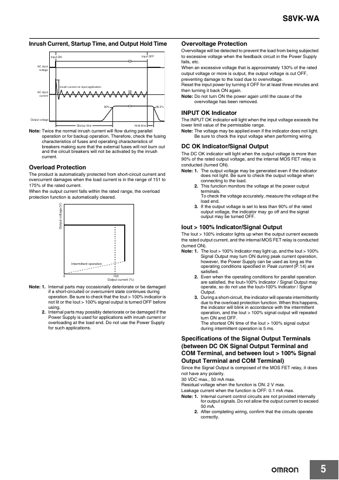

Omron Industrial S8VK-WA – Page preview (d4582b9b0633_S1-19 S. 5)
Page preview · d4582b9b0633_S1-19 · S. 5

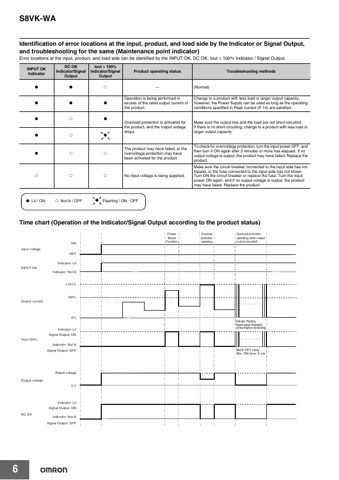

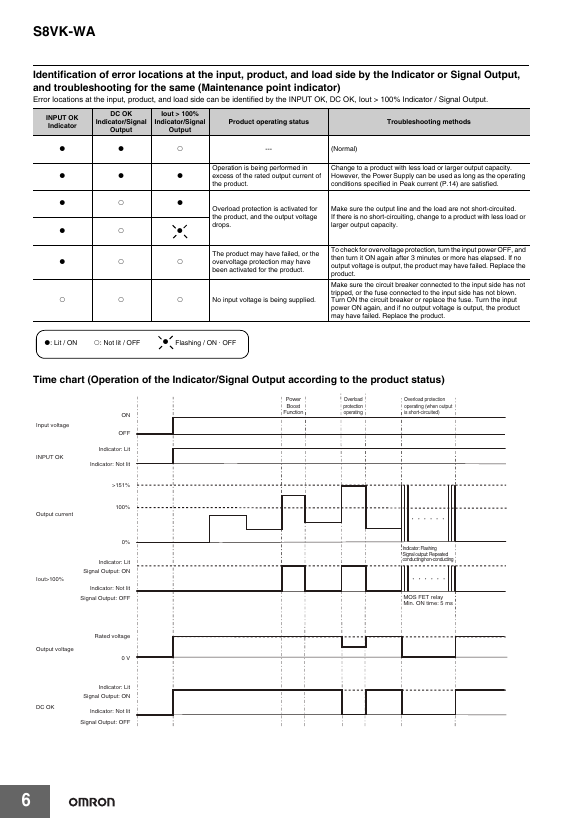

Omron Industrial S8VK-WA – Page preview (d4582b9b0633_S1-19 S. 6)
Page preview · d4582b9b0633_S1-19 · S. 6
Source: Omron Industrial S8VK-WA datasheet, p. 1
