Library› Engine Room› Heat Exchangers› Plate Heat Exchanger› Alfa Laval M6-MFM
Alfa Laval

M6-MFM

Plate Heat Exchanger · Heat Exchangers

Technical data from manufacturer or class sources · not yet verified by a person
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Pressure5 bar
Volume4.8 litres
Overall dimensions330 x 500 x 920 mm
Model numberM6-MFM
Plate count (min)10 plates
Plate count (max)200 plates
Max flow rate35.0 m3/h
Design pressure16 bar
Max temperature110 C
Applicationindustrial heating, marine HVAC
Plate materialStainless steel (AISI 316) standard; titanium / Hastelloy on request
Gasket materialNBR / EPDM / FKM depending on duty
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

Alfa Laval M6 MFM is a gasketed plate heat exchanger designed for efficient heating, cooling, and heat recovery.

Applications

  • heating
  • cooling
  • heat recovery
  • condensation
  • evaporation

Features

  • effective heat transfer
  • easy to clean
  • versatile
  • environmentally efficient

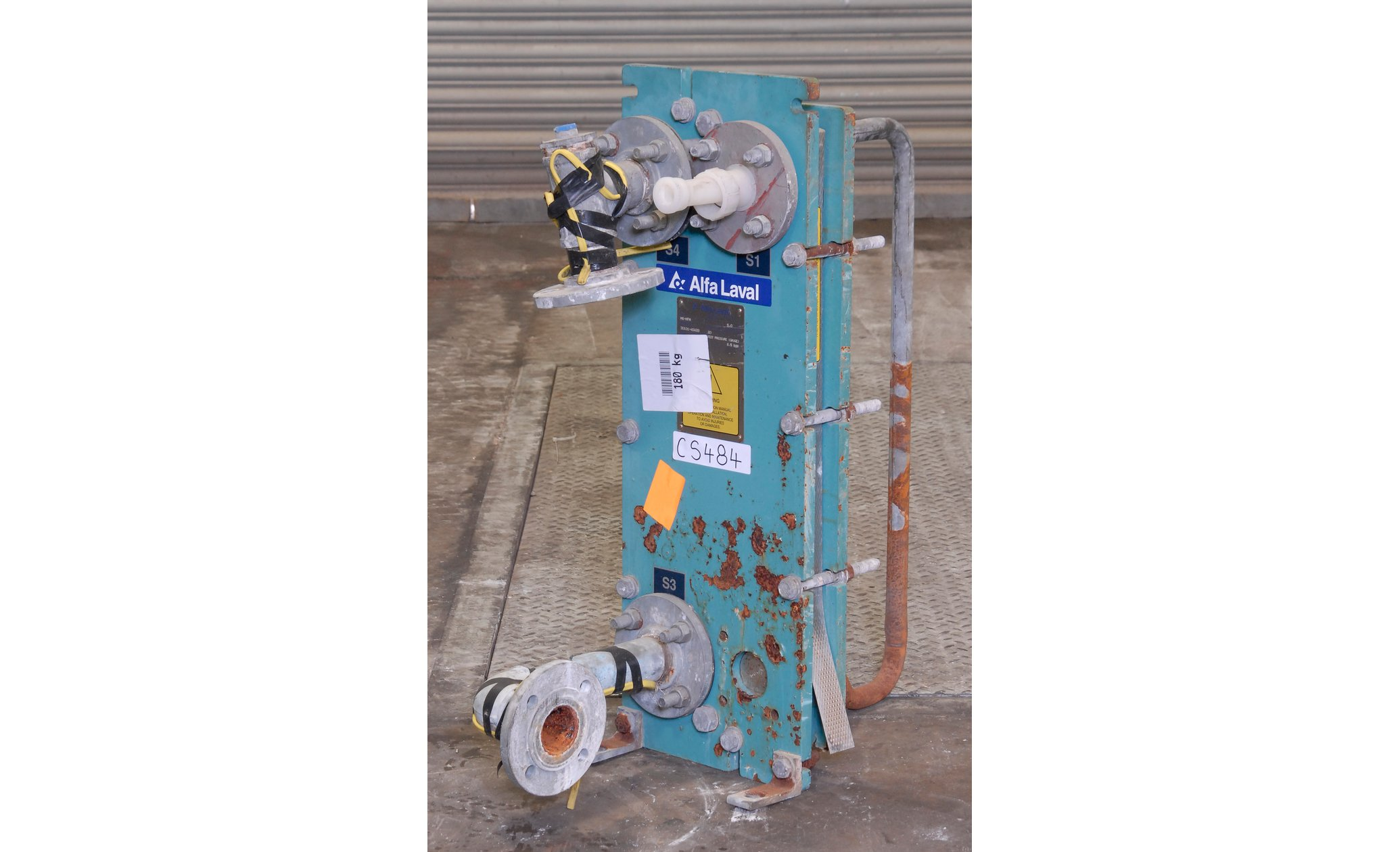

Alfa Laval M6-MFM – Photo (930d2d1fd81b_S1-3 S. 1)
Photo · 930d2d1fd81b_S1-3 · S. 1
Alfa Laval M6-MFM – Photo (930d2d1fd81b_S1-3 S. 1)
Photo · 930d2d1fd81b_S1-3 · S. 1

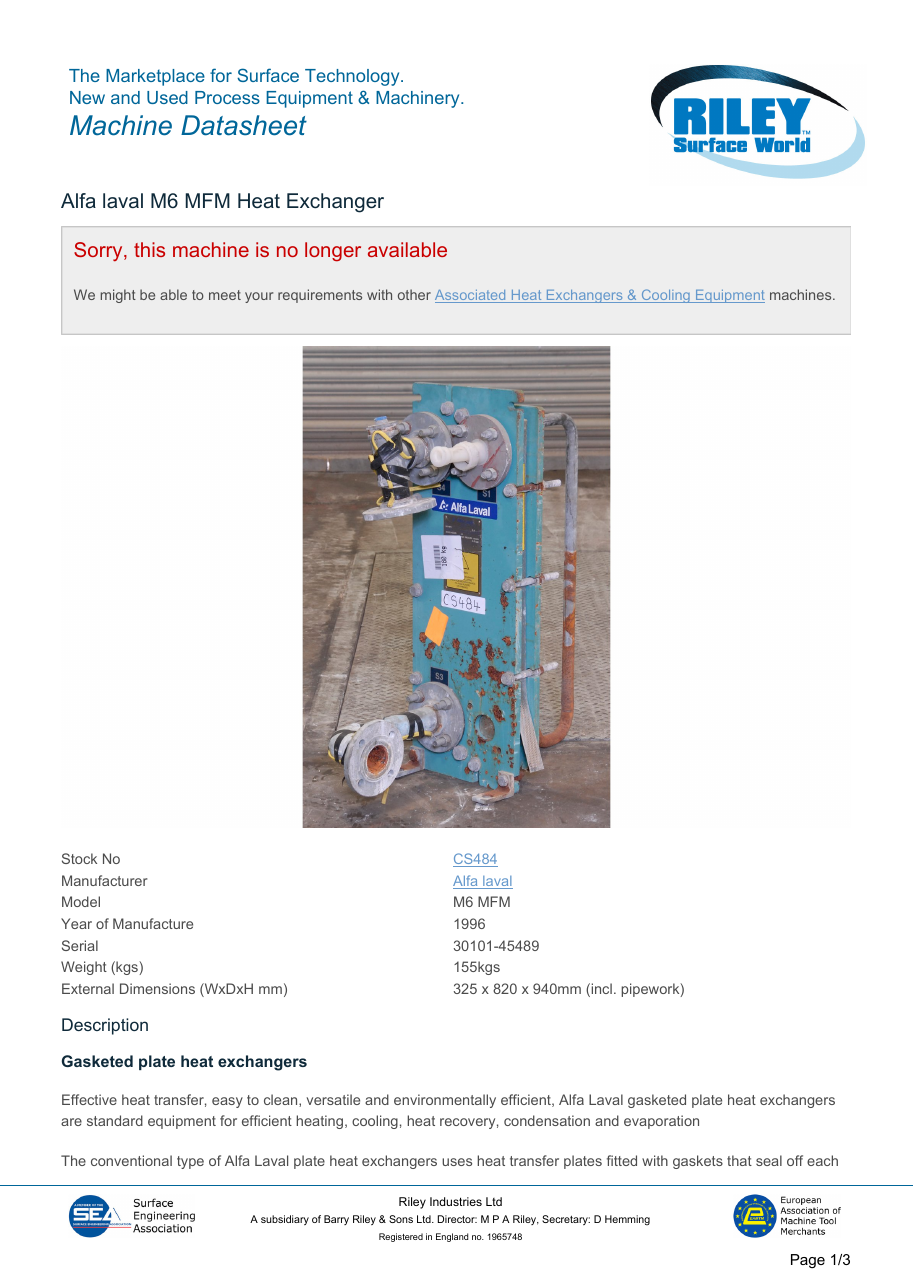

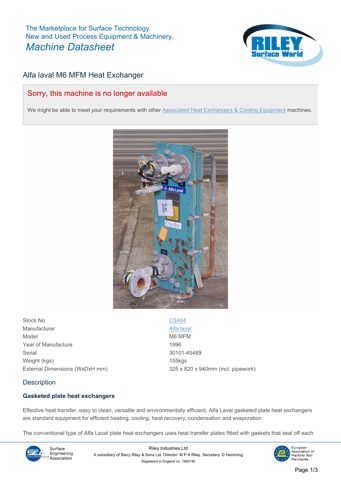

Alfa Laval M6-MFM – Drawing (930d2d1fd81b_S1-3 S. 1)
Drawing · 930d2d1fd81b_S1-3 · S. 1

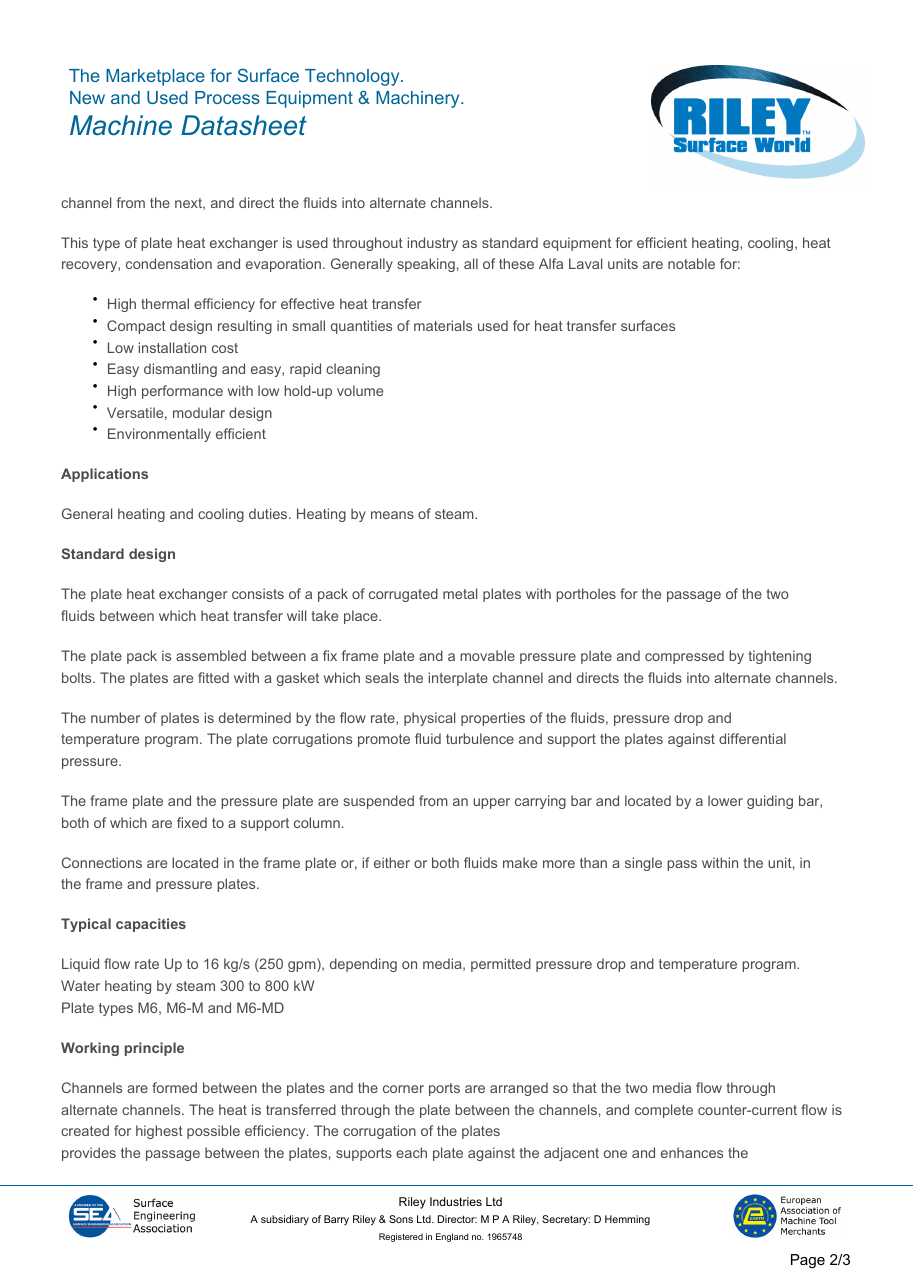

Alfa Laval M6-MFM – Drawing (930d2d1fd81b_S1-3 S. 2)
Drawing · 930d2d1fd81b_S1-3 · S. 2

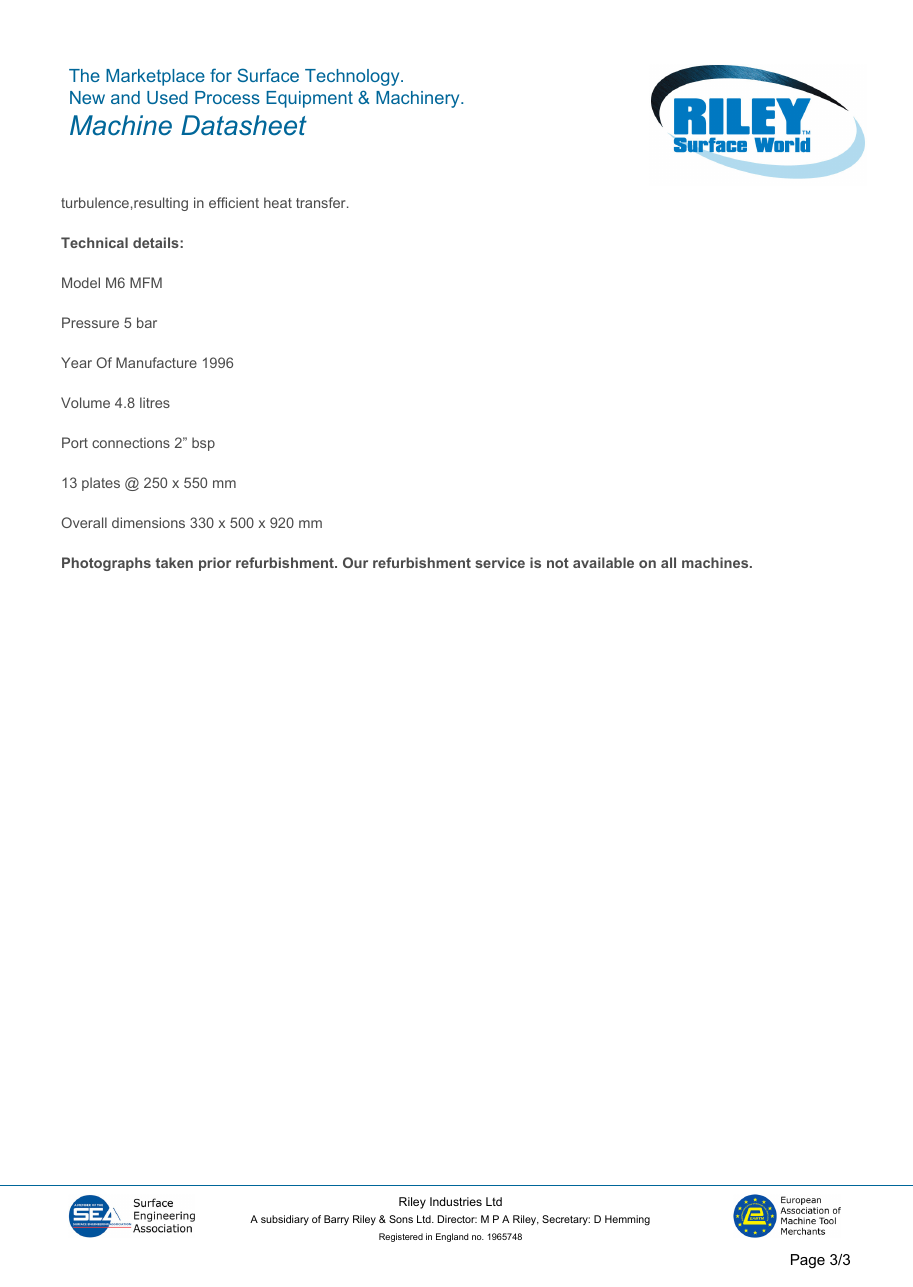

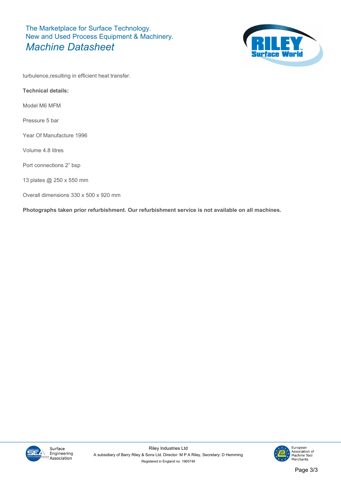

Alfa Laval M6-MFM – Drawing (930d2d1fd81b_S1-3 S. 3)
Drawing · 930d2d1fd81b_S1-3 · S. 3
Source: Alfa Laval M6-MFM datasheet, p. 1
