Library› Engine Room› Steering Gear› Steering Gear› Kongsberg Maritime AS M100
Kongsberg Maritime AS

M100

Steering Gear · Steering Gear

Technical data from manufacturer or class sources · not yet verified by a person
Specifications

Technical data.reference — unverified

Weight35 kg
Dimensions600mm x 600mm x 250mm
Power specifications230 VAC
Environmental specificationsIP54
Operating temperature range-15°C to +55°C
CertificationsCyber security according to IACS UR E27
Main functions and modes:Speed pilot: Automates control of vessel speed. The set point can be entered manually, or it can be taken from the K-Bridge ECDIS route definition for an advanced ETA pilot
Optional advanced functions and modes:Station-keeping: Maintains a vessel’s position. Operators can easily change position and heading through the display. Station-keeping requires integration with Joystick M50
Fact sheets:Autopilot M100.pdf
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The M100 autopilot system from Kongsberg Maritime provides advanced navigation and control functions for vessels, including all-speed pilot, auto crossing, and auto docking.

Applications

  • vessel control
  • ferry operations
  • manoeuvring
  • cruising

Features

  • all-speed pilot capability
  • auto crossing and docking
  • track and speed control
  • motion prediction
  • joystick control
  • station-keeping

Options

  • all-speed heading and track control
  • auto crossing
  • auto docking
  • motion prediction
  • joystick
  • station-keeping

Standards

  • IACS UR E27
Source: Kongsberg Maritime AS M100 datasheet, p. 4
Kongsberg Maritime AS M100 – Drawing (b8284821ba00_S2-4 S. 2)
Drawing · b8284821ba00_S2-4 · S. 2
Kongsberg Maritime AS M100 – Drawing (b8284821ba00_S2-4 S. 3)
Drawing · b8284821ba00_S2-4 · S. 3

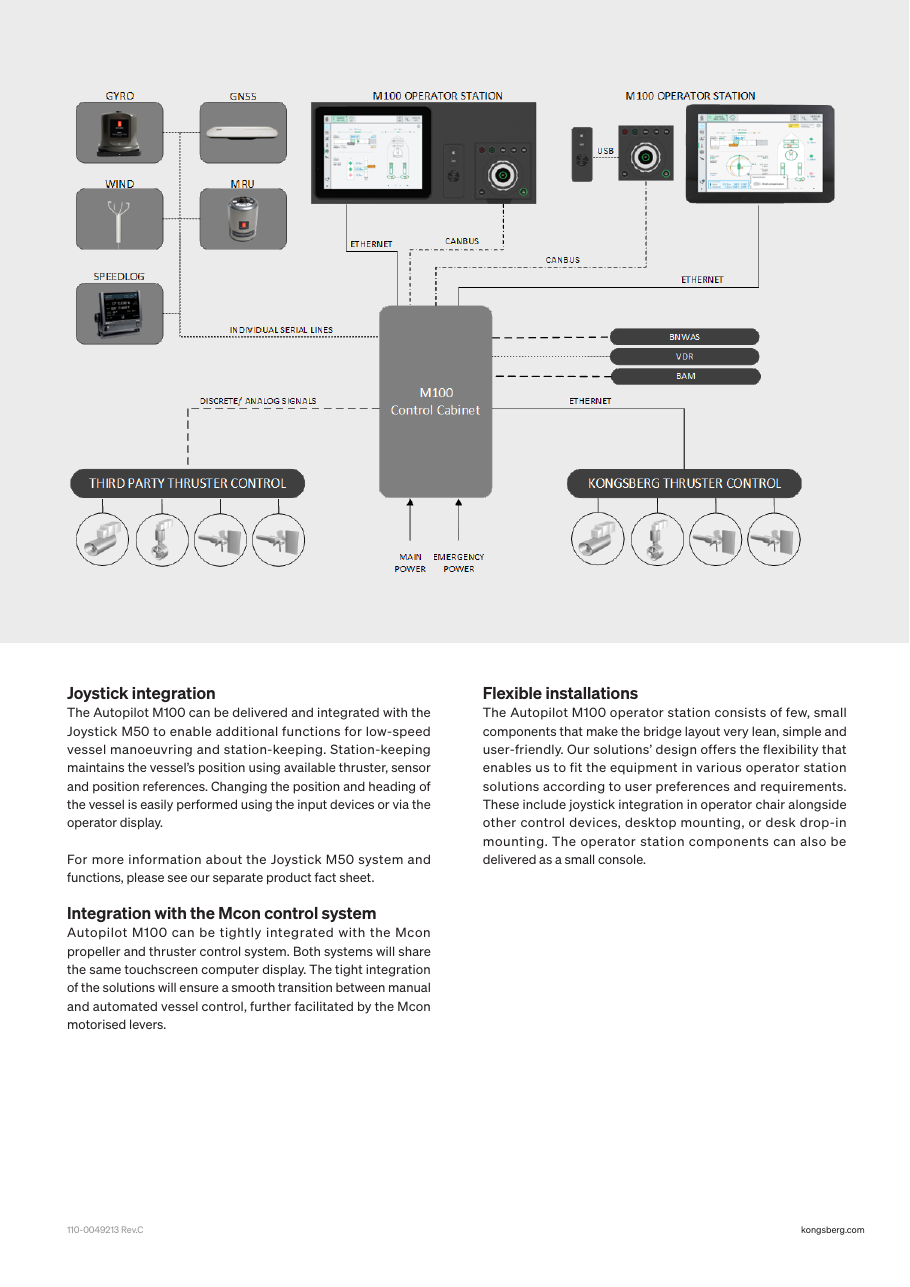

Source: Kongsberg Maritime AS M100 datasheet, p. 2
