Library› Engine Room› Shaft Line & Propulsion› Azimuth Thruster› Kongsberg Maritime AZP C65
Kongsberg Maritime

AZP C65

Azimuth Thruster · Shaft Line & Propulsion

Technical data from manufacturer or class sources · not yet verified by a person
2,000 kWPower
2,800 kgWeight

Steering thrusters are critical components for yachts seeking high efficiency and maneuverability. Kongsberg Maritime's AZP C65 steerable thruster exemplifies these qualities, designed specifically for luxury yachts like the Benetti Fast 125'. This carbon thruster leverages lightweight materials to reduce the overall propulsion system's weight, enhancing vessel layout flexibility without compromising performance. With a continuous service speed of up to 30 knots and a power rating of 2,000 kW, the AZP C65 offers superior handling capabilities and reduced engine room footprint. Its RINA class certification ensures compliance with pleasure yacht standards, contributing to improved comfort levels through reduced noise and vibrations. For support and further information, Kongsberg Maritime's global customer support team is available around the clock, providing technical assistance and retrofit solutions to extend vessel life.

Specifications

Technical data.verified

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

Power (kW)2000
Weight (kg)2800
Thrust hp2500
Power rating (yacht applications)2000kW🔖
Continuous service speedup to 30 knots🔖
Weight complete2800kg (dry)🔖
Leistung (kW)2,000 kW🔖
Gewicht (kg)2,800 kg🔖
Azimuth angle+/- 35 degrees🔖
📄
Download datasheet (7 KB)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

Azipull Carbon 65 steerable thruster for yachts, providing high efficiency and course stability.

Applications

  • high-speed maneuvering
  • course stability
  • reduced noise and vibration levels

Features

  • hydrodynamically optimized
  • improved comfort levels
  • service speed up to 30 knots
  • advanced carbon fibre epoxy composites
  • mechanical power transmission with bevel gears

Standards

  • RINA rules
Source: Kongsberg Maritime AZP C65 datasheet, p. 2
Kongsberg Maritime AZP C65 – Photo (deb696a5025d_S1-2 S. 1)
Photo · deb696a5025d_S1-2 · S. 1

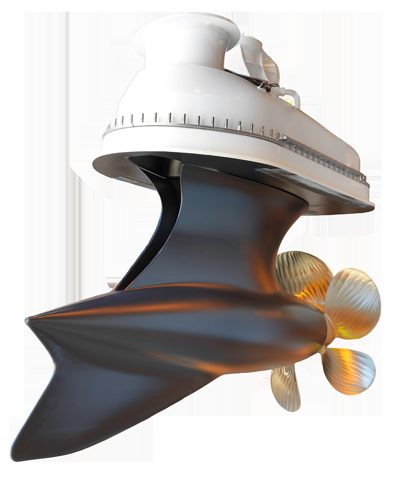

Kongsberg Maritime AZP C65 – Photo (deb696a5025d_S1-2 S. 2)
Photo · deb696a5025d_S1-2 · S. 2

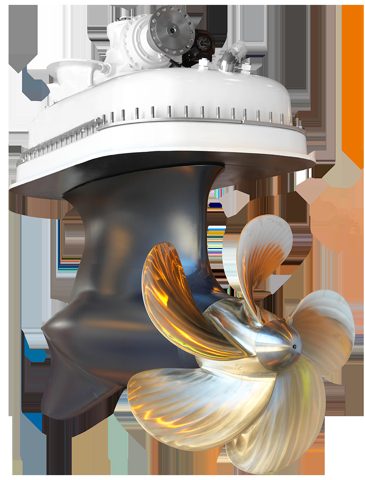

Kongsberg Maritime AZP C65 – Photo (deb696a5025d_S1-2 S. 2)
Photo · deb696a5025d_S1-2 · S. 2

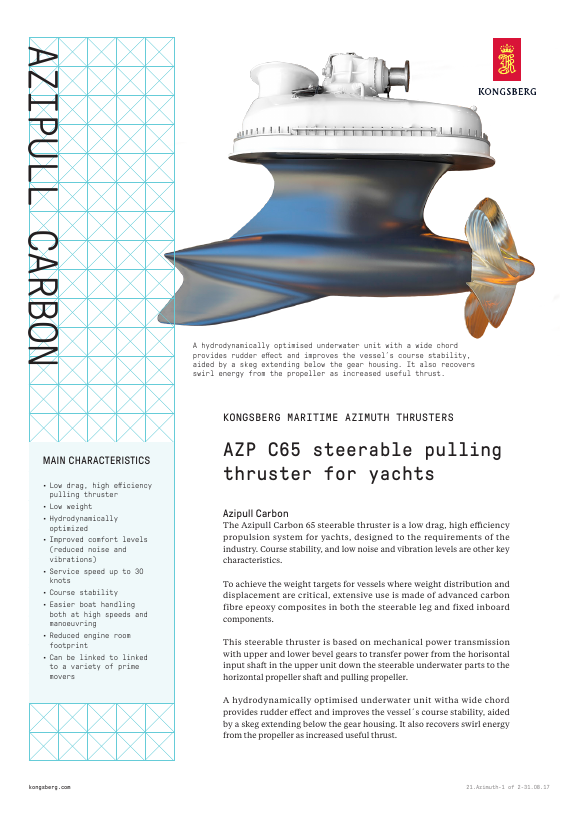

Kongsberg Maritime AZP C65 – Page preview (deb696a5025d_S1-2 S. 1)
Page preview · deb696a5025d_S1-2 · S. 1

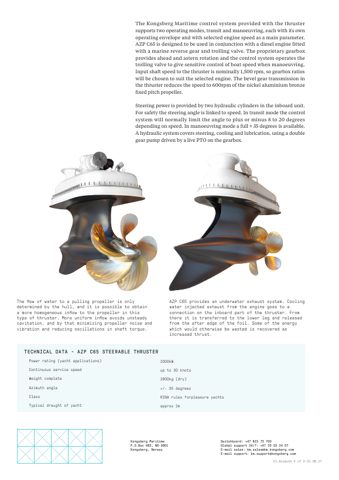

Kongsberg Maritime AZP C65 – Page preview (deb696a5025d_S1-2 S. 2)
Page preview · deb696a5025d_S1-2 · S. 2
Source: Kongsberg Maritime AZP C65 datasheet, p. 1
