Library› Engine Room› Pumps› Screw Pump› Leistritz L3NG
Leistritz

L3NG

Screw Pump · Pumps

Technical data from manufacturer or class sources · not yet verified by a person

Leistritz L3NG — Three-screw, low-pressure, self-priming positive displacement pump for non-abrasive lubricating fluids. Used for feed/booster pumps, transfer pumps, diesel and heavy fuel oil applications in shipbuilding.

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Capacity m3h max700
Pressure bar max16
Viscosity cst max15000
Temperature degc max180
Operating pressure8 bar
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The L3NG screw pump series supplies large diesel engines with lubricating oil and fuel oil worldwide.

Applications

  • large diesel engines lubrication
  • fuel oil supply

Features

  • optimized pump operating system
  • compact structural shape
  • special customer demands considered

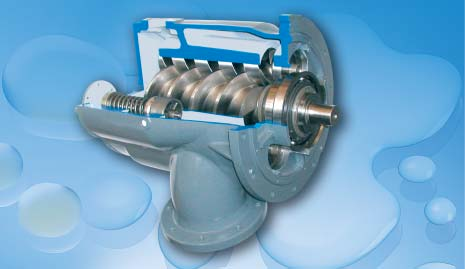

Leistritz L3NG – Photo (232e1655c597_S1-2 S. 1)
Photo · 232e1655c597_S1-2 · S. 1

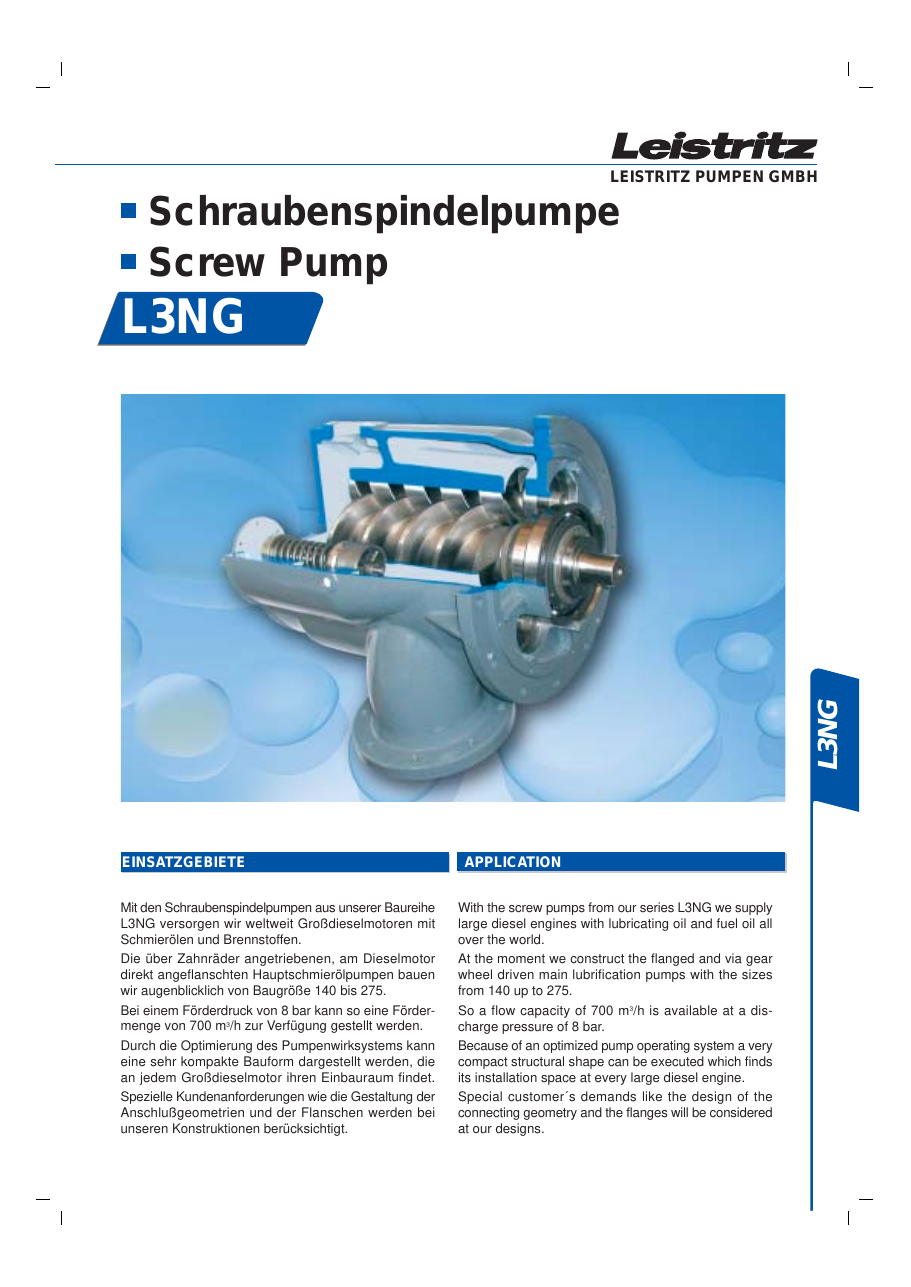

Leistritz L3NG – Drawing (232e1655c597_S1-2 S. 1)
Drawing · 232e1655c597_S1-2 · S. 1

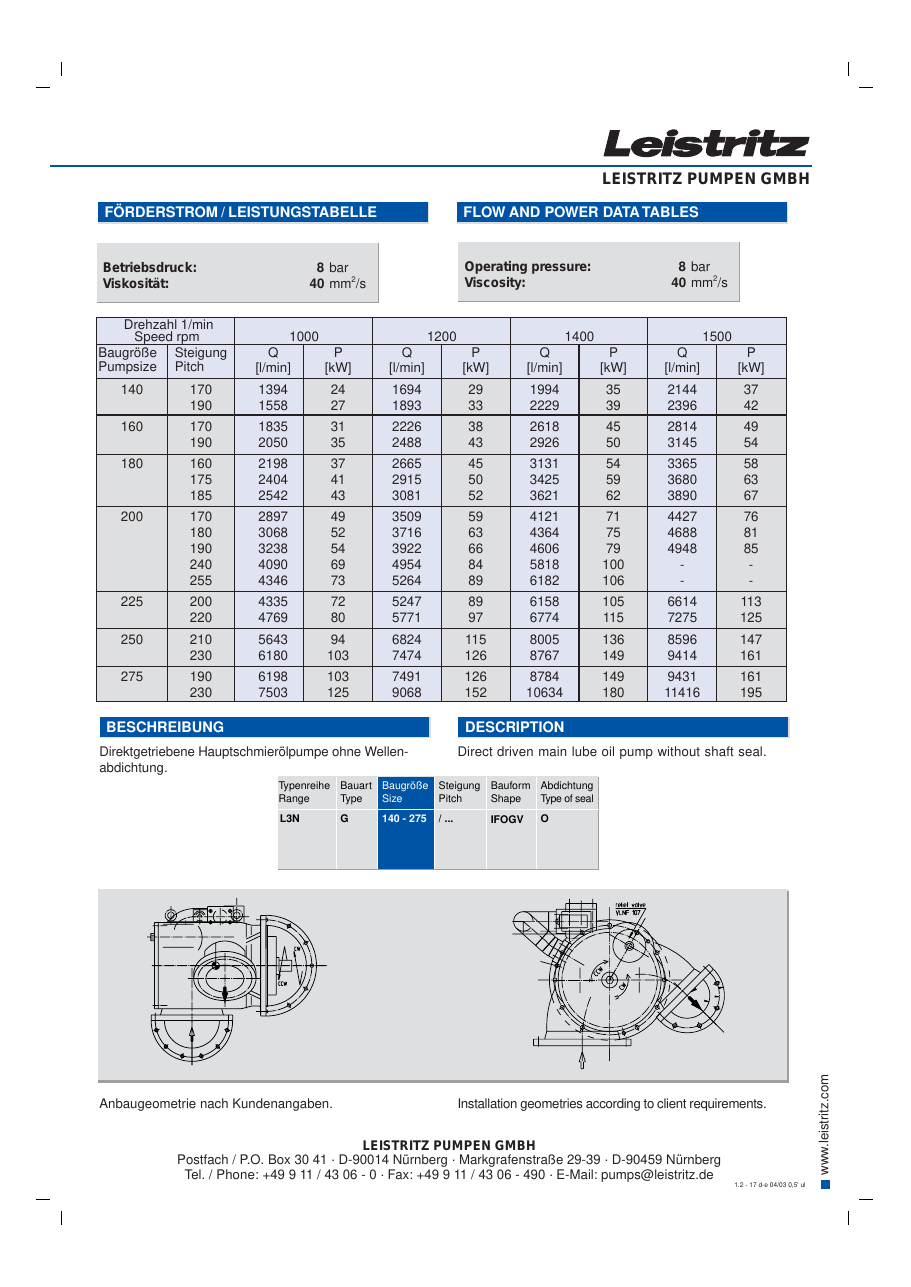

Leistritz L3NG – Drawing (232e1655c597_S1-2 S. 2)
Drawing · 232e1655c597_S1-2 · S. 2
Source: Leistritz L3NG datasheet, p. 1
