Qingdao Seakong Marine Machinery Co., Ltd

Bulwark Mounted Panama Chocks DIN81915 Type A

Panama Chock · Anchor & Mooring Equipment

Technical data from manufacturer or class sources · not yet verified by a person​‍‌​‍⁠‍⁠​‍‍⁠​‌‌​⁠​​​
26 kgWeight
360, 160, 200Dimensions
View photo ↗

Panama chocks are essential equipment for securing mooring lines on ships, ensuring safe and secure berthing operations. The Bulwark Mounted Panama Chocks DIN81915 Type A is designed to meet the stringent requirements of maritime regulations, providing reliable performance in various weather conditions. With dimensions of 360 mm in length, 160 mm in width, and 200 mm in height, these chocks are compact yet robust, fitting seamlessly into the bulwark mounting positions on board vessels. Weighing 26 kilograms, they offer a balance between durability and ease of handling during installation and maintenance. These chocks are manufactured to comply with DIN81915 standards, ensuring optimal performance and safety for maritime operations.

Specifications

Technical data.from datasheet

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

StandardDIN81915 Type A
Max safe working load tons500
MaterialCast Steel, optional Stainless Steel AISI316
Available safe working load modelsSWL102T, SWL120T, SWL204T, SWL350T and others up to SWL500T
Opening shapesOval, Circular, Triangle
Dimensions360, 160, 200 mm🔖
Weight (kg)26 Kg🔖
📄
Download datasheet (PDF) (56 KB)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

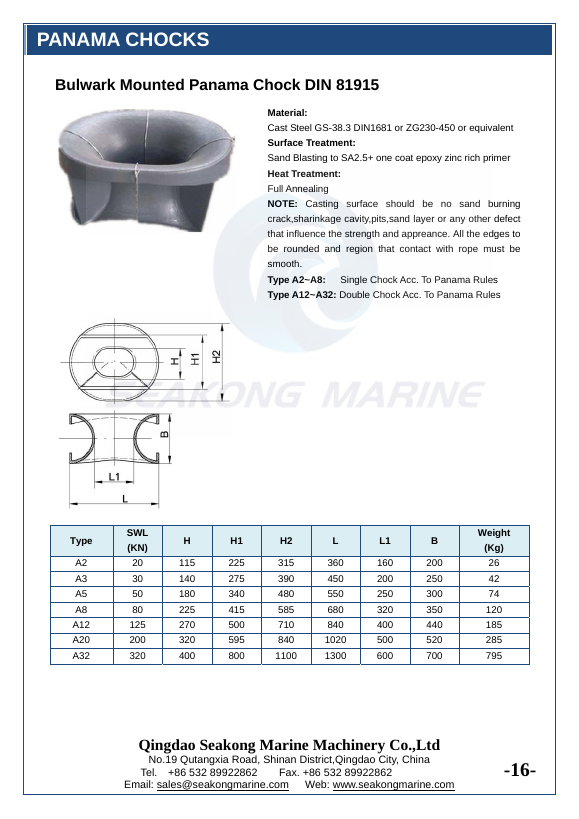

“PANAMA CHOCKS Bulwark Mounted Panama Chock DIN 81915 Material: Cast Steel GS-38.3 DIN1681 or ZG230-450 or equivalent Surface Treatment: Sand Blasting to SA2.5+ one coat epoxy zinc rich primer Heat…”

Qingdao Seakong Marine Machinery Co., Ltd Bulwark Mounted Panama Chocks DIN81915 Type A – Photo (Qingdao Seakong Marine Machinery Co., Ltd datasheet S. 1)
Photo · Qingdao Seakong Marine Machinery Co., Ltd datasheet · S. 1
Qingdao Seakong Marine Machinery Co., Ltd Bulwark Mounted Panama Chocks DIN81915 Type A – Page preview (Qingdao Seakong Marine Machinery Co., Ltd datasheet S. 1)
Page preview · Qingdao Seakong Marine Machinery Co., Ltd datasheet · S. 1
Source: Qingdao Seakong Marine Machinery Co., Ltd Bulwark Mounted Panama Chock, p. 1
